Eembezon

12/24/2023

RatOs with a Bigtreetech Octopus Max EZ 1.0

Goodmorning. I have a question about configuration RatOs with a Bigtreetech Octopus Max EZ 1.0 . At http://ratos.local/configure?step=1 this board is not in the list. Which board do I have to choose ????

SSte4lthles

12/23/2023

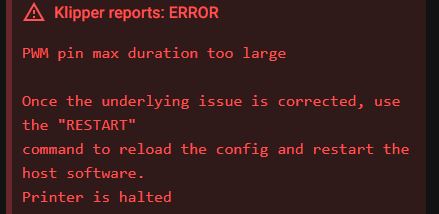

Error on new VC300 build

No idea what this means, all thermistors, ssrs and power connected.

Aapollo1857

12/23/2023

Endstops constantly triggered

Hello! I'm trying to configure my vcore 3.1 Went through the installation of ratOS, all going well, steppers fine, movement okay, next step was checking endstops. And my y, z and probe are constantly triggered. X endstop is working fine. Any idea why? Any and all help appreciated, TIA...

EEternalPath

12/23/2023

adaptive Mesh generating "move out of bounds" error when parts are close to the edge of the bed.

In ratos 2.0 with adaptive Mesh enabled. If I put a part close to the edge of the bed. I get a move out of bounds error during mesh probing. Error doesn't occur with adaptive meshing disabled....

VGVitamin G42069

12/22/2023

Difficulties with 48V stepper configuration

As the title states I'm having trouble getting configuring the steppers for both 48V and for AWD. I am not familiar with configuring either. Is there a good resource to learn from? I am getting the current error message when I try to home either the X or Y axis with only the default 2 rear motors. I have also attached my config to show how I defined the TMC 5160 parameters.

NNecroDavid

12/22/2023

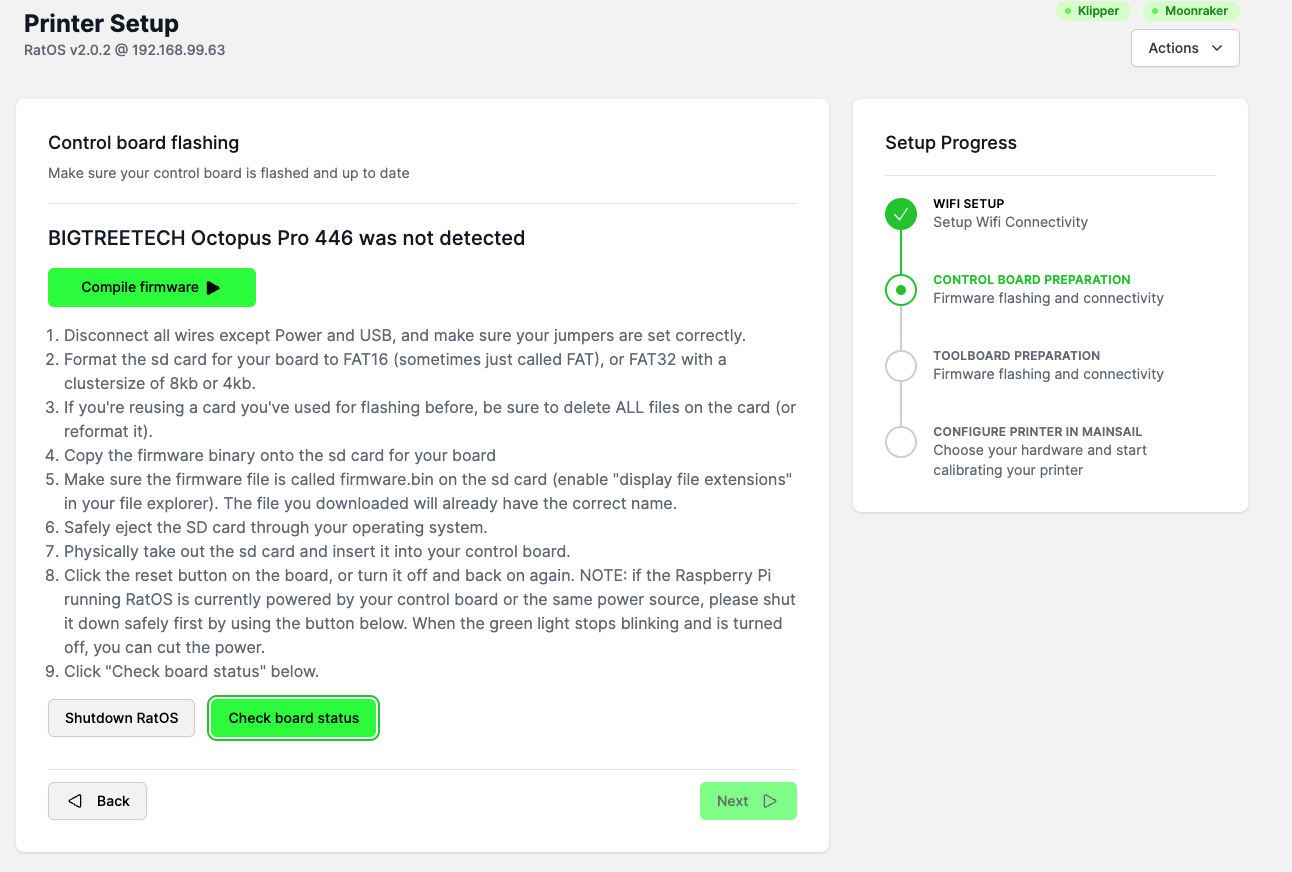

Stuck at control board flashing

I was not able to flash my Octopus Pro 446 automatically, so I used an external SD card to flash the firmware. After a power cycle, the firmware.bin turned into firmware.cur, indicating that the Octopus Pro 446 was flashed successfully. However, RatOS still says Octopus Pro 446 was not detected. Clicking on "check board status" does nothing, and I cannot click next.

AAndyL

12/21/2023

Homing X moves Z as well

I just verified that all the steppers are working via STEPPER_BUZZ. Now I want to home axis by axis. I started with homing the X-Axis (sensorless) but before it homes X, it moves the bed downwards. Is this expected behaviour or did I misconfigure something? The following X-Axis homing is fine though.

TTheInternets

12/21/2023

gcode command M106 already registered

I want to reconfigure M106 to properly control the various fans from orca slicer, especially an air scrubber like a nevermore. When I do what I did for my Voron V0, i get the Error message "gcode command M106 already registered" - is there a macro somewhere in RatOS that already redefined M106?...

Ppd

12/21/2023

Retries aborting: Probed points range is increasing.

Still doing the initial config and setup and getting this error when trying to home the Z tilt. I verified that all 3 steppers are moving in the correct direction using "SET_CENTER_KINEMATIC_POSITION" and moving the bed up and down.

printer.cfg

OOskait

12/21/2023

Sometimes KlipperScreen / Mainsail wont start, SSH is possible

So every so often, I turn on the power of the printer (and pi, which is powered with a dedicated 5V 3A meanwell PSU going to the USB-c port) My klipperscreen shows the usual pi bootup console, then it turns black and stays like that. Usually KlipperScreen comes online after a couple seconds and the Mainsail is available. However sometimes the screen stays black with the console cursor in the corner, and no connection to mainsail ist possible. A hard reset fixes is sometimes, sometimes I have to cut power several times until it boots successfully....

WRwolffy01 #rook163

12/18/2023

ERCF Happy Hare v2 and Btt CB1 install issues

Following happy Hare install command and end up with this issue

VID_20231218_221143....

MMcNik

12/17/2023

ADXL-Pin errors

Hey people, currently configuring my VC3.1 and getting an error I cant seem to solve. Help would be appreciated 🙂...

VGVitamin G42069

12/17/2023

Beacon not triggering

I just wired up the beacon probe and the red LED turns on when I place a piece of metal underneath it but it still shows z probe as always being triggered. I was using the standard p&f probe before so im guessing I need to change something in the config so that klipper will use the pi port not the octopus probe port for the pin signal. Anyone have experience with this? I have attached my printer.cfg file

printer.cfg

CC7H

12/15/2023

Homing Modification

Hello, I want to home Y axis without moving the tool head to middle. How can I change it?...

Ffredz

12/15/2023

connection failed

Hi, during printing I always have connection problem with RatOs. I must actualize 2or3 Times before restore it. What can I do?

72434368209__63679AA...

Jjo200n2

12/14/2023

Euclid setup on EBB42 toolboard

I'm in the final stages of the setup for my Vcore 3.1 and having some issues with setting up the Euclid probe on the x endstop pin from my EBB42 (Pin PB6). Has anyone else run into this same issue with this config? tia

BBoosted240

12/13/2023

Symlink klippy extensions

I'm trying to follow the guide to fix a Klipper hard reset, but I don't have the "actions" dropdown anywhere on the page oddly..

OOskait

12/12/2023

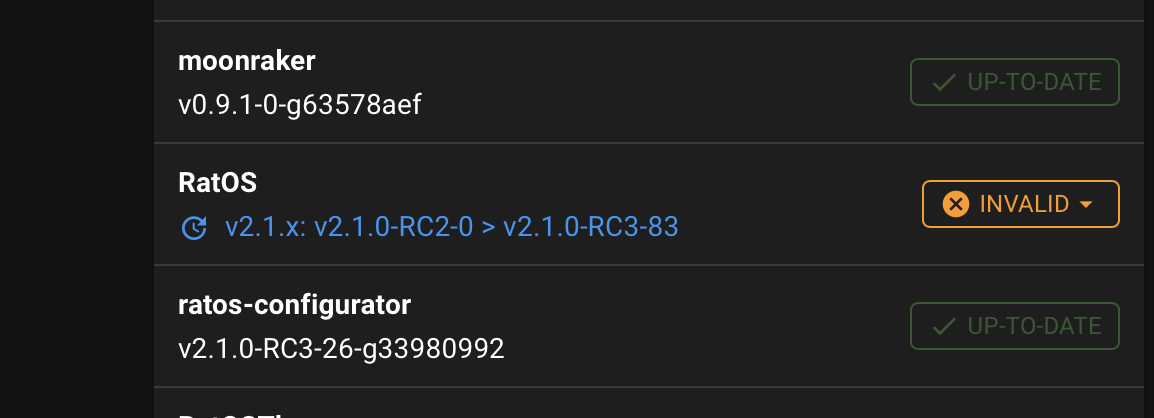

Repo has untracked source files - Is that normal?

After a full Update, I noticed that Klipper and moonraker show an i in the machine tab as shown in the picture. Is that normal or is somehting broken?

Bbillyd

12/12/2023

Beacon Z heights reported in console during Z tilt do not match reported range during all iterations

https://discord.com/channels/641407187004030997/1183950228190154812/1183950228190154812 I didn't want to cross post, but I wanted to make ratos support aware of this too, as I am not sure where the error is coming from.

SSynapsis

12/11/2023

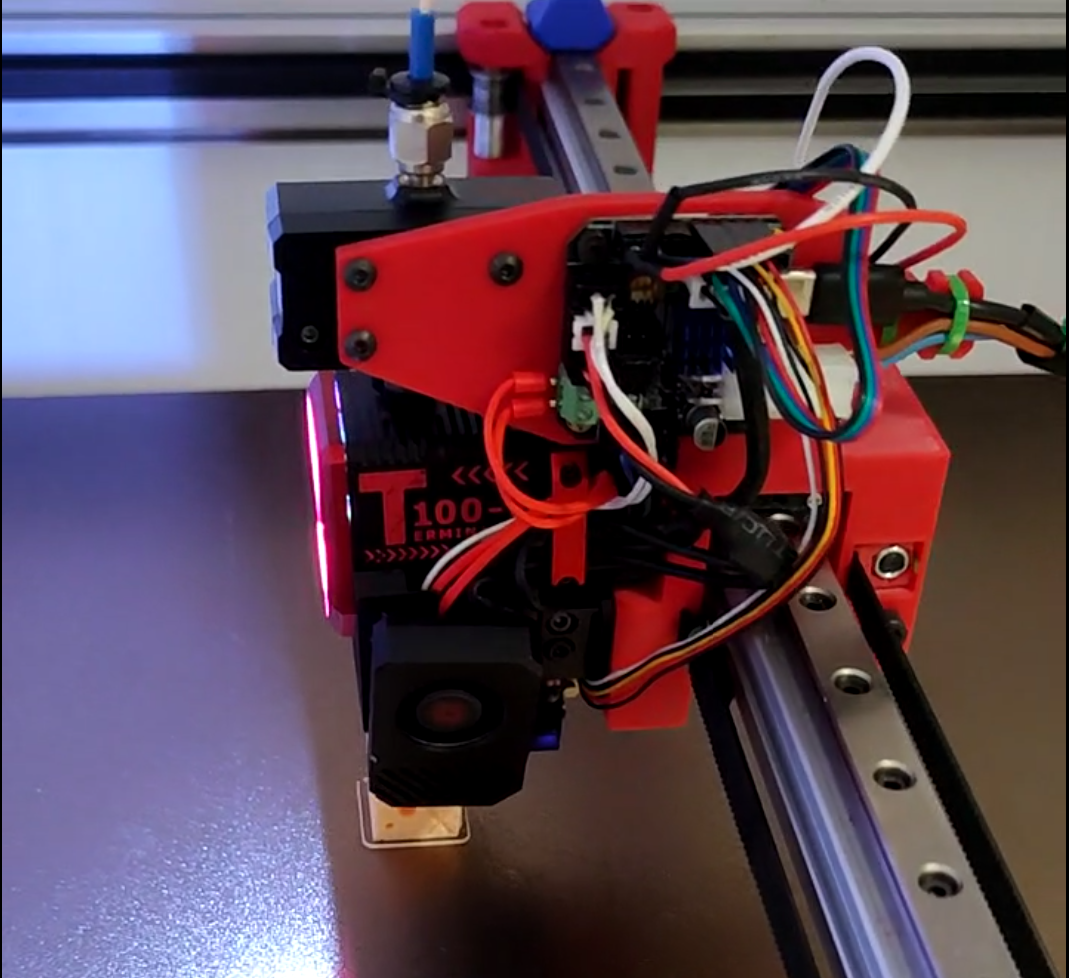

BTT Filament Senor V2 False Positives

I have the Btt filament sensor V2 set to 3 mm as they suggest but I get lots of false positives even though they show detected, As you can see the filament passes through the sensor then directly into the hotend. So there is no play at all. When it goes into pause the screen shows both runout and encoder detected....
