Joinpashok - Hello! When i added sma connector i ha...

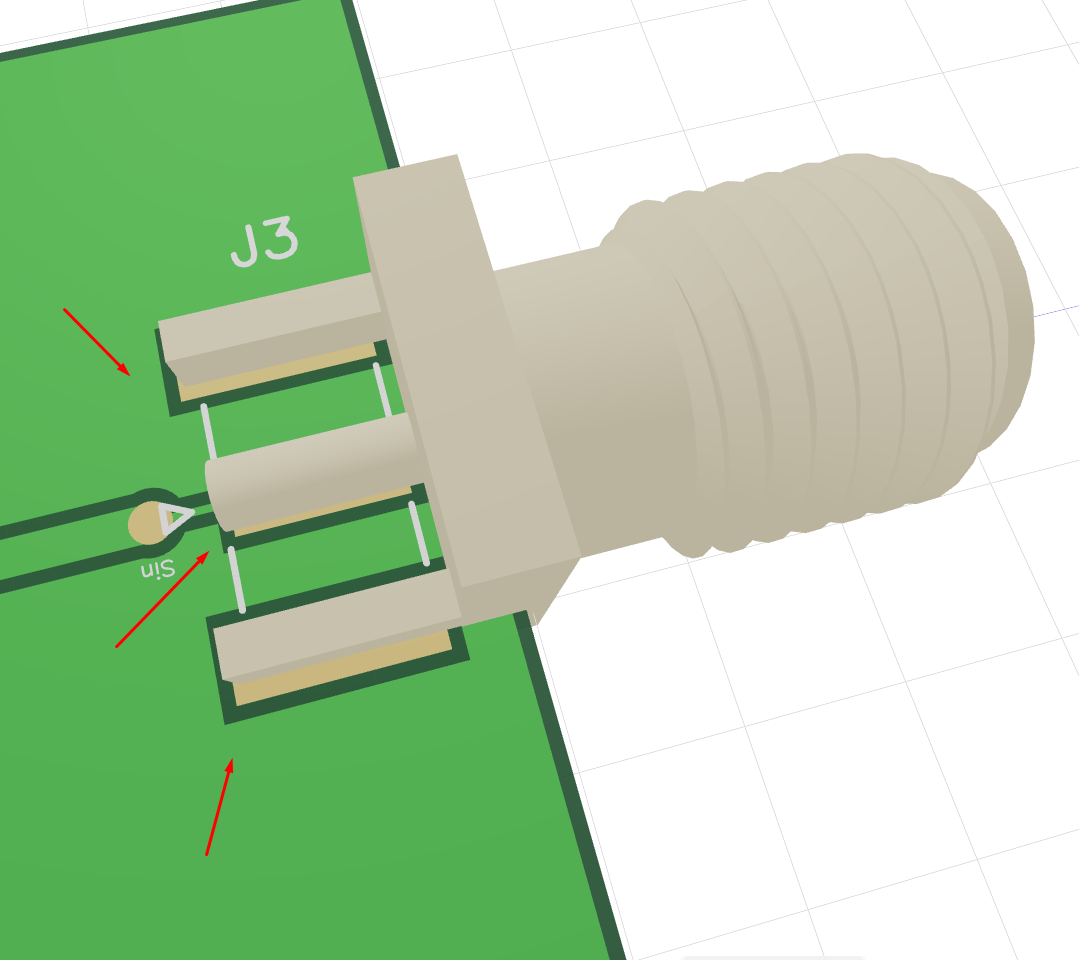

Hello! When i added sma connector i have only on one side places. On the other side i haven't got. It's okay?

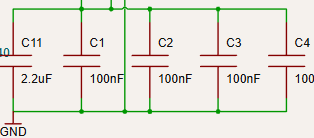

dexis - this gnd net kinda hideous, how can i u...
this gnd net kinda hideous, how can i use a ground symbol? maybe a stupid question, but i'll ask anyway

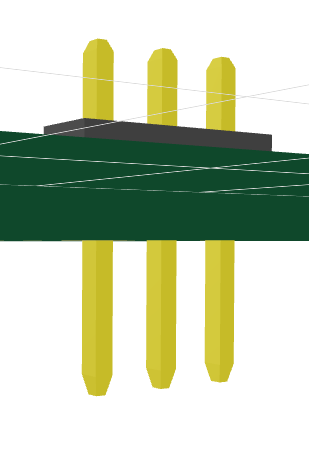

Arduano - I added a jumper, is this the correct...
I added a jumper, is this the correct pin orientation by default? sorry I'm new to this. I'd assume the short pins would go through the board for soldering and long pins are the dupont male pins

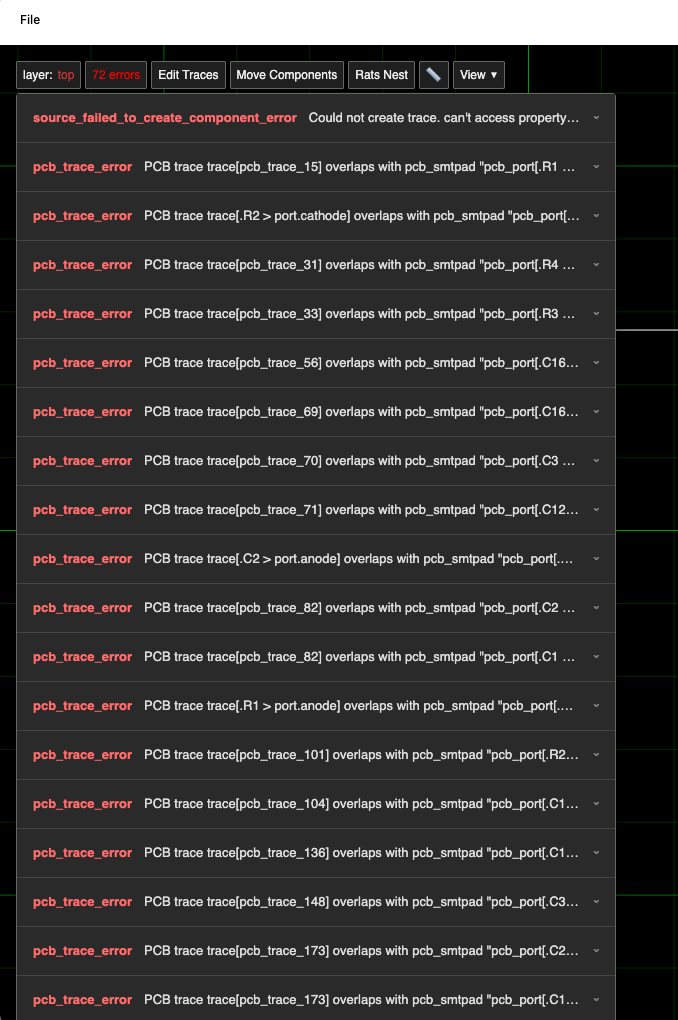

```
<jumper
name="SSR"...
Arduano - another another issue: pressing "impo...

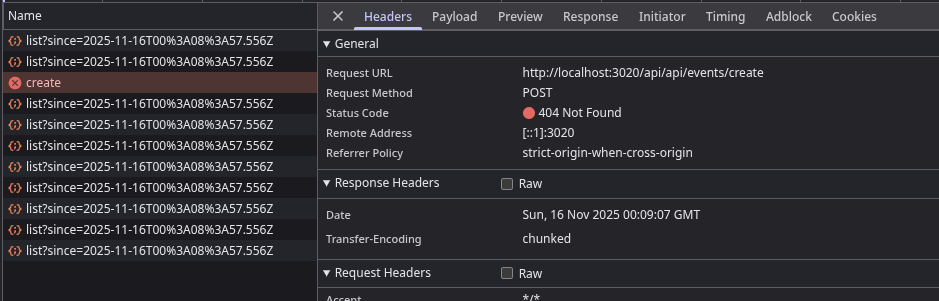

another another issue: pressing "import component" on a tscircuit component gives a 404
Arduano - hey, I was just trying to get started...
hey, I was just trying to get started but it seems like all repos on the site show 404, e.g. https://tscircuit.com/ShiboSoftwareDev/pushbutton-led-tutorialS
Basically any one I click ends up with an error/404...
itsme - what repo should i make an issue in if ...
what repo should i make an issue in if the issue is about the errors being a false positive?
Ray Kholodovsky - do you have a way to do a hol...

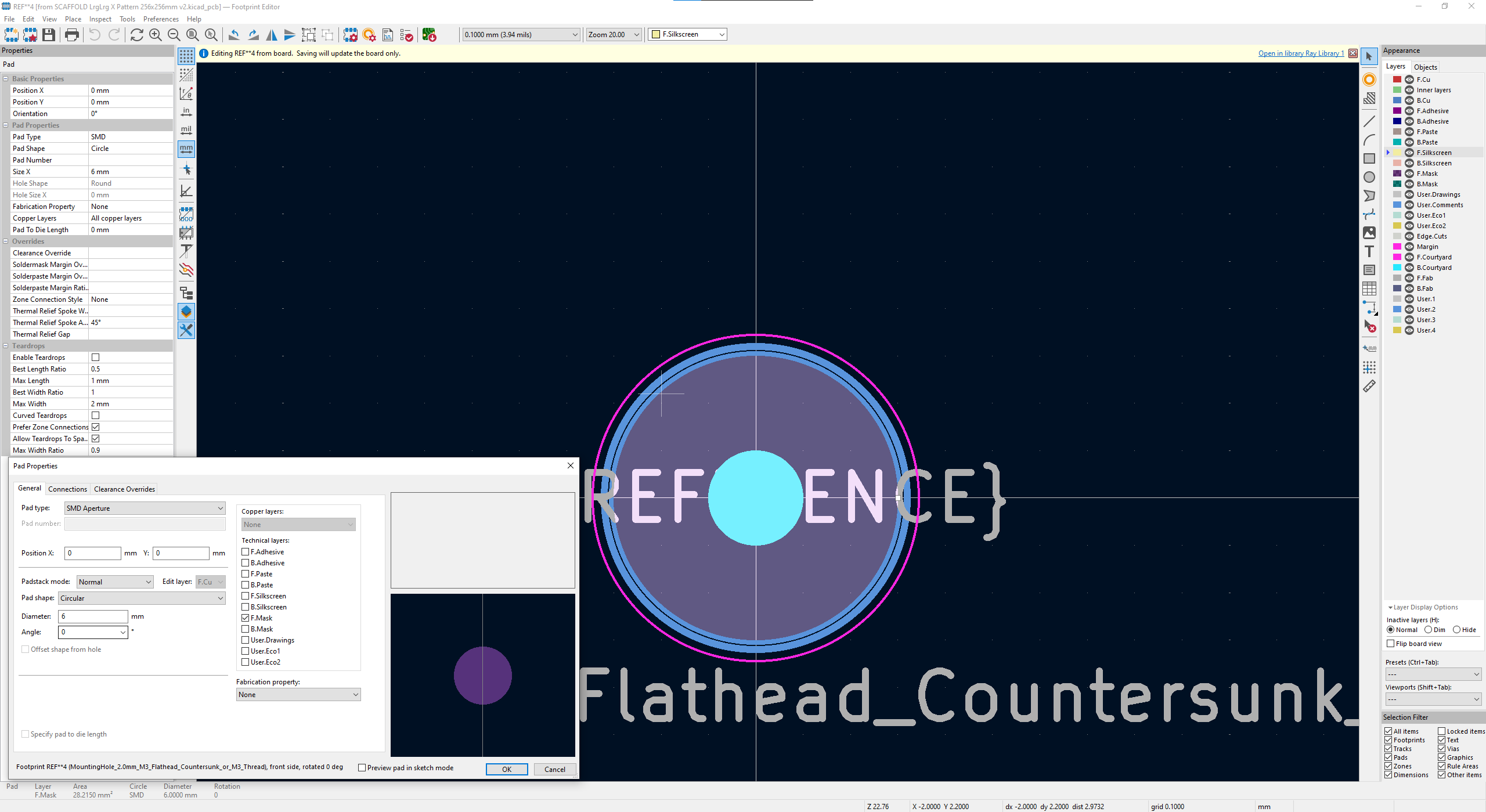

do you have a way to do a hole with a soldermask pullback ? in kicad this is called an aperture.
ok so I have these as separate things that I could stick inside a tsc <footprint> essentially I have the 2mm non-plated hole, I need a way to say circle 6mm no soldermask here....
ok so I have these as separate things that I could stick inside a tsc <footprint> essentially I have the 2mm non-plated hole, I need a way to say circle 6mm no soldermask here....

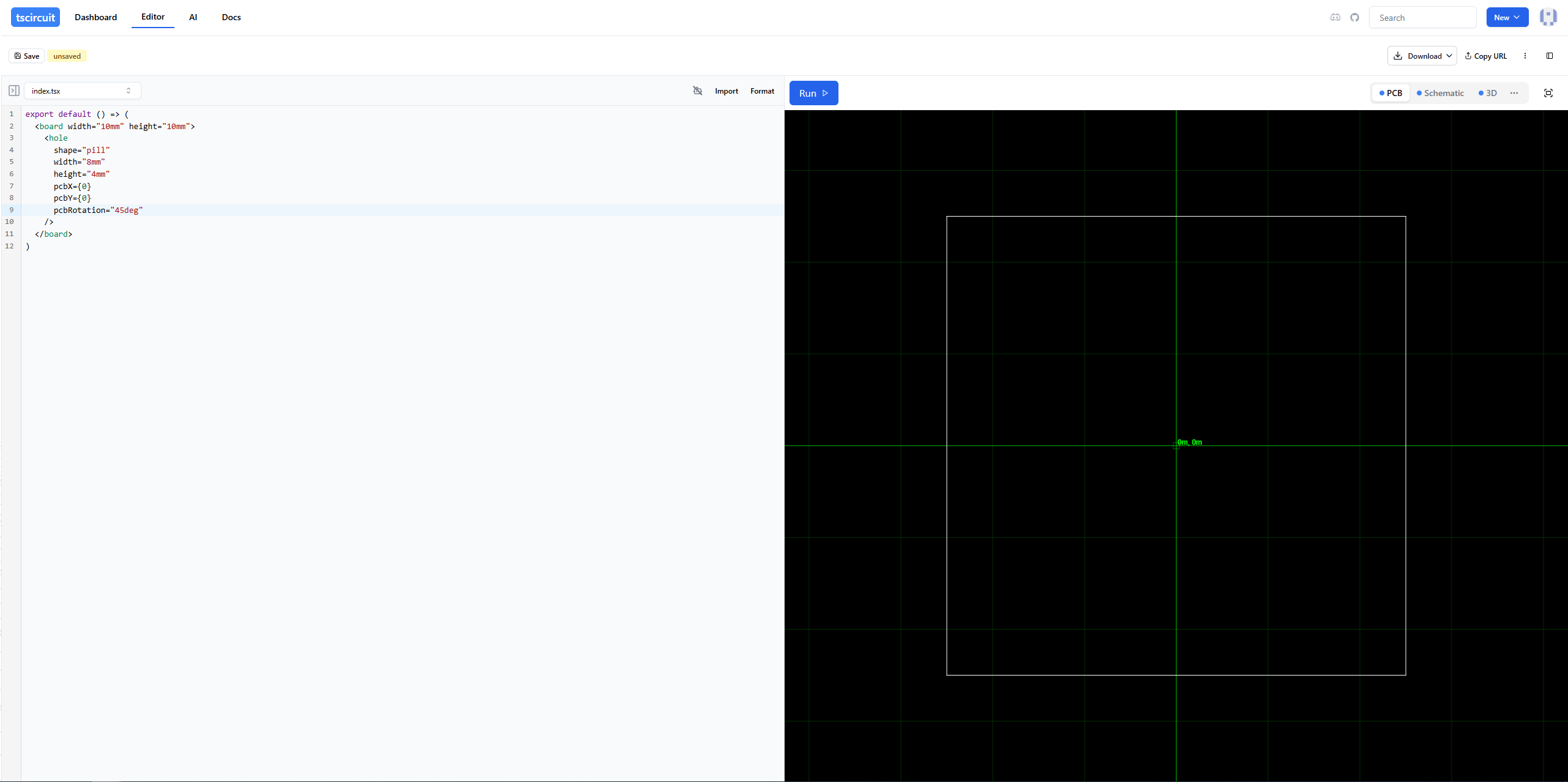

Ray Kholodovsky - .com is not rendering a pill ...
.com is not rendering a pill hole for me in PCB. Docs show a magenta oval, I get nothing. 3D does show the cutout though.
```
export default () => (
<board width="10mm" height="10mm">...

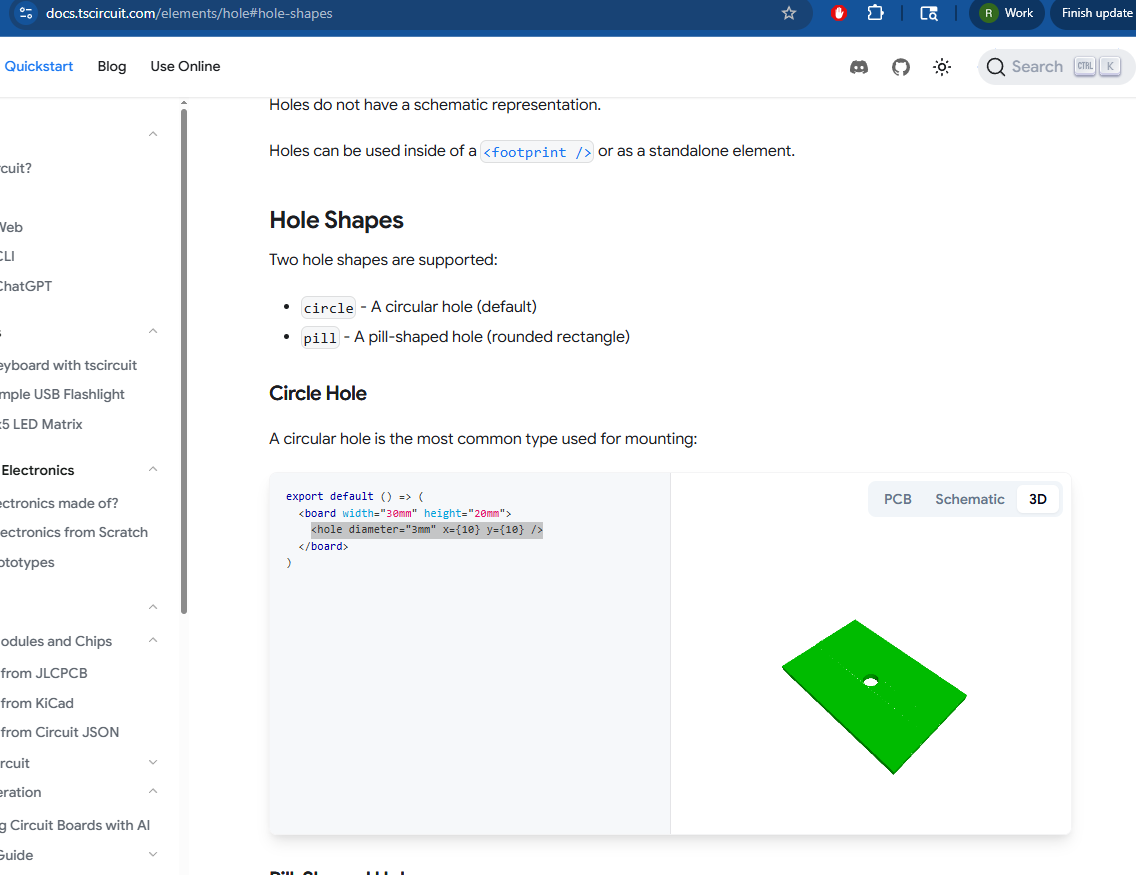

Ray Kholodovsky - hole docs page has wrong synt...
hole docs page has wrong syntax, needs to be pcbX and pcbY
xiduzo - maybe a stupic question, but where/how...

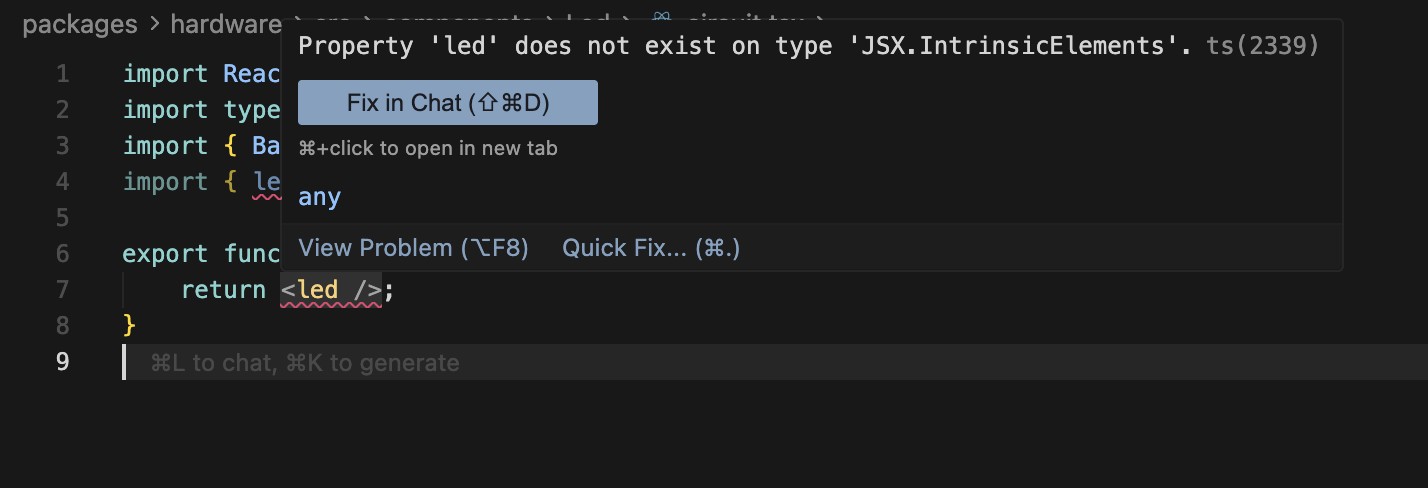

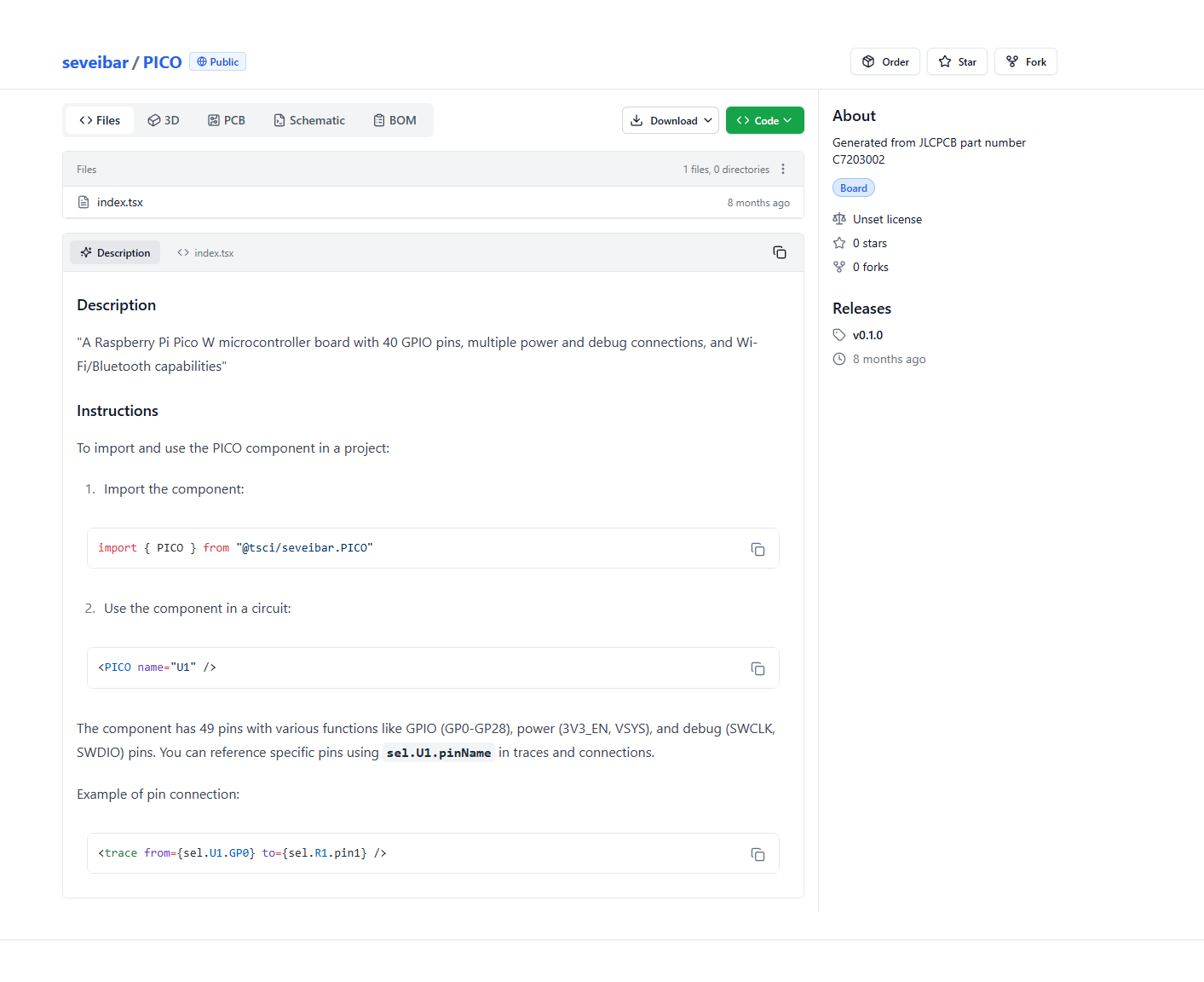

maybe a stupic question, but where/how do I actually import the basic components?
Ray Kholodovsky - https://github.com/tscircuit/...
https://github.com/tscircuit/tscircuit/issues/1150
I'd like to bump this as a minor annoyance.

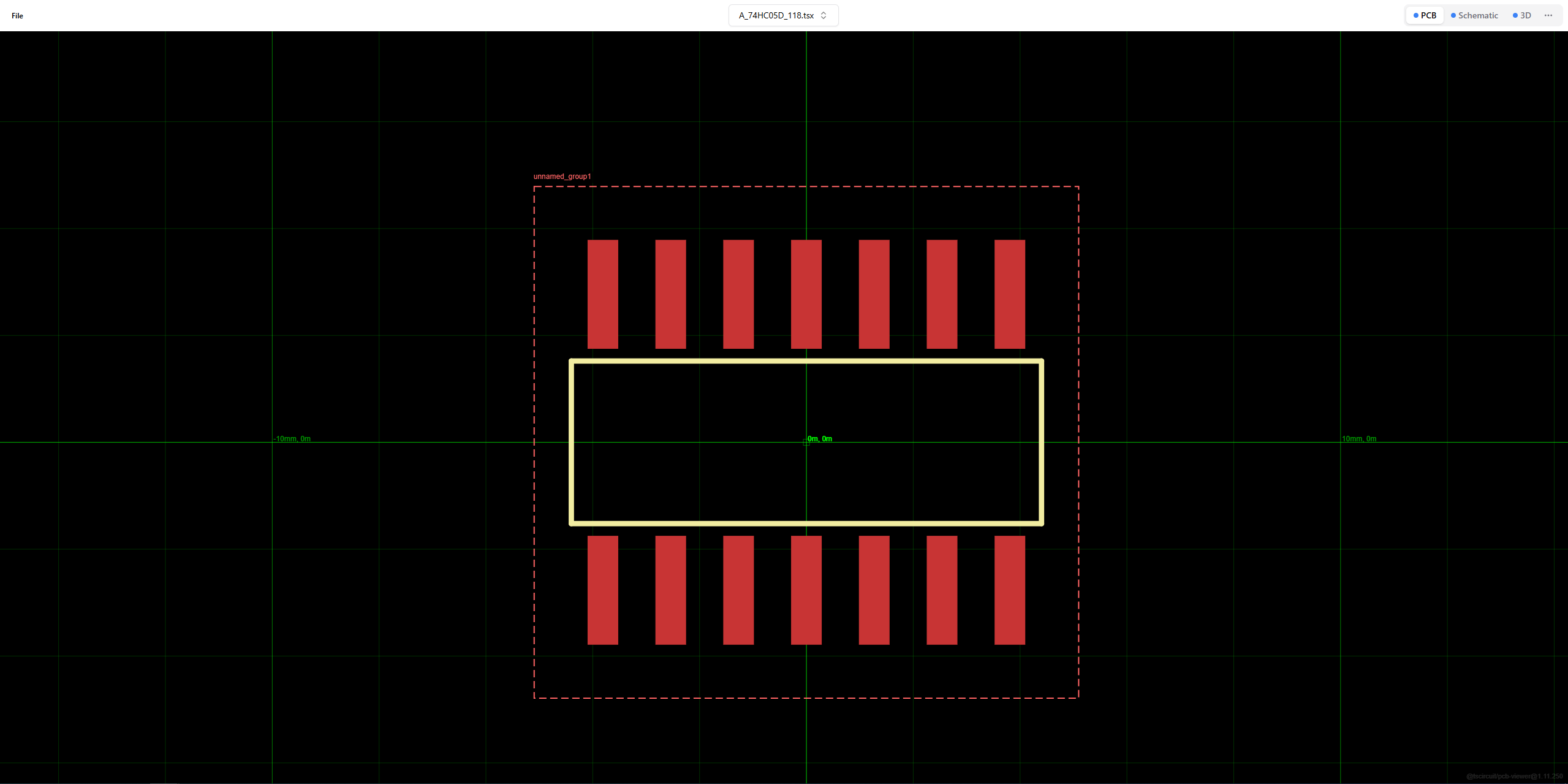

In kicad, I'm used to viewing my footprints in 3d and seeing the pads, traces, drilled holes, etc... in the 3d view....
In kicad, I'm used to viewing my footprints in 3d and seeing the pads, traces, drilled holes, etc... in the 3d view....
