Help me make this work

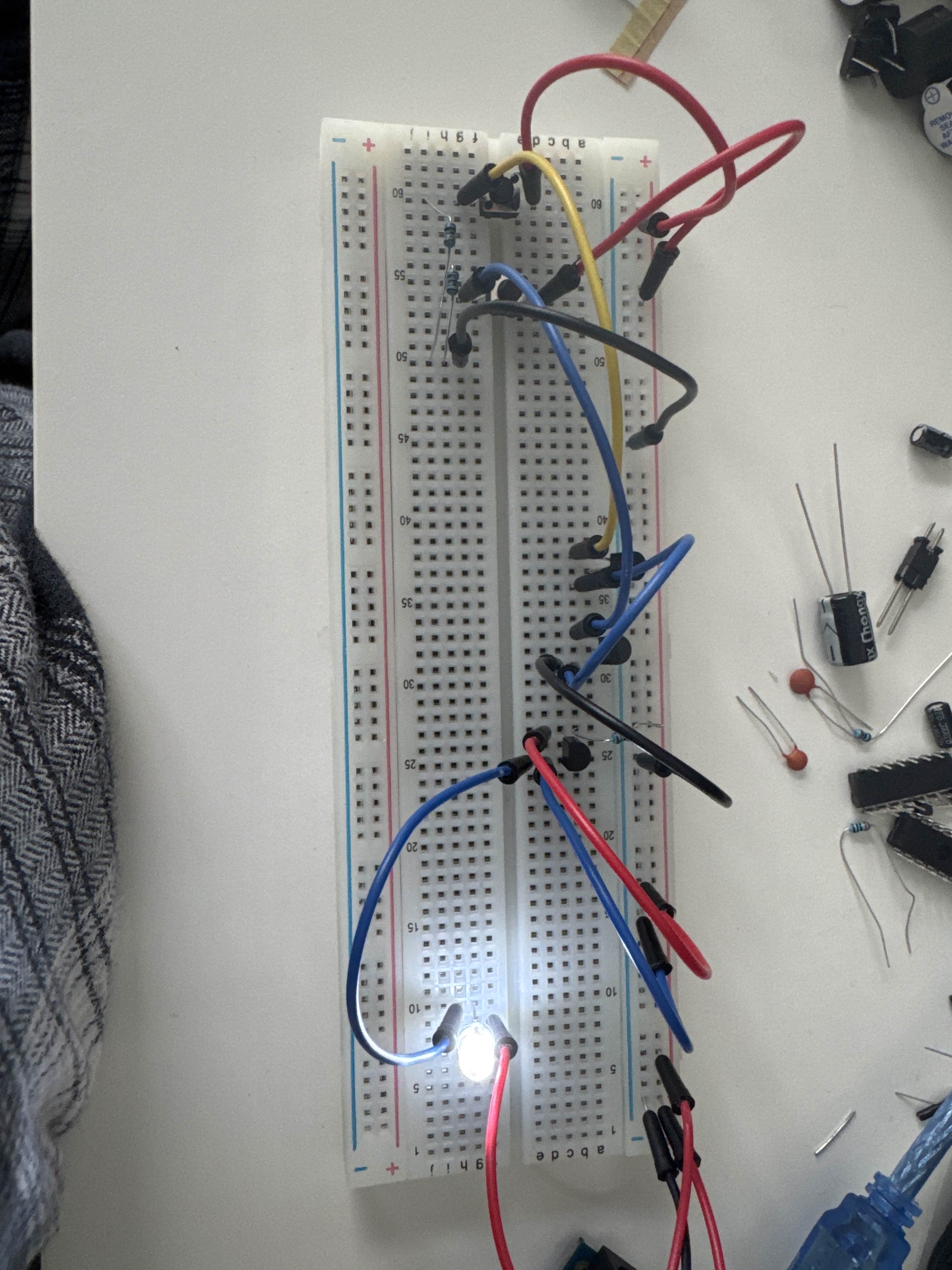

few days ago i asked if this circuit would be safe and i got the answer that it should be okay but now that i test the same circuit irl it isnt working?
Confirming a working dock for Uno Q
Greetings folks -

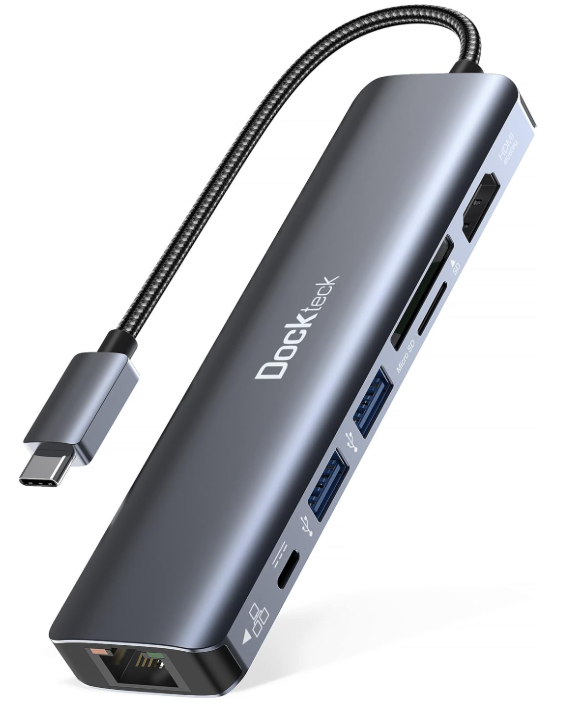

I wanted to share a usb-c dock that I can confirm works very well with the Uno Q:
https://a.co/d/7NzGytt...
Teensy CAN project
Hi guys, i'm trying to build a teensy project that listens to CAN messages from my cars ECU. My ECU is a standalone ecu since the car is supercharged, and with that the ECU has an AUX plug that features can/hi lo access. I've spoken to the ECU manufacter and they said I need to have a 120ohm resistor going across the CAN HI + LO.
I've done that, but i'm still receiving no messages what so ever, the BAUD rate is definitely correct as that's something I can set in the ECU software, i've tried 250kbs, 500kbs and 1mb.

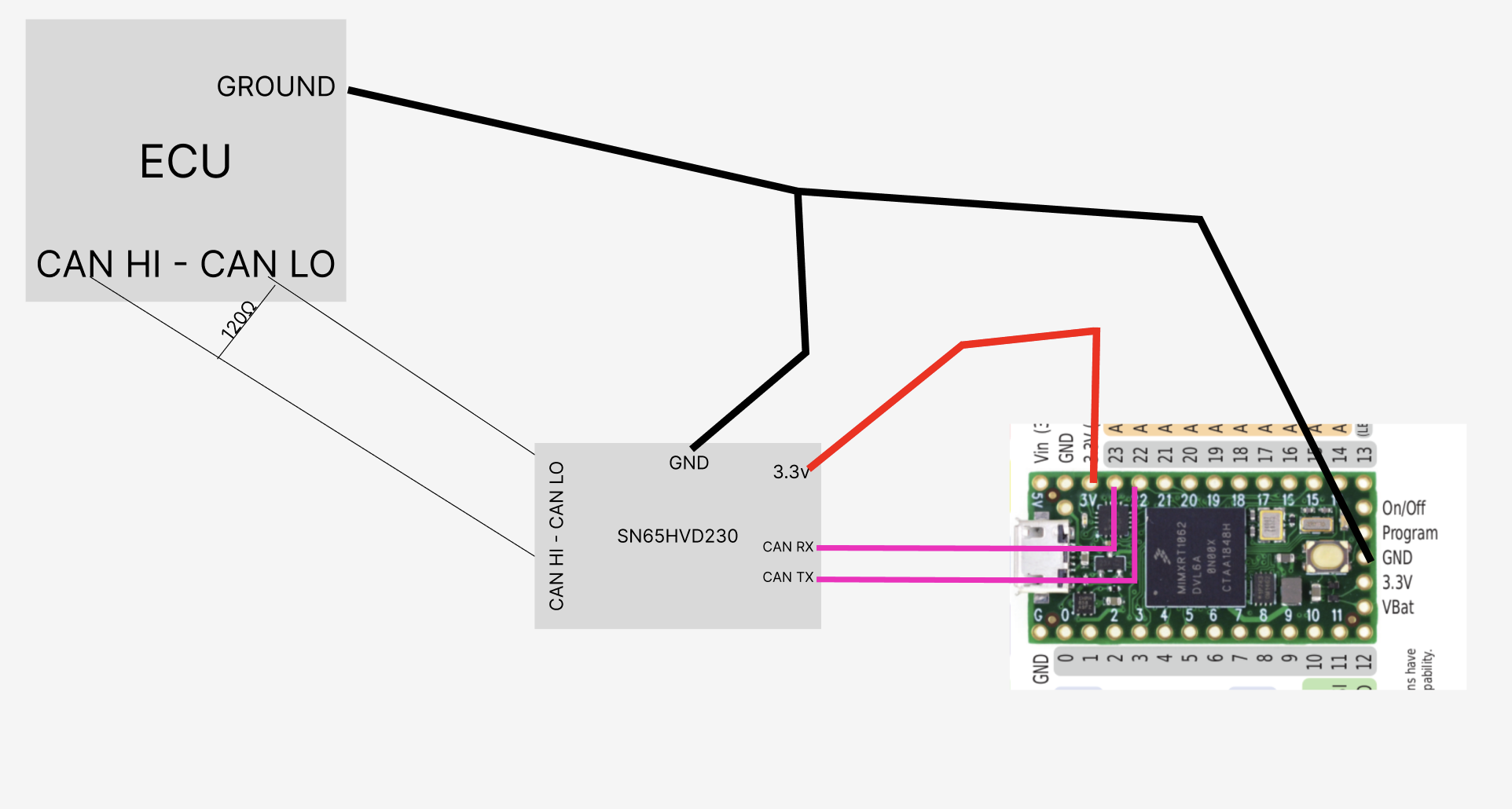

I've attatched a crude diagram to show how i've got it all setup. Unfortunately I am NEVER seeing any CAN messages from my ECU. I'm wondering if it's a wiring / setup issue. Would love some feedback as this is my first attempt at anything like this....
L298N Motor Driver help

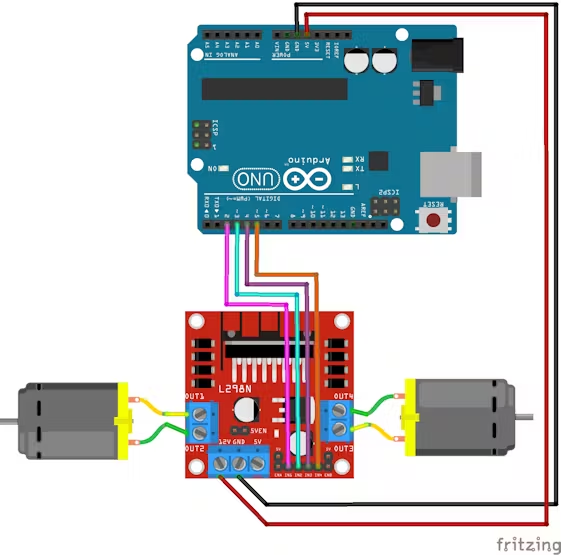

Using an Arduino Uno, L298N Motor Driver and a DC Motor. The Arduino is powering the Motor Driver
Im using the attatched schematic as reference. I dont see any glaring issues (all the pins seem to be connected and correct) but the motor isn't running. I dont have easy access to a multimeter to check anything...
Testing my matrix there is always a button that doesn't work.
Trying to do a simple button box with arduino.
I'm testing my current wiring to see if it works in arduino. I set on my code to have 2 rows and 5 columns, I will add more rows in the future.
If I swap my cols or row pins in the arduino, the button that doesnt work moves position.
Sadly I don't own a multimeter, I resoldered the spots that could look weak/bad, so I'm assuming there is something wrong with the wiring.
My code: https://hastebin.com/share/imilaguvix.csharp...
Is this circuit safe for an arduino uno r4 wifi

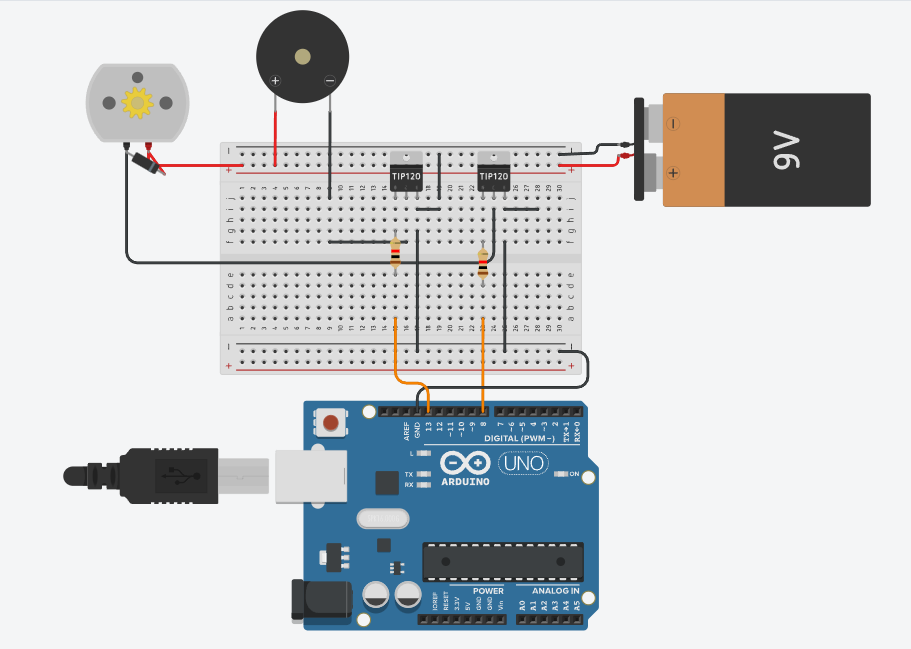

Hi, i am new to arduino and electronics and wanted to know if this circuit will be safe with arduino
The circuit works the way it should in the simulator but im a bit paranoid about damaging my board
https://www.tinkercad.com/things/58MQCuaYcuU/editel?returnTo=%2Fdashboard...
I need help making this work
i have these components:
- Nano Arduino
- 2N2222 transistors
- 5V led strip + -
- SR602 Pir sensor...
ESP32, Relay Module, and 5V DC Pump configuration
Hello guys, sorry to the ugly diagram.

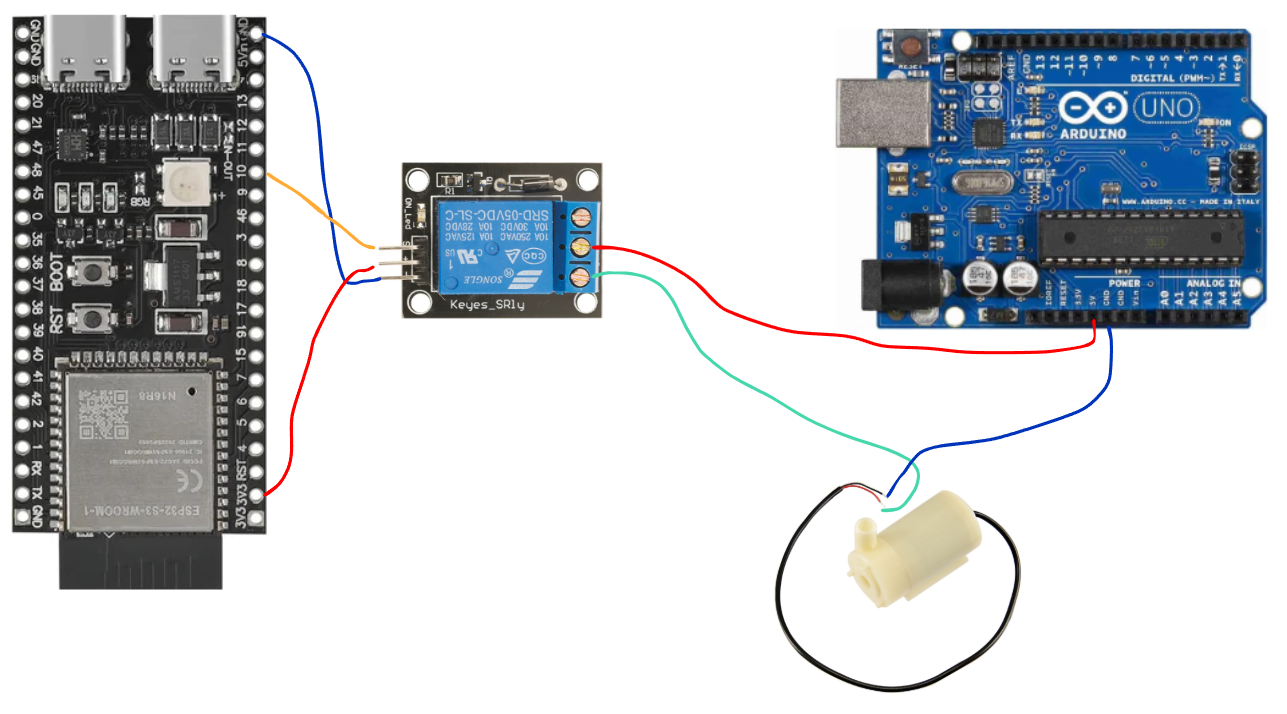

I am playing around the 5v DC water pump and a relay module. I plugged the components like in the diagram and uploaded the code to test the components. After uploading the code to the esp32, it shows errors once in a while which sometimes messes the esp32. I don't have a power module at the time so i have to use the 5v of the Arduino Uno. Also the 5Vin of the esp32 that I have doesn't output any voltage hence i just used the 3.3v of the esp32. I tried to use the components on their own and it works fine, but once i put them all together, like in the diagram, it shows weird behavior.
code of the esp32:...
connection issues

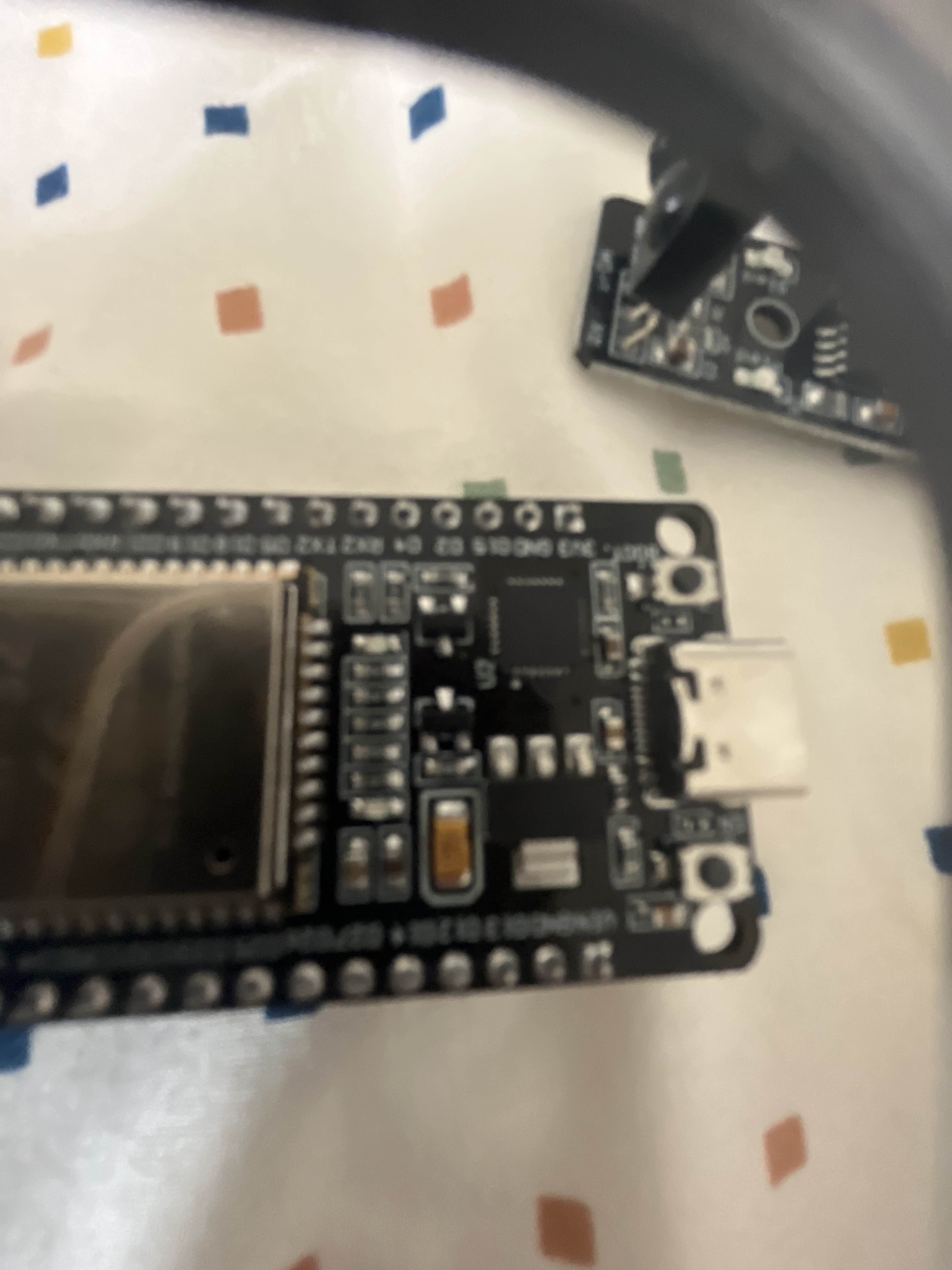

So I’ve been trying to get this board to register, connect, or whatever you want to call it, for the past two weeks, and it just won’t, no matter what I do. I’ve tried a different program. I’ve tried updating the driver. Nothing works and it also shows up as an Arduino R4 Wi-Fi even though I’ve never owned an Arduino R4 and there’s certainly never been an Arduino R4 Wi-Fi plugged into my computer In the photos, you can see the error message and the settings I have on it and I have checked that t...
