use Edit > Auto Format in the Arduino IDE to format it better
use Edit > Auto Format in the Arduino IDE to format it better
Psure, just a picture and a text would be okay
Pbut not the others -- you hook into VBUS and VSYS to go to the radio?
Po_o?
P3v3_en is like an enable control line to turn on or off the 3.3v supply

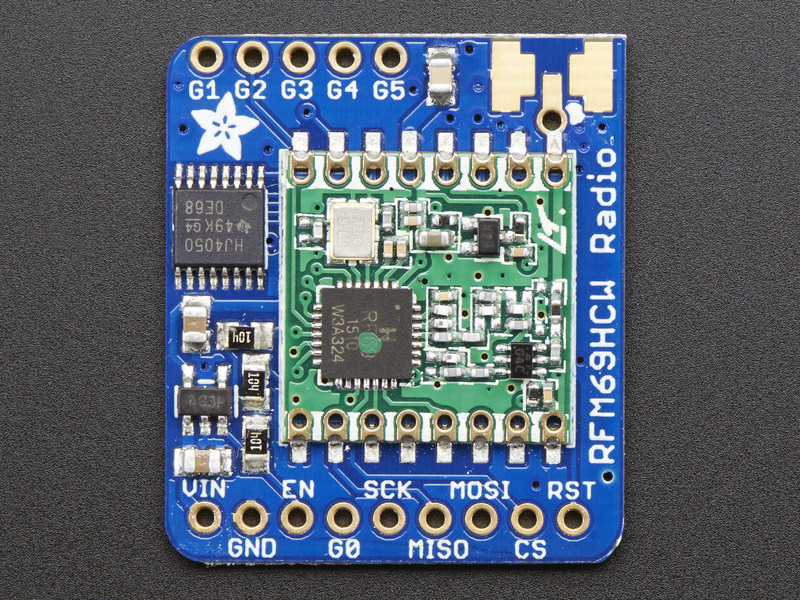

Pso you have this module there right
Pyeah so it has a regulator built-in
PVIN can accept 3.3 to 6V actually
Pbut you either need to give it 3V3 OUT or VBUS (5V from USB)
Pnot 3V3_EN
PPand I haven't checked your other pins yet
Pnothing is connected to the radio's "EN" pin right?
Pthe pins do not look good
Pyou have
Pbut from your picture I see you connected the chipselect pins as the "pico board pin number 22", aka GP17, right?
Pso should be there..
Psame for RST and INT
Pyou have to tell it the GPx number you connected it to
Pright.
Pand also
is not used in the sketch, so you might as well delete it
is not used in the sketch, so you might as well delete it
Psince you're using the constructor that uses the default SPI object.
Phah, great (:
Pthough these are again pico board numbers, not the GPx numbers
Pand frequency equals what?

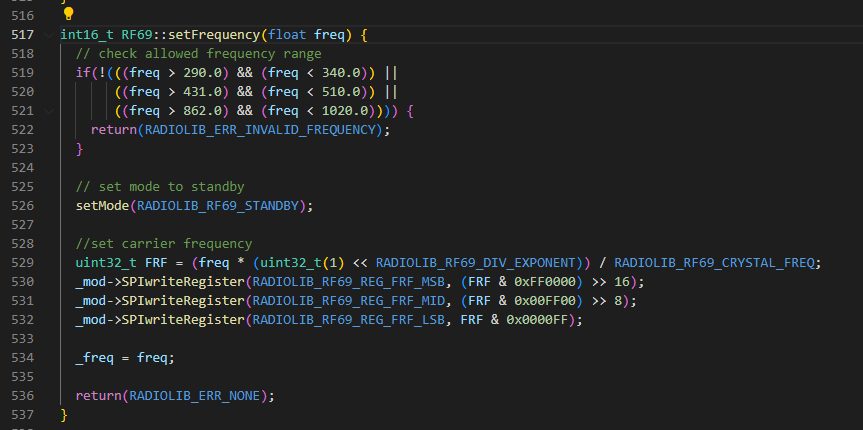

PThe thing is the frequency has to be set before the radio.begin() methodWhy? When I step into the code of the like , I directly see it making SPI transfers
Pso it has a requirement that .begin() has been called before to initialize the SPI etc.
P
PI'm using it via PlatformIO via
