CloudPanel Dependency Issue: Lua Module for CrowdSec Nginx remediation component Installation

Hi everyone, I'm encountering a dependency issue while trying to install CrowdSec with its Nginx Lua remediation component. When I run: sudo apt install nginx lua5.1 libnginx-mod-http-lua luarocks gettext-base lua-cjson I get the following error: libnginx-mod-http-lua : Depends: nginx-abi-1.24.0-1 E: Unable to correct problems, you have held broken packages. It appears that the installed Nginx version (1.26.3-2+clp-noble) doesn't match the required nginx ABI (nginx-abi-1.24.0-1) for the Lua module. I've tried checking for held packages and reviewing my repositories, but I haven't found a clear solution yet. Has anyone experienced this issue or have suggestions on how to resolve this dependency conflict? Any help is appreciated! Thanks in advance!
45 Replies
CrowdSec
CrowdSec•6mo ago
Important Information
Thank you for getting in touch with your support request. To expedite a swift resolution, could you kindly provide the following information? Rest assured, we will respond promptly, and we greatly appreciate your patience. While you wait, please check the links below to see if this issue has been previously addressed. If you have managed to resolve it, please use run the command /resolve or press the green resolve button below.
Log Files
If you possess any log files that you believe could be beneficial, please include them at this time. By default, CrowdSec logs to /var/log/, where you will discover a corresponding log file for each component.
Guide Followed (CrowdSec Official)
If you have diligently followed one of our guides and hit a roadblock, please share the guide with us. This will help us assess if any adjustments are necessary to assist you further.
Screenshots
Please forward any screenshots depicting errors you encounter. Your visuals will provide us with a clear view of the issues you are facing.
© Created By WhyAydan for CrowdSec ❤️
hhf
hhf•6mo ago
Your cloudplanel version And your os version? The answer depends on this
Giovanni
GiovanniOP•6mo ago
CloudPanel: v2.5.1 OS: Ubuntu 24.04.2 LTS Thank you!
hhf
hhf•6mo ago
it will not work with ubuntu 24.04 pagespeed plugin causes issues You can use Crowdsec with 24.04 and Cloudpanel without the nginx bouncer
Giovanni
GiovanniOP•6mo ago
Thanks for your response! I have already installed CrowdSec Security engine and I'm using iptables as the remediation component. My goal now is to install the AppSec (WAF) component following this guide: 🔗 https://doc.crowdsec.net/docs/next/appsec/quickstart/nginxopenresty Would there be any alternatives or solutions to get it installed on my setup? Any advice would be greatly appreciated!
Nginx / OpenResty | CrowdSec
Objectives
hhf
hhf•6mo ago
You will have to use 22.04 os with cloudplanel It works perfectly
Giovanni
GiovanniOP•6mo ago
I followed the advice and installed CrowdSec Nginx Bouncer on Ubuntu 22.04 instead of 24.04. The installation completed successfully, but I am now facing a new issue: The crowdsec-nginx-bouncer service does not start.
# sudo systemctl status crowdsec-nginx-bouncer
Unit crowdsec-nginx-bouncer.service could not be found.
# sudo systemctl status crowdsec-nginx-bouncer
Unit crowdsec-nginx-bouncer.service could not be found.
I have followed this documentation: https://doc.crowdsec.net/u/bouncers/nginx
Giovanni
GiovanniOP•6mo ago

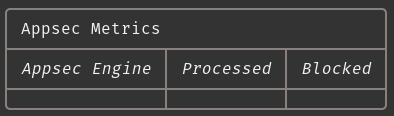

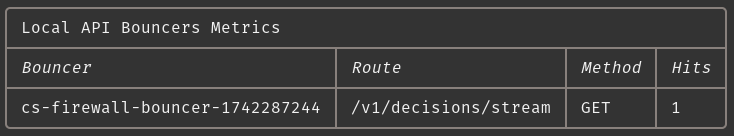

the output of cscli metrics
No description
No description
iiamloz
iiamloz•6mo ago
the nginx bouncer is not a service, but simply a configuration file for nginx placed in /etc/nginx/conf.d/ so as long as the nginx configuration is informed to load this directory it should load. The bouncer configuration itself is within /etc/crowdsec/bouncers/
Giovanni
GiovanniOP•6mo ago
Ok, thank you. I checked the configuration file in /etc/nginx/conf.d/, and it seems fine. Could the issue be in the main Nginx configuration file? How can I check?
iiamloz
iiamloz•6mo ago
It depends on cloudpanel loads the configuration, if i remember there 2 nginx process that runs one for clp and another for admin dashboard. You will have to find which one is for client sites and ensure the configuration is set to load them.
hhf
hhf•6mo ago
/etc/nginx is for the client
Giovanni
GiovanniOP•6mo ago
# nginx -T | grep "include"
nginx: the configuration file /etc/nginx/nginx.conf syntax is ok
nginx: configuration file /etc/nginx/nginx.conf test is successful
include /etc/nginx/modules-enabled/*.conf;
    include /etc/nginx/blocked_ips;
    #add_header Strict-Transport-Security 'max-age=31536000; includeSubDomains; preload';
    include /etc/nginx/mime.types;
    include /etc/nginx/sites-enabled/*.conf;
    include fastcgi_params;
# nginx -T | grep "include"
nginx: the configuration file /etc/nginx/nginx.conf syntax is ok
nginx: configuration file /etc/nginx/nginx.conf test is successful
include /etc/nginx/modules-enabled/*.conf;
    include /etc/nginx/blocked_ips;
    #add_header Strict-Transport-Security 'max-age=31536000; includeSubDomains; preload';
    include /etc/nginx/mime.types;
    include /etc/nginx/sites-enabled/*.conf;
    include fastcgi_params;
so i moved the conf file inside sites-enabled folder
sudo mv /etc/nginx/conf.d/crowdsec_nginx.conf /etc/nginx/sites-enabled/
sudo mv /etc/nginx/conf.d/crowdsec_nginx.conf /etc/nginx/sites-enabled/
But after restarting the nginx service i get this error:
root@server:/etc/nginx/conf.d# sudo nginx -t
nginx: the configuration file /etc/nginx/nginx.conf syntax is ok
nginx: [error] init_by_lua error: /usr/lib/crowdsec/lua/plugins/crowdsec/iputils.lua:22: module 'ffi' not found:
    no field package.preload['ffi']
    no file '/usr/lib/crowdsec/lua/ffi.lua'
    no file './ffi.lua'
    no file '/usr/local/share/lua/5.1/ffi.lua'
    no file '/usr/local/share/lua/5.1/ffi/init.lua'
    no file '/usr/local/lib/lua/5.1/ffi.lua'
    no file '/usr/local/lib/lua/5.1/ffi/init.lua'
    no file '/usr/share/lua/5.1/ffi.lua'
    no file '/usr/share/lua/5.1/ffi/init.lua'
    no file './ffi.lua'
    no file './ffi.so'
    no file '/usr/local/lib/lua/5.1/ffi.so'
    no file '/usr/lib/aarch64-linux-gnu/lua/5.1/ffi.so'
    no file '/usr/lib/lua/5.1/ffi.so'
    no file '/usr/local/lib/lua/5.1/loadall.so'
stack traceback:
    [C]: in function 'require'
    /usr/lib/crowdsec/lua/plugins/crowdsec/iputils.lua:22: in main chunk
    [C]: in function 'require'
    /usr/lib/crowdsec/lua/crowdsec.lua:4: in main chunk
    [C]: in function 'require'
    init_by_lua:2: in main chunk
nginx: configuration file /etc/nginx/nginx.conf test failed
root@server:/etc/nginx/conf.d# sudo nginx -t
nginx: the configuration file /etc/nginx/nginx.conf syntax is ok
nginx: [error] init_by_lua error: /usr/lib/crowdsec/lua/plugins/crowdsec/iputils.lua:22: module 'ffi' not found:
    no field package.preload['ffi']
    no file '/usr/lib/crowdsec/lua/ffi.lua'
    no file './ffi.lua'
    no file '/usr/local/share/lua/5.1/ffi.lua'
    no file '/usr/local/share/lua/5.1/ffi/init.lua'
    no file '/usr/local/lib/lua/5.1/ffi.lua'
    no file '/usr/local/lib/lua/5.1/ffi/init.lua'
    no file '/usr/share/lua/5.1/ffi.lua'
    no file '/usr/share/lua/5.1/ffi/init.lua'
    no file './ffi.lua'
    no file './ffi.so'
    no file '/usr/local/lib/lua/5.1/ffi.so'
    no file '/usr/lib/aarch64-linux-gnu/lua/5.1/ffi.so'
    no file '/usr/lib/lua/5.1/ffi.so'
    no file '/usr/local/lib/lua/5.1/loadall.so'
stack traceback:
    [C]: in function 'require'
    /usr/lib/crowdsec/lua/plugins/crowdsec/iputils.lua:22: in main chunk
    [C]: in function 'require'
    /usr/lib/crowdsec/lua/crowdsec.lua:4: in main chunk
    [C]: in function 'require'
    init_by_lua:2: in main chunk
nginx: configuration file /etc/nginx/nginx.conf test failed
hhf
hhf•6mo ago
not inside site folder in nginx.conf file towards the bottom you'll see a line that says include sites-enabled. Add a similar line but separately for the crowdsec file. before adding the file you need to restart the nginx. its not arm right?
Giovanni
GiovanniOP•6mo ago
yes it's arm... is it not supported?
hhf
hhf•6mo ago
nope. i am sorry i couldn't figure out why. your road ends here
Giovanni
GiovanniOP•6mo ago
but in the documentation it says that arm is supported
Giovanni
GiovanniOP•6mo ago
Giovanni
GiovanniOP•6mo ago
or i miss something? anyway thanks for the support. so the crowdsec-nginx-bouncer is not supported on arm, right? crowdsec-firewall-bouncer-iptables is working
hhf
hhf•6mo ago
its cloudpanel the problem not crowdsec its dependencies clash with lua. i have spent too many nights to get it solved and cloudpanel is closed source to i can't do much. x86_64 works for sure on 22.04 clp
blotus
blotus•6mo ago
can you maybe try to install luajit then restart nginx ? (be careful, I don't know what impact this can have if you have other things depending on lua).
hhf
hhf•6mo ago
dosent work
Giovanni
GiovanniOP•6mo ago
Got it. Thank you so much for your help and for sharing your experience! I really appreciate it.
hhf
hhf•6mo ago
it only works on 22.04 x86_64. i hope developer looks into it. clp has more than 12k users on cord
Giovanni
GiovanniOP•6mo ago
I've already tried installing it with apt install luajit, but it still doesn't work.
hhf
hhf•6mo ago
telling you not worth spending more time. straight 2 weeks i tried with all permutation combinations.
blotus
blotus•6mo ago
FYI, i just tested the bouncer on ubuntu 24.04 on ARM, and I had no issue at all I've never used cloudpanel, does it ship by default with LUA ?
hhf
hhf•6mo ago
no no, its not the crowdsec at all i have successfully deployed on most of the os. its how cloudpanel have packaged nginx and its dep does it ship by default with LUA? no
blotus
blotus•6mo ago
hence my question does cloudpanel ship the lua nginx module ? We know the bouncer works on a "clean" 24.04, and if cloudpanel does not ship lua (and assuming it's not a custom nginx version), in theory it should be easy to make it work
hhf
hhf•6mo ago
does cloudpanel ship the lua nginx module ? no and there are various issues. so on 22.04 it comes with 1.25/24 so pagespeed module doesn't interfere somehow. but on arm it dosent work when it come to 24.04 it up to 1.26 and pagespeed module causes issues all this on which clp versions remains the same. https://forum.hhf.technology/t/comprehensive-guide-compiling-lua-nginx-module-with-nginx-1-26-2-cloudpanel-ubuntu-24-04/ i have tried with extracting deb packages also with no luck and developer is not keen in implementing any major changes so i gave it up my full-time mission is to integrate crowdsec to opensource and protect homelabs and developers. this one was very imp because a lot of small-time developers are using this platform any ways.
blotus
blotus•6mo ago
I'll try to setup a cloudpanel at some point, it really seems weird especially if it works on x86
hhf
hhf•6mo ago
on 22.04 only it dosent work on 24.04 on any
blotus
blotus•6mo ago
so 22.04 x86 is ok, but not ARM ? or does it work for any arch on 22.04 ?
hhf
hhf•6mo ago
so 22.04 x86 is ok, but not ARM ? correct does it work for any arch on 22.04 ? not supported only arm and x86 are supported for clp
blotus
blotus•6mo ago
that doesn't make a lot of sense :/ the only native dep we have for the nginx bouncer is the lua ffi module, which AFAIK is part of the lua package itself
hhf
hhf•6mo ago
i know. let me know the results
hhf
hhf•6mo ago
https://www.cloudpanel.io/docs/v2/getting-started/
Getting Started | CloudPanel | Documentation
Choose a favorite cloud platform or dedicated server and run CloudPanel in a few clicks.
hhf
hhf•6mo ago
https://d17k9fuiwb52nc.cloudfront.net deb packages if you want to extract and have a look Sorry to ping you. Did you have a chance to look at this. 🙏
Giovanni
GiovanniOP•3mo ago
Hey @blotus , just following up on this — no rush at all, but I was curious if you had a chance to look into it when you get a moment 🙏 Appreciate any insight you might have!
_KaszpiR_
_KaszpiR_•3mo ago
if you have a working iptables remediation I see no point in additionally trying to install nginx component. IPtables will drop the packets on the kernel level so it won't reach the application layer (in that case nginx). So adding additional remediation on the app level in nginx is not really needed. Especially if it gets super complicated as you shown in previous posts 🙂
Giovanni
GiovanniOP•3mo ago
Hi, thanks a lot for your feedback! I agree that iptables remediation is great for blocking bad traffic at the network layer, but it doesn’t replace what a Web Application Firewall (WAF) does. The nginx/appsec component of CrowdSec provides application-level protection, which is especially useful for blocking attacks like SQL injection, XSS, and other threats that can’t be stopped by iptables alone. As the official documentation says, the AppSec Component offers: -Low-effort virtual patching capabilities. -Support for legacy ModSecurity rules. -The ability to combine classic WAF benefits with advanced CrowdSec features for advanced behavior detection. -Full integration with the CrowdSec software stack, including the console and other remediation components. That’s why I’m interested in running the nginx/appsec module in addition to iptables, so I can benefit from both network-level and application-level security. Of course, if I’m getting anything wrong or there’s something I’m missing, let me know!
iiamloz
iiamloz•3mo ago
The issue is when you using a "panel" that bundles custom builds of Nginx it hard for to us to just "bolt on" as it is up to maintainer of the panel to bundle the dependancies that we need. (even though lua package is widely used everywhere and they should include it by default) I spoke to the cloudpanel dev ages ago which crowdsec was on the roadmap but I dont think much time has been invested as far as I can see from the ticket. So the only thing would be checking their nginx bundled dependancies and then building a custom nginx binary on top that includes the lua packages.
_KaszpiR_
_KaszpiR_•3mo ago
or put an nginx server with a crowdsec as a proxy before the cloudpanel
hhf
hhf•2mo ago
I use traefik in front of clp. Much better
Giovanni
GiovanniOP•2mo ago
Hi! I'm curious about your setup — could you share a bit more about how you're using Traefik in front of CloudPanel?
