so

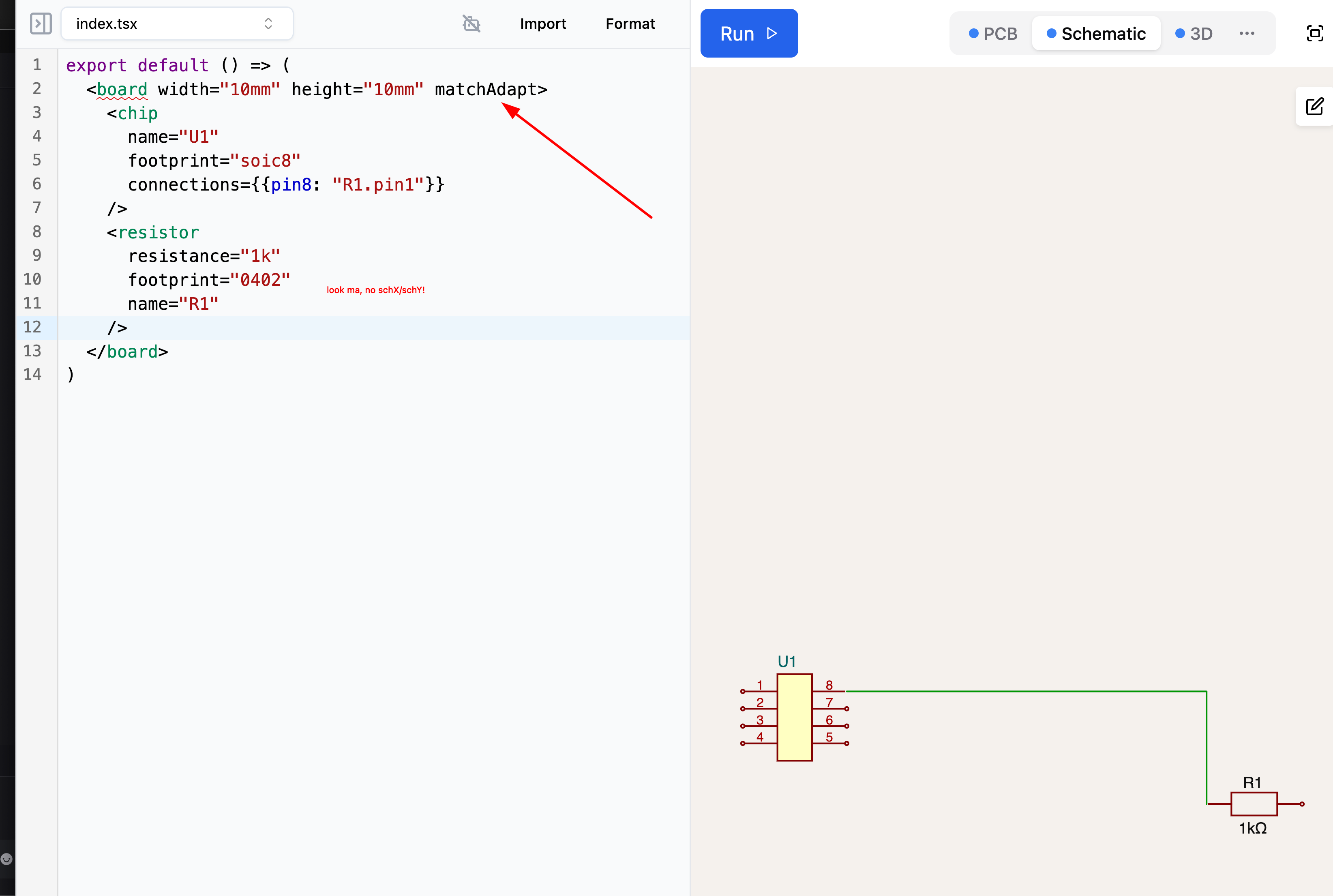

matchAdapt autolayout for schematics is starting to work. I want to make it the default for tscircuit (without the user even needing to do matchAdapt) so that people can hopefully stop doing schX/schY
To make sure it works well, i want to make it so that the sparkfun boards repo groups try to use schX/schY where possible, and where it doesn't work we file an issue in the schematic-corpus repo
You can't use matchAdapt on large groups yet, so this only works for small groups, usually only with 1 central chip
CC @shibo @Abse
is the matchAdapt uses traces to autolayout ?
it doesn't currently load traces from the corpus
so it doesn't see them
not yet, i am hoping to implement that soon
but getting netlabels working is more important
my board it a hard test

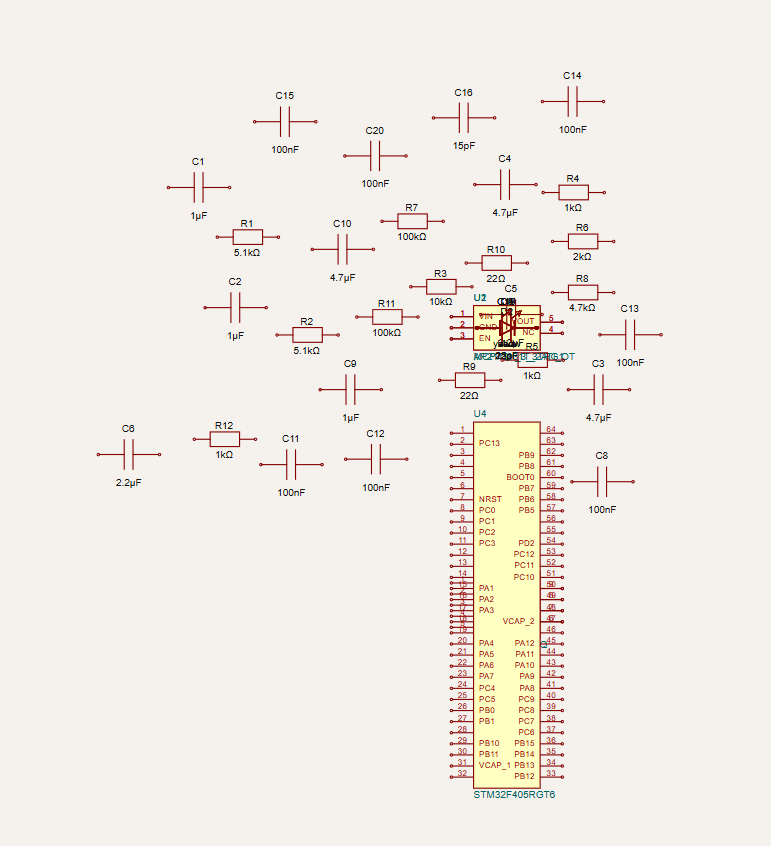

this is without

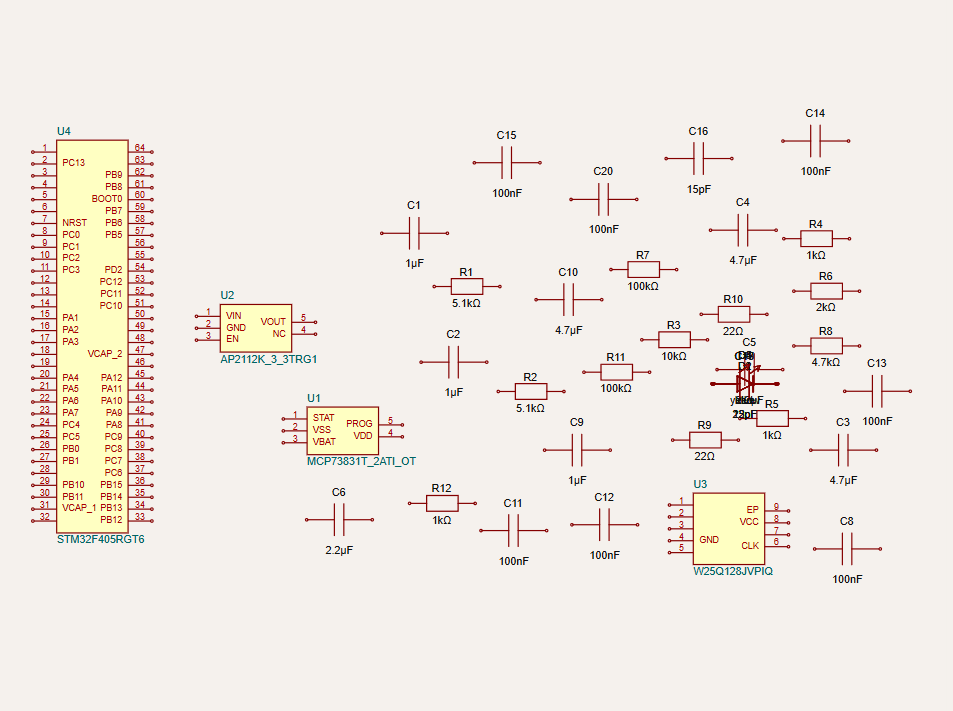

this is with match adapt
I meant it has lots of components
lol yea that is really hard, what is the actual?
from sparkfun?

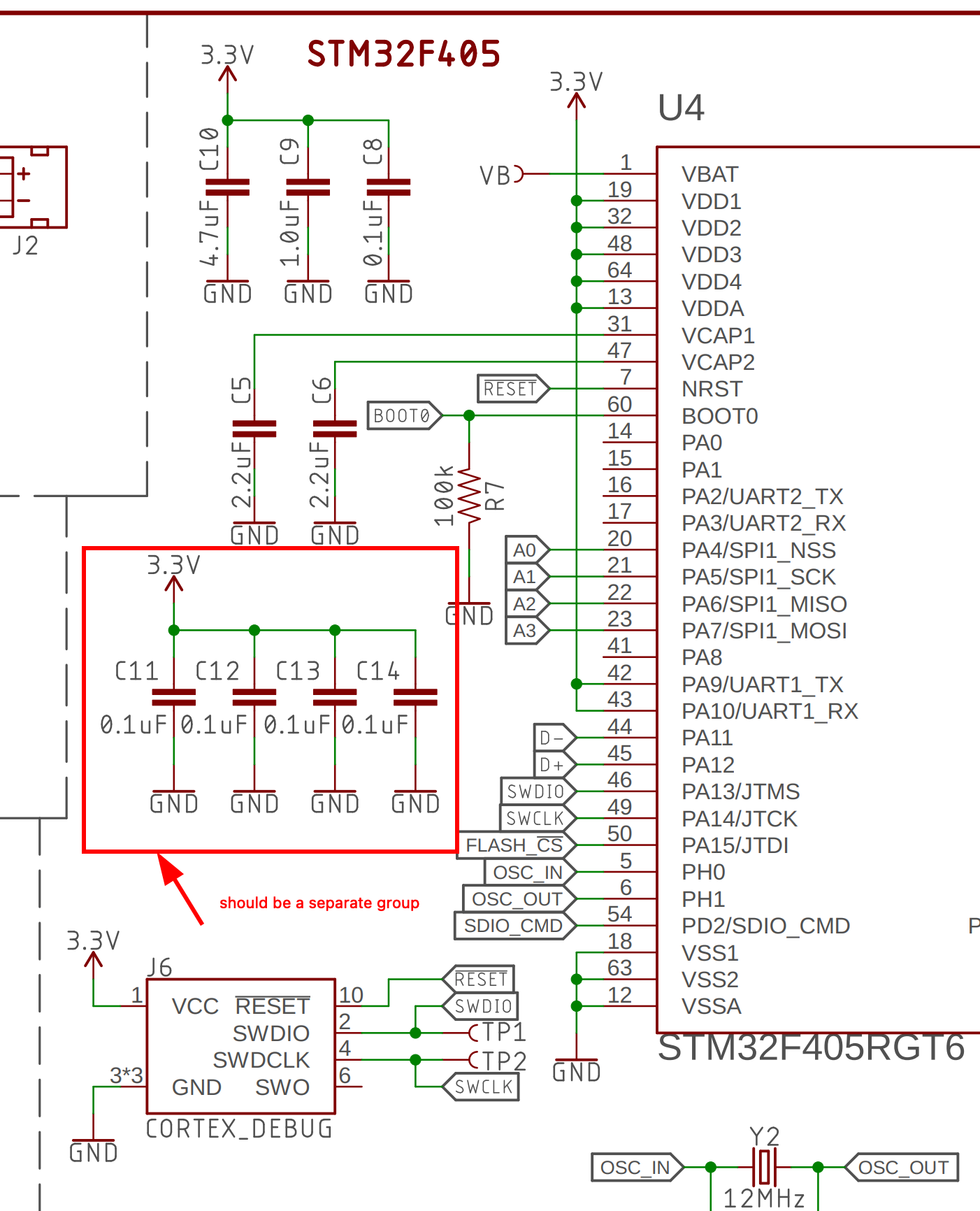

this is what Im wroking on for sparkfun
Thing-Plus-STM32
let me check the brake out
are you putting these "islands" in different groups?
I didn't use groups yet lol
yea you have to use groups
ok got it
it does each part in a separate group
eventually we can do bigger things but it's already a complex algorithm so i'm trying to simplify the initial workload
ok do I need to remove the schX and schY for the components
yea
k
@Seve how about the manualEdits
yea can't use manual edits with it
unless they're pcb manual edits
