C#•4mo ago

✅ ComboBox selected item can only be updated from binding property, not the control itself

I'm attempting to use a combo box with a collection of records the user can select from. I can get the items to render in the control, and can set a default value, but the combo box will not update when you select one of the values from the dropdown. I set breakpoints on anything I could think of from the bound property, various XxxChanged events, etc. All I could find online were specific errors, which were solved by reordering the properties, which didn't apply to me because my formatter had done that already. This is the relevant code:

public sealed record JavaVersionInformation
{
    public Version Version { get; init; }
    public string RawVersion { get; init; }
    public JavaType JavaType { get; set; } // This enum was left out
}

...

public sealed class TheViewModel : ObservableObject // From CommunityToolkit.Mvvm
{
    [ObservableProperty]
    public partial ObservableCollection<JavaVersionInformation> FoundJavaVersions { get; set; } = []; // Populated in the ctor

    [ObservableProperty]
    public partial JavaVersionInformation SelectedJavaVersion { get; set; } // Set after populating FoundJavaVersions. Shows on the ComboBox
}

public sealed record JavaVersionInformation
{
    public Version Version { get; init; }
    public string RawVersion { get; init; }
    public JavaType JavaType { get; set; } // This enum was left out
}

...

public sealed class TheViewModel : ObservableObject // From CommunityToolkit.Mvvm
{
    [ObservableProperty]
    public partial ObservableCollection<JavaVersionInformation> FoundJavaVersions { get; set; } = []; // Populated in the ctor

    [ObservableProperty]
    public partial JavaVersionInformation SelectedJavaVersion { get; set; } // Set after populating FoundJavaVersions. Shows on the ComboBox
}

ui being WpfUi: https://wpfui.lepo.co/

<ComboBox
    Grid.Column="1"
    ItemsSource="{Binding ViewModel.FoundJavaVersions, Mode=OneTime}"
    SelectedItem="{Binding ViewModel.SelectedJavaVersion, Mode=TwoWay}">
    <ComboBox.ItemTemplate>
        <DataTemplate DataType="j:JavaVersionInformation">
            <ui:TextBlock>
                <Run Text="{Binding JavaType, Mode=OneTime}" />
                <Run Text="{Binding FixedRawVersion, Mode=OneTime}" />
                <Run Text="(" /><Run Text="{Binding RawVersion, Mode=OneTime}" /><Run Text=")" />
            </ui:TextBlock>
        </DataTemplate>
    </ComboBox.ItemTemplate>
</ComboBox>

<ComboBox
    Grid.Column="1"
    ItemsSource="{Binding ViewModel.FoundJavaVersions, Mode=OneTime}"
    SelectedItem="{Binding ViewModel.SelectedJavaVersion, Mode=TwoWay}">
    <ComboBox.ItemTemplate>
        <DataTemplate DataType="j:JavaVersionInformation">
            <ui:TextBlock>
                <Run Text="{Binding JavaType, Mode=OneTime}" />
                <Run Text="{Binding FixedRawVersion, Mode=OneTime}" />
                <Run Text="(" /><Run Text="{Binding RawVersion, Mode=OneTime}" /><Run Text=")" />
            </ui:TextBlock>
        </DataTemplate>
    </ComboBox.ItemTemplate>
</ComboBox>

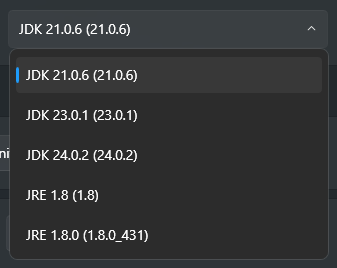

The attached image shows what the combo box looks like. The selection doesn't update after clicking an item.

wpfui.lepo.co

27 Replies

ACiDCA7•4mo ago

does the output show you anything meaningful during runtime? eg property not found or something

okeOP•4mo ago

nope, i get zero errors everything seems to be bound correctly, it seems like the combo box just isnt setting the value sorry for responding to you directly, but i just found that it only works when you use your mouse wheel on the control to cycle through the items so you cannot manually pick which item you want, but scrolling will update it id still like to figure out how to use the combo box properly for user experience, though lol

leowest•4mo ago

do u have a minimal repro on github? Also why are u using both

SelectedItem="{Binding ViewModel.SelectedJavaVersion, Mode=TwoWay, UpdateSourceTrigger=PropertyChanged}"
    SelectionChanged="ComboBox_SelectionChanged"

SelectedItem="{Binding ViewModel.SelectedJavaVersion, Mode=TwoWay, UpdateSourceTrigger=PropertyChanged}"
    SelectionChanged="ComboBox_SelectionChanged"

its highly like they are affecting eachother depending what ur doing

okeOP•4mo ago

i added the event to test it with breakpoints, the event handler is empty and has been removed since the post was made i updated the post to remove the unused event handler

leowest•4mo ago

u can breakpoint on the source generator for the SelectedJavaVersion anyway if u post a minimal repro on github I will clone and check out

okeOP•4mo ago

i copied my code over into a new project, but the combo box is working (shocker) im trying to find differences because combo boxes work the same way in all pages, so i assumed its something in the window i just cannot find anything that replicated my issue in the new project

leowest•4mo ago

try adding more of what is around it then

okeOP•4mo ago

i added a mousedown event handler in my original app, and its gets triggered by the combo box its just the item is not updated

leowest•4mo ago

sorry that didnt make much sense

okeOP•4mo ago

it works when i put it into my window xaml, but not when i put it in a page sorry, im writing as i find things

Mrloic•4mo ago

UI/client events are raised but they are either: not propagated/read by the parent combobox or the combobox doesn't update the value for an unknown reason

leowest•4mo ago

u shouldnt need UpdateSourceTrigger=PropertyChanged either

okeOP•4mo ago

i just did it to be sure it fixed some other issues i had in the past this is what it currently looks like:

<ComboBox
    Grid.Column="1"
    ItemsSource="{Binding ViewModel.FoundJavaVersions, Mode=OneTime}"
    SelectedItem="{Binding ViewModel.SelectedJavaVersion, Mode=TwoWay}">
    <ComboBox.ItemTemplate>
        <DataTemplate DataType="j:JavaVersionInformation">
            <ui:TextBlock>
                <Run Text="{Binding JavaType, Mode=OneTime}" />
                <Run Text="{Binding FixedRawVersion, Mode=OneTime}" />
                <Run Text="(" /><Run Text="{Binding RawVersion, Mode=OneTime}" /><Run Text=")" />
            </ui:TextBlock>
        </DataTemplate>
    </ComboBox.ItemTemplate>
</ComboBox>

<ComboBox
    Grid.Column="1"
    ItemsSource="{Binding ViewModel.FoundJavaVersions, Mode=OneTime}"
    SelectedItem="{Binding ViewModel.SelectedJavaVersion, Mode=TwoWay}">
    <ComboBox.ItemTemplate>
        <DataTemplate DataType="j:JavaVersionInformation">
            <ui:TextBlock>
                <Run Text="{Binding JavaType, Mode=OneTime}" />
                <Run Text="{Binding FixedRawVersion, Mode=OneTime}" />
                <Run Text="(" /><Run Text="{Binding RawVersion, Mode=OneTime}" /><Run Text=")" />
            </ui:TextBlock>
        </DataTemplate>
    </ComboBox.ItemTemplate>
</ComboBox>

leowest•4mo ago

can you try with the default textblock instead could be something to do with hitbox if u reach a point u can repro the issue that would be best as I would be able to actually see what is going on and perhaps explain and provide a way to do it

Mrloic•4mo ago

the events shouldn't be raised then no?

okeOP•4mo ago

i did, unfortunately didnt fix the issue

leowest•4mo ago

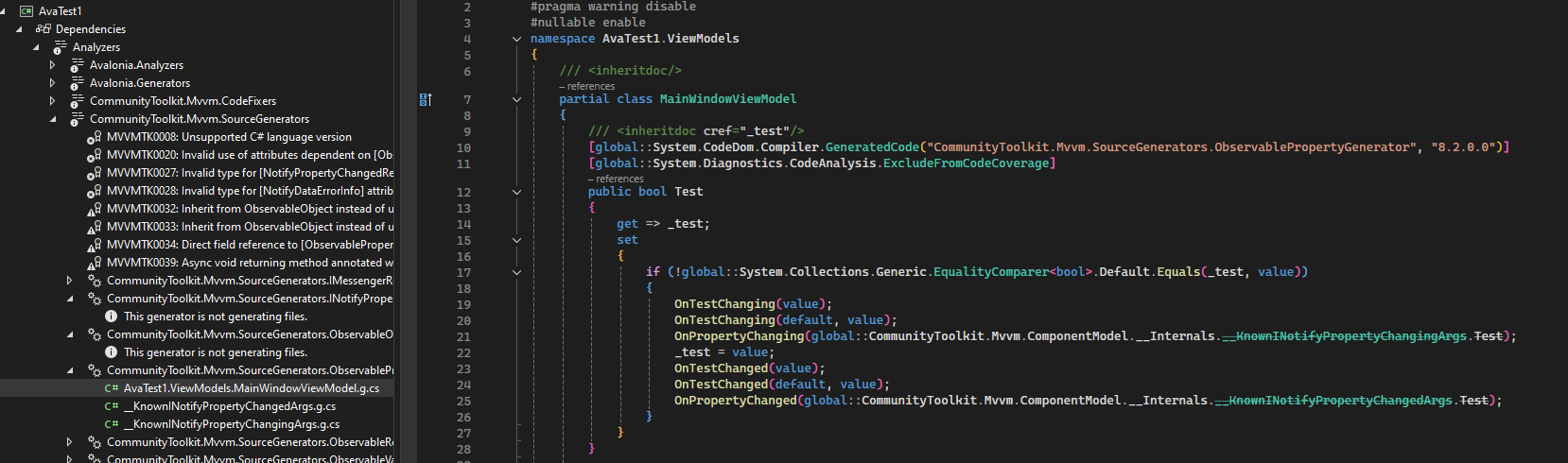

as for the breakpoint you will usually see something like this with source generator

leowest•4mo ago

okeOP•4mo ago

it only happens when placed in one of my pages, even if its the first element, and it doesnt matter which page correct

leowest•4mo ago

so if u need to breakpoint u can go in there and bp

okeOP•4mo ago

i usually just make a partial method for onchanged so i can still see the viewmodel :p

leowest•4mo ago

yeah partial props are new thingy is the project open?

okeOP•4mo ago

both are, yes

leowest•4mo ago

is there a github link of the specific commit your working on

okeOP•4mo ago

no, i havent pushed changes in a super long time

leowest•4mo ago

:catsweat:

okeOP•4mo ago

hey, i fixed it it was an event handler for mouse clicks on the window i was using to help with unfocusing textboxes/buttons when clicking off of them i swear i tested it, but i think my "test" was to use hot reload, which likely did nothing... !solved what was the command .solved -# got it
