Heyyy nice work I’d love to see a more complex design with adjacent pins, also pin aliases, but overall very very nice Also note little text alignment issues on pin1 and pin8 Really great The assembly viewer should allow showing this as a toggle
shibo
shiboOP3w ago
I have a more complex circuit but the pin names are squished, yeah it's a wip
Seve
Seve3w ago
great progress though we can use calculate-elbow for the paths btw it is basically perfect for it
shibo
shiboOP3w ago
very interesting, didn't think of that
shibo
shiboOP3w ago

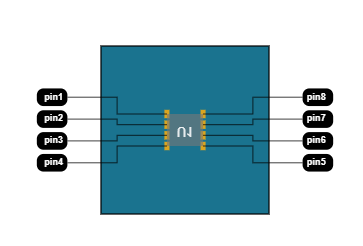

there is progress
No description
shibo
shiboOP3w ago

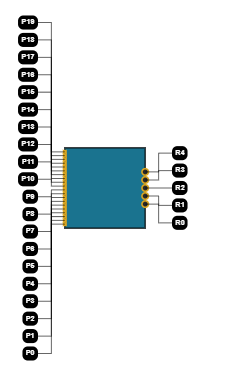

but there is also this
No description
shibo
shiboOP3w ago
@Seve how do you say we handle the overlap? I doubt calculate elbow has that ability
Seve
Seve3w ago
Oh interesting, you could possibly repurpose the schematic trace solver for this actuqlly Its the same thing i think It uses an algo that detects overlaps, so you could also just take the overlap solver mechanism
