3 Replies
CC @shibo @tapegoji @shibo can you link us to a circuit that i can demo simulation on (I lost it)
@tapegoji is an expert on schematic waveform stuff, he can help us with the interface
ShiboSoftwareDev/boost-converter - tscircuit
This circuit schematic features a 30x30 PCB with a 5V voltage source powering an arrangement of a diode, inductor, capacitor, resistor, and a 10V PWM-driven N-channel MOSFET. To import and use this component in a tscircuit project:
1. Import the component:
2....
@shibo hehe we gotta throw in the max trace distance

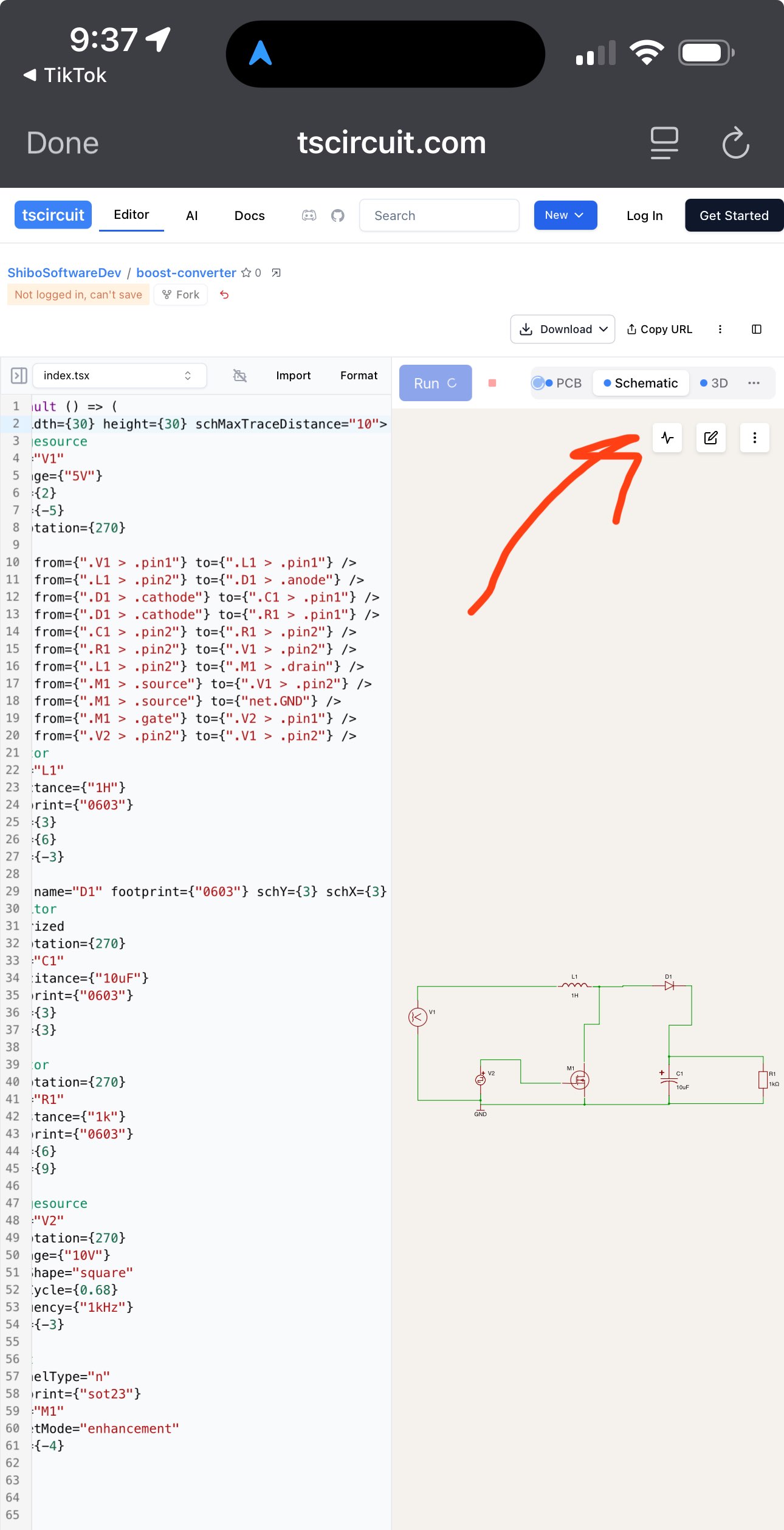

@tapegoji this button will run the web spice sim! (We’ll have a doc on it soon)
