Battery

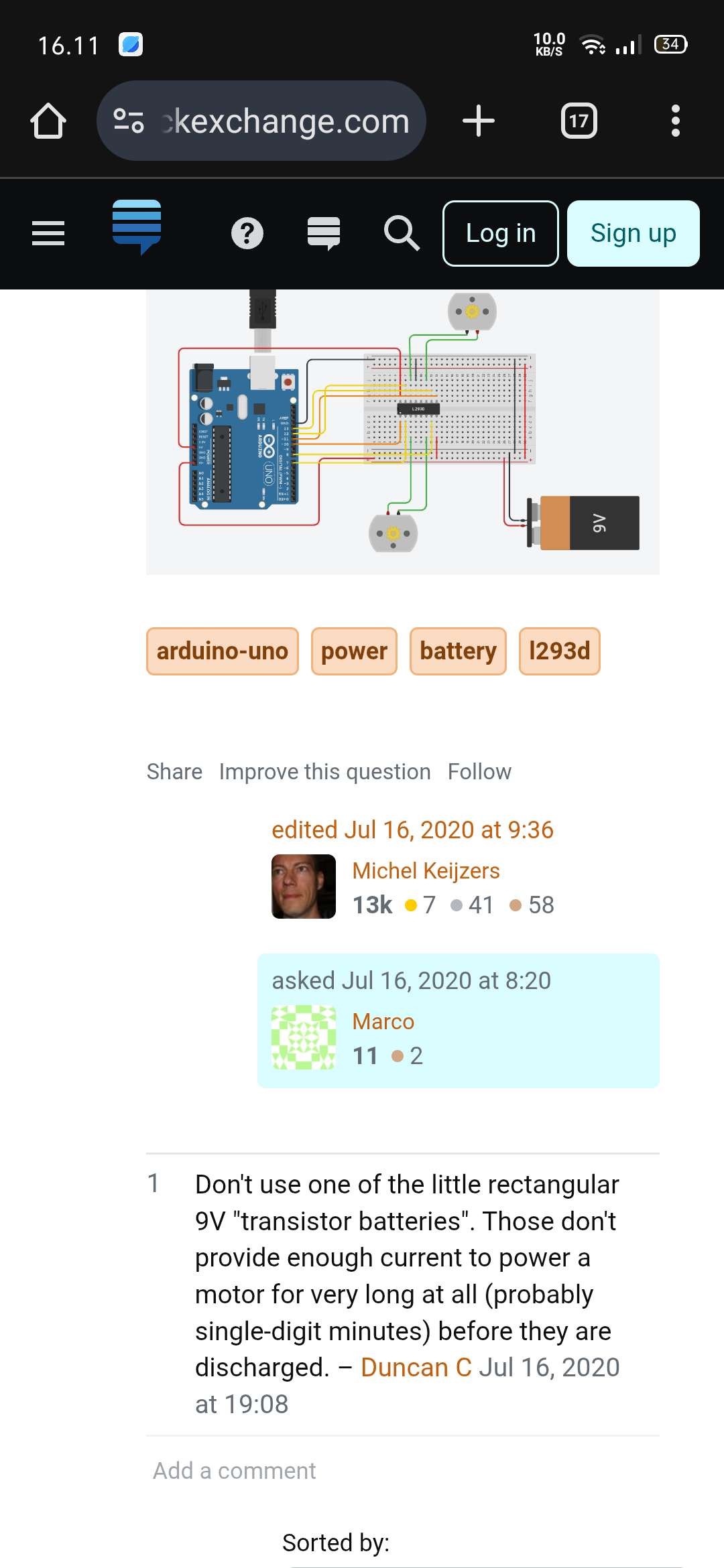

just trying to copy this post but as you see comment says that the battery not gonna survive long so is there any recommendation for the battery i should use?
9 Replies
what current do your motors use?

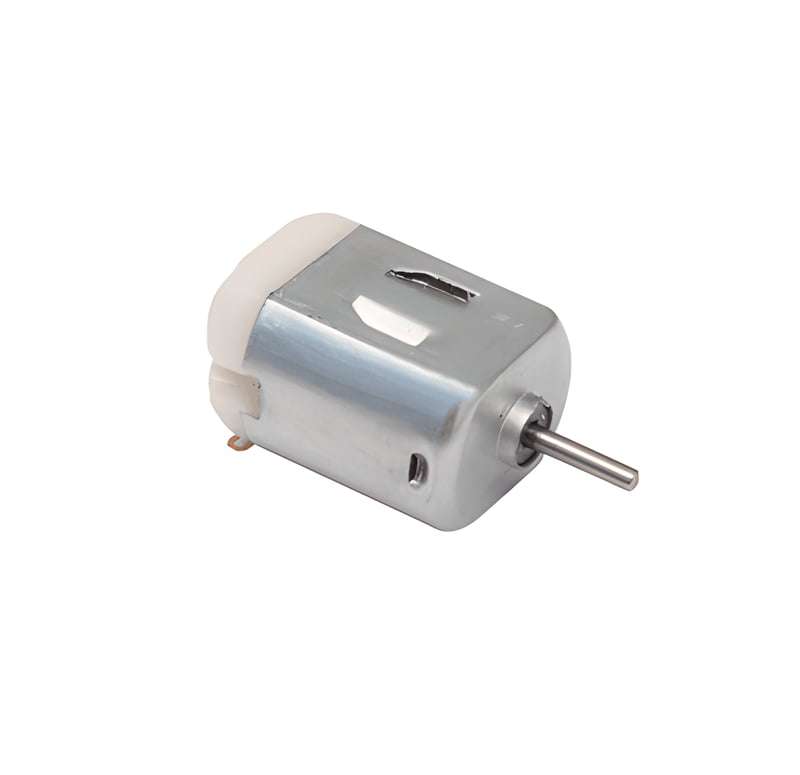

I got motor like this i Heard its 5volt
That appears to be an standard 130 hobby/toy motor
Your project is probably not gonna last long... 20 minutes at max though I may be wrong
On a 9volt battery?
An 9v battery just 6 π¬π¦ππ₯π₯ size cells put together, each cell is about equivalent to an βAAAAβ (yes with 4 as). The cells are hooked up on such an way that they have the voltage of 6 cells, but the πππ©πππ’ππ² π¨π π πππ₯π₯... (search up teardown of an 9v battery)
Using 18650 (with BMS) or regular AA battries would work best
a 4xAA battery is better than a 9v battery
4xAA can power the Arduino and its motors?
Better than an 9v battery
i meant to use that 6v source for the motor.
6v is too low for the Arduino Vin, and too high for the 5v pin
