@Seve are the gold fingers supposed to extend outside of the board outlines?

Seve•10/2/25, 8:03 PM

da fuq

Seve•10/2/25, 8:03 PM

CC @Abse

Seve•10/2/25, 8:03 PM

no they're not

Seve•10/2/25, 8:03 PM

it is probably a packing bug

Seve•10/2/25, 8:04 PM

yea this is one of the most annoying things right now, most important item on my checklist to fix, sometimes packing moves things it shouldn't

Seve•10/2/25, 8:04 PM

can you help me get a repro we can put into tscircuit/core? maybe just send me the current code of your index file haha

Seve•10/2/25, 8:04 PM

we will fix it today

SSeve yea this is one of the most annoying things right now, most important item on my...

Abse•10/2/25, 8:05 PM

yeah I'm trying to repro

Abse•10/2/25, 8:21 PM

@Seve even with pcbPack prop that didn't make a layout shift

Seve•10/2/25, 8:21 PM

yea i'm not sure how exactly it happens but i think it involves nested groups

Abse•10/2/25, 8:22 PM

which PR has it ?

Seve•10/2/25, 8:22 PM

@itsme we need your source T-T

itsmeOP•10/2/25, 8:22 PM

https://tscircuit.com/Heinrich-XIAO/greenboard#files

Heinrich-XIAO/greenboard - tscircuit

It sets up a microcontroller circuit with passive components and power connections, including resistors, capacitors, a switch, and an LED on a PCB. To import and use the component in a project:

Import the component:```tsximport { SomeComponent } from "@tsci/AUTHOR.PACKAGE_NAME"```
Use the component within a `<board>` or other tscircui...

Seve•10/2/25, 8:22 PM

oh lol same board

Seve•10/2/25, 8:23 PM

yea it's a PITA to repro in core, but worth it to fix this... i really think that these packing bugs are what is holding tscircuit back from GREATNESS right now

Abse•10/2/25, 8:24 PM

let me try to repro

itsmeOP•10/2/25, 8:25 PM

like, this packing? https://github.com/tscircuit/calculate-packing

GitHub

GitHub - tscircuit/calculate-packing: the `pack` layout algorithm

the layout algorithm. Contribute to tscircuit/calculate-packing development by creating an account on GitHub.

Iitsme like, this packing? https://github.com/tscircuit/calculate-packing

Seve•10/2/25, 8:26 PM

yep, algorithmic packing is amazing but has some issues when there are things that shouldn't be packed or when there's nested groups

Seve•10/2/25, 8:26 PM

we need to do a larger rewrite of the packing system but first we need a bunch of reproductions for the issues we're seeing when building boards

itsmeOP•10/2/25, 8:29 PM

it could be because im nesting everything inside of a <MicroModBoard>

Seve•10/2/25, 8:30 PM

yes but you're allowed to do that, so it's a tscircuit bug (if that is the issue)

Seve•10/2/25, 8:30 PM

right now the goal is to collect the bugs into reproductions in the tscircuit/core project, that way when we refactor we can make sure we don't break things

itsmeOP•10/2/25, 8:34 PM

also, now i have an autorouting bug. is there a way to manually route one of the traces and let the autorouter do the rest?

Seve•10/2/25, 8:34 PM

it should be possible yes

Seve•10/2/25, 8:34 PM

can you report the autorouter bug and link me?

Seve•10/2/25, 8:35 PM

here's the doc on manual PCB paths @itsme https://docs.tscircuit.com/elements/trace#manual-pcb-paths

<trace /> | tscircuit docs

The element represents an electrical connection between two or more points in your circuit. Traces can connect components, nets, or specific pins on components.

Seve•10/2/25, 8:35 PM

is that an autorouter bug or just an ugly trace

Seve•10/2/25, 8:35 PM

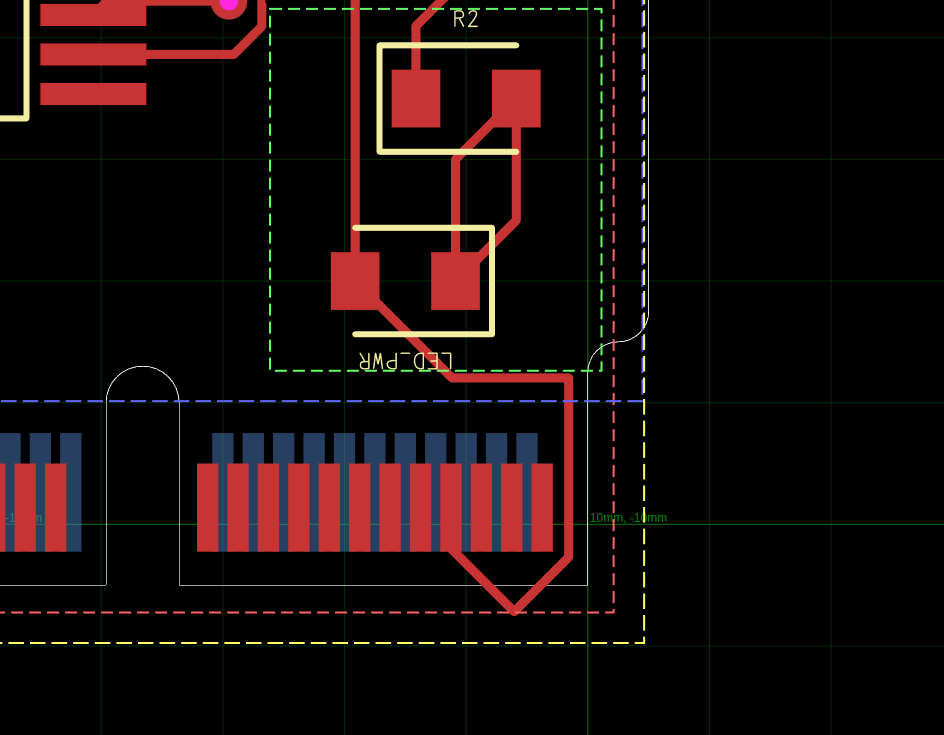

i'm confused if R2/LED_PWR should be getting a trace and isn't getting a trace

Seve•10/2/25, 8:36 PM

i hope sparkfun features this board, idk if anyone has done this yet with these cheap little mcus

Seve•10/2/25, 8:36 PM

when we test it i will reach out to sparkfun haha

SSeve can you report the autorouter bug and link me?

itsmeOP•10/2/25, 8:41 PM

https://github.com/tscircuit/tscircuit-autorouter/issues/263

GitHub

Autorouting Bug Report: <group#176 /> · Issue #263 · tscircuit/ts...

Bug Report Link: https://api.tscircuit.com/autorouting/bug_reports/view?autorouting_bug_report_id=1a2ab86b-dd40-48ba-b5f4-1720146f3d46 (any additional details? Maybe a screenshot?) it routes succes...

SSeve is that an autorouter bug or just an ugly trace

itsmeOP•10/2/25, 8:41 PM

its a bug since it goes outside of the board outlines

Seve•10/2/25, 8:42 PM

oh you're right i see that now

Seve•10/2/25, 8:42 PM

yea we don't have outline support in the autorouter yet

SSeve here's the doc on manual PCB paths @itsme https://docs.tscircuit.com/elements/tr...

itsmeOP•10/2/25, 8:45 PM

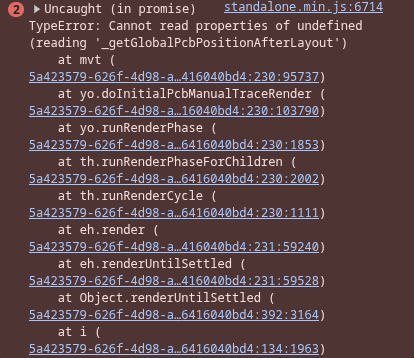

Seve•10/2/25, 8:45 PM

! never seen that before

Seve•10/3/25, 4:58 AM

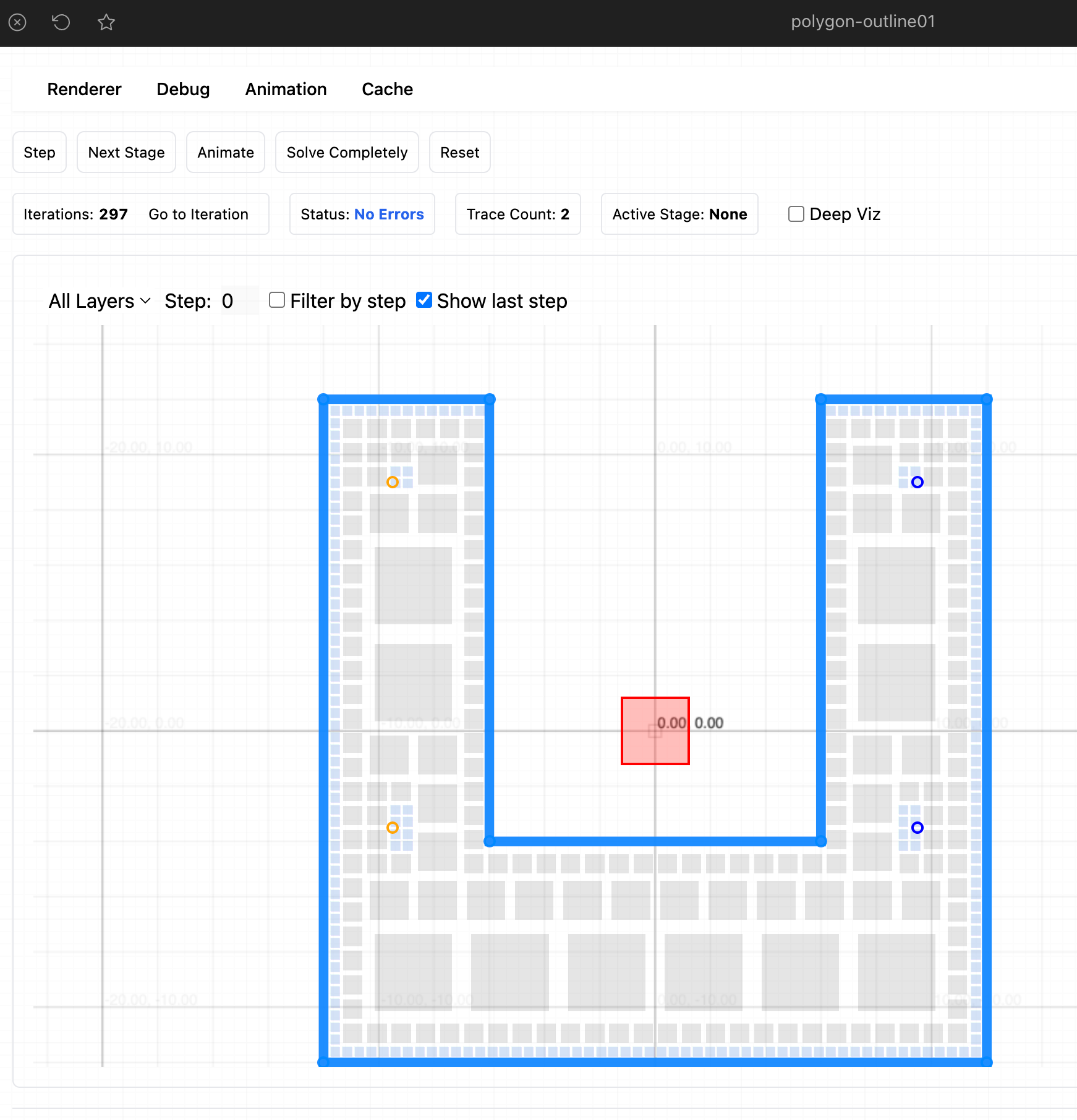

RE Outline, the autorouter now supports providing and outline, now adding core support

Seve•10/3/25, 6:06 AM

I need to do one PR to the autorouter to fix the path simplification stage, but otherwise we should be good

https://github.com/tscircuit/core/pull/1431

GitHub

Add autorouter U-outline regression snapshot by seveibar · Pull Re...

Summary

update the simple route json outline test to use a U-shaped board with the local autorouter enabled
capture a PCB snapshot proving the autorouted trace follows the U-shaped outline

Testin...

Seve•10/3/25, 6:07 AM

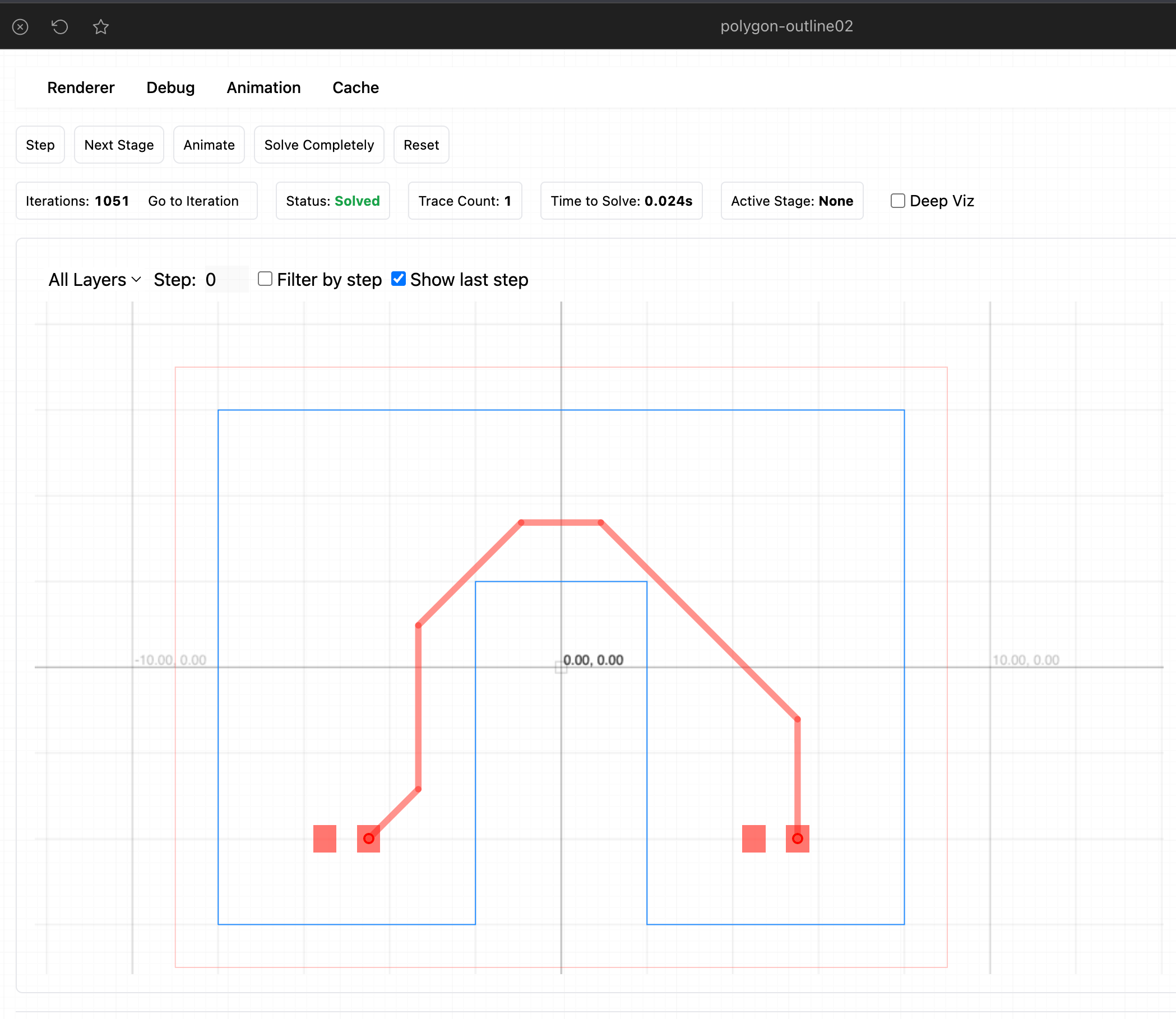

the path simplification stage is "simplifying" through the board outline, but i'm 90% sure that that's the only remaining issue then we should be good to go, will work to get it merged as soon as i wake up

Seve•10/3/25, 4:45 PM

update: autorouter seems to be fully working with outlines now!

Seve•10/3/25, 5:23 PM

The fix is merged to core and is propagating, will update when it's live on the CLI
