following-aqua

Why is there a delay between when the __root.tsx layout loads and the <Outlet />?

I have deployed my project on Netilify. When you refresh the page you can see the layout loads instantly but after a split second, then the outlet loads. If you look at dev tools and refresh the page, you can see the main tag being injected in. This happens on any page. How do I fix this? Thanks. Here are the links: https://sovereign-atelier.netlify.app/ https://github.com/ikraamdaanis/gallery

71 Replies

fascinating-indigo•2mo ago

Do you have a beforeLoad with any asynchronous data?

following-aquaOP•2mo ago

No, all the data is in the repo.

frozen-sapphire•2mo ago

cannot access the repo

following-aquaOP•2mo ago

oops, try now

continuing-cyan•2mo ago

fwiw, this does happen to me too on my own project. I use beforeLoad but I've tested without it and same issue. It's just the root layout. route.tsx ones dont have this issue. Wasn't a problem pre-RC

frozen-sapphire•2mo ago

reproducer?

continuing-cyan•2mo ago

Would love to but yea it's a massive repo. Just wanted to mention it in case it was helpful to like realize its not a singular issue with OP. It's not a big deal for me personally, but noticed it for sure. I will see if i can make a small repro, I'll lyk

frozen-sapphire•2mo ago

is this the same issue? https://github.com/TanStack/router/issues/5383

GitHub

Tanstack Start base div hidden on JS disabled · Issue #5383 · Tan...

Which project does this relate to? Start Describe the bug At the latest version of Tanstack Start if you disable JS in browser the page is empty because the div that contains all content has param ...

continuing-cyan•2mo ago

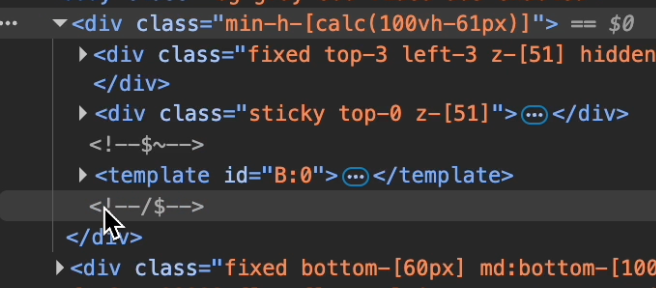

Checking. It shows as <template> first (and doesn't show on the page) and then changes to a div. Sorry it's an image but this happens so fast, I had to screen record and then screenshot from the video lol

continuing-cyan•2mo ago

Yea, and then in the SSR response, the content is actually in a <div hidden id="S:0"> at the bottom. I'm going to try to make a fresh small repro with this issue, i'll lyk

frozen-sapphire•2mo ago

you should be able to inspect the SSR response html (view source instead of inspect document )

following-aquaOP•2mo ago

I bothers my OCD a lot lol. Is there a fix?

continuing-cyan•2mo ago

Yea it's also a potential SEO concern. I'm checking and doing some debugging, will lyk Still digging, at this point not sure if it's a TS or React issue, but using a very simple ArtCard component version of what ikraam shared

import { Link } from "@tanstack/react-router";
import type { ArtPiece } from "data/art-pieces";
import { useState } from "react";
import { cn } from "utils/cn";

export function ArtCard({ artPiece }: { artPiece: ArtPiece }) {
  const [isHovered, setIsHovered] = useState(false);

  return (
    <article
      className="group relative"
      onMouseEnter={() => setIsHovered(true)}
      onMouseLeave={() => setIsHovered(false)}
    >
      <Link
        to="/art/$id"
        params={{ id: artPiece.id }}
        aria-label={`View details for ${artPiece.title} by ${artPiece.artist}`}
        className="block"
      >
        <div className="relative overflow-hidden bg-neutral-100">
            <div className="relative h-full w-full">
              <img
                src={artPiece.imageUrl}
                alt={`${artPiece.title}oooooOoooooo`}
                className={cn(
                  "block h-full w-full object-cover transition-opacity duration-300"
                )}
              />
            </div>
        </div>
      </Link>
    </article>
  );
}

import { Link } from "@tanstack/react-router";
import type { ArtPiece } from "data/art-pieces";
import { useState } from "react";
import { cn } from "utils/cn";

export function ArtCard({ artPiece }: { artPiece: ArtPiece }) {
  const [isHovered, setIsHovered] = useState(false);

  return (
    <article
      className="group relative"
      onMouseEnter={() => setIsHovered(true)}
      onMouseLeave={() => setIsHovered(false)}
    >
      <Link
        to="/art/$id"
        params={{ id: artPiece.id }}
        aria-label={`View details for ${artPiece.title} by ${artPiece.artist}`}
        className="block"
      >
        <div className="relative overflow-hidden bg-neutral-100">
            <div className="relative h-full w-full">
              <img
                src={artPiece.imageUrl}
                alt={`${artPiece.title}oooooOoooooo`}
                className={cn(
                  "block h-full w-full object-cover transition-opacity duration-300"
                )}
              />
            </div>
        </div>
      </Link>
    </article>
  );
}

adding one more single o letter in that image alt tag will make the page do that whole streaming template thing, if I keep the same number of os, works fine. I don't know if that's due to byte size, or just somewhat of a race condition in terms of what finishes before the other (layout vs. body). but yea, digging through, just sharing findings

following-aquaOP•2mo ago

very strange, I'll change the alt and push that didn't change anything. That template element is from React suspense right?

continuing-cyan•2mo ago

No no, not saying this is a fix. I'm just reducing things from your code to identify issues. Still have no clue what's happening exactly.

following-aquaOP•2mo ago

Do you think it’s netlify causing it?

continuing-cyan•2mo ago

No, it's some React streaming thing. Honestly might not even be a TanStack issue, but yea. Will need to take a look -- will see how much more time I have today, and obv Manuel can help too if he has time.

following-aquaOP•2mo ago

Thanks I think the issue is the fact I had other components in the root layout instead of just the Outlet. I created a new file with a pathless layout for the header and footer and the outlet content loads instantly even though you can still see the <template/> tag very strange

fascinating-indigo•2mo ago

What happens if you change component: RootComponent to shellComponent: RootComponent ? Ah yes, shellComponent must house your <html> tag, pretty sure

fascinating-indigo•2mo ago

https://tanstack.com/start/latest/docs/framework/solid/guide/selective-ssr#how-to-disable-ssr-of-the-root-route

Selective Server-Side Rendering (SSR) | TanStack Start Solid Docs

What is Selective SSR? In TanStack Start, routes matching the initial request are rendered on the server by default. This means beforeLoad and loader are executed on the server, followed by rendering...

continuing-cyan•2mo ago

Believe that does the opposite of what we're trying to do -- might be wrong.

frozen-sapphire•2mo ago

so this only occurs with react 19.2 not with 19.1

frozen-sapphire•2mo ago

i bet it's this https://react.dev/blog/2025/10/01/react-19-2#batching-suspense-boundaries-for-ssr

React 19.2 – React

The library for web and native user interfaces

fascinating-indigo•2mo ago

I'm not suggesting to disable SSR but that explains what shellComponent does, can't find it anywhere else in the docs and I noticed his root route is not using shellComponent https://github.com/TanStack/router/blob/b5c96d42cf519eb2a0f60379c3dc65b1e68b77ac/examples/react/start-basic/src/routes/__root.tsx#L62 vs https://github.com/ikraamdaanis/gallery/blob/f517650eb075839d1c1196188a5f2f3029197b4d/app/routes/__root.tsx#L25 Wouldn't batched suspense boundaries actually prevent flicker? Since the whole point of it is to render everything at the same time with I think a 2.5 second threshold if I'm not mistaken

frozen-sapphire•2mo ago

not sure yet. will talk with react team

following-aquaOP•2mo ago

I worked around this issue by moving these components to another layout file, I think having these extra components in the root layout was causing the delayed load time for the Outlet:

function RootDocument({ children }: { children: ReactNode }) {
  return (
    <html lang="en" className="overscroll-none antialiased">
      <head>
        <HeadContent />
      </head>
      <body>
        <Navigation />
        {children}
        <AcquirePieces />
        <Footer />
        <Toaster position="top-center" richColors closeButton />
        <Scripts />
      </body>
    </html>
  );
}

function RootDocument({ children }: { children: ReactNode }) {
  return (
    <html lang="en" className="overscroll-none antialiased">
      <head>
        <HeadContent />
      </head>
      <body>
        <Navigation />
        {children}
        <AcquirePieces />
        <Footer />
        <Toaster position="top-center" richColors closeButton />
        <Scripts />
      </body>
    </html>
  );
}

Now I changed it to this:

function RootDocument({ children }: { children: ReactNode }) {
  return (
    <html lang="en" className="overscroll-none antialiased">
      <head>
        <HeadContent />
      </head>
      <body>
        {children}
        <Scripts />
      </body>
    </html>
  );
}

function RootDocument({ children }: { children: ReactNode }) {
  return (
    <html lang="en" className="overscroll-none antialiased">
      <head>
        <HeadContent />
      </head>
      <body>
        {children}
        <Scripts />
      </body>
    </html>
  );
}

fascinating-indigo•2mo ago

Can you try the default setup of setting shellComponent to RootDocument with no {children} props, do you still encounter this issue? I cloned your repo and checked out the commit from yesterday and wasn't able to reproduce your flicker locally

following-aquaOP•2mo ago

Flicker happens locally on dev if you spam refresh the browser you can sometimes see it. We you deploy it you'lll see it more often. Here's the preview using the shellComponent and ssr: false https://ikraam-test--sovereign-atelier.netlify.app/ following this page: https://tanstack.com/start/latest/docs/framework/react/guide/selective-ssr#how-to-disable-ssr-of-the-root-route

Selective Server-Side Rendering (SSR) | TanStack Start React Docs

fascinating-indigo•2mo ago

Do you need SSR to be false? SSR should be true The only thing I was saying to try was to change "component" to "shellComponent", the root layout with <html> should always be shellComponent, and without SSR you will get a white screen before render

following-aquaOP•2mo ago

If ssr is true then you get the same issue: https://deploy-preview-1--sovereign-atelier.netlify.app/

fascinating-indigo•2mo ago

In this link i'm just seeing font and styles flickering, but the layout seems correct ah wait I see now Which commit is this? Seems like Safari and Chrome are loading it differently, Safari flickers in the fonts and styles with all the layouts loaded, but Chrome has the issue where the Outlet is delayed

following-aquaOP•2mo ago

I guess that’s another issue. this is a fresh install of tanstack start using the cli and it has the same issue: https://billsend.netlify.app/

frozen-sapphire•2mo ago

you might not have seen my message above. there is an issue with react 19.2 which either is a bug in react or we need to fix this in start. we are waiting for react maintainers to get back to us about this. as soon as I know more I will let you know

following-aquaOP•2mo ago

sorry, didn't see. If I downgrade to 19.1 in package.json will it fix it?

frozen-sapphire•2mo ago

yes

following-aquaOP•2mo ago

It's on 19.1 and the issue is still there: https://billsend.netlify.app/ It's when you have any other component beside the <Outlet/> in the root layout

frozen-sapphire•2mo ago

in the gallery example it is fixed for me with 19.1

following-aquaOP•2mo ago

I changed the gallery example and moved the header/footer from the route layout

following-aquaOP•2mo ago

did you try from this commit? https://github.com/ikraamdaanis/gallery/tree/2b7fbea3038fa614ee7d8d977a1feb883ff4b8a1

GitHub

GitHub - ikraamdaanis/gallery at 2b7fbea3038fa614ee7d8d977a1feb883f...

gallery. Contribute to ikraamdaanis/gallery development by creating an account on GitHub.

frozen-sapphire•2mo ago

this https://github.com/ikraamdaanis/gallery/commit/f517650eb075839d1c1196188a5f2f3029197b4d

GitHub

using pathless routes · ikraamdaanis/gallery@f517650

frozen-sapphire•2mo ago

i specifically checked the returned SSR HTML for <div hidden id="S:0"> it exists with 19.2 but not with 19.1

following-aquaOP•2mo ago

this commit is my work around for this issue so it doesn't have that problem with the outlet taking a split second to load it

following-aquaOP•2mo ago

you will see the problem in this branch: https://github.com/ikraamdaanis/gallery/tree/ikraam/test deployment for this branch: https://ikraam-test--sovereign-atelier.netlify.app/

GitHub

GitHub - ikraamdaanis/gallery at ikraam/test

gallery. Contribute to ikraamdaanis/gallery development by creating an account on GitHub.

following-aquaOP•2mo ago

this branch is on react 19.1

fascinating-indigo•2mo ago

This is only happening on prod right? Not dev ?

frozen-sapphire•2mo ago

it is not you have "react": "^19.1.0", which will install react 19.2.2 notice the ^ remove that and reinstall

following-aquaOP•2mo ago

ah good catch yeah, I don't see the problem anymore https://ikraam-test--sovereign-atelier.netlify.app/ thanks just have an issue with the playfair font taking a split second to load in lol fixed by preloading font

dependent-tan•2mo ago

I did a bisect and narrowed it down to this commit https://github.com/facebook/react/commit/18212ca960ee2f0acf538c2198f7ba36c3042ecd

GitHub

[Fizz] Outline if a boundary would add too many bytes to the next c...

…pletion (#33029) Follow up to #33027. This enhances the heuristic so that we accumulate the size of the currently written boundaries. Starting from the size of the root (minus preamble) for the ...

continuing-cyan•2mo ago

Yep, pretty sure that's the one. https://discord.com/channels/719702312431386674/1431549315809284146/1431678127360180489 like i mentioned here, it literally took an extra letter to trigger the suspense

dependent-tan•2mo ago

So once the shell hits ~12.5 KB then any Suspense boundary larger than 500 bytes triggers this behaviour And the native suspense boundary fallback is basically empty ( + hidden <div>) so that is expected that the client sees an empty SSR output until hydration finishes ugh

continuing-cyan•2mo ago

Wonder if there's a way to opt-out of that

dependent-tan•2mo ago

there is, you can do this:

renderToPipeableStream(<App />, {
  progressiveChunkSize: Number.POSITIVE_INFINITY, // or just a very large number
});

renderToPipeableStream(<App />, {
  progressiveChunkSize: Number.POSITIVE_INFINITY, // or just a very large number
});

continuing-cyan•2mo ago

Testing this out rn, let's see

dependent-tan•2mo ago

lmk, i'm out n about so i'd be v interested

continuing-cyan•2mo ago

export const renderRouterToStream = async ({
  request,
  router,
  responseHeaders,
  children,
}: {
  request: Request
  router: AnyRouter
  responseHeaders: Headers
  children: ReactNode
}) => {
  if (typeof ReactDOMServer.renderToReadableStream === 'function') {
    const stream = await ReactDOMServer.renderToReadableStream(children, {
      signal: request.signal,
      nonce: router.options.ssr?.nonce,
      progressiveChunkSize: Number.POSITIVE_INFINITY
    })

export const renderRouterToStream = async ({
  request,
  router,
  responseHeaders,
  children,
}: {
  request: Request
  router: AnyRouter
  responseHeaders: Headers
  children: ReactNode
}) => {
  if (typeof ReactDOMServer.renderToReadableStream === 'function') {
    const stream = await ReactDOMServer.renderToReadableStream(children, {
      signal: request.signal,
      nonce: router.options.ssr?.nonce,
      progressiveChunkSize: Number.POSITIVE_INFINITY
    })

So yea, this worked in renderRouterToStream.tsx Solved the issue for me Can submit a PR for this but feels like a blanket fix? Not sure

dependent-tan•2mo ago

yeah i think changing this default behaviour needs more thought - we should probably have a config param or something .... i wonder what next.js has this value set to

continuing-cyan•2mo ago

It's a config param or 12,800

dependent-tan•2mo ago

for next.js?

continuing-cyan•2mo ago

Yea

dependent-tan•2mo ago

I can't see how I can set progressiveChunkSize in Next.js conf

continuing-cyan•2mo ago

Ah fairs, https://github.com/vercel/next.js/blob/234984cfeec5260fb7da8a69d3ec34cb60bcd8c1/packages/next/src/compiled/react-dom/cjs/react-dom-server.node.production.js#L4090 Saw it as a method arg, so assumed it's configurable

dependent-tan•2mo ago

this is just their fork of react dom

continuing-cyan•2mo ago

Ah interesting. So yea does seem to be 12,800

dependent-tan•2mo ago

well i mean that's the default value that's what it's hardcoded to in facebook/react repo too hmm

continuing-cyan•2mo ago

Oh, it was 1024 in the commit you linked In some places, at least I wonder how this plays with allReady though, I assuuuume it should be ignored?

dependent-tan•2mo ago

its always been 12,800 for the chunk size. the commit i linked is specifically the part that makes small boundaries get added together for the consideration which is what broke it for me

continuing-cyan•2mo ago

got it, thanks for the explanation yea

dependent-tan•2mo ago

the only 1,024 is a fixture to test it thanks for checking to see if it did fix it! we should probably make this configurable but im unsure where I'd wanna put this..... @Manuel Schiller what do you reckon

following-aquaOP•2mo ago

Nice find guys. Really impressive

continuing-cyan•4w ago

Hello! Just checking if there's been an update regarding this point? Happy to be the one submitting the PR on this, just need to know what the TS team thinks is the best approach to fix this (ie a configuration? and where?) This is sadly devaluing the SEO benefits of SSR for us, so would like to look into it

continuing-cyan•3w ago

https://github.com/TanStack/router/pull/5790 Submitted a PR for a config fix for this -- should be good enough for now i guess

GitHub

Add support for progressiveChunkSize by andyabih · Pull Request #5...

In reference to this: facebook/react@18212ca Currently, when the shell hits ~12.5KB, any suspense boundary larger than 500 bytes triggers an empty fallback. This results in pages loading without th...

Gaming

Programming

Why is there a delay between when the __root.tsx layout loads and the <Outlet />?

Did you find this page helpful?
