New Recipe not showing up in craftingbench

Im trying to make a new recipe but I cant get it to show up in the craftingbench for some reason.

Solution:

If you check out the schema you'll see some example values for ProducedIn, you may want to think about BP_WorkshopComponent https://raw.githubusercontent.com/budak7273/ContentLib_Documentation/refs/heads/main/JsonSchemas/CL_Recipe.json...

Jump to solution

19 Replies

Rex•5d ago

What did you put in mProducedIn?

RoosterLionOP•5d ago

this is the code im trying to use lol

Rex•5d ago

Please use a code block

Rex•5d ago

Like this but use json instead of cpp

RoosterLionOP•5d ago

{
"$schema": "https://raw.githubusercontent.com/budak7273/ContentLib_Documentation/refs/heads/main/JsonSchemas/CL_Recipe.json",
"Name": "New Efficient Iron Plate",
"Ingredients": [
{
      "Item": "Desc_IronIngot",
      "Amount": 1
 }
],
"Products": [
{
      "Item": "Desc_IronPlate",
      "Amount": 10
 }
],
"ManufacturingDuration": 4.0,
"ProducedIn": ["Build_ConstructorMk1_C","FGBuildableAutomatedWorkBench"],
"OverrideCategory": "Cat_StandardParts_C",
"ManufacturingMenuPriority": 0.0,
"UnlockedBy": ["Schematic_StartingRecipes_C"],
"ManualManufacturingDuration":2.0,
"VariablePowerConsumptionConstant": 0.0,
"VariablePowerConsumptionFactor": 1.0,
"ClearIngredients": true,
"ClearProducts": true,
"ClearBuilders": false
}

{
"$schema": "https://raw.githubusercontent.com/budak7273/ContentLib_Documentation/refs/heads/main/JsonSchemas/CL_Recipe.json",
"Name": "New Efficient Iron Plate",
"Ingredients": [
{
      "Item": "Desc_IronIngot",
      "Amount": 1
 }
],
"Products": [
{
      "Item": "Desc_IronPlate",
      "Amount": 10
 }
],
"ManufacturingDuration": 4.0,
"ProducedIn": ["Build_ConstructorMk1_C","FGBuildableAutomatedWorkBench"],
"OverrideCategory": "Cat_StandardParts_C",
"ManufacturingMenuPriority": 0.0,
"UnlockedBy": ["Schematic_StartingRecipes_C"],
"ManualManufacturingDuration":2.0,
"VariablePowerConsumptionConstant": 0.0,
"VariablePowerConsumptionFactor": 1.0,
"ClearIngredients": true,
"ClearProducts": true,
"ClearBuilders": false
}

Sorry about that

Rex•5d ago

Where did you get that ManualManufacturingDuration from? It's not in the schema.

RoosterLionOP•5d ago

oh I set it to that.. is that a bad thing?

Solution

Rex•5d ago

RoosterLionOP•5d ago

Oh ok let me try that out thank you so much!

Rex•5d ago

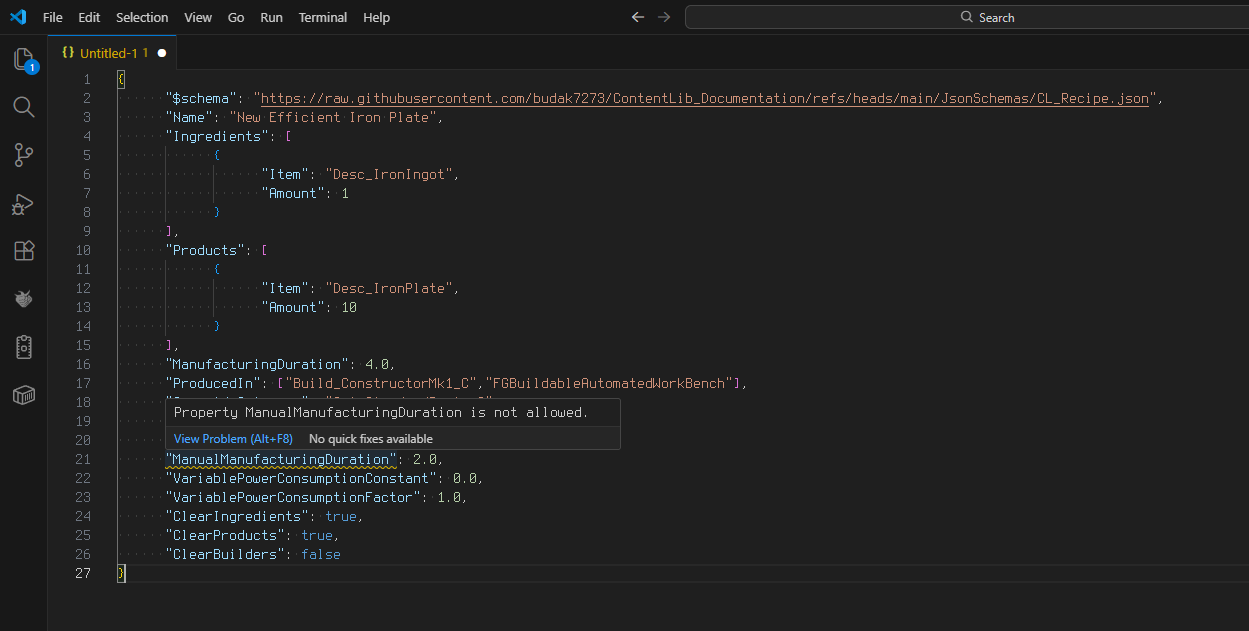

If you are using a good editor, it'll tell you that you're doing something wrong

RoosterLionOP•5d ago

Ok ill fix that

Rex•5d ago

I hope "that" also includes "your editor" :wonke: It's so much easier to work with CL JSON when your editor knows about the schemas

RoosterLionOP•5d ago

I use this is it not good?

Rex•5d ago

That's not VSCode

Robb•5d ago

no, visual studio does not have json schema support. vscode does

RoosterLionOP•5d ago

oh ok ill get vscode

Robb•5d ago

https://youtu.be/m30JiCuW42U

Code 2020

YouTube

VS Code tips — JSON schemas for IntelliSense

Set the "$scheme" property in any json file to apply a schema to it. Schemas validate your json and provide IntelliSense while writing it. The "$schema" can be a local file or hosted on a website https://code.visualstudio.com/Docs/languages/json#_json-schemas-and-settings #vscode #json

Rex•5d ago

If it's not highlighting this warning then it's not good for JSON editing

RoosterLionOP•5d ago

FIXED TYSM 🙂
