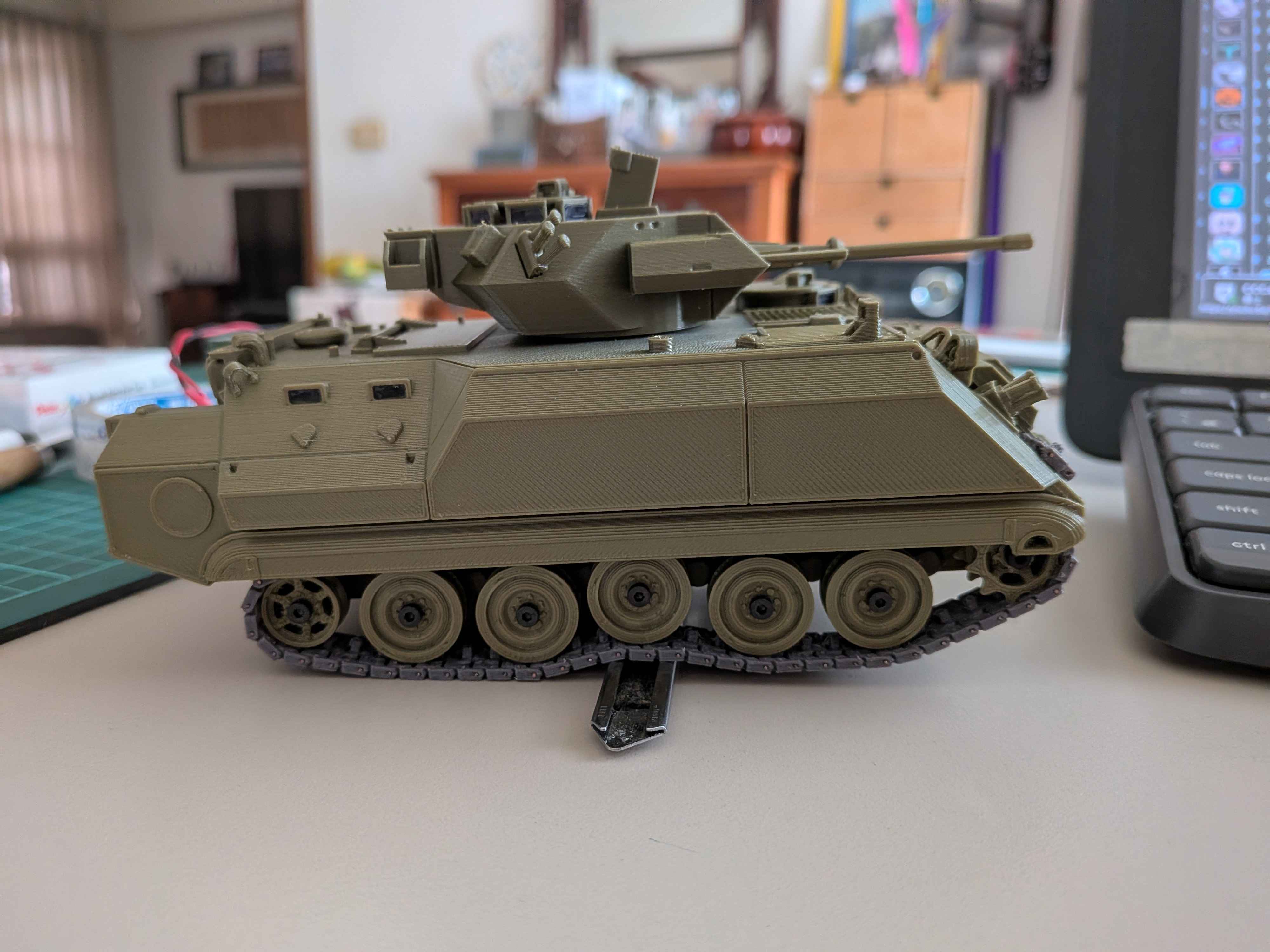

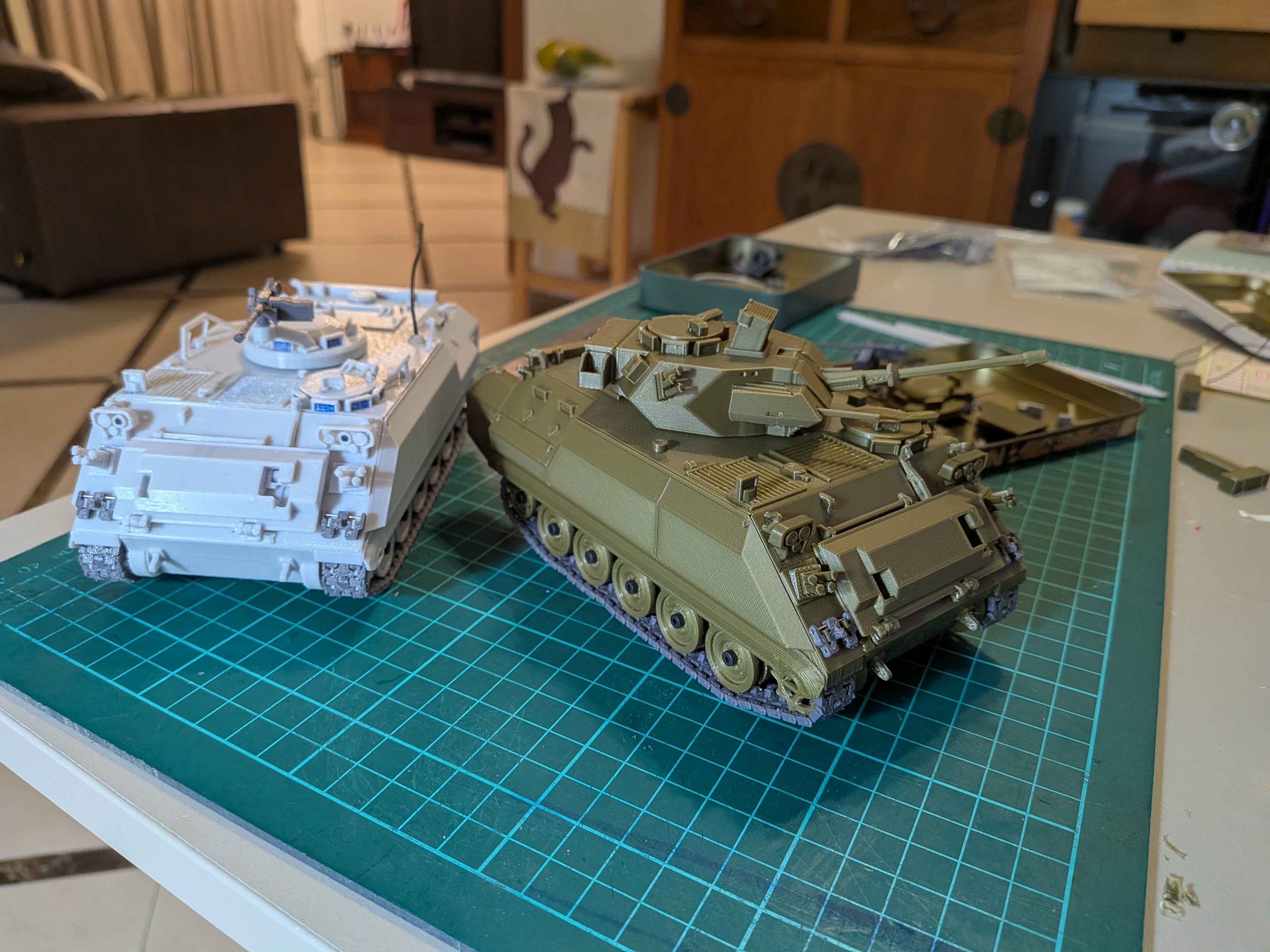

CM-21 Tracked APC RC Through WiFi with Phone
CM-21 is the Taiwanese variant of M-113 APC
ESP32 + drv8833 motor driver
The esp32 connects to hotspot as STA, it can also be connected to as AP. It shows the IP in the captive portal (WiFi login pop-up page), just hold and click open to the control UI, no need to figure out and hand-type the IP.
On github: https://github.com/CCCanyon/ESP32_WiFi_RC_tank
Model is 3d printed, available on printables though no guarantee on documentation:
https://www.printables.com/model/1488438-135-cm-21-apc-taiwanese-variant-of-m113-apc-an-rc
https://youtu.be/OqyoVtLzimQ?si=ASos_ofzx4MXct95
ESP32 + drv8833 motor driver
The esp32 connects to hotspot as STA, it can also be connected to as AP. It shows the IP in the captive portal (WiFi login pop-up page), just hold and click open to the control UI, no need to figure out and hand-type the IP.
On github: https://github.com/CCCanyon/ESP32_WiFi_RC_tank
Model is 3d printed, available on printables though no guarantee on documentation:
https://www.printables.com/model/1488438-135-cm-21-apc-taiwanese-variant-of-m113-apc-an-rc
https://youtu.be/OqyoVtLzimQ?si=ASos_ofzx4MXct95
GitHub
Wi-Fi RC tank firmware for ESP32-C3, controlling one drv8833 and two servos - CCCanyon/ESP32_WiFi_RC_tank
YouTubeVacuousCanyon

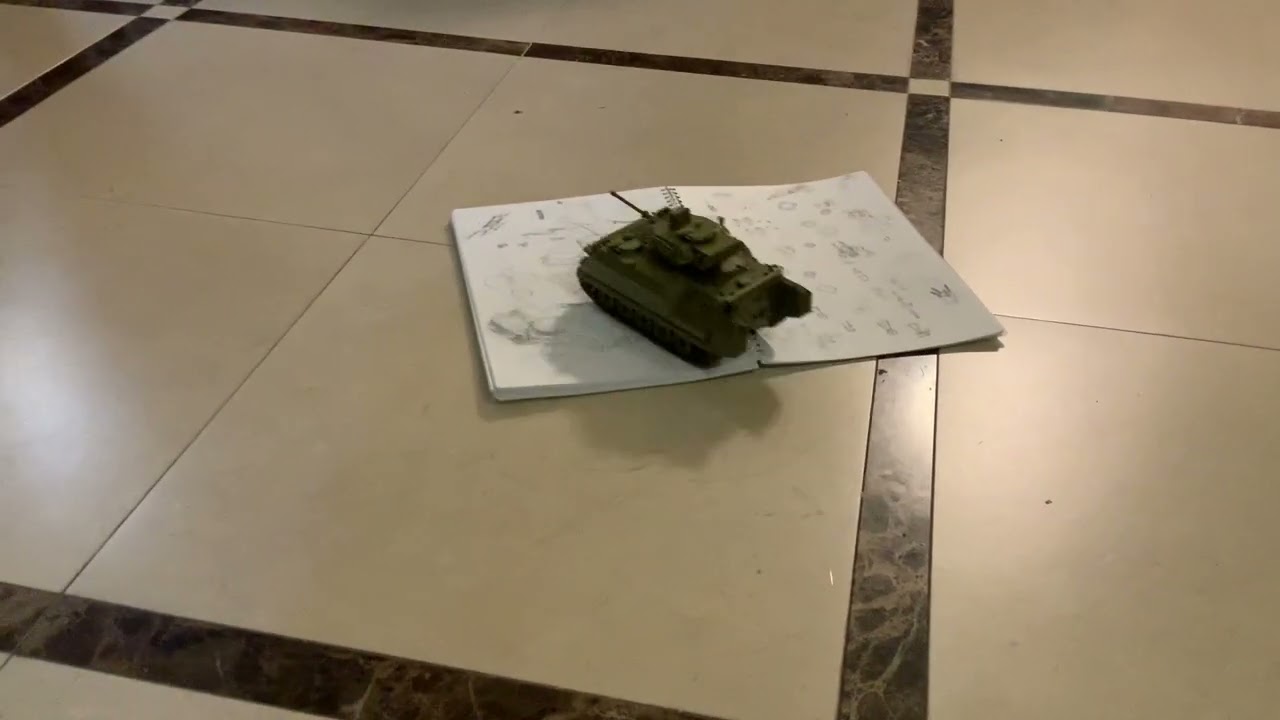

1/35 3D 列印遙控裝甲車，國軍的 CM-21 砲塔版原型車
