! Rushabh | Linux Shill - hey @Abse i wanted to...
hey @Abse i wanted to implement https://www.sparkfun.com/sparkfun-samd21-mini-breakout.html how do i get started, please can you guide me a little
27 Replies
For sure I will be free to guide you in like 1 hour or so, I'm busy atm
Ps the link is giving me 404
Ok I can jump in vc in 10 min
@! Rushabh | Linux Shill if your free join vc
https://www.sparkfun.com/sparkfun-tristimulus-color-sensor-opt4048dtsr-qwiic.html
hey @Abse, so i generated C6174012 in easyeda-converter
there is no cad model
yeah sometimes they don't have a 3d model , the footprint alone will do

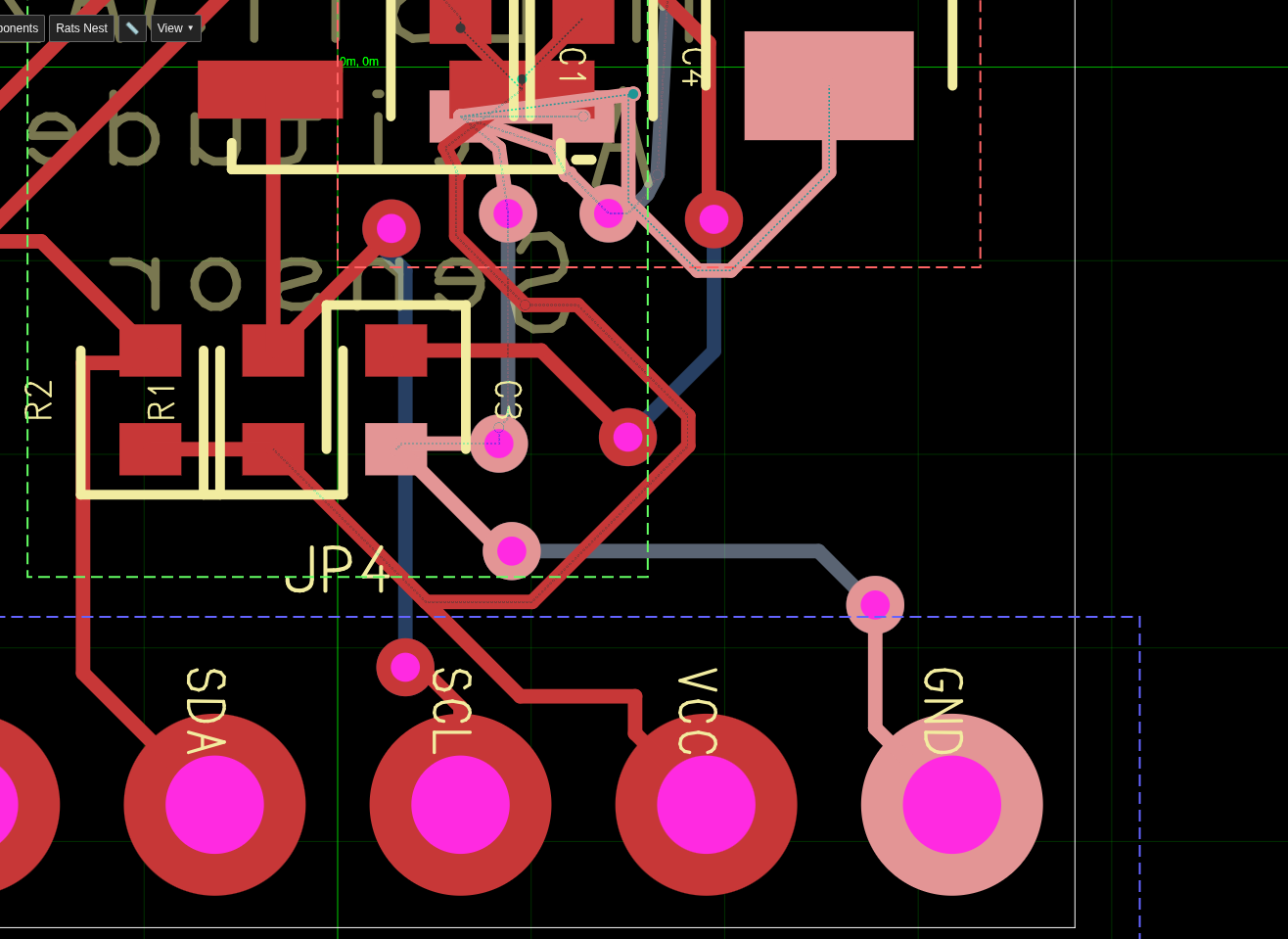

is there something wrong with GND sch
Trace jumping to other GND nets?
yes
This is a known bug, you can try to fix it if you want
Do i need to fix this

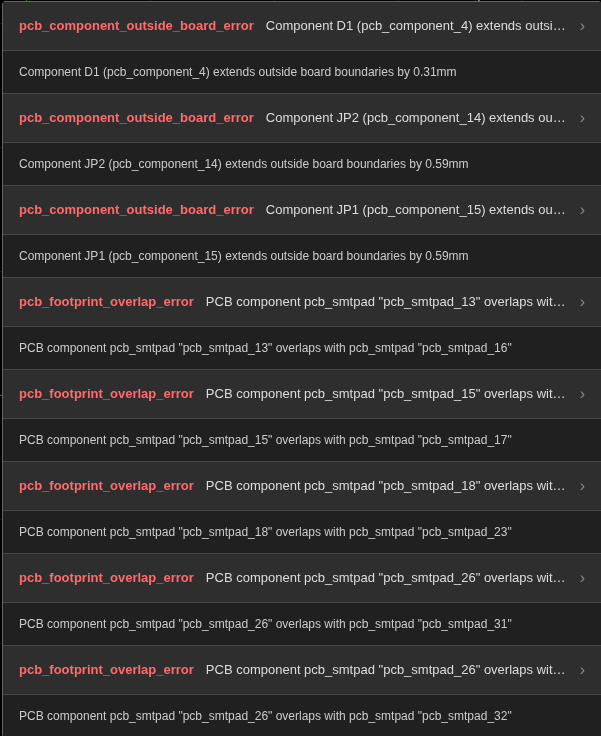

these errors are due to position, but i followed the dimesnsion i calculated using eagle file
@Abse
these should go away when you pos everything correctly this is an overlapping error
so i can deviate a little form the eagle file right
also these are not disconnecting
I don't think you need that?
I can check your progress in vc later I'm afk rn
@! Rushabh | Linux Shill your free for vc ?
https://github.com/tscircuit/sparkfun-boards/pull/212/
Please review, @Abse
Do you know why this is failing SparkFun-Voltage-Level-Translator-Breakout-TXB0104
??
build ci is not working
your PR passing
no problems
i had a doubt

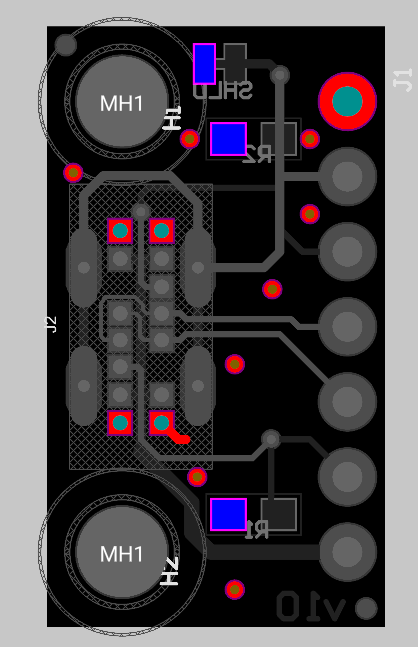

when looking at the eagle file, i cannot see any GND trace
But in TSCircuit GND trace are like any other trace
Because of this routing is failing
if only i could get rid of all the GND trace
@Abse
yeah you can use traces no problem
no i mean, for GND there is visible trace in tscircuid boards but in the eagle files there is no trace for GND
why is this
GND is causing all routing errors
they have a copper layer that give access to GND without traces you only route the other traces
@Seve do we support that ?
that is because there's a copperpour, we support it but it's not a big deal
check out the docs on copper pour
