Having trouble getting past firmware flashing step for both halves
Hey folks--this is my first corne build and I'm having some trouble with flashing the firmware for both sides. For context, I am building a 6 column corne (no solder variant) with the nice!view included and am using the default firmware files.
Left Side:

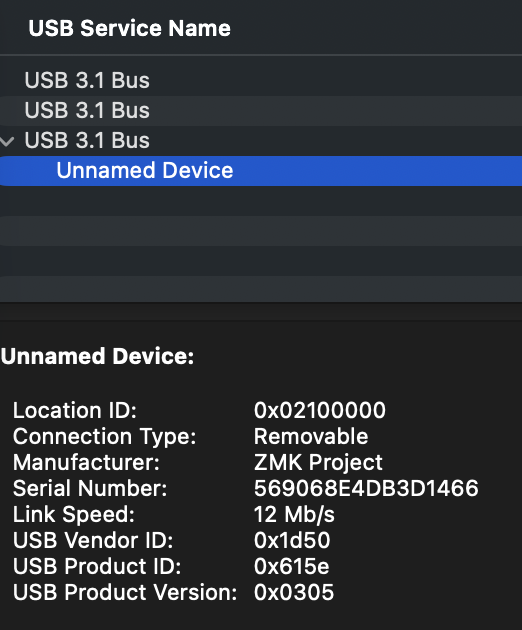

- When I plug the nice!nano into my computer, it properly registers as a drive. Then, I drag the left nice!view firmware onto the drive and then the device seems to reset as the disk unmounts. The nice!view will show faint static and there are no lights on the nice!nano. This is independent on whether or not the board is on or off. The board isn't registering keystrokes; however, system information does show that the corne is connected via usb.
Right Side:
- Essentially the same problem as the left side but it seems like my reset button isn't working since I have to short the reset/ground pins in order to put the nice!nano into the bootloader. Like the left side, I copy over the firmware using the
Things I've tried:
- switching cables
- flashing from a PC
- swapping nice!views
- reseating the headers to ensure they're flush with the PCB
- re-flashing the firmware following the instructions here https://nicekeyboards.com/docs/nice-nano/troubleshooting
Any help here would be appreciated--happy to answer any follow up questions
Left Side:
- When I plug the nice!nano into my computer, it properly registers as a drive. Then, I drag the left nice!view firmware onto the drive and then the device seems to reset as the disk unmounts. The nice!view will show faint static and there are no lights on the nice!nano. This is independent on whether or not the board is on or off. The board isn't registering keystrokes; however, system information does show that the corne is connected via usb.
Right Side:
- Essentially the same problem as the left side but it seems like my reset button isn't working since I have to short the reset/ground pins in order to put the nice!nano into the bootloader. Like the left side, I copy over the firmware using the
cpThings I've tried:
- switching cables
- flashing from a PC
- swapping nice!views
- reseating the headers to ensure they're flush with the PCB
- re-flashing the firmware following the instructions here https://nicekeyboards.com/docs/nice-nano/troubleshooting
Any help here would be appreciated--happy to answer any follow up questions
