håvard

8/19/2025

håvard - Trying to build the perfect page for m...

Trying to build the perfect page for my setup. Would be great if it was possible to have a border around a group of gauges to keep things organized and easy to read. And possibility for vertical text would also be nice. Or am I missing it, and it’s already there?

Greg Young

8/16/2025

Greg Young - Flashing LEDi have a “LED” guage...

Flashing LED i have a “LED” guage configured - works fine. path is either 0 or 1 to turn it on off etc , and i have set it to “red”color when on, and black when off - all good ...

Chisburgers

8/2/2025

Chisburgers - Hi!Hmm - any suggestions why wi...

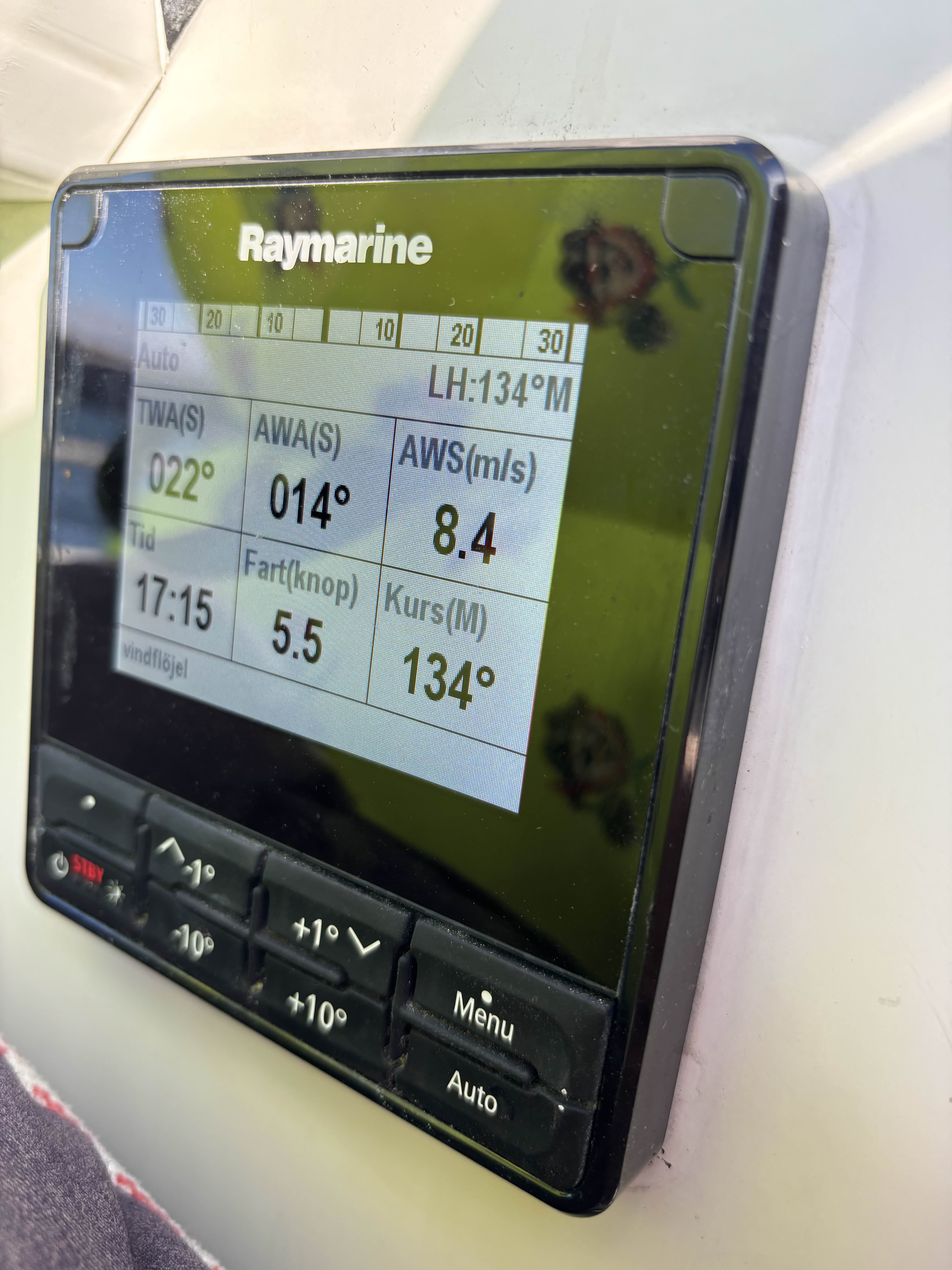

Hi! Hmm - any suggestions why wilhelmsk isn’t syncing with my p70? Here the course I off....

Greg Young

7/8/2025

Greg Young - @Scott Bender Question: is there ...

@Scott Bender Question: is there a method in WSK that a guage (“button”) can jump to another page? for example, I have a guage that shows current temperature,
if i tap it, i woould like it to open a page that then has graphs of history etc ....

Claeszv

6/19/2025

Claeszv - Hi @Scott Bender I am trying to use ...

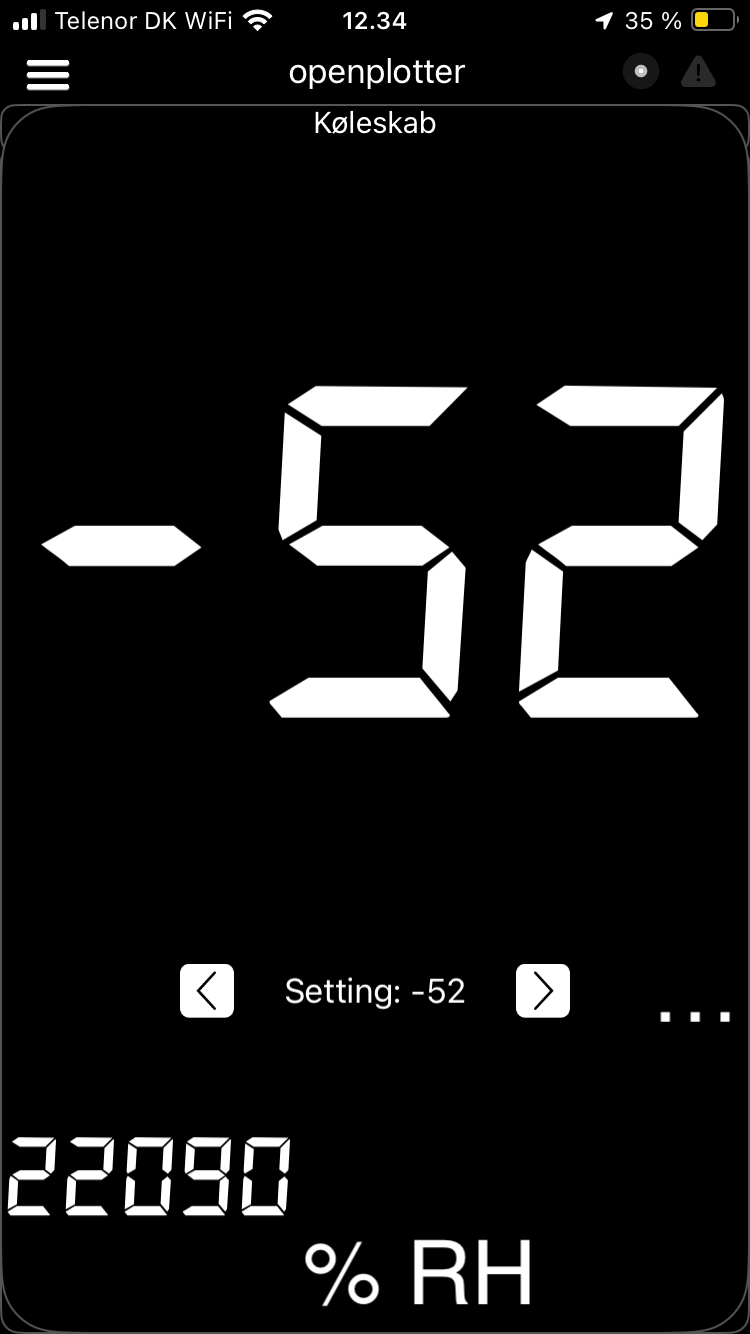

Hi @Scott Bender I am trying to use the thermostat gauge for controlling my fridge, but I can’t figure out how to adjust the temperature with the arrows. Also turning on/off. I am using signalK. What am I doing wrong here?...

håvard

6/13/2025

håvard - Is there any issues with the cloud ser...

Is there any issues with the cloud service? I can’t connect…

SCarns

6/12/2025

SCarns - Scott, is it possible to have WSK chec...

Scott, is it possible to have WSK check for existing layouts before inserting "Default"? I have 4 active layouts and everytime I launch the app, Default ends up back in the list and I have to either remove it or be ready to dbl swipe past it to get to my next layout.

Andrea Maci

5/28/2025

Andrea Maci - Hi Scott, I'm testing version 1.1...

Hi Scott, I'm testing version 1.17.1 but I can't figure out how to use widgets on the phone, maybe I have to create them first from the application in settings->widgets? For example, if I want to create a switch widget on the lock screen, how do I do it? Thanks

Greg Young

5/23/2025

Greg Young - check to ensure both devices have ...

check to ensure both devices have Read & Write privileges on the server.

håvard

5/23/2025

håvard - Trying to copy from one unit to anothe...

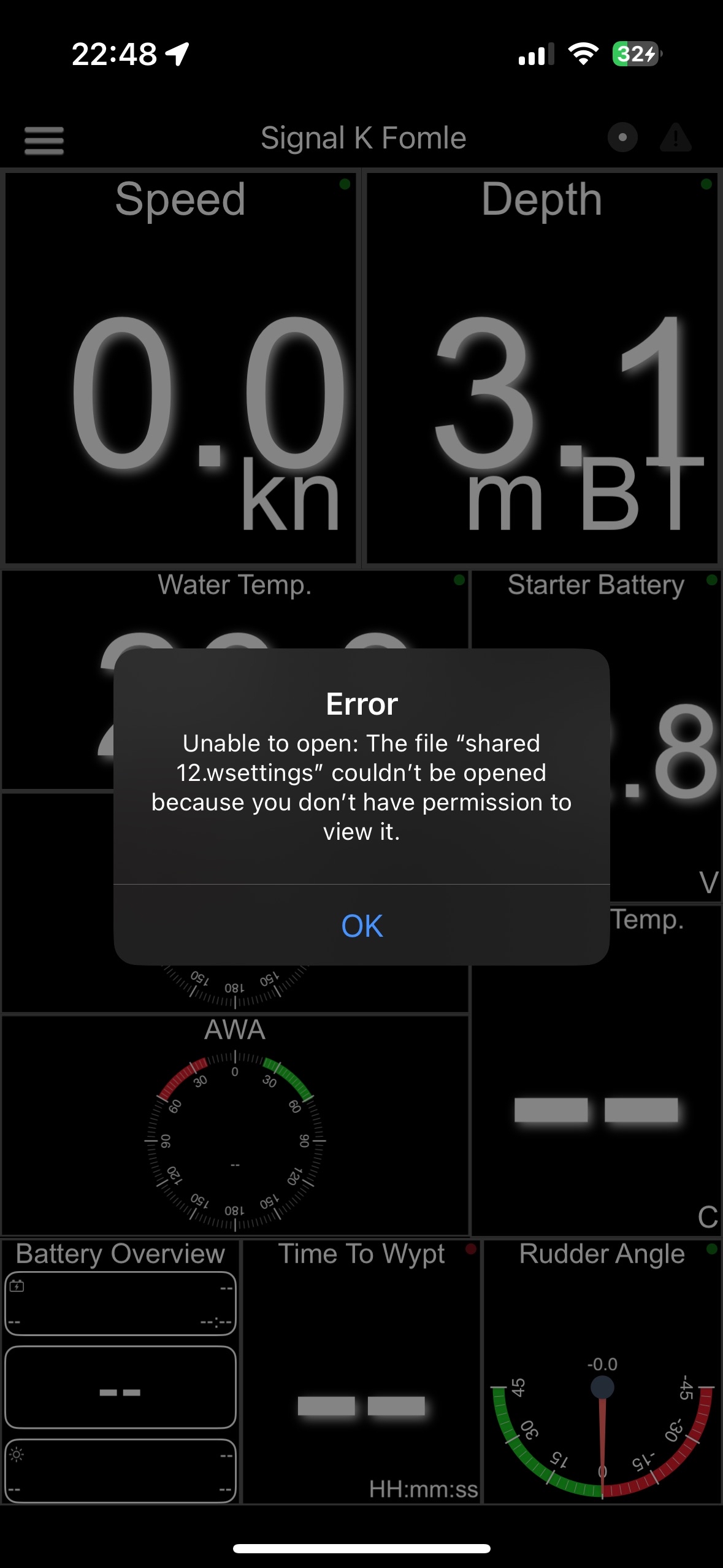

Trying to copy from one unit to another. Any idea what’s happening here?

DWinchester

5/22/2025

DWinchester - Another discrepancy seems to be i...

Another discrepancy seems to be in showing tank volum. For fresh water tank a digital meter works just fine with proper meter title but the black water meter shows value but title displays "analog voltage" even after changing title.

DWinchester

5/20/2025

DWinchester - I would like to get a ruder. Posi...

I would like to get a ruder. Position displayed as a bar. All my attempts get it going opposite direction to rudder. Any thoughts on this.

DWinchester

5/20/2025

DWinchester - Trying to get auto pilot interfac...

Trying to get auto pilot interface to st5000+ functioning. Have Digital Yacht seatalk1 to USB to do communication. Can someone tell me the configuration settings for the serial interface on Raspberry PI. Right now I am seeing intermittent operation and only when I have terminal monitor running. If terminal monitor is not running the auto pilot is dead.

Greg Young

5/13/2025

Greg Young - @Scott Bender WSK on a ”Mac”rec...

@Scott Bender WSK on a ”Mac” recall my aborted attempt at using WSK on appleTV, and then subsequent I fell back to using an IPAD “mirrored” to appleTV which is in turn connected to my chartplotter screens via HDMI/VGA. … works but kinda “clunky”… ...

håvard

5/7/2025

håvard - I’m missing or wishing for a gauge tha...

I’m missing or wishing for a gauge that could be electrical overview light. Don’t have inverter or grid meter, so an overview without that would be perfect. Perhaps with alternator temp next to dc power…?...

håvard

5/2/2025

håvard - I’m using an old iPhone as a display t...

I’m using an old iPhone as a display to show data. But I am struggling a little to create a nice and readable template. Anyone that can show some pages for inspiration?

håvard

5/2/2025

håvard - Not sure if this is related to wilhelm...

Not sure if this is related to wilhelmsk og signalk, but I am struggling to get the eta gauge to work. According to Garmin this data is sent in pgn 129284 Nav data, field 7 I believe. Any reason for this should not be working?...

håvard

4/25/2025

håvard - Is there an guide on how to set up the...

Is there an guide on how to set up the electrical/battery overview gauge? Thinking about how the sources are defined.

doug kimmerly

4/2/2025

doug kimmerly - Last year when following a trac...

Last year when following a track on my autopilot I would get a pop up on my watch about Waypoint reached. Clicking on it would advance the waypoint and turn the boat towards the next one. This year (after many upgrades SK, Raymarine, wilhelmsk) I no longer get that and can't seem to advance the waypoint from Wilhelmsk. What is needed to be in place for that to work, I think I've got everything set up properly.

Greg Young

1/31/2025

Greg Young - @Scott Bender WSK layouts & templ...

@Scott Bender WSK layouts & templates was doing some editing of one of my v complex dashboards today, and when doing a resize/reposition of a guage … i think i collapsed it to 0 x 0 (or something very small?)...
