Polygon Matrix task

34 Replies

Unknown UserOP•3y ago

Message Not Public

public class CalculateArea {

    public static void main(String[] args) {
        // bi-dimensional array: coord[4][2];
        float[][] coord = {{0f, 0f}, {2f, 0f}, {2f, 2f}, {0f, 2f}};

        float area = calculateArea(coord);

        showArea(area);
    }

    public static float calculateArea (float[][] coord) {
        float area = 0;
        //(x0+x1)(y1-y0) + (x1+x2)(y2-y1) + (x2+x3)(y3-y2) + (x3+x0)(y0-y3);
        area = ((coord[0][0]+coord[1][0])*(coord[1][1]-coord[0][1]) +
                (coord[1][0]+coord[2][0])*(coord[2][1]-coord[1][1]) +
                (coord[2][0]+coord[3][0])*(coord[3][1]-coord[2][1]) +
                (coord[3][0]+coord[0][0])*(coord[0][1]-coord[3][1])
               )/2;
        return area;
    }

    public static void showArea (float area) {
        System.out.print("The area is: "+area);
    }
}

public class CalculateArea {

    public static void main(String[] args) {
        // bi-dimensional array: coord[4][2];
        float[][] coord = {{0f, 0f}, {2f, 0f}, {2f, 2f}, {0f, 2f}};

        float area = calculateArea(coord);

        showArea(area);
    }

    public static float calculateArea (float[][] coord) {
        float area = 0;
        //(x0+x1)(y1-y0) + (x1+x2)(y2-y1) + (x2+x3)(y3-y2) + (x3+x0)(y0-y3);
        area = ((coord[0][0]+coord[1][0])*(coord[1][1]-coord[0][1]) +
                (coord[1][0]+coord[2][0])*(coord[2][1]-coord[1][1]) +
                (coord[2][0]+coord[3][0])*(coord[3][1]-coord[2][1]) +
                (coord[3][0]+coord[0][0])*(coord[0][1]-coord[3][1])
               )/2;
        return area;
    }

    public static void showArea (float area) {
        System.out.print("The area is: "+area);
    }
}

Unknown UserOP•3y ago

Message Not Public

Tomasm21•3y ago

To calculate not only square, but any polygon area, the function is:

public static float calculateAnyPolygonArea (float[][] coord) {
    int side_num = coord.length;
    float area = 0;
    int k = 0;

    for(int i = 0; i < side_num; i++) {
        k = i+1;
        if(k >= side_num) k=0;
        area = area + (coord[i][0]+coord[k][0])*(coord[k][1]-coord[i][1]);
    }
    return area/2;
}

public static float calculateAnyPolygonArea (float[][] coord) {
    int side_num = coord.length;
    float area = 0;
    int k = 0;

    for(int i = 0; i < side_num; i++) {
        k = i+1;
        if(k >= side_num) k=0;
        area = area + (coord[i][0]+coord[k][0])*(coord[k][1]-coord[i][1]);
    }
    return area/2;
}

It works only if you assign adjacent points coordinates into the array one after the other consistently. Do not mix points coordinates chaotically.

Unknown UserOP•3y ago

Message Not Public

Tomasm21•3y ago

You're welcome

Unknown UserOP•3y ago

Message Not Public

Tomasm21•3y ago

instead of 0 and 2? or why 0 and 2? f because type is float

Tomasm21•3y ago

https://www.javatpoint.com/float-keyword-in-java#:~:text=The%20Java%20float%20keyword%20is%20a%20primitive%20data,range%20from%201.40129846432481707e-45%20to%203.40282346638528860e%2B38%20%28positive%20or%20negative%29.

www.javatpoint.com

Java Float Keyword - Javatpoint

Java Float Keyword with java keywords, java tutorial, features, history, variables, object, class, programs, operators, oops concept, inheritance, array, string, methods, examples etc.

Unknown UserOP•3y ago

Message Not Public

Tomasm21•3y ago

just an example you can write any numbers you like but be sure that in the end it will be polygon

Unknown UserOP•3y ago

Message Not Public

Tomasm21•3y ago

yes area will be 1 if 4 points square but you can use any polygon coordinates.

Tomasm21•3y ago

for example from this picture:

Tomasm21•3y ago

float[][] coord = {{2f, 3f}, {4f, -4f}, {-3f, -2f}, {-4f, 4f}}; in this example the area will be -40.0 minus but this could be fixed by: if (area < 0) area = -area;

public static float calculateAnyPolygonArea (float[][] coord) {
        int side_num = coord.length;
        float area = 0;
        int k = 0;

        for(int i = 0; i < side_num; i++) {
            k = i+1;
            if(k >= side_num) k=0;
            area = area + (coord[i][0]+coord[k][0])*(coord[k][1]-coord[i][1]);
        }
        if (area < 0) area = -area;
        return area/2;
    }

public static float calculateAnyPolygonArea (float[][] coord) {
        int side_num = coord.length;
        float area = 0;
        int k = 0;

        for(int i = 0; i < side_num; i++) {
            k = i+1;
            if(k >= side_num) k=0;
            area = area + (coord[i][0]+coord[k][0])*(coord[k][1]-coord[i][1]);
        }
        if (area < 0) area = -area;
        return area/2;
    }

Unknown UserOP•3y ago

Message Not Public

Tomasm21•3y ago

@YavuzSultanEnes An example from website: https://www.mathopenref.com/coordpolygonarea.html float[][] coord = {{4f, 10f}, {9f, 7f}, {11f, 2f}, {2f, 2f}}; area will be 45.5

Unknown UserOP•3y ago

Message Not Public

Tomasm21•3y ago

yes

Unknown UserOP•3y ago

Message Not Public

Tomasm21•3y ago

from our example about square yes x would be rows y columns

Tomasm21•3y ago

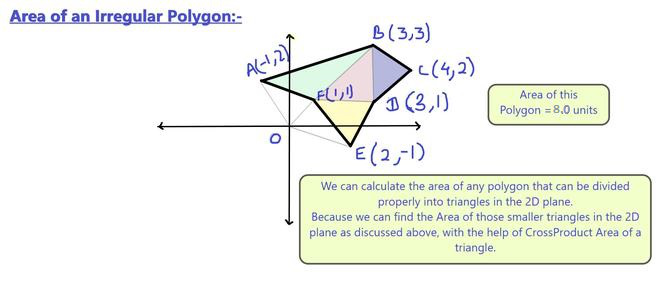

Here is another example:

Tomasm21•3y ago

float[][] coord = {{3f, 3f}, {4f, 2f}, {3f, 1f}, {2f, -1f}, {1f, 1f}, {-1f, 2f}}; area will be 8.0 On the Internet there is another solution similar, but a bit fifferent:

Tomasm21•3y ago

https://www.geeksforgeeks.org/area-of-a-polygon-with-given-n-ordered-vertices/

GeeksforGeeks

Area of a polygon with given n ordered vertices - GeeksforGeeks

A Computer Science portal for geeks. It contains well written, well thought and well explained computer science and programming articles, quizzes and practice/competitive programming/company interview Questions.

Unknown UserOP•3y ago

Message Not Public

Tomasm21•3y ago

with two arrays but not bidimensional array when we say point 2 out of 4 coord 2 it's index is 1 because if you have 4 length array, it's indexes are 0, 1, 2, 3

Unknown UserOP•3y ago

Message Not Public

Tomasm21•3y ago

1st is 0, 2nd - 1, 3rd - 2, 4th - 3 3 is Fourth point 4th vertex or point

Tomasm21•3y ago

@YavuzSultanEnes

Tomasm21•3y ago

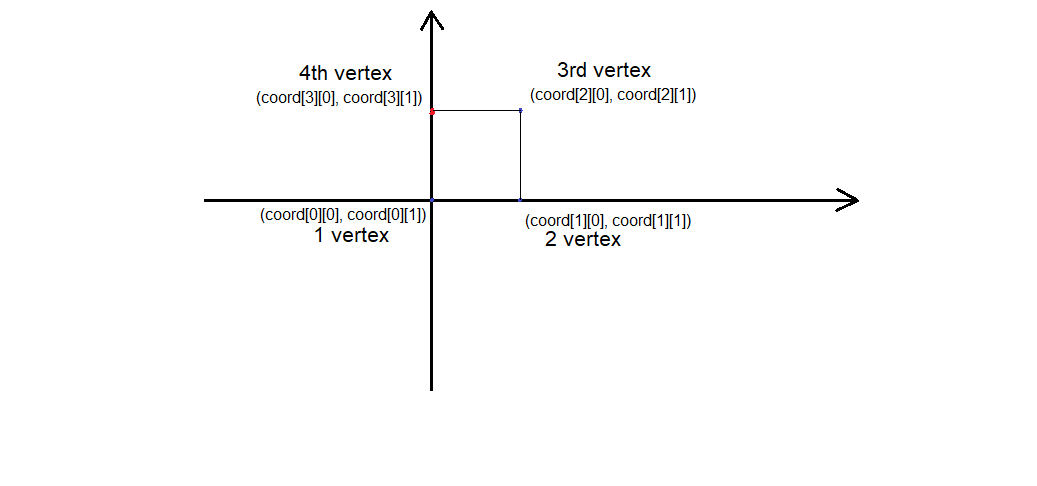

coord[n][0] - X coordinate, coord[n][1] - Y coordinate 0 0 2 0 2 2 0 2 square matrix float[][] coord = {{0f, 0f}, {2f, 0f}, {2f, 2f}, {0f, 2f}};

Unknown UserOP•3y ago

Message Not Public

Tomasm21•3y ago

A square as a polygon has 4 vertices. Each vertex has two coordinates - X coordinate and Y coordinate.

Unknown UserOP•3y ago

Message Not Public
