Arduino•3y ago

help pls

//www.elegoo.com
//2016.12.09

// Arduino pin numbers
const int SW_pin = 48; // digital pin connected to switch output
const int X_pin = 0; // analog pin connected to X output
const int Y_pin = 1; // analog pin connected to Y output
const int mot1 = 52;
const int mot2 = 53;
const int mot1p2 = 50;
const int mot2p2 = 51;

void setup() {
  pinMode(SW_pin, INPUT);
  pinMode(mot1, INPUT);
  pinMode(mot2, INPUT);
  pinMode(mot1p2, INPUT);
  pinMode(mot2p2, INPUT);
  digitalWrite(SW_pin, HIGH);
  Serial.begin(9600);
}

void loop() {
  Serial.print("Switch:  ");
  Serial.print(digitalRead(SW_pin));
  Serial.print("\n");
  Serial.print("X-axis: ");
  Serial.print(analogRead(X_pin));
  Serial.print("\n");
  Serial.print("Y-axis: ");
  Serial.println(analogRead(Y_pin));
  Serial.print("\n\n");
  delay(2000);
  if ((analogRead(X_pin))> 505){
    digitalWrite(mot1,HIGH);
    digitalWrite(mot1p2,LOW);
  }
}

//www.elegoo.com
//2016.12.09

// Arduino pin numbers
const int SW_pin = 48; // digital pin connected to switch output
const int X_pin = 0; // analog pin connected to X output
const int Y_pin = 1; // analog pin connected to Y output
const int mot1 = 52;
const int mot2 = 53;
const int mot1p2 = 50;
const int mot2p2 = 51;

void setup() {
  pinMode(SW_pin, INPUT);
  pinMode(mot1, INPUT);
  pinMode(mot2, INPUT);
  pinMode(mot1p2, INPUT);
  pinMode(mot2p2, INPUT);
  digitalWrite(SW_pin, HIGH);
  Serial.begin(9600);
}

void loop() {
  Serial.print("Switch:  ");
  Serial.print(digitalRead(SW_pin));
  Serial.print("\n");
  Serial.print("X-axis: ");
  Serial.print(analogRead(X_pin));
  Serial.print("\n");
  Serial.print("Y-axis: ");
  Serial.println(analogRead(Y_pin));
  Serial.print("\n\n");
  delay(2000);
  if ((analogRead(X_pin))> 505){
    digitalWrite(mot1,HIGH);
    digitalWrite(mot1p2,LOW);
  }
}

i am confused why this dose not work

30 Replies

MaderDash•3y ago

why are you trying to read digital pins?

dirtOP•3y ago

joystick

MaderDash•3y ago

no no Look at your code pleaase why are you trying to read digital pins?

dirtOP•3y ago

oh sry

MaderDash•3y ago

do you see one issue yet?

dirtOP•3y ago

OH it was ther from the elegoo example

MaderDash•3y ago

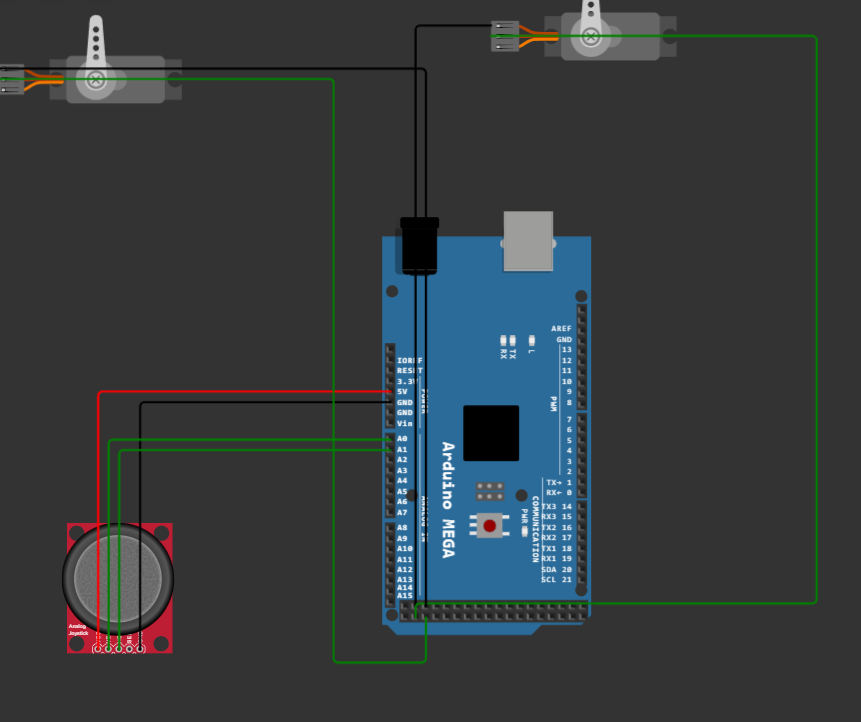

Ok so that is not correct. Im guessing this is a mega clone board correct?

dirtOP•3y ago

yes mega

MaderDash•3y ago

ok so read the first 5 lines of code there error is there.

dirtOP•3y ago

MaderDash•3y ago

const int SW_pin = 48; // digital pin connected to switch output
const int X_pin = 0; // analog pin connected to X output
const int Y_pin = 1; // analog pin connected to Y output
const int mot1 = 52;
const int mot2 = 53;
const int mot1p2 = 50;
const int mot2p2 = 51;

const int SW_pin = 48; // digital pin connected to switch output
const int X_pin = 0; // analog pin connected to X output
const int Y_pin = 1; // analog pin connected to Y output
const int mot1 = 52;
const int mot2 = 53;
const int mot1p2 = 50;
const int mot2p2 = 51;
