Is there a documented way to make a responsive grid list?

Can you share an example of a responsive grid list? I tried using lanes, dynamically substituting the number of lines there, but it didn't work

42 Replies

rising-crimson•2y ago

Hi, what do you understand under responsive grid list? Basic each row size should grow till max size from each column?

passive-yellowOP•2y ago

When changing the width of the window, the columns should adjust themselves, as if I had written

grid-template-columns: repeat(auto-fill, minmax(190px, 1fr));

grid-template-columns: repeat(auto-fill, minmax(190px, 1fr));

rising-crimson•2y ago

oo this can be tricky, you need to resolve how many columns can fit in viewport

flat-fuchsia•2y ago

I have also been looking for a way to do this. The only references I have found are all using the autosizer component from the react-virtualized lib which is very much unmaintained. this is the example in mind: https://codesandbox.io/p/sandbox/react-virtualized-responsive-card-grid-7ry39g @piecyk is there an example of something similar using react-virtual?

rising-crimson•2y ago

yeah you can implement something similar using react-virtual

flat-fuchsia•2y ago

would it be possible to have an example?

rising-crimson•2y ago

Will try to create one when got a moment

passive-yellowOP•2y ago

It would be very cool, I've been trying to do something like this for several months now

flat-fuchsia•2y ago

@piecyk I had to use this https://virtuoso.dev/grid-responsive-columns/ in the meantime - but would very much rather use react-virtual instead

Grid with Responsive Columns | React Virtuoso

The VirtuosoGrid component displays equally-sized items, while supporting multiple items per row.

passive-yellowOP•2y ago

@piecyk Hello! Any updates? Very necessary

rising-crimson•2y ago

pong, let me try to create a quick WIP

rising-crimson•2y ago

@desertir @bogdan.css something like this https://stackblitz.com/edit/tanstack-virtual-8egvwh

Damian Pieczynski

StackBlitz

Virtual Fixed Example (forked) - StackBlitz

Run official live example code for Virtual Fixed, created by Tanstack on StackBlitz

passive-yellowOP•2y ago

Oh, thank you!!

rising-crimson•2y ago

So is it working for you, any other issues?

passive-yellowOP•2y ago

I'm still testing, write about the results this week

rising-crimson•2y ago

Ok, ping me with the outcome 🙂

quickest-silver•2y ago

I have a similar (but more complicated) need for react-virtual paired with a fluid grid. I've cobbled together a minimal example here: https://stackblitz.com/edit/react-virtual-fluid-grid?file=src%2FApp.tsx&terminal=dev My requirements are: 1. While all items in the grid will have a uniform height... the item height scales based on the container width (and is therefor not static). I only made items square in the demo to make troubleshooting easier. 2. I require a resize observer (and cannot rely simply on the observeElementRect > observeWindowRect pattern) because outside elements could influence the width of the "virtual container" (not present in the StackBlitz example). 3. I require a gap between items. It would seem that I am most of the way there except that virtualizer.getTotalSize() does not always calculate the correct value, and therefor, the height + scroll "milestones" are off. Most likely this is due to a gap between "resize observer" and applying the updated "item styles". With enough window resizing, I can usually end up with the whole thing working correctly... but of course, I'd need this to work correctly without doing that 😆 If anyone has any advice, it would be greatly appreciated 🙏 Okay, I believe I've actually got this mostly fixed. I forked the original StackBlitz - this "mostly working" version only made minor changes - mostly using measureElement as the way to capture item height: https://stackblitz.com/edit/react-virtual-fluid-grid-fixed?file=src%2FApp.tsx&terminal=dev Feels wrong to call that on every single item though when you know all items will be the same height as the first item measured. My last remaining problem - that I can find at least - is resizing the window can put the measurements out of sync. Scrolling to the top can usually fix it.

rising-crimson•2y ago

@beefchimi something similar using javascript https://stackblitz.com/edit/tanstack-virtual-chmknb

Damian Pieczynski

StackBlitz

Virtual Fixed Example (forked) - StackBlitz

Run official live example code for Virtual Fixed, created by Tanstack on StackBlitz

quickest-silver•2y ago

Hey @piecyk thanks for the reply 😄 Still looking over your solution, but I see that you hard code the aspect ratio within main.tsx. What isn't adequately expressed in my StackBlitz is that the use of aspect-ratio is just for demo purposes. The real-life scenario would be for a set of cards that do not actually have that style applied. In other words, the design would be such that the cards compute to equal heights, but that height is derived from the content within - not a specific style applied via CSS (and therefor, not known ahead of time). So, I think your solution gets around the "item measurement" problem by having a predicatable item height. Unfortunately I can't do that in my solution.

rising-crimson•2y ago

Yep, most cases item height is not know and that is most problematic part when talking about virtualization 🙂 then measureElement should do the trick, if the height is equal maybe measure row not a cell, but didn't dig into your example

quickest-silver•2y ago

Yea it is proving to be a hard problem to solve. Manually calling virtualizer.measure() seems to fix it:

quickest-silver•2y ago

I was hoping that I could call virtualizer.measure() within a useEffect when the columns value changes... but that appears to be too early. Struggling to find the right moment to programatically call this, but I feel like that could be the solution.

passive-yellowOP•2y ago

Hello! Can you show the code of how you reduce the number of elements when opening the sidebar?

quickest-silver•2y ago

@desertir all the code for that Wakurtual prototype can be found here: https://github.com/beefchimi/wakurtual But, all of the relevant react-virtual code should be identical to my most recent StackBlitz test: https://stackblitz.com/edit/react-virtual-fluid-grid-fixed?file=src%2Fdemo%2FuseVirtualWindowGrid%2FuseVirtualWindowGrid.ts&terminal=dev Within the useVirtualWindowGrid.ts file, you will see that I have a useResizeObserver() watching the width changes to the listRef. That width measurement is used to help determine all of the layout measurements for the grid. In @piecyk examples, he listens for the window size. That unfortunately doesn't work for me, since I have this expanding Sidebar component, which is why I require the useResizeObserver.

passive-yellowOP•2y ago

Hello @piecyk ! How can I rewrite this part of the code so that it tracks the width of the container in which the elements are located, and not the width of the window? and at the same time use useWindowVirtualizer I have an element filter open and it narrows the grid

quickest-silver•2y ago

You would need to use a resize observer on the container like Ive done. Im not aware of any way to get this from useWindowVirtualizer.

passive-yellowOP•2y ago

You and I have a very similar problem))

rising-crimson•2y ago

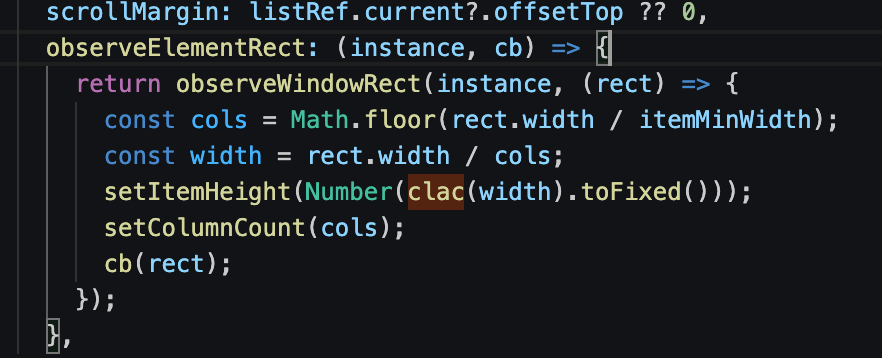

Yep @beefchimi is right, basic you want to track height of viewport and width of some div, this is not build, nevertheless virtual expose observeElementRect, so you can hack something like

const [columnCount, setColumnCount] = React.useState(1);
const columns = Array.from(Array(columnCount).keys());
const count = Math.ceil(itemsCount / columnCount);

const rectRef = React.useRef({ width: 0, height: 0 });
const virtualizer = useWindowVirtualizer({
  count,
  estimateSize: () => 50,
  overscan: 5,
  scrollMargin: listRef.current?.offsetTop ?? 0,
  observeElementRect: (instance, cb) => {
    const r1 = observeElementRect(
      { ...instance, scrollElement: listRef.current } as any,
      (r) => {
        rectRef.current.width = r.width;
        setColumnCount(Math.floor(r.width / itemMinWidth));
        cb(rectRef.current);
      }
    );
    const r2 = observeWindowRect(instance, (r) => {
      rectRef.current.height = r.height;
      cb(rectRef.current);
    });

    return () => {
      r1();
      r2();
    };
  },
});

const [columnCount, setColumnCount] = React.useState(1);
const columns = Array.from(Array(columnCount).keys());
const count = Math.ceil(itemsCount / columnCount);

const rectRef = React.useRef({ width: 0, height: 0 });
const virtualizer = useWindowVirtualizer({
  count,
  estimateSize: () => 50,
  overscan: 5,
  scrollMargin: listRef.current?.offsetTop ?? 0,
  observeElementRect: (instance, cb) => {
    const r1 = observeElementRect(
      { ...instance, scrollElement: listRef.current } as any,
      (r) => {
        rectRef.current.width = r.width;
        setColumnCount(Math.floor(r.width / itemMinWidth));
        cb(rectRef.current);
      }
    );
    const r2 = observeWindowRect(instance, (r) => {
      rectRef.current.height = r.height;
      cb(rectRef.current);
    });

    return () => {
      r1();
      r2();
    };
  },
});

https://stackblitz.com/edit/tanstack-virtual-czepgn

Damian Pieczynski

StackBlitz

Virtual Fixed Example (forked) - StackBlitz

Run official live example code for Virtual Fixed, created by Tanstack on StackBlitz

quickest-silver•2y ago

Just coming back to this to mention that I had to roll my own solution in order to solve the problem I was facing. In case it is useful to any future readers: https://github.com/beefchimi/vurtis There is a StackBlitz demo included in the README. So far, this has been working well for me, but I would likely switch back to react-virtual if I ever figure out how to solve my use-case.

GitHub

GitHub - beefchimi/vurtis: Fluid grid virtualization for React

Fluid grid virtualization for React. Contribute to beefchimi/vurtis development by creating an account on GitHub.

magic-amber•2y ago

Use react-virtuoso hands down best virtualized solution for react works very well for responsive grids it's way better than tanstack virtual in every aspects

rising-crimson•2y ago

Great that it works for you 👍

multiple-amethyst•17mo ago

Has anyone been able to find a virtualized grid solution that support all of these features? - SSR - Responsive with a dynamic number of columns - Window scrolling I keep finding solutions and libraries that miss support for one of those. I believe the solution would need to work with CSS grid to properly render on the server without producing a client hydration issue - @tanstack/virtual: doesn't work well with SSR since it doesn't use CSS grid - react-cool-virtual: doesn't support window scrolling - vurtis: doesn't support SSR (@beefchimi right?) @Bhunter do you know if react-virtuoso support all of those features?

quickest-silver•17mo ago

Hello 👋 I do have a little Waku demo app for Vurtis, as I would love to explore what is needed to fully support SSR / RSC, but at the moment I cannot say what that work would be. I also haven’t had any more time to devote to this problem so there is no guarantee that Id ever get around to it.

rising-crimson•17mo ago

@tanstack/virtual: doesn't work well with SSR since it doesn't use CSS grid

@Igor Gassmann css grid will not be rednered on server as there is no layout, i think every solution will use some kind of pre estimated sizes

conscious-sapphire•17mo ago

Does anyone here know how to integrate flex gird column resizing with virtual table rows? I'm using a grid layout on my table to achieve column flexing. But I'm having trouble virtualizing the table rows and applying the appropriate CSS to maintain the column flexing. Here's a Stackbiz that demonstrates the column resizing solution I've got going on: https://stackblitz.com/edit/tanstack-table-kvo5cj?file=src%2Fmain.tsx

Jake Godin

StackBlitz

Table Column Resizing Performant Example (forked) - StackBlitz

Run official live example code for Table Column Resizing Performant, created by Tanstack on StackBlitz

rising-crimson•17mo ago

@yase grid layout will not work here, the issue is that virtualization is only rendering subset of the elements and because of that browser can't really calculate stuff for layout.

I'm using a grid layout on my table to achieve column flexing

What is your use case, column flexing? basic resizing?

ratty-blush•17mo ago

Im also struggling with what’s been discussed here. Tried applying piecyk’s example and adjust it to have horizontally scrollable div with grid but it’s not rendering the rows that are virtual… I shared the code here https://discord.com/channels/719702312431386674/1233325498776420362 if anyone could guide my what that’s happening I’d be grateful 🙂

conscious-sapphire•17mo ago

What is your use case, column flexing? basic resizing?

Yes, column flexing paired with resizing, and of course virtualization. Material React Table by @KevinVandy (uses both Tanstack Table and Virtual) has an example of what I'm looking for: https://stackblitz.com/edit/github-5cysa5?file=src%2FTS.tsx (note layoutMode set to grid). Seems like it takes a slightly different approach than what I have in my example. I can take dig through MRT's code but maybe you or @KevinVandy have some pointers to get me started?

wise-white•17mo ago

MRT uses pretty much the same virtualization techniques that I put in the TanStack Table docs examples with virtualization.

passive-yellowOP•16mo ago

Hey @piecyk , do you plan to implement grid virtualization like react virtuoso?

rising-crimson•16mo ago

@desertir hmm something like this https://virtuoso.dev/grid-responsive-columns/ didn't we had and example of this alredy 🤔

Grid with Responsive Columns | React Virtuoso

The VirtuosoGrid component displays equally-sized items, while supporting multiple items per row.

rising-crimson•7mo ago

This looks like good example https://github.com/TanStack/virtual/discussions/710#discussioncomment-11562581

GitHub

How to add horizontal gap? · TanStack virtual · Discussion #710

Hey guys, I recently discovered the new gap option. We use a Masonry list and tried to add space between the elements. It seems that the gap gets only added vertically, but not horizontally. Is the...
