Electronic dice

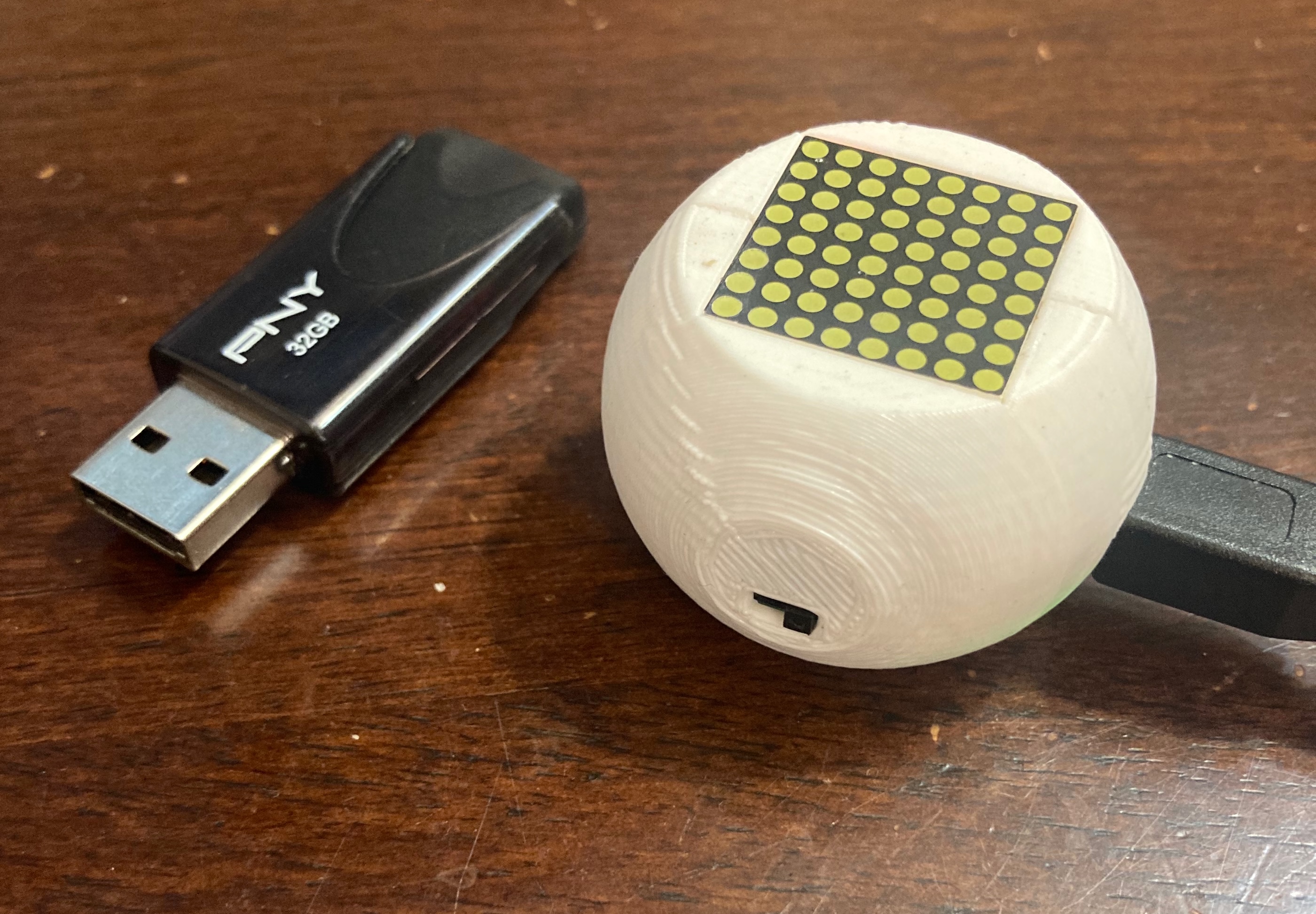

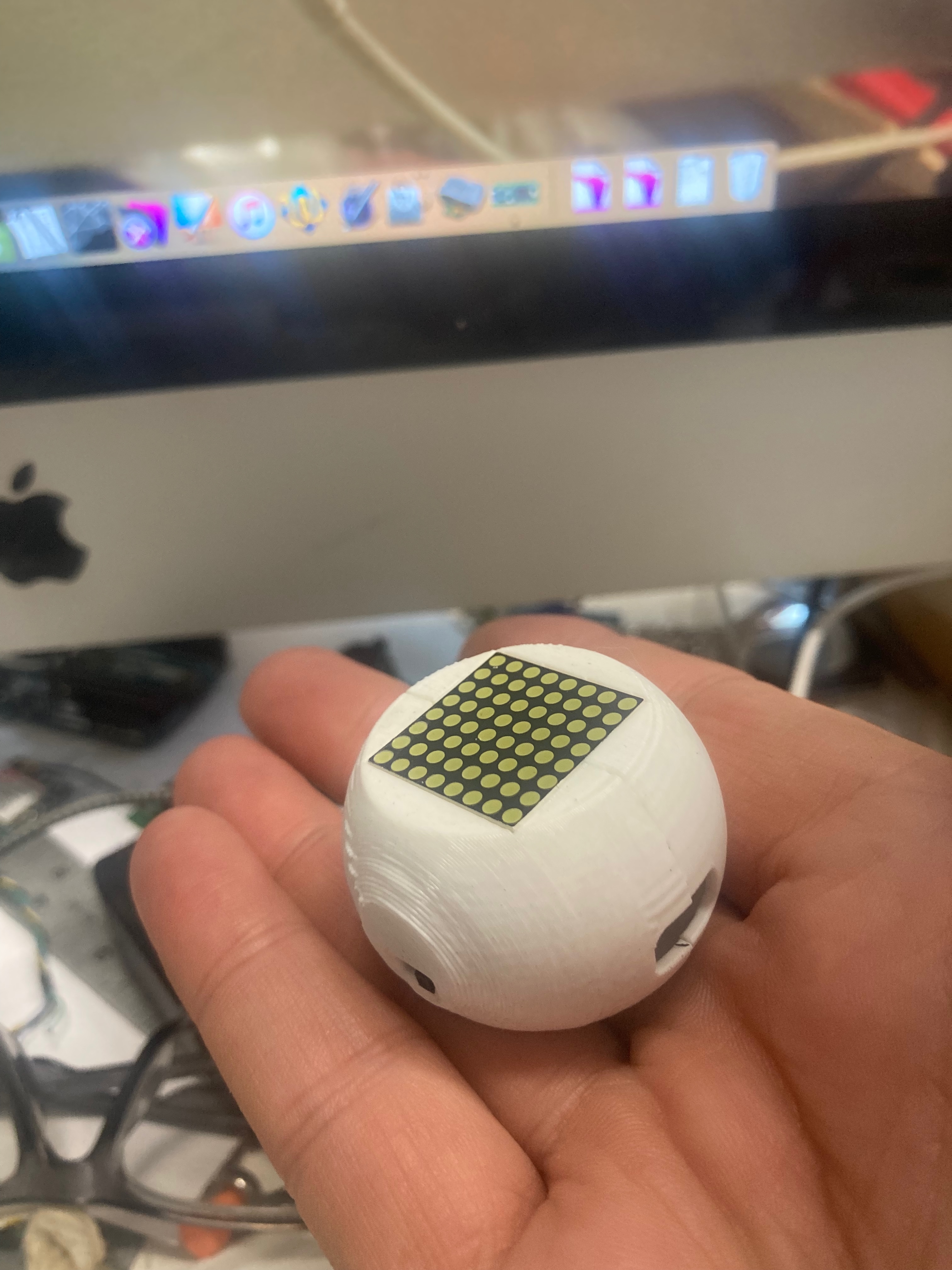

Got the idea from a post I saw here a few months ago. Someone waned an idea for a project. Doing a deslpay of 1..6 die on a matrix caught my eye. Why not a ball with a display on each side? Vibration sensor to trigger it to select a number. LIPo battery & charger? Easy peasy! NOT. Nightmare to assemble!
Parts involved.

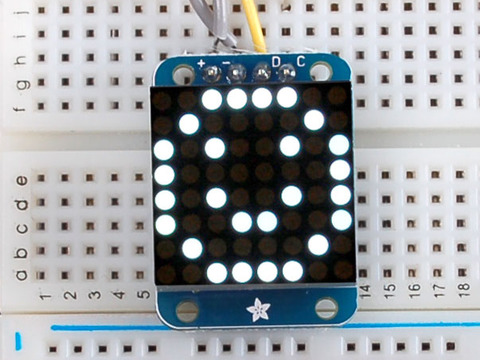

8x8 matrix, need 2 of 'em : https://www.adafruit.com/product/1080

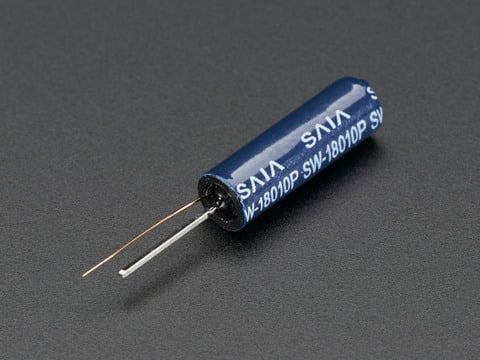

Vibration sensor : https://www.adafruit.com/product/1766

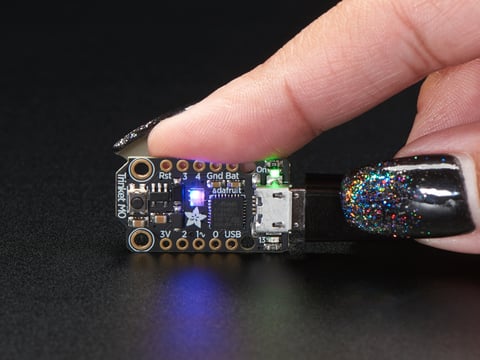

Trinket MO (tiny) : https://www.adafruit.com/product/3500

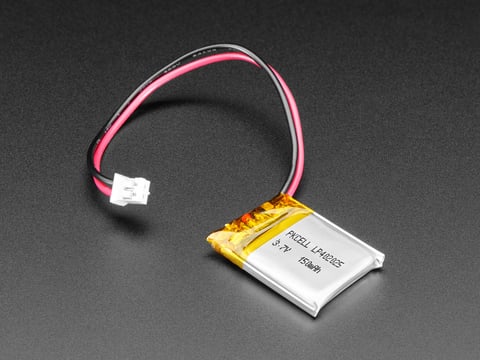

Little LiPO 150mAH : https://www.adafruit.com/product/1317

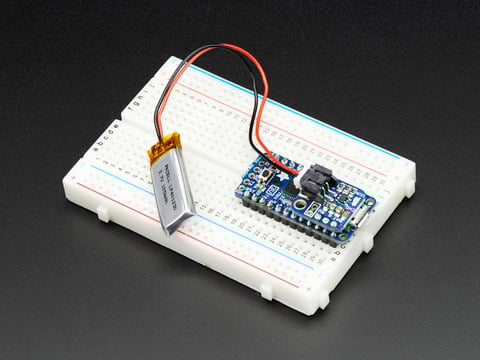

Tiny LiPo charger : https://www.adafruit.com/product/2124
Itty bitty switch : https://www.adafruit.com/product/805
Silicon coated wire : https://www.adafruit.com/product/3165
Get every color they sell. There is no way to build this using regular hookup wire. This suff is tiny, immue to solder iron heat. And extremely flexible.
Parts involved.
8x8 matrix, need 2 of 'em : https://www.adafruit.com/product/1080
Vibration sensor : https://www.adafruit.com/product/1766
Trinket MO (tiny) : https://www.adafruit.com/product/3500
Little LiPO 150mAH : https://www.adafruit.com/product/1317
Tiny LiPo charger : https://www.adafruit.com/product/2124
Itty bitty switch : https://www.adafruit.com/product/805
Silicon coated wire : https://www.adafruit.com/product/3165
Get every color they sell. There is no way to build this using regular hookup wire. This suff is tiny, immue to solder iron heat. And extremely flexible.
