How to Properly Connect and Initialize OV2640 Camera Module with ESP-WROOM-32 Using MicroPython?

hello guys, am workin on an Object Detection with

MicroPython

MicroPython

and

OV2640

OV2640

Camera Module Using

ESP-WROOM-32

ESP-WROOM-32

what is the most proper and efficient way to setup the hardware connection between the

OV2640

OV2640

and

ESP-WROOM-32

ESP-WROOM-32

, i have also writing a basic script in MicroPython to capture an image using the

OV2640

OV2640

camera module on

ESP32

ESP32

but getting the error failed to initialize camera, here is my code:

Install necessary MicroPython libraries:

   import machine
   import esp32
   import camera

   def init_camera():
       camera.init(0, d0=24, d1=35, d2=32, d3=5, d4=39, d5=36, d6=19, d7=21, xclk=4, pclk=18, vsync=25, href=23, siod=26, sioc=27)
   init_camera()

   import machine
   import esp32
   import camera

   def init_camera():
       camera.init(0, d0=24, d1=35, d2=32, d3=5, d4=39, d5=36, d6=19, d7=21, xclk=4, pclk=18, vsync=25, href=23, siod=26, sioc=27)
   init_camera()

Solution

This is also useful

https://lemariva.com/blog/2020/12/micropython-ov2640-camera-module-extended

LeMaRiva|tech

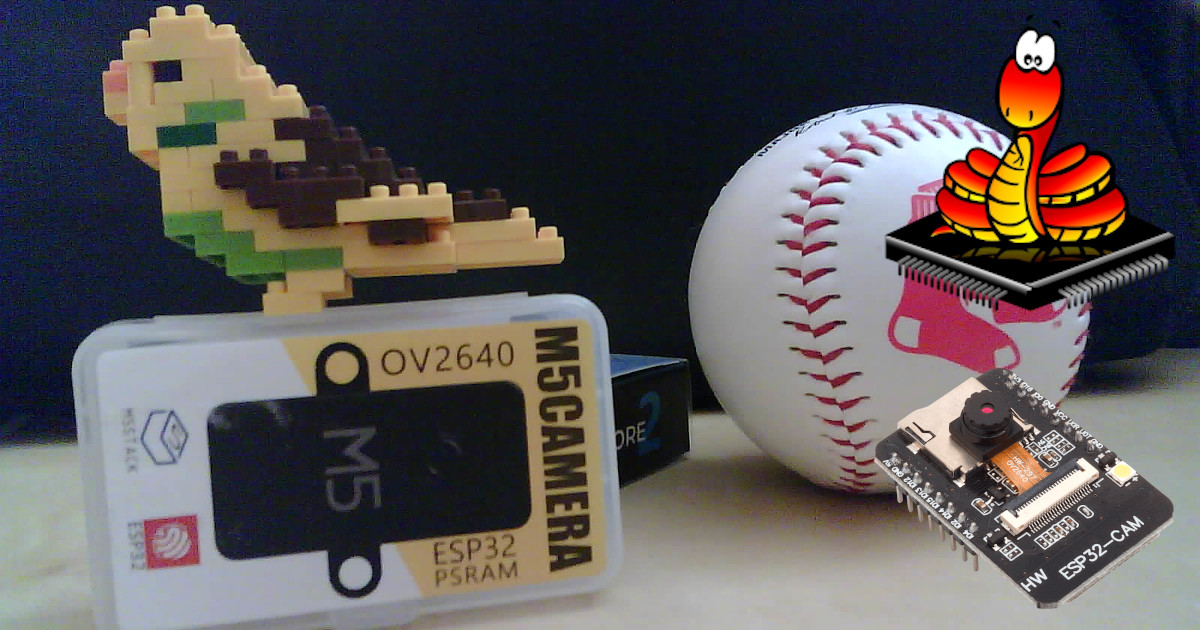

MicroPython: OV2640 camera module extended (M5Camera, ESP32-CAM, etc.)

This article extends the MicroPython camera module to add extra functionalities to configure the OV2640. The OV2640 is a popular camera and can be found on the M5Camera, ESP32-CAM, T-Camera boards.

Jump to solution
