LGs Simulator v1.31
Hey there guys. After some learning about general stuff about Arduino Uno R3, I managed to make my first good prototype.
Some soldering, some connecting, and a lot of code (ngl I used chatGPT for pages logic since I couldn't understand how C compiler is exactly compiling).
Because of that, I made Logic Gates Simulator version 1.31 (small patches into code)
-# I might send code on GitHub since I don't want to flood this post with it (178 lines)
It is my second project (my first was "Pogodynka" - translate PL) where I started to learn about LCD screens.
It has 6 logic gates. It's simple - yet effective. And yes, it was my idea to make it (after I found out my micro-processor is some kind of organizer type [source: ChatGPT] and cannot really handle logic gates).
Enough with story, I will now link the movie showing LGs in action (36s movie)
:github: [soon]
🎥 https://www.isopl.smallhost.pl/secdown.php?file=MTAxNDIxOTNiYTUwZTlhOF9WSURfMjAyNTAxMTFfMTYzOTUzNTQ0Lm1wNA%3D%3D (101mb)
-# sorry for third-party link and for that "potential dangerous website", I'm just too lazy to remake SFU on https://isopl.co/panel/SFU/ - a lot of work and design ¯\_(ツ)_/¯

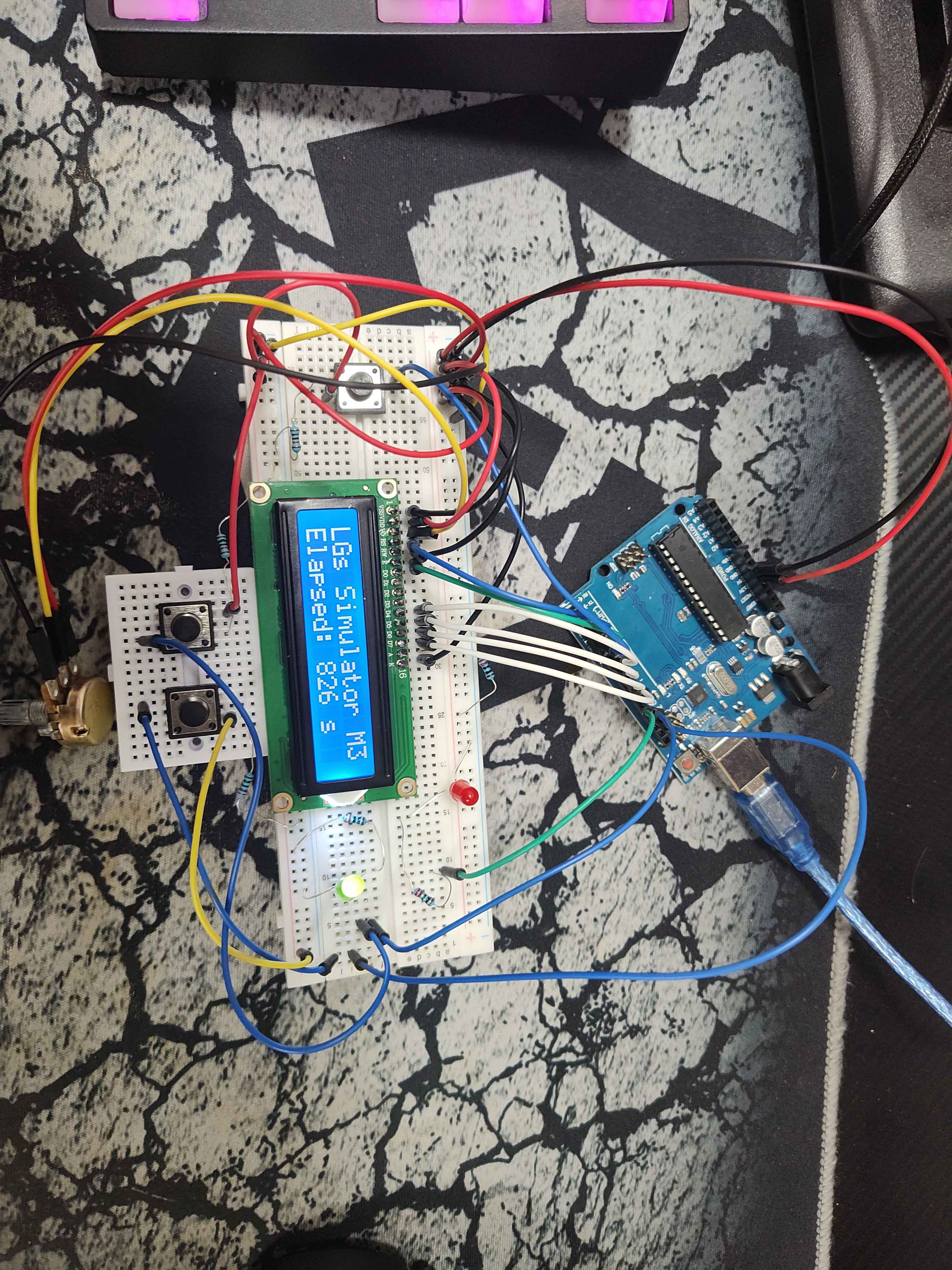

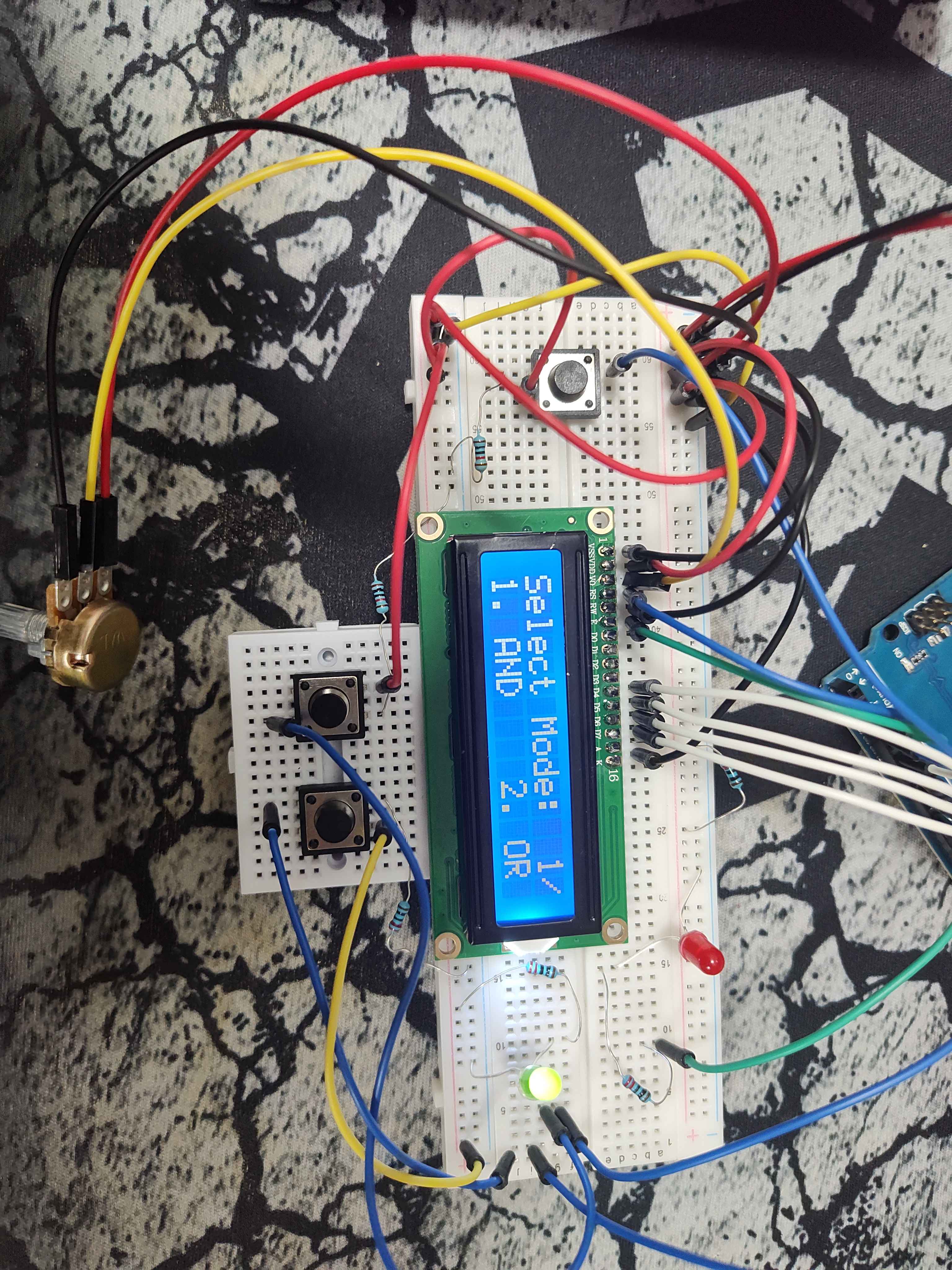

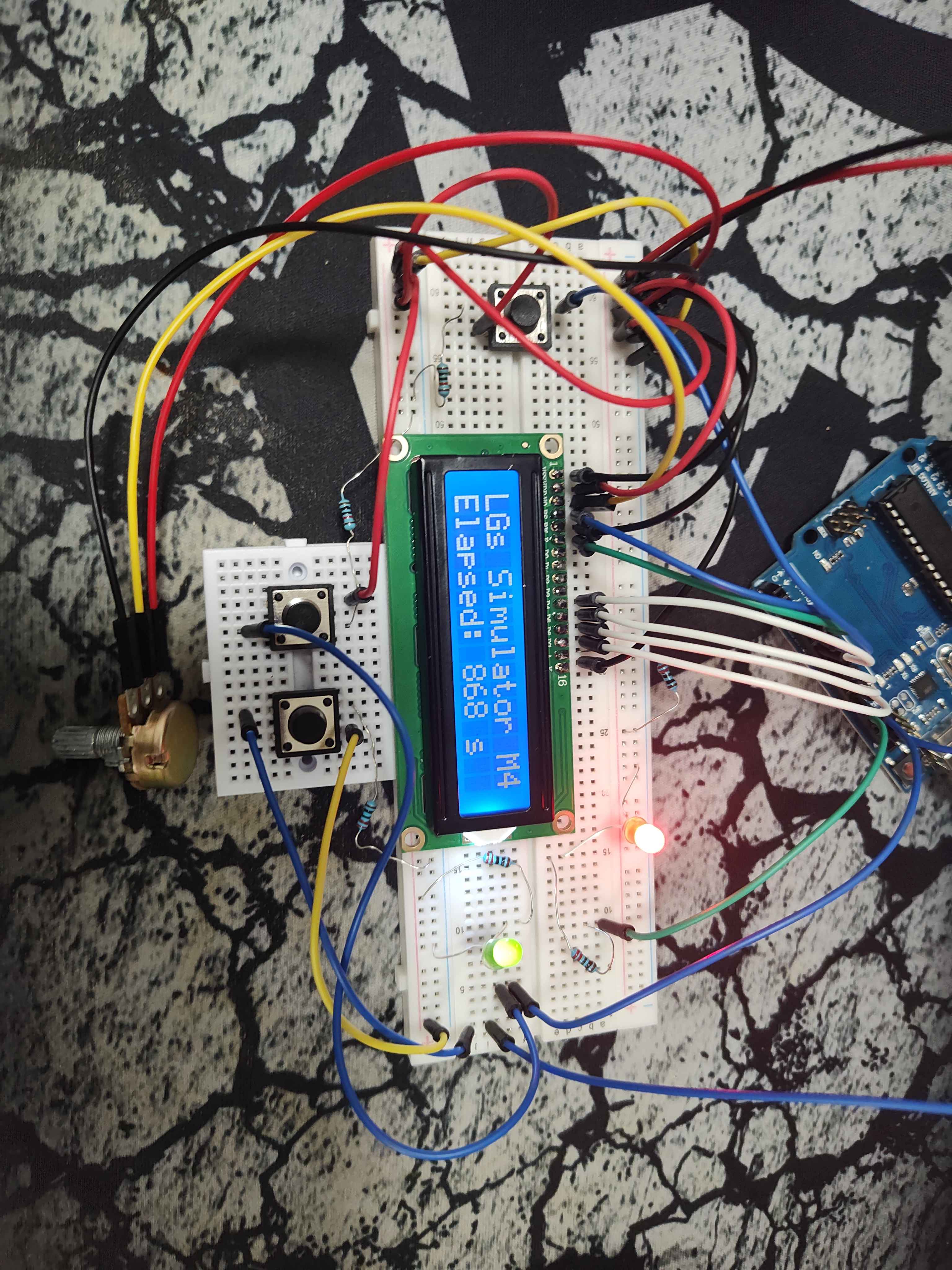

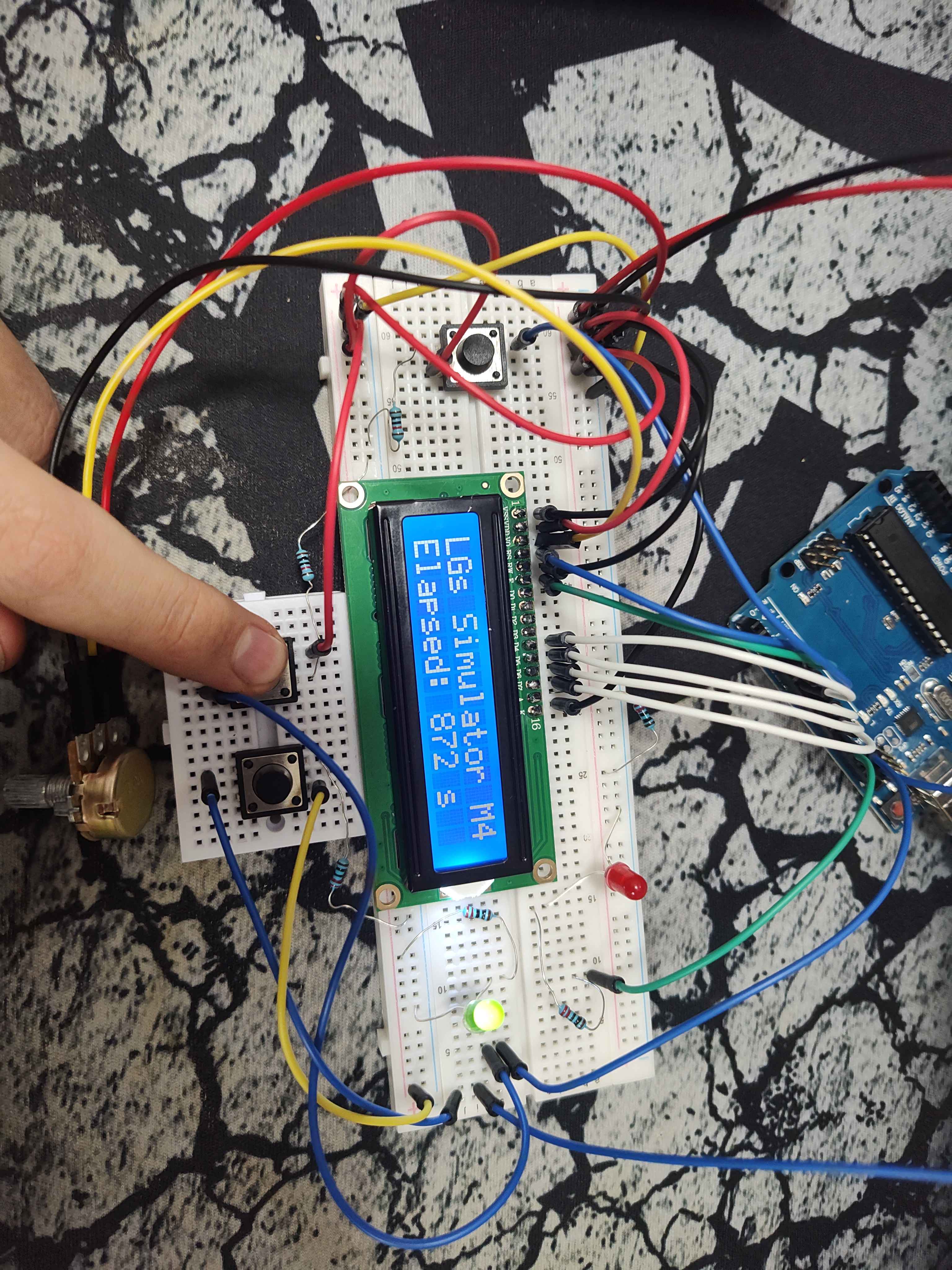

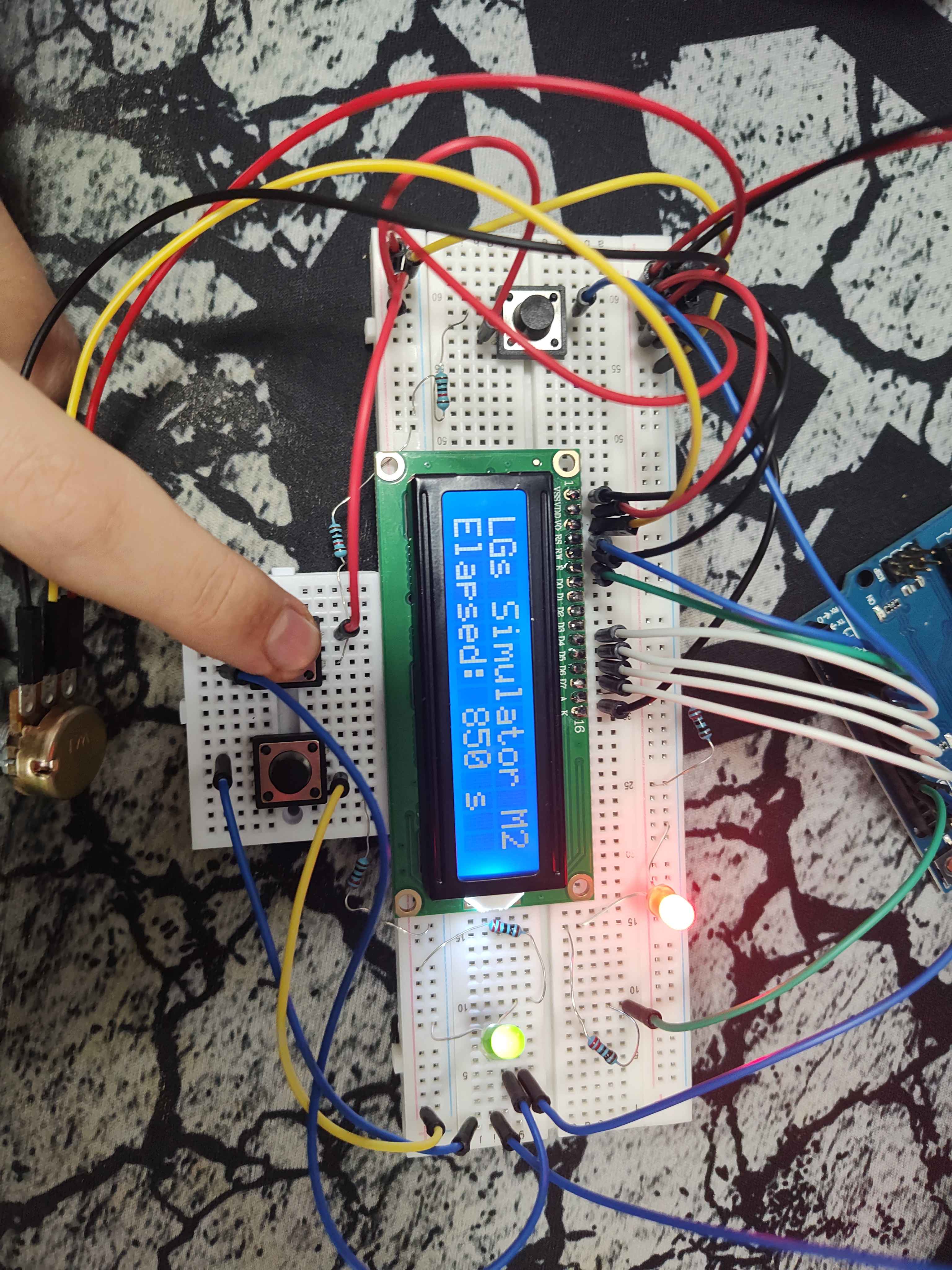

-# but if you are not feeling well with going into my website, that's fine. Here are some photos then :)
