I need help with bootloading a atmega328p-au chip

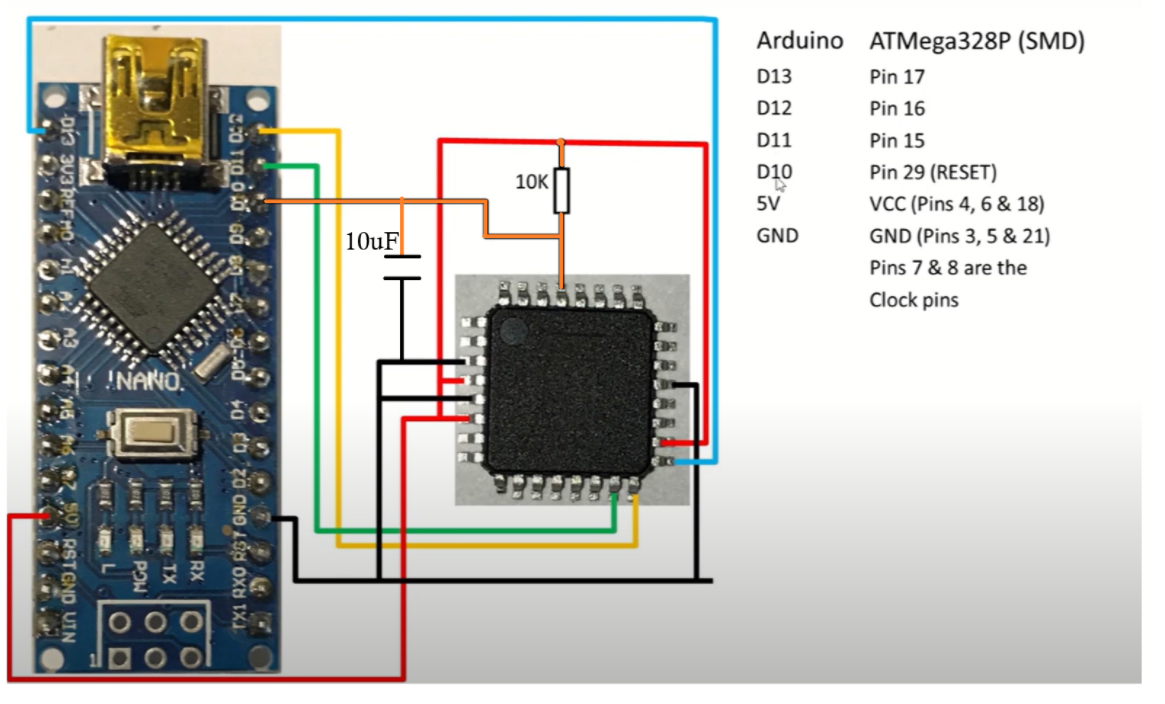

im using a QFP32 to DIP 28 adapter since its an SMD. im using a arduino nano to bootload it.
7 Replies

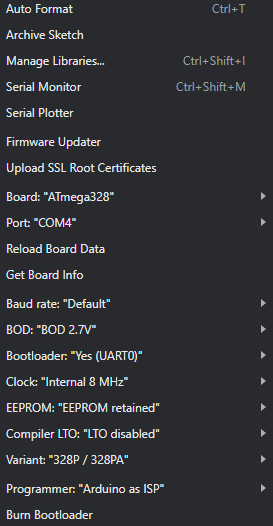

there are the settings in arduno ide
im using this board manager thing: https://github.com/MCUdude/MiniCore / https://mcudude.github.io/MiniCore/package_MCUdude_MiniCore_index.json
GitHub
GitHub - MCUdude/MiniCore: Arduino hardware package for ATmega8, AT...
Arduino hardware package for ATmega8, ATmega48, ATmega88, ATmega168, ATmega328 and ATmega328PB - MCUdude/MiniCore

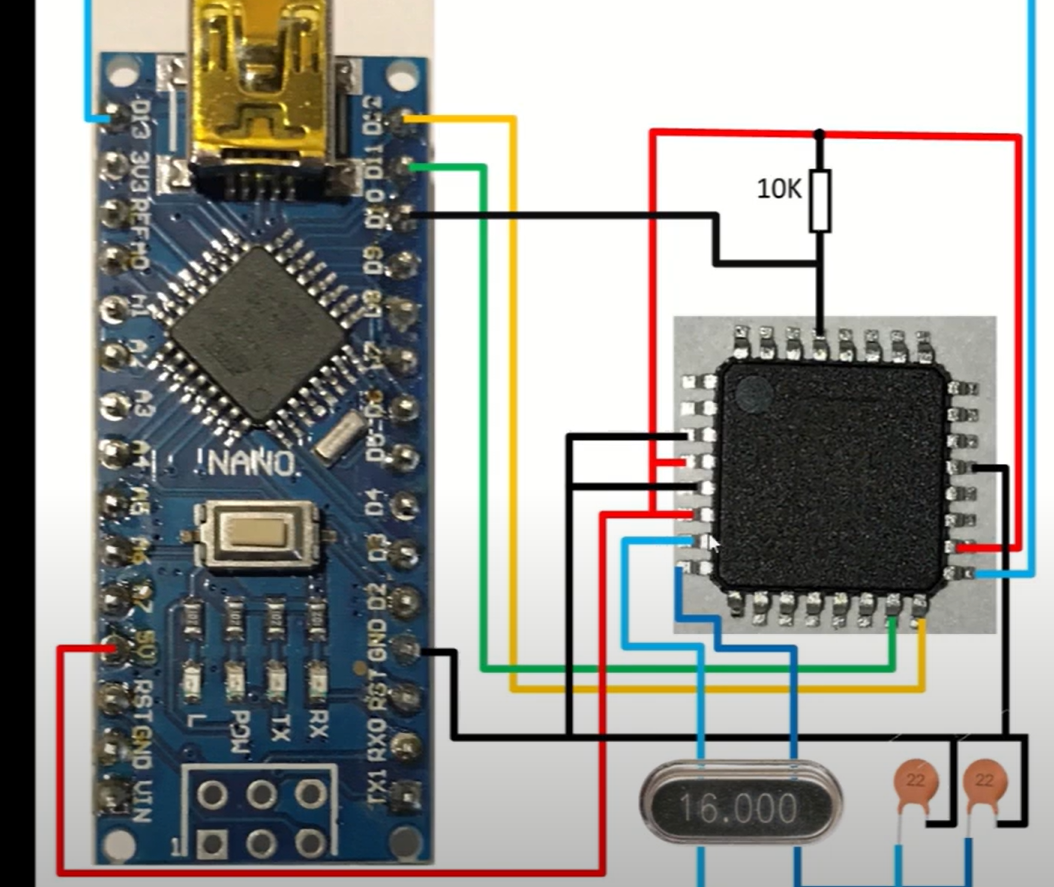

ive also tried using a external 16 quartz clock
like this photo shows

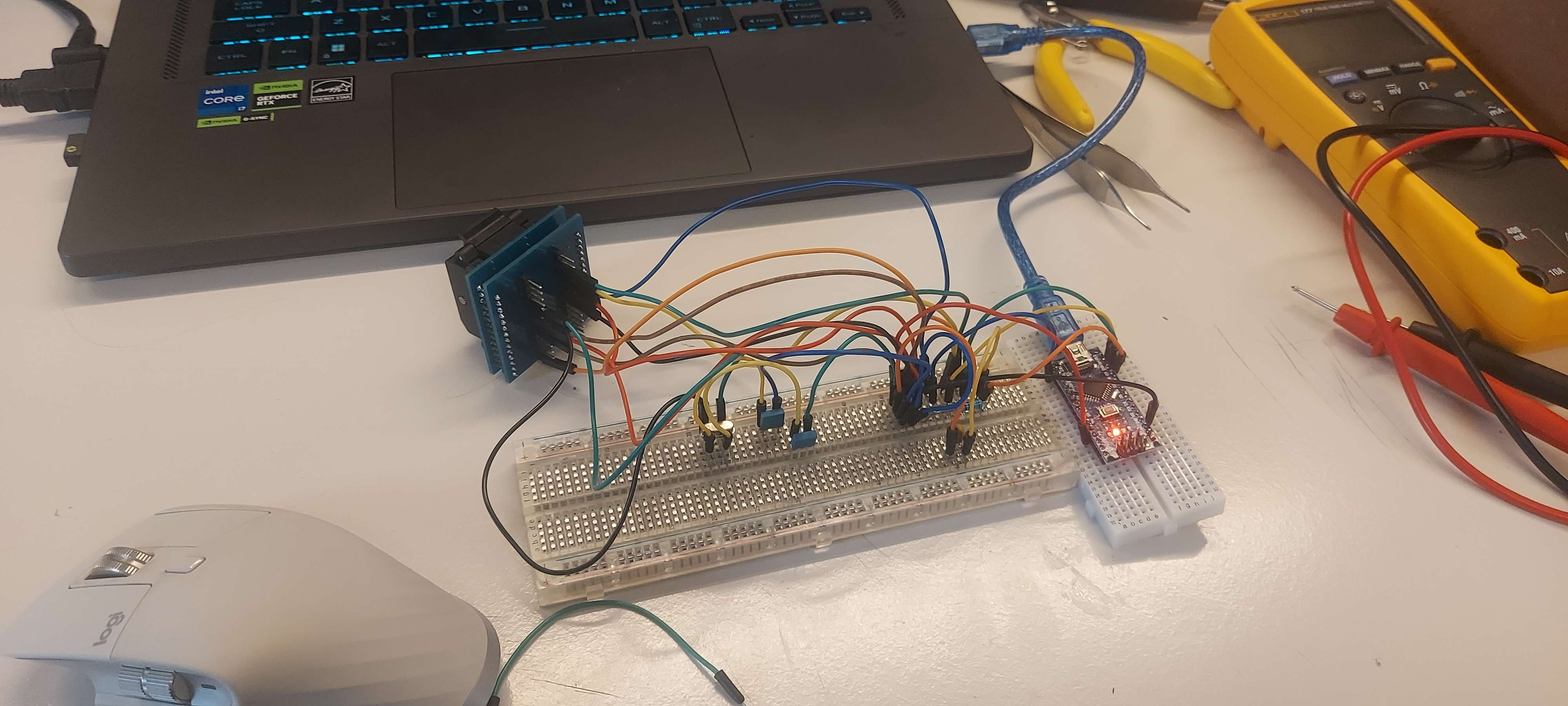

current setup
Unknown User•5mo ago
Message Not Public
Sign In & Join Server To View
i have
ok i figured it out @Finnbergg
