Bed bowed along Y axis
I followed the general advice to adjust the gantry and achieved a consistent level at the corners of the bed mesh. However, the Y axis looks very bowed. I have not yet put the PEI sheet onto the bed, so the meshes seen are of just the bare metal bed. Heat pad is not installed.
* I tried loosening the Y axis rails and re-tightening them from the middles outwards.
* I tried the same thing, but with 15 lb weights on top of the Y-axis extrusions as I re-tightened the rails; no discernable change at all.
Has anybody seen this before, or have advice on what I could try to fix the bowing? I'm not sure if the bed is warped or if there's something wrong with the motion system, though it would be surprising to me for the motion system to be equally warped on both sides throughout the gantry corner levelling process.
7 Replies
Update: I flipped the whole bed upside down and ran another mesh. It's still bowed downwards near the center, so either the gantry is bowed upwards or the bed is bowed inwards on both sides. The gantry might make more sense, but the upside-down mesh does seem to bow inwards over a larger area.
@Helge Keck @VisualTech48 don't mean to impose, but you two seem good at solving these problems 😅 have time to take a look?
0.29 for a 400 bed is actually ok
If it's not an idex it's a good bed, you can always use kaptom tape if you want to go lower.
This is bend seems to be in y but I need to see unrotated bed mesh with higher resolution and slider dragged all the way to the right. @nathanjaker
Thank you both!

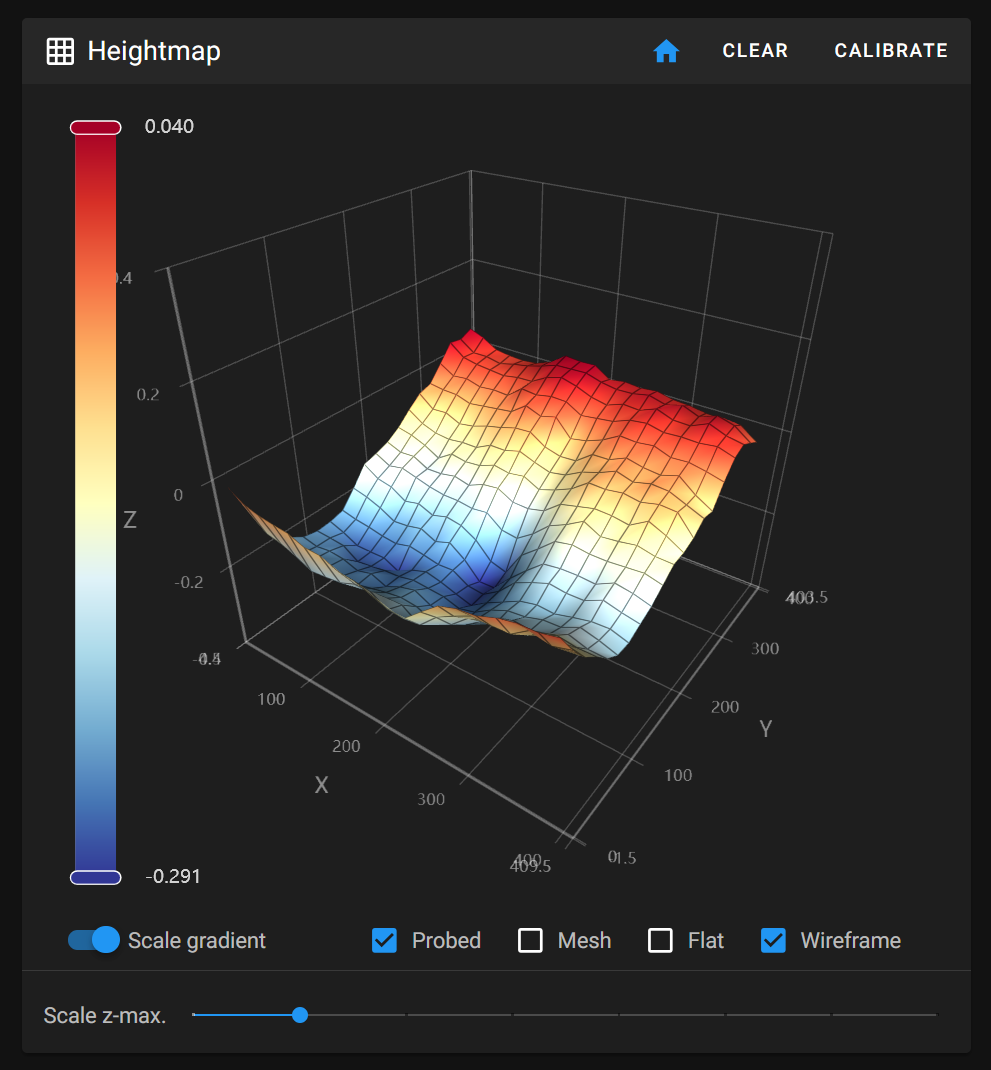

@VisualTech48 here's the image. Default view, slider all the way to the right.
Some more views:
