Upgradable connections?
I have a circuit board of an rc plane, which i had to open (of course). I want to not only put it back, but also be able to remove the connections and test them on a breadboard or something similar.
The circuit board is unlabelled, but i know what everything does. There are two motors, a battery connector and two LED's connected to the same + & -. Images are attached.
If there nothing such, what are those battery connectors called?
5 Replies
I'm failing to understand your question. You wan to make a board tester?
i think OP is looking for the mate to the battery connector
I wanted something like the battery connector, instead of permanent connections, i should be able to remove them and test, because it fails quite often.
Yes exactly, but what are they called?
Also is there an individual wires version of this?

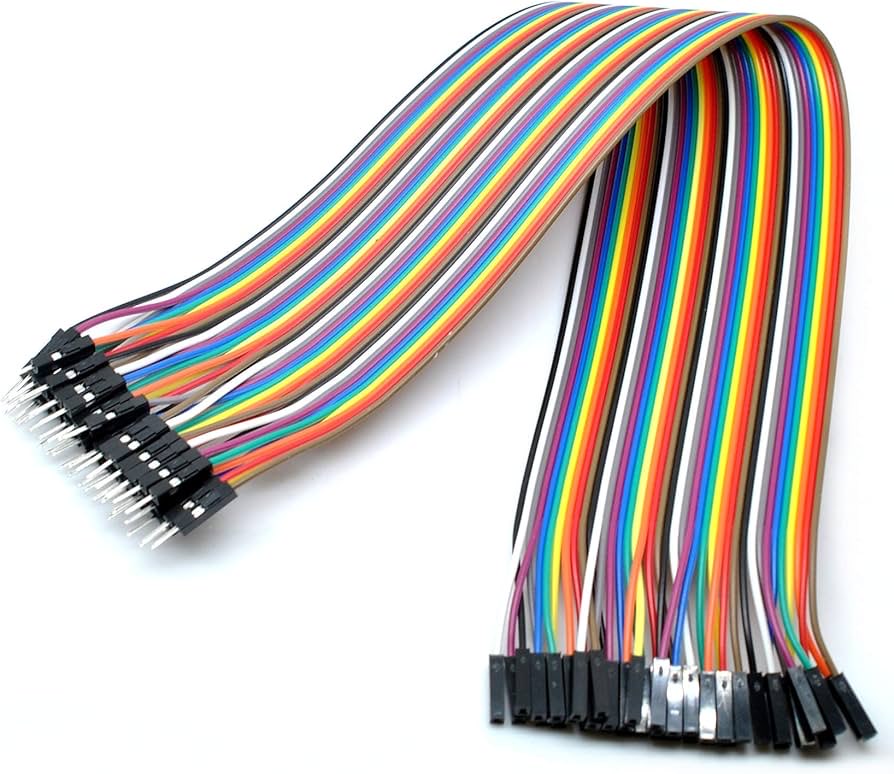

Jumper wire?
Like those

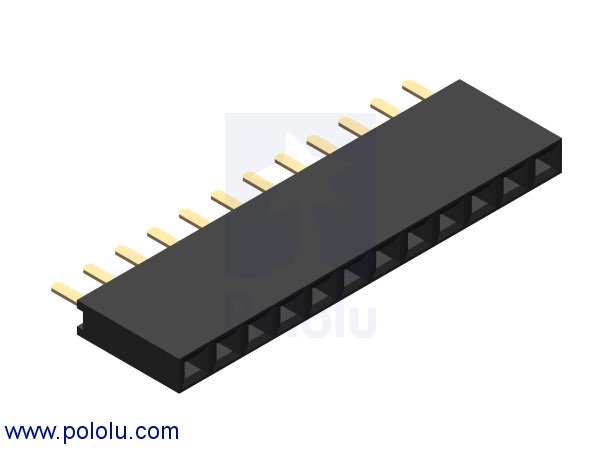

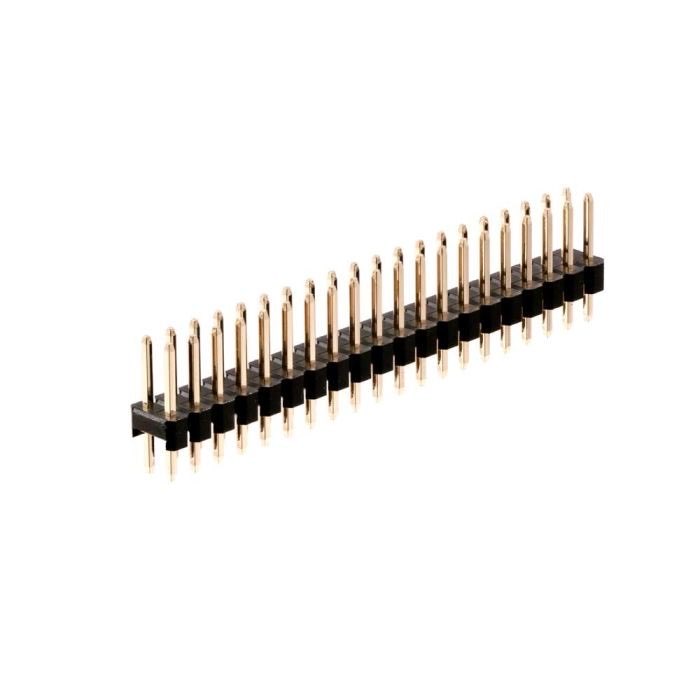

But you will have to get soldered of pins using headers like second and third pics
Then you can get things like fourth one
For something like an RC plane, jumper wires can work but they can pull apart and disconnect easily
That battery almost looks like the plugs that SparkFun uses on their QWIIC line, which seems to be a PRT16766 style connector
Other options would be "JST" connectors, which have similar pins and are even closer to what the battery has.
You'll for-sure want something that has a locking tab though, since flight and RC stuff can get jostled a lot
