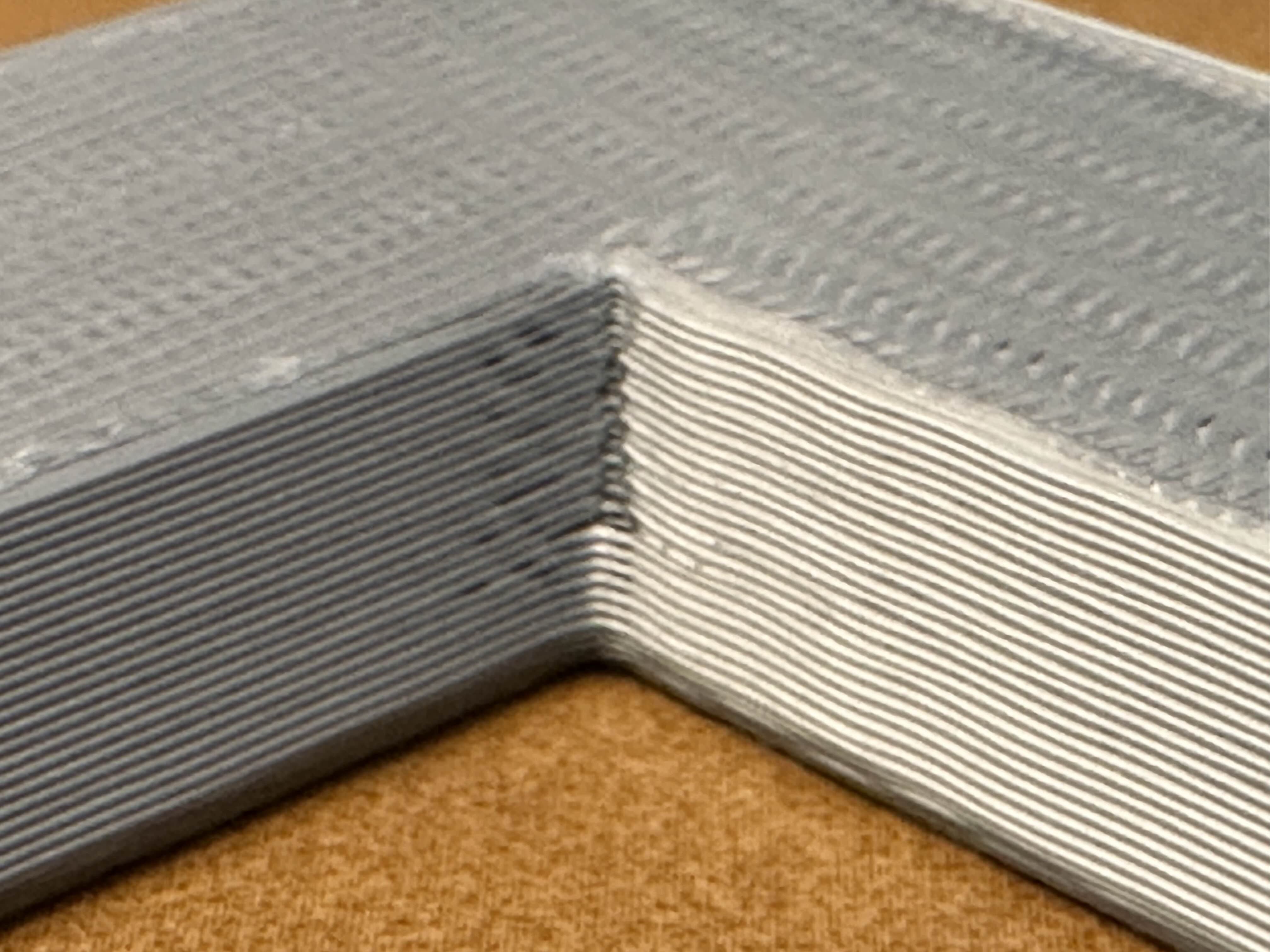

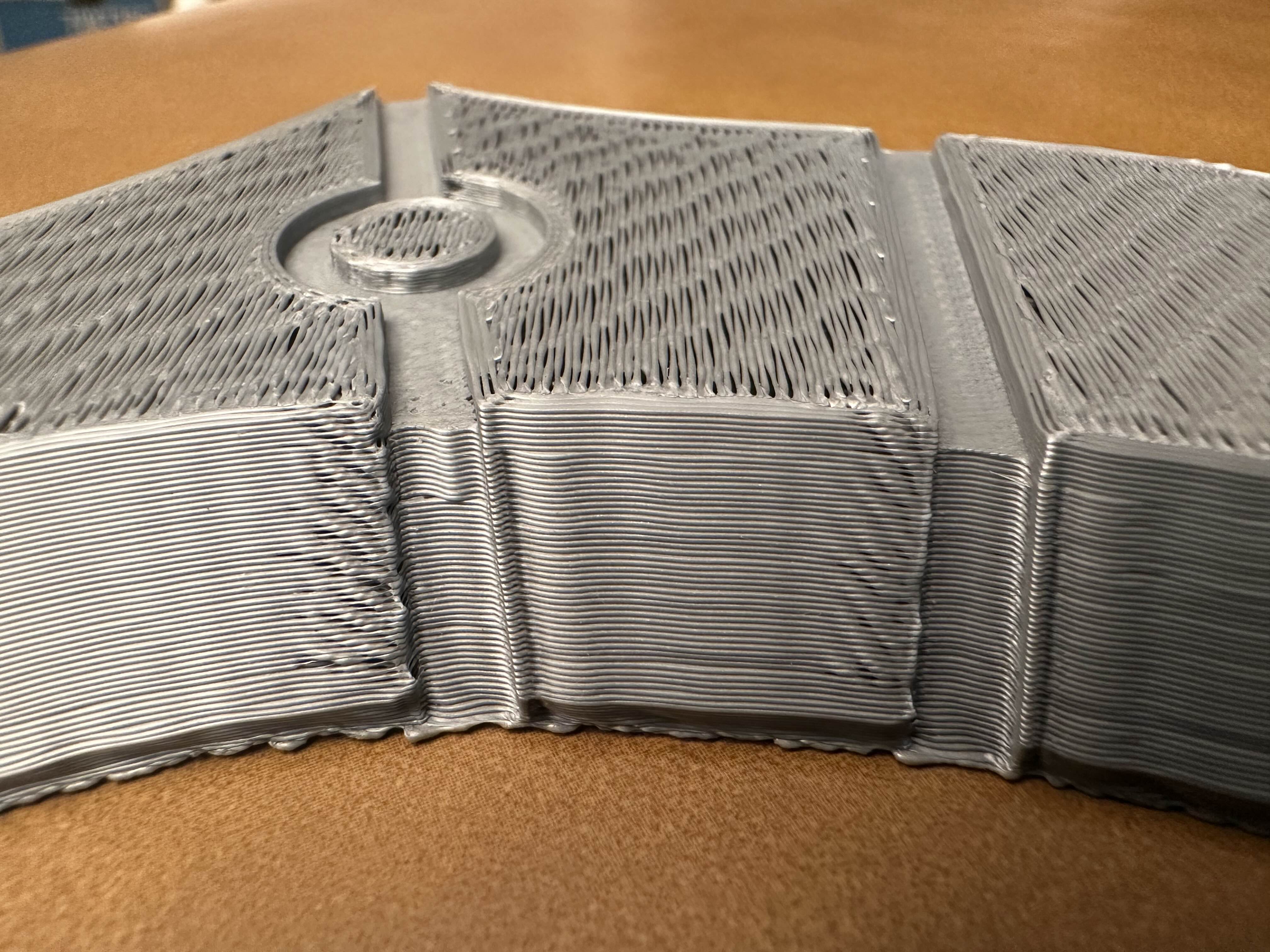

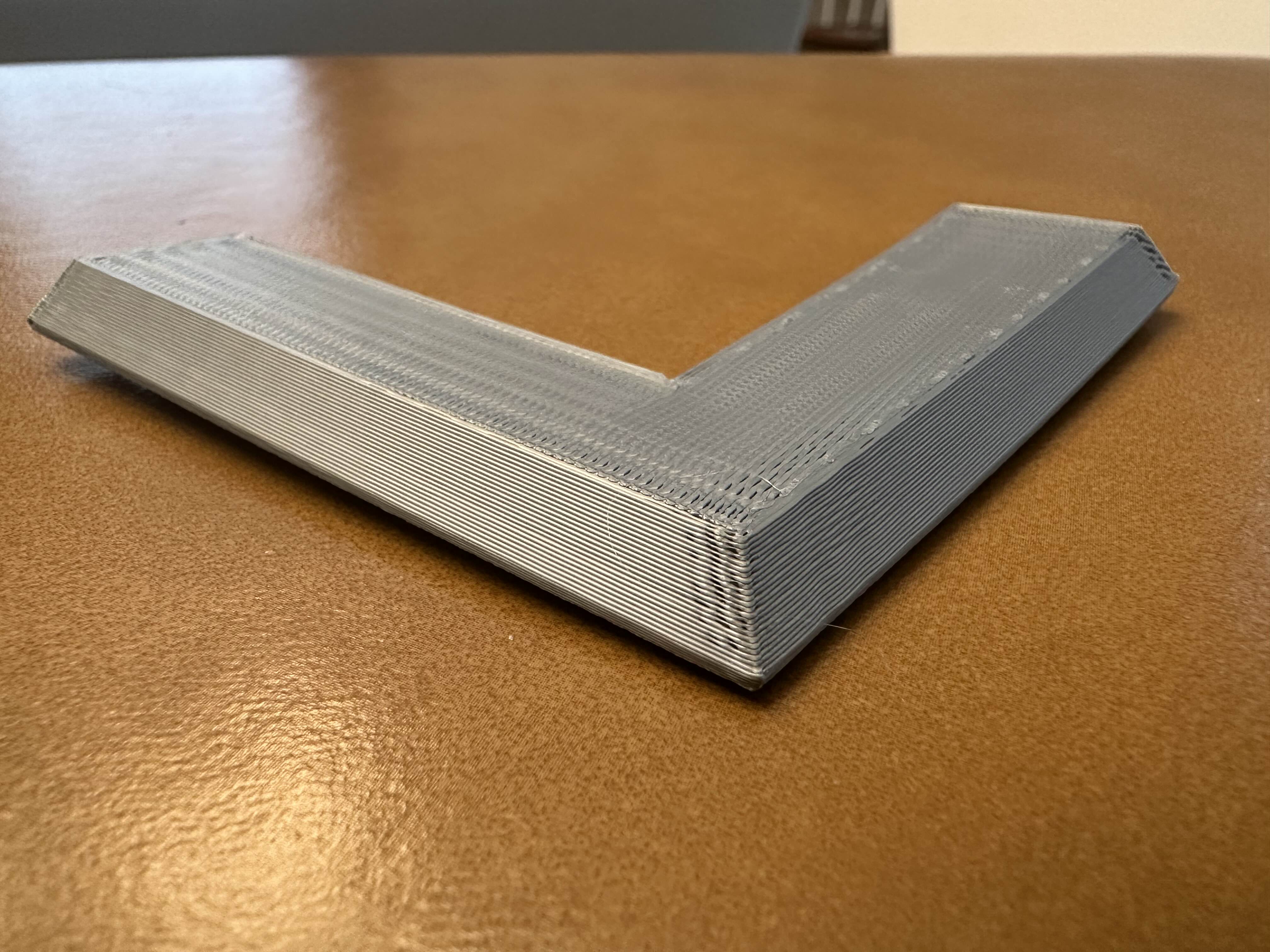

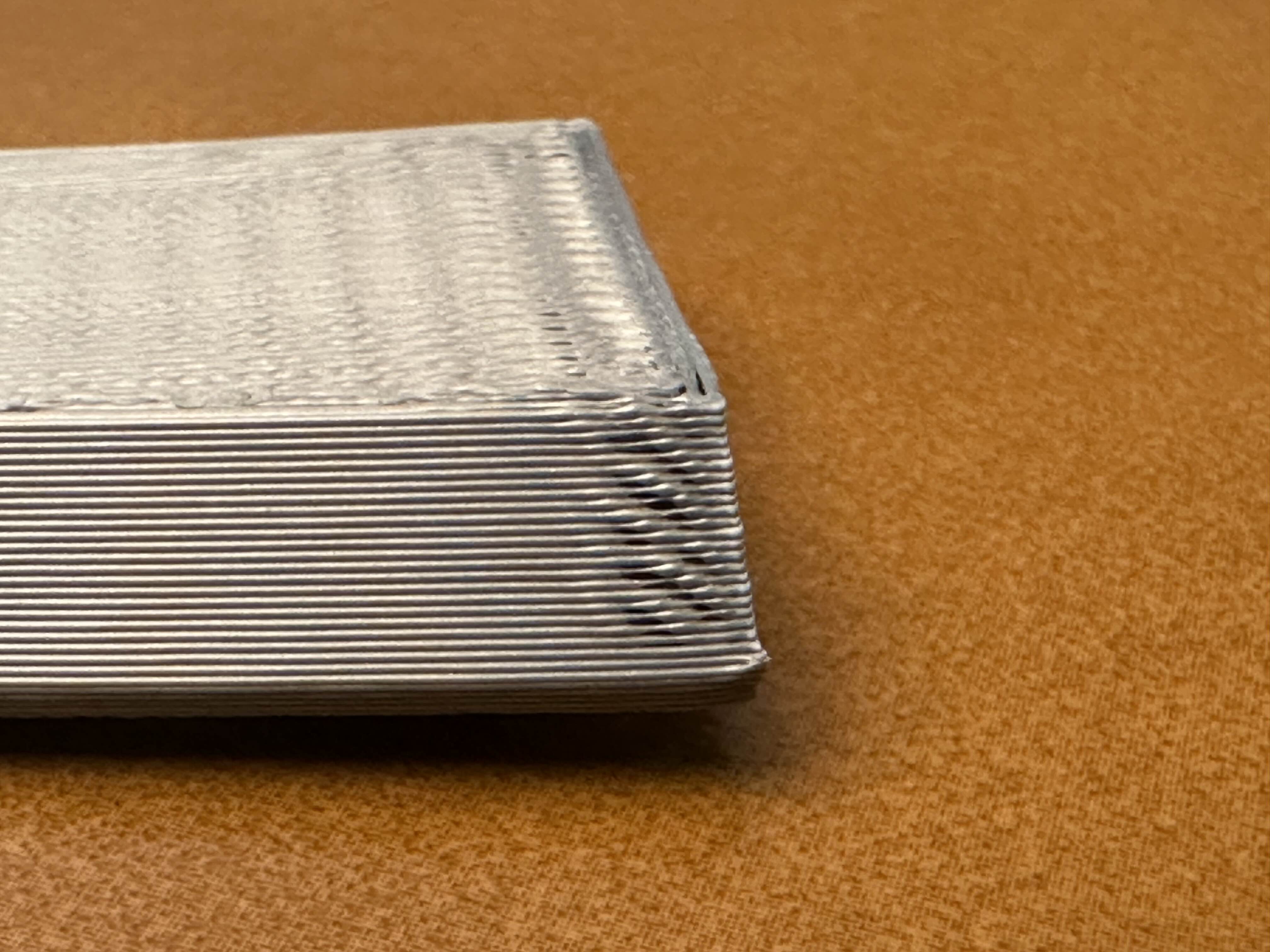

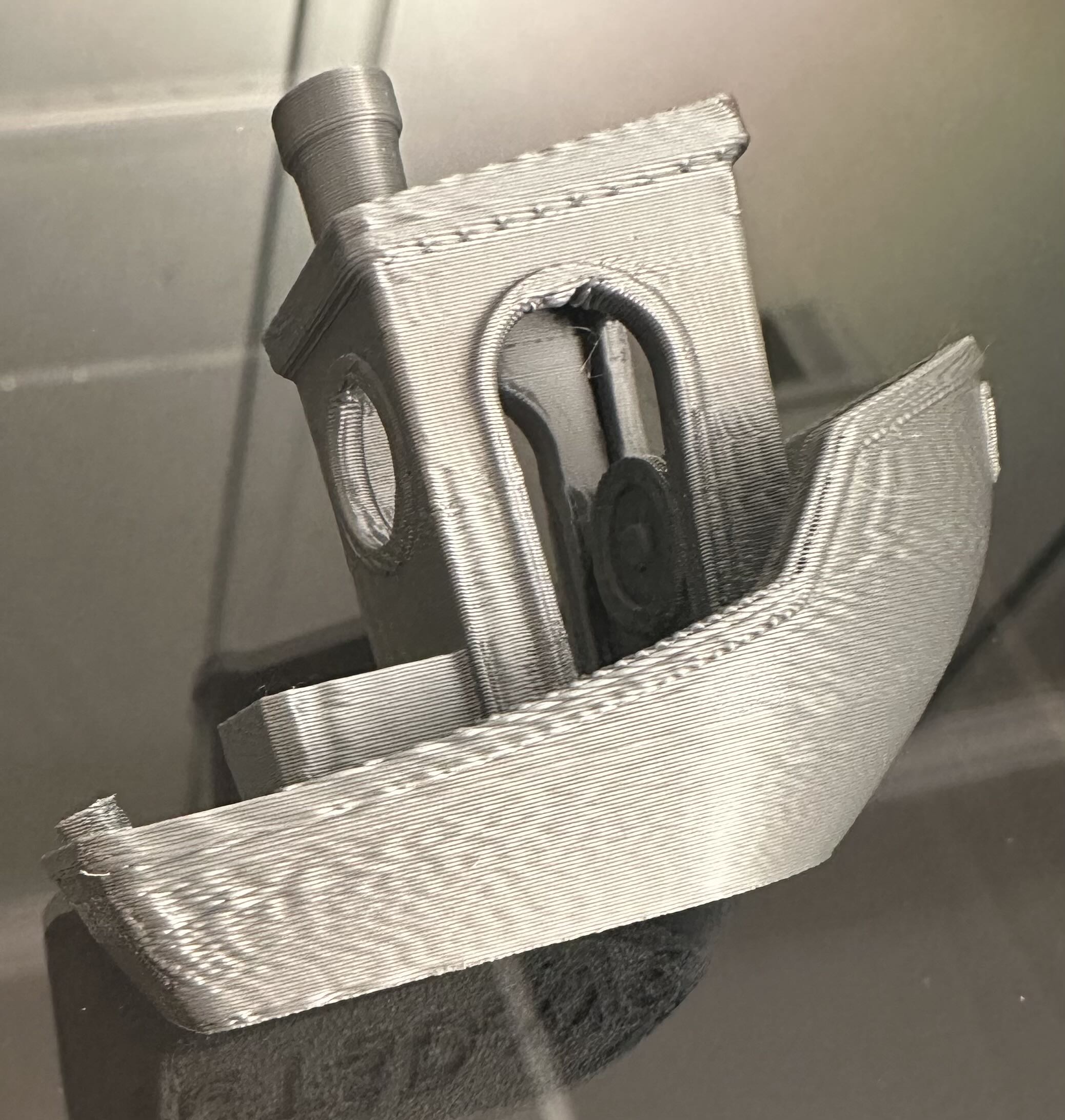

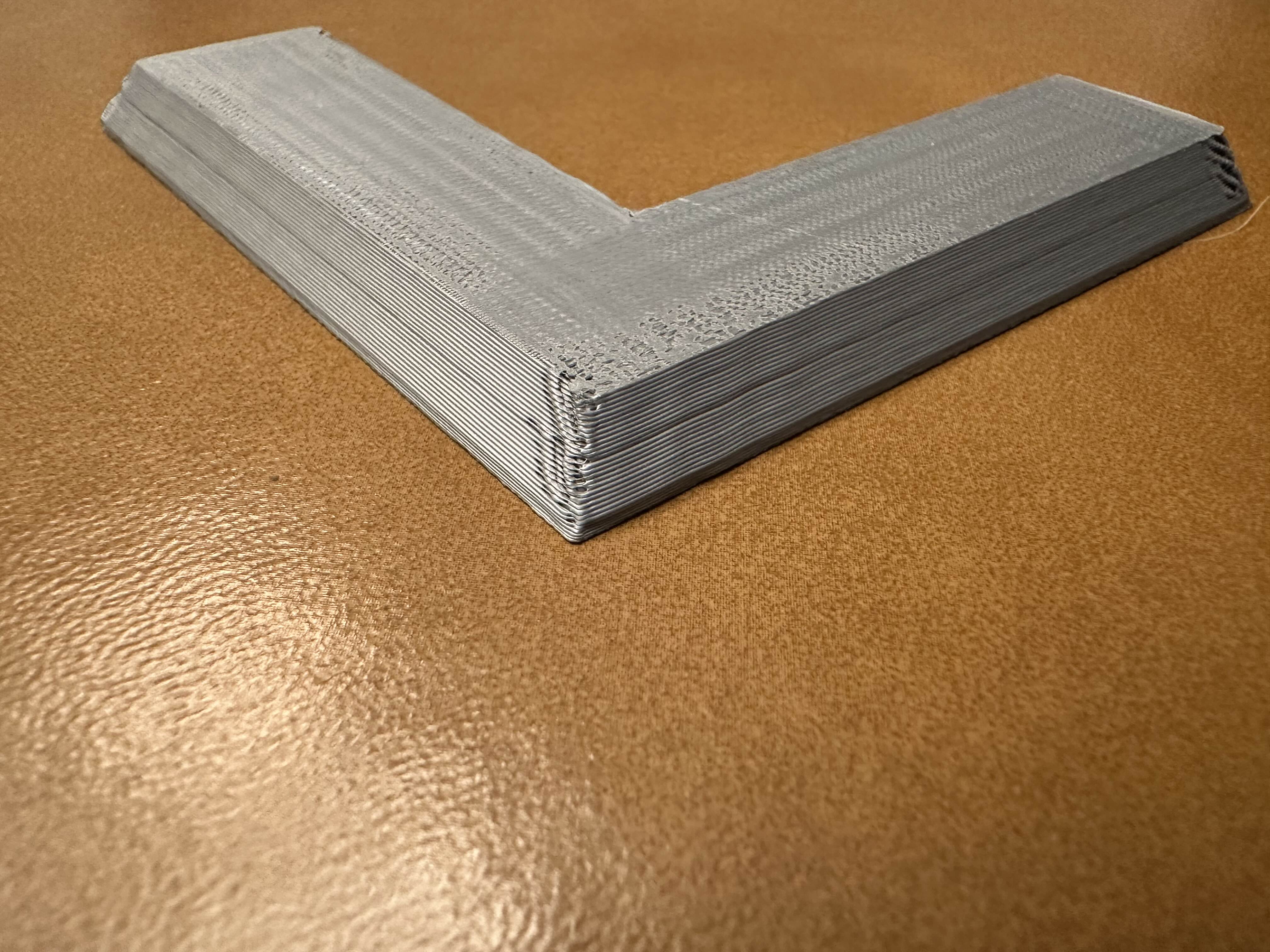

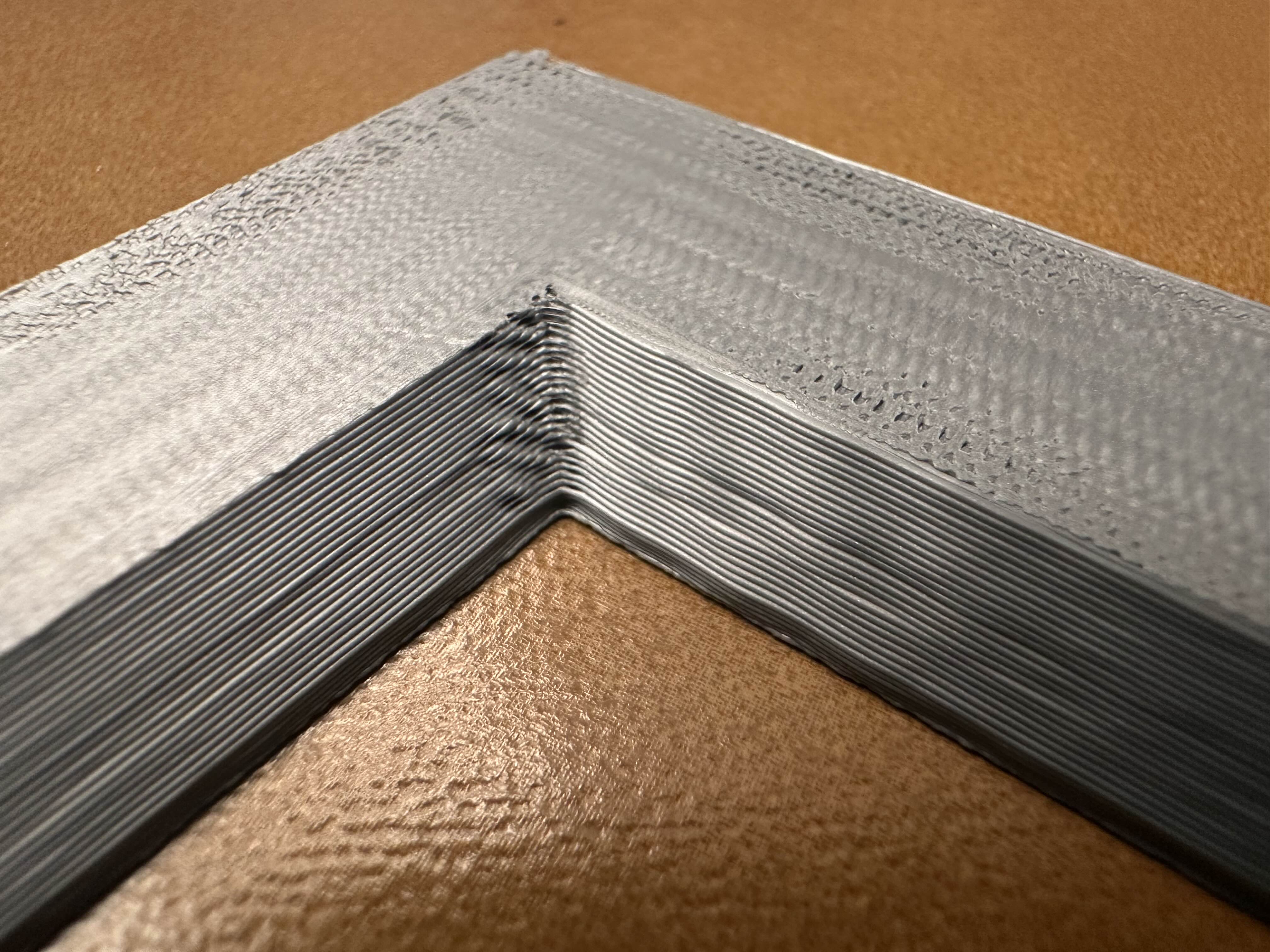

Weird artifacts at corner
Unsure what is causing the weird lines at the corners of my prints but this was all done in pla with 60% cooling enclosed hybrid v-core 4 500 with the default orca settings minus fan speed. Donβt worry about top layer print was cancelled before completion
11 Replies
Have you tuned pressure advance?
I have not
@Laughing_foxππππΆ i would starr by tuning your PA, do you know how? If not I can send you some links.
I am looking at the macro guide currently but the links would be appreciated
GitHub
Calibration
G-code generator for 3D printers (Bambu, Prusa, Voron, VzBot, RatRig, Creality, etc.) - SoftFever/OrcaSlicer
I went ahead and did temp flow and PA and that helped greatly but Iβm still having the artifacts just not as prominent anymore
Still looks very much like poor PA settings... Try disabling PA altogether just to eliminate as a variable
Solution
For me bumping temps by +5 - 7c fixed that
Iβll try that but it will take a day or two before I get the chance thanks for the help and recommendations I will post updates
@Sanedish Was correct bumping up temps nearly removed all of the above problems but going though the pressure advance a couple times also helped so for anyone with similar problems bump the temps then run a PA tune
Great to hear that it can be that simple sometimes lol, I will try the PA for myself though as I am starting to get this issue even at higher temps now, thanks.
