Ash Framework•4mo ago

Thoughts on updating `ash_geo` to follow current ash extension patterns?

I'm considering using ash_geo, but noticed it doesn't use the same patterns extensions like ash_money for installing postgres extensions and types. I know it's not owned by the ash-project org, but wanted to see what people thing about giving it an overhaul to have a nicer installation experience and follow current extension patterns.

14 Replies

Chaz WatkinsOP•4mo ago

If people think it would be helpful to update it as suggested, I can do it as I don't really want to pull it in with it's current implementation. Mind you I completely understand it was made prior to Ash 3.0. So, not throwing shade on it at all. 🙂 The main thing I'd like to address is the runtime.exs config for adding types to postgrex which feels weird. I'll look into it

kernel•4mo ago

I use ashgeo in a handful of projects, but only to give me the ash types, everything else I just fallback to using fragments

Chaz WatkinsOP•4mo ago

That’s what I’m considering as well.

kernel•4mo ago

the macros do work, but I prefer fragments for the most part 🙂

Chaz WatkinsOP•4mo ago

@kernel did you have to do the Postgrex types module in the runtime.exs config per the docs? I noticed when my migrations generated, it was just :geometry type and not more specific to the actual type like point shown in the geo_postgis docs. For example

defmodule Repo.Migrations.AdvancedInit do
  use Ecto.Migration

  def change do
    create table(:test) do
      add :name,     :string
    end
    # Add a field `lng_lat_point` with type `geometry(Point,4326)`.
    # This can store a "standard GPS" (epsg4326) coordinate pair {longitude,latitude}.
    execute("SELECT AddGeometryColumn ('test','lng_lat_point',4326,'POINT',2);", "")

    # Once a GIS data table exceeds a few thousand rows, you will want to build an index to speed up spatial searches of the data
    # Syntax - CREATE INDEX [indexname] ON [tablename] USING GIST ( [geometryfield] );
    execute("CREATE INDEX test_geom_idx ON test USING GIST (lng_lat_point);", "")
  end
end

defmodule Repo.Migrations.AdvancedInit do
  use Ecto.Migration

  def change do
    create table(:test) do
      add :name,     :string
    end
    # Add a field `lng_lat_point` with type `geometry(Point,4326)`.
    # This can store a "standard GPS" (epsg4326) coordinate pair {longitude,latitude}.
    execute("SELECT AddGeometryColumn ('test','lng_lat_point',4326,'POINT',2);", "")

    # Once a GIS data table exceeds a few thousand rows, you will want to build an index to speed up spatial searches of the data
    # Syntax - CREATE INDEX [indexname] ON [tablename] USING GIST ( [geometryfield] );
    execute("CREATE INDEX test_geom_idx ON test USING GIST (lng_lat_point);", "")
  end
end

ok, looks like the best thing to do is to create new type and specify the storage type

kernel•4mo ago

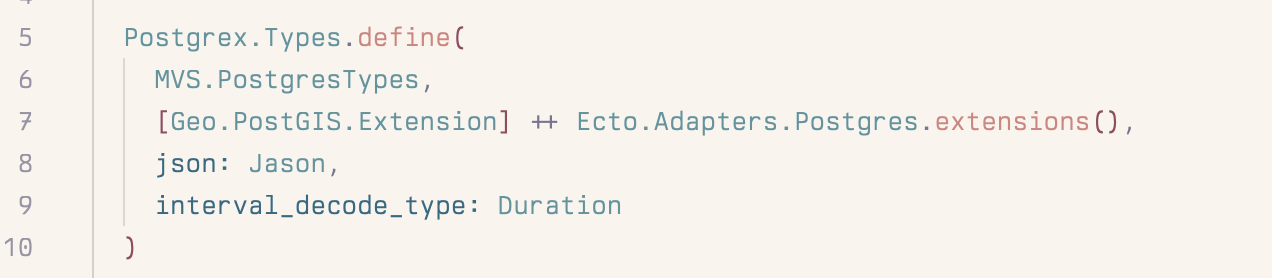

yeah I think you still need to do the Postgrex things in general like I had to tweak Postgrex types for the Duration type to work etc I just do it in repo.ex

kernel•4mo ago

ala

kernel•4mo ago

I don't think any other Ash types use types that aren't already supported by Postgrex, that's why you generally don't need to do it I remember needing to do it to add range support to postgrex like 10+ years ago, but it seems like they've added range support sometime between now and then 🤣

Chaz WatkinsOP•4mo ago

Cool. Thanks. I’ve been struggling through it since this packages set up is significantly more work than others. Appreciate the help

kernel•4mo ago

whichever way you go about it, you will still need to add types to postgrex iirc 🙂 https://github.com/elixir-ecto/postgrex as theres no geo stuff in postgrex ash_money doesn't need it for example as it uses a composite type, which postgrex represents as a tuple

Chaz WatkinsOP•4mo ago

Finally got it working. Definitely needs an overhaul to the latest Ash Type patterns. But, at least it works now. 🙂

kernel•4mo ago

note that geography types don't work OOB and you'd generally use it when you want to do distance measurements in meters etc (on a global scale)

Carl•2mo ago

Oh I ran into setting this up now and see what you mean 🙄

Chaz WatkinsOP•5w ago

Could be worthwhile for someone to do an igniter installer even if we don’t upgrade it to the latest type patterns.
