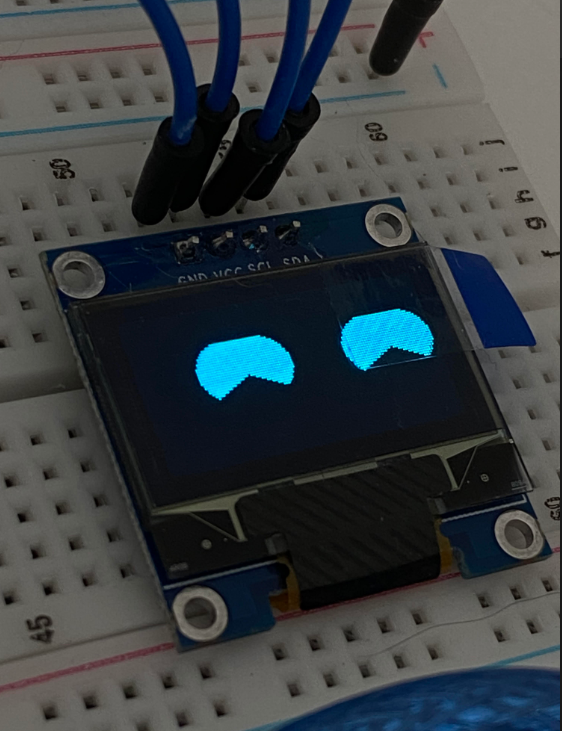

Oled Oval Eyes

// Emotion overlay if (currentEmotion == EMOTION_HAPPY) { // Happy: draw an upward curved arch using small overlapping circles int radius = 4; int step = 2; // spacing between circles for (int i = 0; i <= EYE_WIDTH; i += step) { float angle = map(i, 0, EYE_WIDTH, -PI, 0); // from left to right, create a half arch int x = EYE1_X + dx + i; int y = BASE_EYE_Y + dy + EYE_HEIGHT - 2 - sin(angle) * 6; // adjust -2 and *6 for arch position and height display.fillCircle(x, y, radius, SSD1306_BLACK); } for (int i = 0; i <= EYE_WIDTH; i += step) { float angle = map(i, 0, EYE_WIDTH, -PI, 0); int x = EYE2_X + dx + i; int y = BASE_EYE_Y + dy + EYE_HEIGHT - 2 - sin(angle) * 6; display.fillCircle(x, y, radius, SSD1306_BLACK); } } else if (currentEmotion == EMOTION_SAD) { // Sad: draw a downward curved arch using small overlapping circles int radius = 4; int step = 2; for (int i = 0; i <= EYE_WIDTH; i += step) { float angle = map(i, 0, EYE_WIDTH, 0, PI); // mirrored arch int x = EYE1_X + dx + i; int y = BASE_EYE_Y + dy + 2 + sin(angle) * 6; // +2 and *6 adjust for position/height display.fillCircle(x, y, radius, SSD1306_BLACK); } for (int i = 0; i <= EYE_WIDTH; i += step) { float angle = map(i, 0, EYE_WIDTH, 0, PI); int x = EYE2_X + dx + i; int y = BASE_EYE_Y + dy + 2 + sin(angle) * 6; display.fillCircle(x, y, radius, SSD1306_BLACK); } } this is the code that im tryna edit instead of it being triangles i want it to be rounded triangles but i dont know how to make that. the picture is a similar example of how im tryna make them look like but this is what i ended up with

No description

No description

44 Replies

DarwinWasWrong•3mo ago

rest of code ? @༺ ☾ ༻

༺ ☾ ༻OP•3mo ago

message.txt

༺ ☾ ༻OP•3mo ago

theres another one made with python that makes it change emotions based on what i say

DarwinWasWrong•3mo ago

No description

DarwinWasWrong•3mo ago

void drawEyes(int eyelidHeight, int dx, int dy) {
  display.clearDisplay();
  display.fillRoundRect(EYE1_X + dx, BASE_EYE_Y + dy, EYE_WIDTH, EYE_HEIGHT, 12, SSD1306_WHITE);
  display.fillRoundRect(EYE1_X + dx , BASE_EYE_Y + dy + 5, EYE_WIDTH, EYE_HEIGHT, 12, SSD1306_BLACK);
  display.fillRoundRect(EYE2_X + dx, BASE_EYE_Y + dy, EYE_WIDTH, EYE_HEIGHT, 12, SSD1306_WHITE);
   display.fillRoundRect(EYE2_X + dx , BASE_EYE_Y + dy + 5, EYE_WIDTH, EYE_HEIGHT, 12, SSD1306_BLACK);

void drawEyes(int eyelidHeight, int dx, int dy) {
  display.clearDisplay();
  display.fillRoundRect(EYE1_X + dx, BASE_EYE_Y + dy, EYE_WIDTH, EYE_HEIGHT, 12, SSD1306_WHITE);
  display.fillRoundRect(EYE1_X + dx , BASE_EYE_Y + dy + 5, EYE_WIDTH, EYE_HEIGHT, 12, SSD1306_BLACK);
  display.fillRoundRect(EYE2_X + dx, BASE_EYE_Y + dy, EYE_WIDTH, EYE_HEIGHT, 12, SSD1306_WHITE);
   display.fillRoundRect(EYE2_X + dx , BASE_EYE_Y + dy + 5, EYE_WIDTH, EYE_HEIGHT, 12, SSD1306_BLACK);

DarwinWasWrong•3mo ago

No description

Toph•3mo ago

you may want to fix your name @༺ ☾ ༻ (see #code-of-conduct #9) 🤓 effectively, you're just drawing the rounded rectangle shape in "white" then drawing it again (but moved down) in "black" to effectively erase the bottom part...

༺ ☾ ༻OP•3mo ago

o ur right

Toph•3mo ago

👉 ideally, you'd have a function that draws the "wink" at a particular position (so you can use the same code to draw the left & right eye)... so you can do:

void eyesHappy()
{
  eyeJoy( EYE_LEFT_X, EYE_Y );
  eyeJoy( EYE_RIGHT_X, EYE_Y );
  display.display();
}

void eyesWink()
{
  eyeOpen( EYE_LEFT_X, EYE_Y );
  eyeJoy( EYE_RIGHT_X, EYE_Y );
  display.display();
}

void eyesClosed()
{
  eyeShut( EYE_LEFT_X, EYE_Y );
  eyeShut( EYE_RIGHT_X, EYE_Y );
  display.display();
}

void eyesHappy()
{
  eyeJoy( EYE_LEFT_X, EYE_Y );
  eyeJoy( EYE_RIGHT_X, EYE_Y );
  display.display();
}

void eyesWink()
{
  eyeOpen( EYE_LEFT_X, EYE_Y );
  eyeJoy( EYE_RIGHT_X, EYE_Y );
  display.display();
}

void eyesClosed()
{
  eyeShut( EYE_LEFT_X, EYE_Y );
  eyeShut( EYE_RIGHT_X, EYE_Y );
  display.display();
}

... and so on to show different emotions ... 😉 (eyeJoy() draws the curved closed eye; eyeOpen() will be the full rounded rectangle; & eyeShut() could be just a line)

༺ ☾ ༻OP•3mo ago

okay wait i'll try to add more emotions soon i might need your help again guys thank you for now i appreciate it // how are you questions else if (currentEmotion == EMOTION_HOWAREYOU) { // Show happy eyes display.fillRoundRect(EYE1_X + dx , BASE_EYE_Y + dy + 8, EYE_WIDTH, EYE_HEIGHT, 12, SSD1306_BLACK); display.fillRoundRect(EYE2_X + dx , BASE_EYE_Y + dy + 8, EYE_WIDTH, EYE_HEIGHT, 12, SSD1306_BLACK); display.display(); delay(3000); // Keep happy eyes for 2 seconds // Show text: "I'm okay" display.clearDisplay(); display.setTextSize(2); display.setTextColor(SSD1306_WHITE); display.setCursor((SCREEN_WIDTH - 80) / 2, (SCREEN_HEIGHT - 16) / 2); display.println("I'm okay"); display.display(); delay(3000); // Clear screen and return to default display.clearDisplay(); display.display(); currentEmotion = EMOTION_DEFAULT; } hi again im trying to add an animation here but im not sure how, i tried using chatgpt but im not understanding the code that its giving me nor is it working. i want it to show the eyes first with a nod animation yet im not sure how to make it do that // how are you questions else if (currentEmotion == EMOTION_HOWAREYOU) { // Show happy eyes display.clearDisplay(); display.fillRoundRect(EYE1_X + dx, BASE_EYE_Y + dy + 4, EYE_WIDTH, EYE_HEIGHT, 12, SSD1306_BLACK); display.fillRoundRect(EYE2_X + dx, BASE_EYE_Y + dy + 4, EYE_WIDTH, EYE_HEIGHT, 12, SSD1306_BLACK); display.display(); delay(300); // Nod up display.clearDisplay(); display.fillRoundRect(EYE1_X + dx, BASE_EYE_Y + dy + 10, EYE_WIDTH, EYE_HEIGHT, 12, SSD1306_BLACK); display.fillRoundRect(EYE2_X + dx, BASE_EYE_Y + dy + 10, EYE_WIDTH, EYE_HEIGHT, 12, SSD1306_BLACK); display.display(); delay(300); // Nod down again display.clearDisplay(); display.fillRoundRect(EYE1_X + dx, BASE_EYE_Y + dy + 4, EYE_WIDTH, EYE_HEIGHT, 12, SSD1306_BLACK); display.fillRoundRect(EYE2_X + dx, BASE_EYE_Y + dy + 4, EYE_WIDTH, EYE_HEIGHT, 12, SSD1306_BLACK); display.display(); delay(300); delay(3000); // Keep happy eyes for 2 seconds // Show text: "I'm okay" display.clearDisplay(); display.setTextSize(2); display.setTextColor(SSD1306_WHITE); display.setCursor((SCREEN_WIDTH - 80) / 2, (SCREEN_HEIGHT - 16) / 2); display.println("I'm okay"); display.display(); delay(3000); // Clear screen and return to default display.clearDisplay(); display.display(); currentEmotion = EMOTION_DEFAULT; } i tried doing something like this but the eyes just dont appear and i dont know why

༺ ☾ ༻OP•3mo ago

here is the full code

message.txt

AnonEngineering•3mo ago

what color does SSD1306_BLACK draw?

༺ ☾ ༻OP•3mo ago

Its basically black eyes ontop of my white eyes

AnonEngineering•3mo ago

yes, I saw what you were doing after i wrote that, nice effect!

༺ ☾ ༻OP•3mo ago

I’m aiming for a big project but i dont have enough experience and knowledge that bothers me the code is long too its leaving me confused myself at times 💀

DarwinWasWrong•3mo ago

One thing to try is using functions to break up the long code. like

 void sadeyes()
{
    display.fillRoundRect(EYE1_X + dx , BASE_EYE_Y + dy - 12, EYE_WIDTH, EYE_HEIGHT, 12, SSD1306_BLACK);
    display.fillRoundRect(EYE2_X + dx , BASE_EYE_Y + dy - 12, EYE_WIDTH, EYE_HEIGHT, 12, SSD1306_BLACK);

    display.display();
    delay(5000); // Show sad eyes for 5 seconds

    // Clear eyes
    display.clearDisplay();
    display.display();

    // Display hope verse number in center
    int index = random(HOPE_COUNT);
    display.setTextSize(2); // Slightly bigger
    display.setTextColor(SSD1306_WHITE);
    display.setCursor((SCREEN_WIDTH - 60) / 2, (SCREEN_HEIGHT - 16) / 2);
    display.println(hope_verses[index]); // Just the verse number

    display.display();
    delay(5000); // Show verse number for 5 seconds

    // Clear screen and return to default
    display.clearDisplay();
    display.display();
    currentEmotion = EMOTION_DEFAULT;
}

 void sadeyes()
{
    display.fillRoundRect(EYE1_X + dx , BASE_EYE_Y + dy - 12, EYE_WIDTH, EYE_HEIGHT, 12, SSD1306_BLACK);
    display.fillRoundRect(EYE2_X + dx , BASE_EYE_Y + dy - 12, EYE_WIDTH, EYE_HEIGHT, 12, SSD1306_BLACK);

    display.display();
    delay(5000); // Show sad eyes for 5 seconds

    // Clear eyes
    display.clearDisplay();
    display.display();

    // Display hope verse number in center
    int index = random(HOPE_COUNT);
    display.setTextSize(2); // Slightly bigger
    display.setTextColor(SSD1306_WHITE);
    display.setCursor((SCREEN_WIDTH - 60) / 2, (SCREEN_HEIGHT - 16) / 2);
    display.println(hope_verses[index]); // Just the verse number

    display.display();
    delay(5000); // Show verse number for 5 seconds

    // Clear screen and return to default
    display.clearDisplay();
    display.display();
    currentEmotion = EMOTION_DEFAULT;
}

same with other emotions

void happyeyes()
{    // Show happy eyes
    display.fillRoundRect(EYE1_X + dx , BASE_EYE_Y + dy + 8, EYE_WIDTH, EYE_HEIGHT, 12, SSD1306_BLACK);
    display.fillRoundRect(EYE2_X + dx , BASE_EYE_Y + dy + 8, EYE_WIDTH, EYE_HEIGHT, 12, SSD1306_BLACK);
    display.display();
    delay(3000); // Keep happy eyes for 2 seconds

    // Show text: "I'm okay"
    display.clearDisplay();
    display.setTextSize(2);
    display.setTextColor(SSD1306_WHITE);
    display.setCursor((SCREEN_WIDTH - 80) / 2, (SCREEN_HEIGHT - 16) / 2);
    display.println("I'm okay");
    display.display();
    delay(3000);

    // Clear screen and return to default
    display.clearDisplay();
    display.display();
    currentEmotion = EMOTION_DEFAULT;
}

void happyeyes()
{    // Show happy eyes
    display.fillRoundRect(EYE1_X + dx , BASE_EYE_Y + dy + 8, EYE_WIDTH, EYE_HEIGHT, 12, SSD1306_BLACK);
    display.fillRoundRect(EYE2_X + dx , BASE_EYE_Y + dy + 8, EYE_WIDTH, EYE_HEIGHT, 12, SSD1306_BLACK);
    display.display();
    delay(3000); // Keep happy eyes for 2 seconds

    // Show text: "I'm okay"
    display.clearDisplay();
    display.setTextSize(2);
    display.setTextColor(SSD1306_WHITE);
    display.setCursor((SCREEN_WIDTH - 80) / 2, (SCREEN_HEIGHT - 16) / 2);
    display.println("I'm okay");
    display.display();
    delay(3000);

    // Clear screen and return to default
    display.clearDisplay();
    display.display();
    currentEmotion = EMOTION_DEFAULT;
}

then use

else if (currentEmotion == EMOTION_SAD) {
sadeyes();
};
else if (currentEmotion == EMOTION_HOWAREYOU) {
happyeyes();
};

else if (currentEmotion == EMOTION_SAD) {
sadeyes();
};
else if (currentEmotion == EMOTION_HOWAREYOU) {
happyeyes();
};

rather than have all the eye code there in the decisions area @wisso

༺ ☾ ༻OP•3mo ago

so for each emotion i’ll make a void ? for example for sad eyes void sadeyes(){} and so on

AnonEngineering•3mo ago

yes a function void myFunction() {} void here means "this is a function that doesn't return anything"

༺ ☾ ༻OP•3mo ago

can u explain to me what the concept of return does i never really got it

AnonEngineering•3mo ago

a very simple example:

c++
int add2Function(int inputValue)  {
  return inputValue + 2;
}

c++
int add2Function(int inputValue)  {
  return inputValue + 2;
}

this function is declared as int because it returns to the place it was called from the inputValue + 2 as an integer you'd call it like

c++
int myReturnValue = add2Function(9);

c++
int myReturnValue = add2Function(9);

and after the above line executes myReturnValue would equal 11

DarwinWasWrong•3mo ago

Btw. You can use a switch case for selection since your emotions variables are ints. @AnonEngineering I am on phone, so maybe you explain switch case if you feel like it. Otherwise I can do tomorrow.

༺ ☾ ༻OP•3mo ago

Yall can take your time its ok

DarwinWasWrong•3mo ago

@wisso now one thing - you do not need to use else if on things that are exclusive like commands eg

if (apple == red )
{ do this}

if (apple == blue)
{ do that}

if (apple == red )
{ do this}

if (apple == blue)
{ do that}

it doesnt require

if (apple == red )
{ do this}

else if (apple == blue)
{ do that}

if (apple == red )
{ do this}

else if (apple == blue)
{ do that}

AnonEngineering•3mo ago

just got off work, now about switch case and else if...

DarwinWasWrong•3mo ago

NOw he turns up...

AnonEngineering•3mo ago

I've developed this horrible addiction to food and shelter 😉

DarwinWasWrong•3mo ago

sleep rough, it will free you sleep ANYWAY

 switch (currentEmotion) {

  // Emotion overlay
  case EMOTION_HAPPY:
    // Happy: curved "smiling" eyes from bottom
    display.fillRoundRect(EYE1_X + dx , BASE_EYE_Y + dy + 8, EYE_WIDTH, EYE_HEIGHT, 12, SSD1306_BLACK);
    display.fillRoundRect(EYE2_X + dx , BASE_EYE_Y + dy + 8, EYE_WIDTH, EYE_HEIGHT, 12, SSD1306_BLACK);
    break;


  case EMOTION_SAD:
    // Show sad eyes first
    display.fillRoundRect(EYE1_X + dx , BASE_EYE_Y + dy - 12, EYE_WIDTH, EYE_HEIGHT, 12, SSD1306_BLACK);
    display.fillRoundRect(EYE2_X + dx , BASE_EYE_Y + dy - 12, EYE_WIDTH, EYE_HEIGHT, 12, SSD1306_BLACK);

    display.display();
    delay(5000); // Show sad eyes for 5 seconds

    // Clear eyes
    display.clearDisplay();
    display.display();

    // Display hope verse number in center
    //int index = random(HOPE_COUNT);
    display.setTextSize(2); // Slightly bigger
    display.setTextColor(SSD1306_WHITE);
    display.setCursor((SCREEN_WIDTH - 60) / 2, (SCREEN_HEIGHT - 16) / 2);
    //display.println(hope_verses[index]); // Just the verse number

    display.display();
    delay(5000); // Show verse number for 5 seconds

    // Clear screen and return to default
    display.clearDisplay();
    display.display();
    currentEmotion = EMOTION_DEFAULT;
    break;

 switch (currentEmotion) {

  // Emotion overlay
  case EMOTION_HAPPY:
    // Happy: curved "smiling" eyes from bottom
    display.fillRoundRect(EYE1_X + dx , BASE_EYE_Y + dy + 8, EYE_WIDTH, EYE_HEIGHT, 12, SSD1306_BLACK);
    display.fillRoundRect(EYE2_X + dx , BASE_EYE_Y + dy + 8, EYE_WIDTH, EYE_HEIGHT, 12, SSD1306_BLACK);
    break;


  case EMOTION_SAD:
    // Show sad eyes first
    display.fillRoundRect(EYE1_X + dx , BASE_EYE_Y + dy - 12, EYE_WIDTH, EYE_HEIGHT, 12, SSD1306_BLACK);
    display.fillRoundRect(EYE2_X + dx , BASE_EYE_Y + dy - 12, EYE_WIDTH, EYE_HEIGHT, 12, SSD1306_BLACK);

    display.display();
    delay(5000); // Show sad eyes for 5 seconds

    // Clear eyes
    display.clearDisplay();
    display.display();

    // Display hope verse number in center
    //int index = random(HOPE_COUNT);
    display.setTextSize(2); // Slightly bigger
    display.setTextColor(SSD1306_WHITE);
    display.setCursor((SCREEN_WIDTH - 60) / 2, (SCREEN_HEIGHT - 16) / 2);
    //display.println(hope_verses[index]); // Just the verse number

    display.display();
    delay(5000); // Show verse number for 5 seconds

    // Clear screen and return to default
    display.clearDisplay();
    display.display();
    currentEmotion = EMOTION_DEFAULT;
    break;

since the emotions are enumerated (numbers) you can use switch case.

AnonEngineering•3mo ago

in such a case (no pun intended) do you usually skip a default clause?

DarwinWasWrong•3mo ago

I dont think it gets to there without an rmotion being set

AnonEngineering•3mo ago

ahh, so no possibility of a value without a case

DarwinWasWrong•3mo ago

not sure - the input string could use some work.

AnonEngineering•3mo ago

this reminds me of the roboeyes library https://github.com/FluxGarage/RoboEyes

DarwinWasWrong•3mo ago

I think the op been directed there but prefers own eyes code development Dont quote me on that I would chuck all the emotions into functions to clean up the switch case. eg

void happyeyes()
{
   // Happy: curved "smiling" eyes from bottom
    display.fillRoundRect(EYE1_X + dx , BASE_EYE_Y + dy + 8, EYE_WIDTH, EYE_HEIGHT, 12, SSD1306_BLACK);
    display.fillRoundRect(EYE2_X + dx , BASE_EYE_Y + dy + 8, EYE_WIDTH, EYE_HEIGHT, 12, SSD1306_BLACK);
}

void happyeyes()
{
   // Happy: curved "smiling" eyes from bottom
    display.fillRoundRect(EYE1_X + dx , BASE_EYE_Y + dy + 8, EYE_WIDTH, EYE_HEIGHT, 12, SSD1306_BLACK);
    display.fillRoundRect(EYE2_X + dx , BASE_EYE_Y + dy + 8, EYE_WIDTH, EYE_HEIGHT, 12, SSD1306_BLACK);
}

and of course - fix all the local variables that are not globally defined sigh replace all the local dx, dy with currentX and currentY...

DarwinWasWrong•3mo ago

https://wokwi.com/projects/434956409204852737 🤷‍♂️

esp32 oled eyes Copy - Wokwi ESP32, STM32, Arduino Simulator

Run IoT and embedded projects in your browser: ESP32, STM32, Arduino, Pi Pico, and more. No installation required!

AnonEngineering•3mo ago

that's a new one, wokwi compiles that for > 100 seconds, and won't let me cancel... Wokwi went down, back now

DarwinWasWrong•3mo ago

oops - sorry about that.. 😆

DarwinWasWrong•3mo ago

been working on other graphic methods

No description

༺ ☾ ༻OP•3mo ago

what the frick I think im kind of getting somewhere but im still unsure I gave every emotion its own function or its own void idk about the switches tho are they better to use?

༺ ☾ ༻OP•3mo ago

@DarwinWasWrong I tried to do it as you said with switches and cases

message.txt

༺ ☾ ༻OP•3mo ago

i used ai tho how the hell

༺ ☾ ༻OP•3mo ago

do you know how i can draw eyes like these

No description

DarwinWasWrong•3mo ago

by using the one of the various robot eyes libraries that were sent in the begining

DarwinWasWrong•3mo ago

https://www.youtube.com/watch?v=WtLWc5zzrmI

YouTube

#2 - Getting Started With the Free Robo Eyes Arduino Library

Download the Robo Eyes Library Here: https://github.com/FluxGarage/RoboEyes Check the First Demonstration Video: https://youtu.be/ibSaDEkfUOI 00:00 INTRO AND OVERVIEW 00:23 Prepare basic hardware 01:15 Install library and upload test sketch 03:34 Custom eye shapes 04:26 Face expressions and behaviour 05:39 OUTRO 05:55 WHAT COMES NEXT?

༺ ☾ ༻OP•2mo ago

ooo are yall familiar with esp32? I have an issue that i cant figure out at all Im using an esp32-s3 tiny devboard, i switched the arduino with it and i changed the code to befit the esp and it worked the first time next day it just stopped working its showing me that its connected and its active but its not responding to my codes at all its just not responding in any way I cant figure out why

Official Arduino Discord - Discuss all things Arduino!

36KMembers

View on Discord

Did you find this page helpful?
