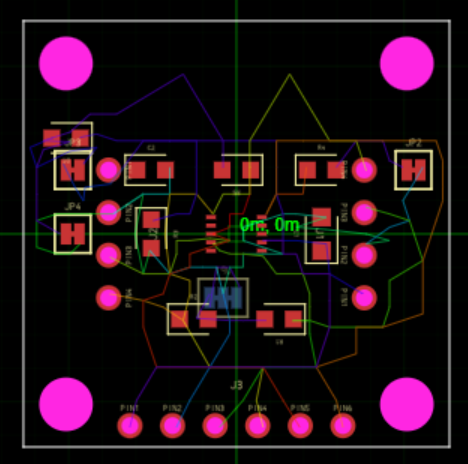

@Seve this is the final look of my board

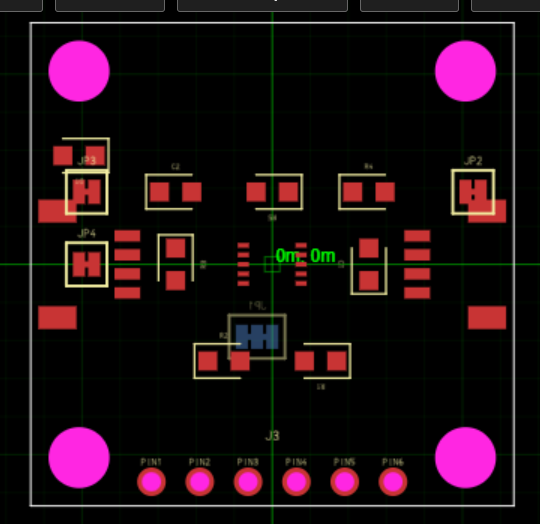

@Seve this is the final look of my board everything is completed again just one autouting hypersolver error? other than that everything is correct dimensions and everything
39 Replies
Jp2 is vertical with a wide space between it's pad I guess
If you click in the viewer the two pads on the right should be the same component right?
J1 is not a pinrow
You have some position and spacing problems, I don't have exact numbers but when I can clearly see differences
here is the updated one @shibo sorry i have to upload the updated one my bad.
it is autoruting failed as of now.
You still have an extra jp2
Thats why autorouter fails
wait i will give u my board link : https://tscircuit.com/editor?package_id=48d0cae8-85e5-4ee4-b765-8fae6867eb6d&file_path=index.tsx
Editor - tscircuit
Design and edit electronic circuits online with tscircuit's powerful web-based editor. Create schematics, PCB layouts, and 3D models with code.
Jp4 is a single jumper not two
@ansh.grover bro, this is not the correct approach

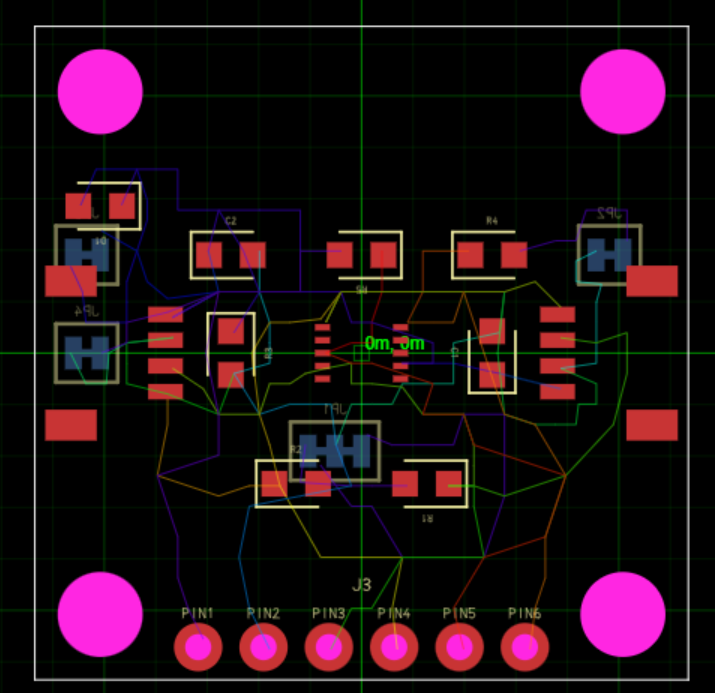

@shibo that is not extra wait i will show it is behind this so they both are overlapping now what to do? see
Make sure your board is exactly one to one with the reference before asking for review

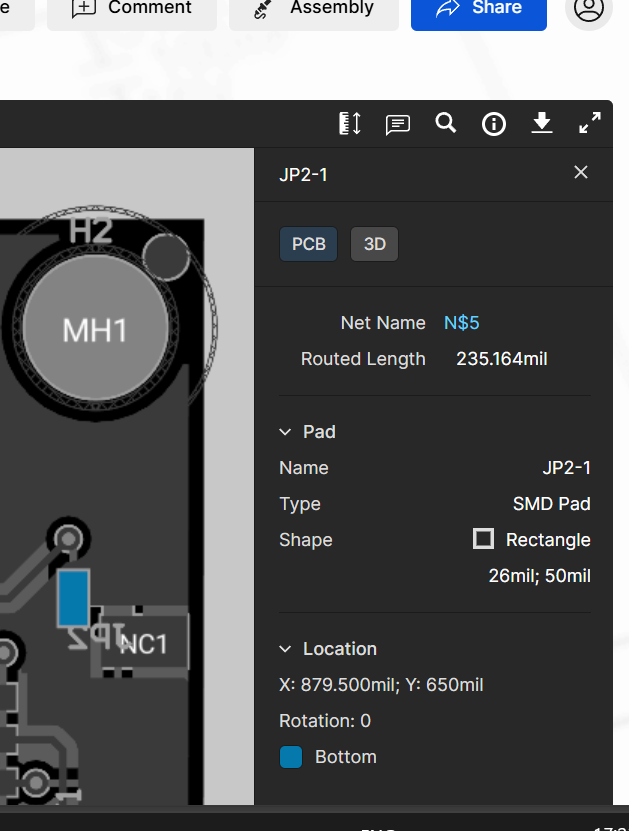

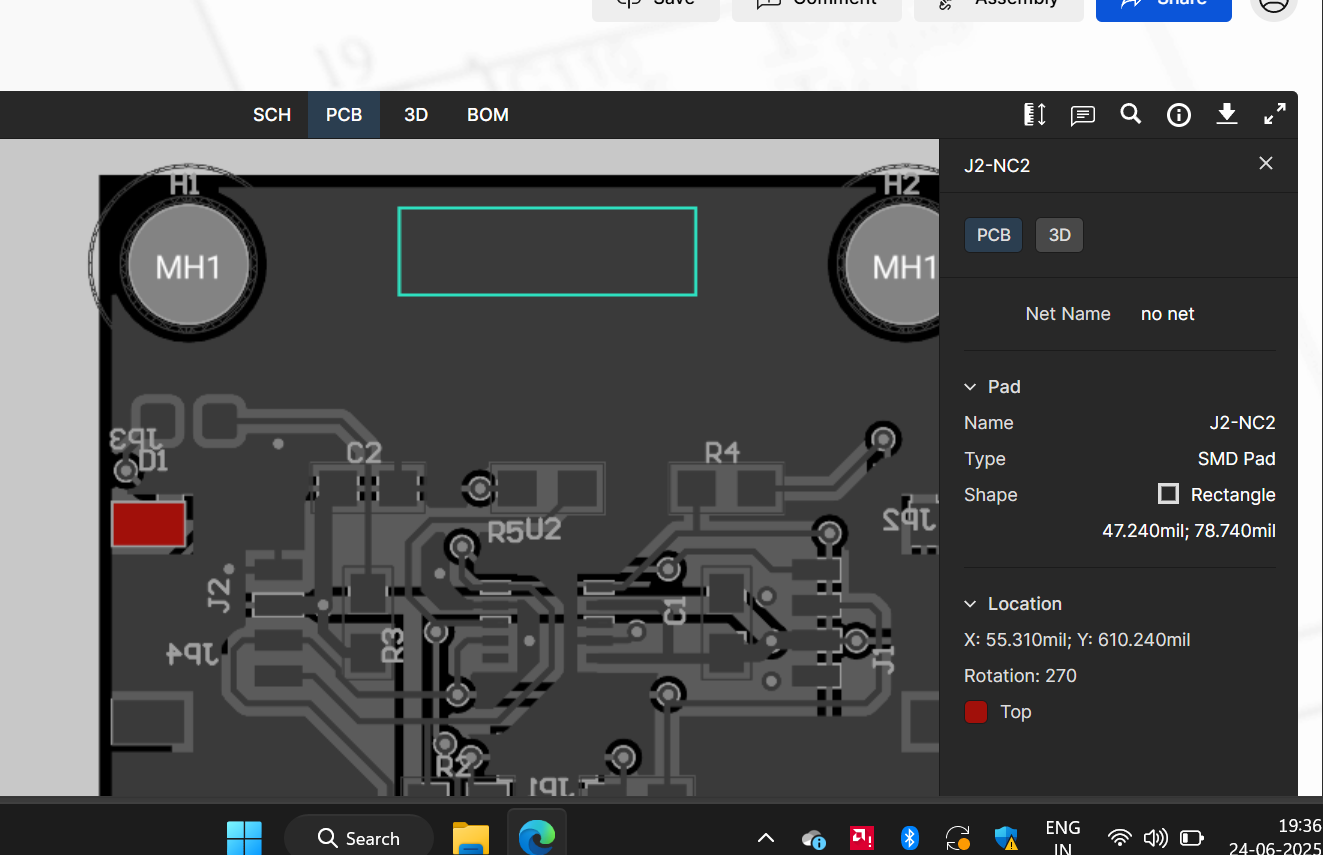

This is in the bottom layer and it doesnt look like the one you have
@shibo wait, see this

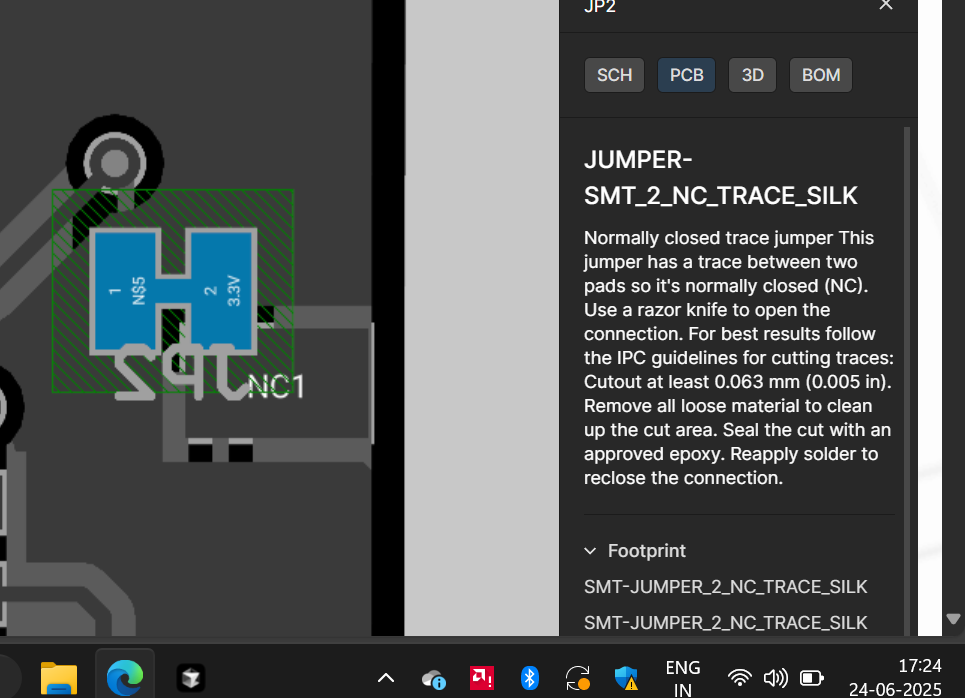

I see, just put it in the bottom layer
how, can u tell me the prop.
layer
??
@shibo still autoruting hypersolver errors

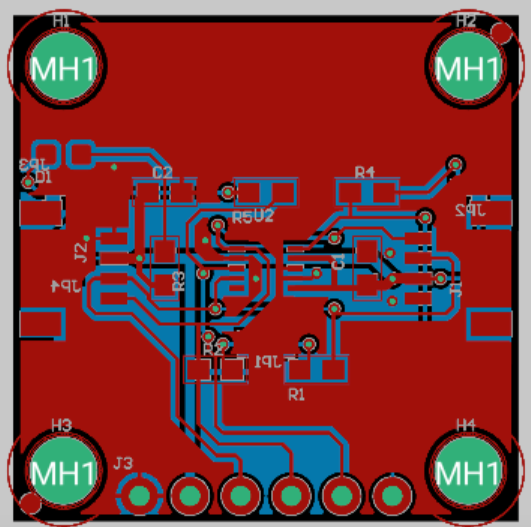

this is the final look @Seve @shibo i mean, i have done evrrything every meurement from that eagle files now is it ok? here is my board link: https://tscircuit.com/Anshgrover23/Motion-sensor
and here is the boar link: https://www.sparkfun.com/sparkfun-human-presence-and-motion-sensor-sths34pf80-qwiic.html

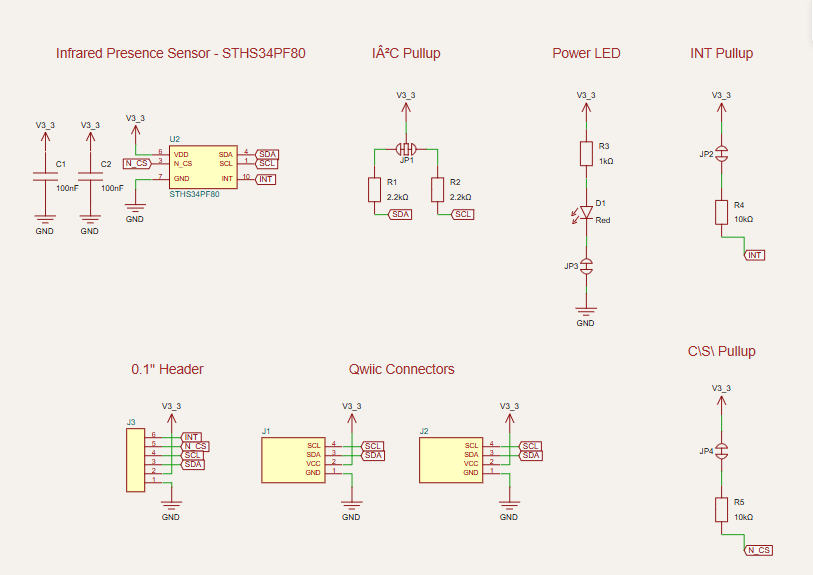

schematci also fully complete @Seve from my ide board is fully complete, needs review only.
why are there 2 J2s?

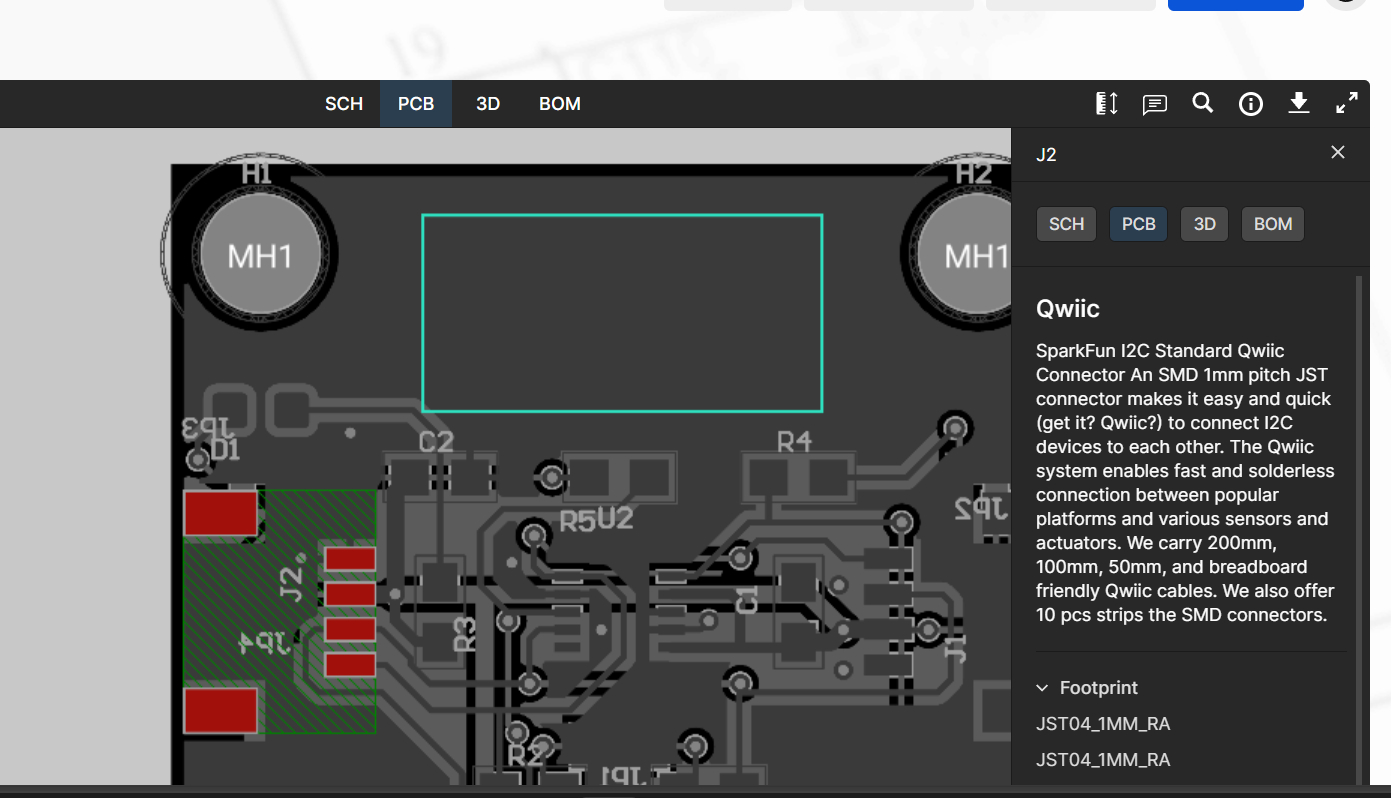

@shibo o these are not two j2's the board look like this the other one is just smtpad with nc pads(no-connnection smtpads), i have setted in footprint please once look into my file, i have posted above.
do we need this or if u want i will remove that but board needs this.
these are not two J2s, they are a single component which you should create a footprint for I guess

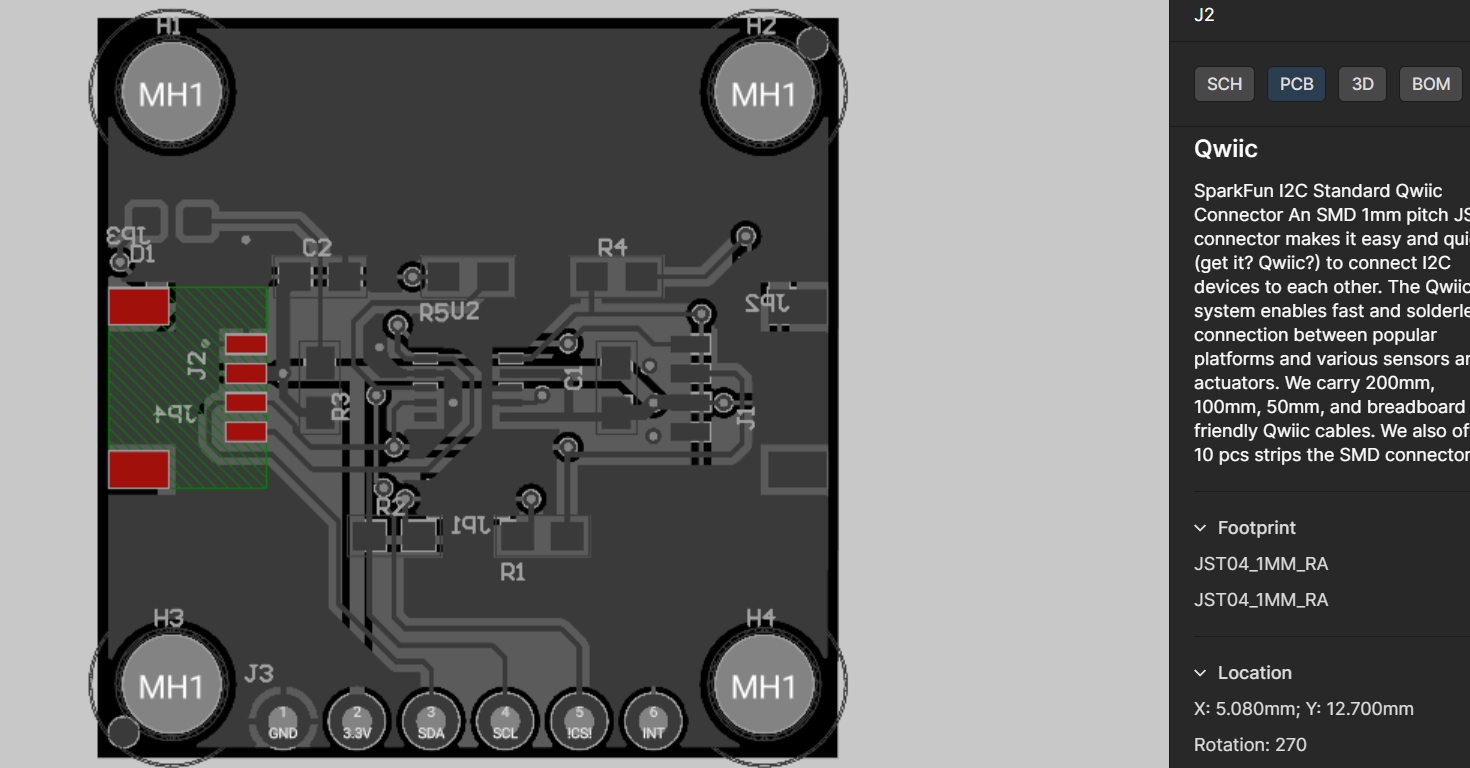

i have added footprint for it, can u check in my code please? yeah, sorry two different components.

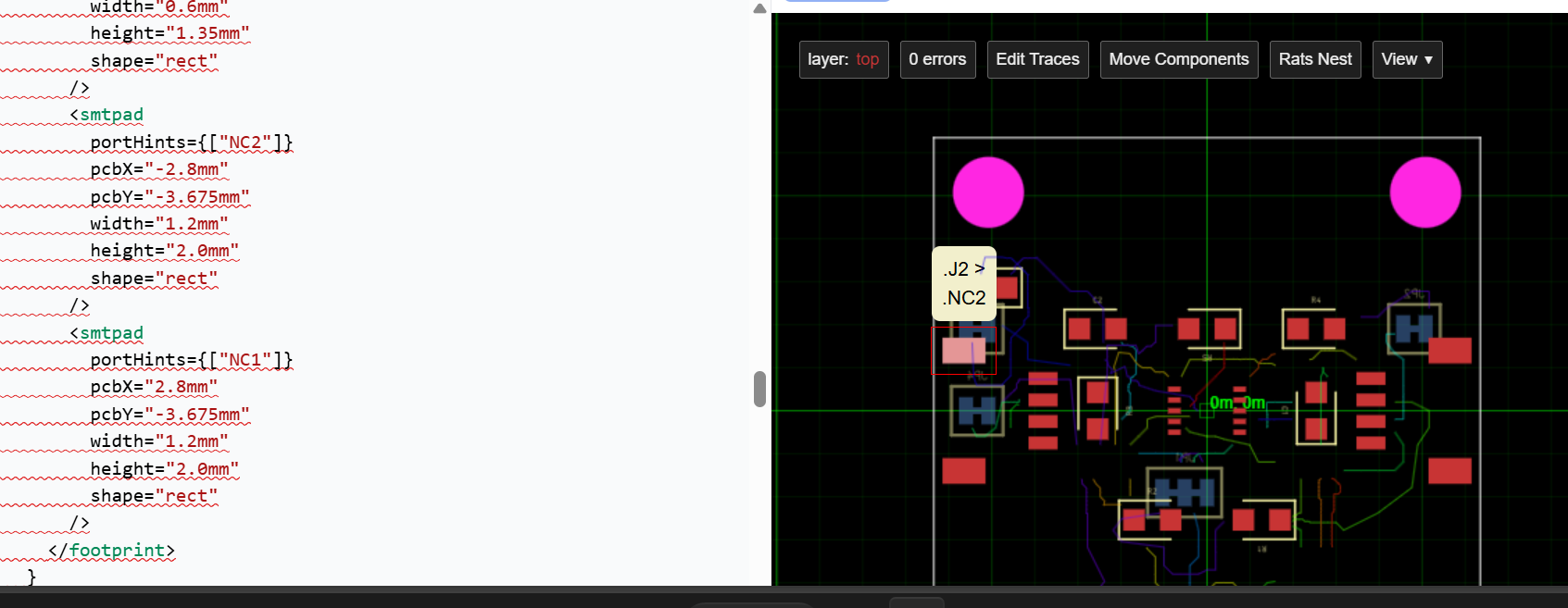

see screenshots of code please.
@shibo ??
@Seve are we ok with manual footprints?
btw, other than this is there anything else @shibo and what about that autoruting hypersolver errors, should i report it and create fixture for it, in aurouter repo
as i have done before
yea if there isn't a good way to do it with footprinter/it shouldn't be in footprinter. E.g. a USB C footprint is too non-standard
@Seve should i create a pr now??
is there anything else or i will create a pr seve has replied you on your above comment @shibo
create a pr, let's see it
@shibo @Seve https://github.com/tscircuit/tscircuit-autorouter/issues/163i i also have autorouter bug, i am creating fixture for it as well.
GitHub
tscircuit/tscircuit-autorouter
A State of the Art MIT-licensed PCB Autorouter. Contribute to tscircuit/tscircuit-autorouter development by creating an account on GitHub.

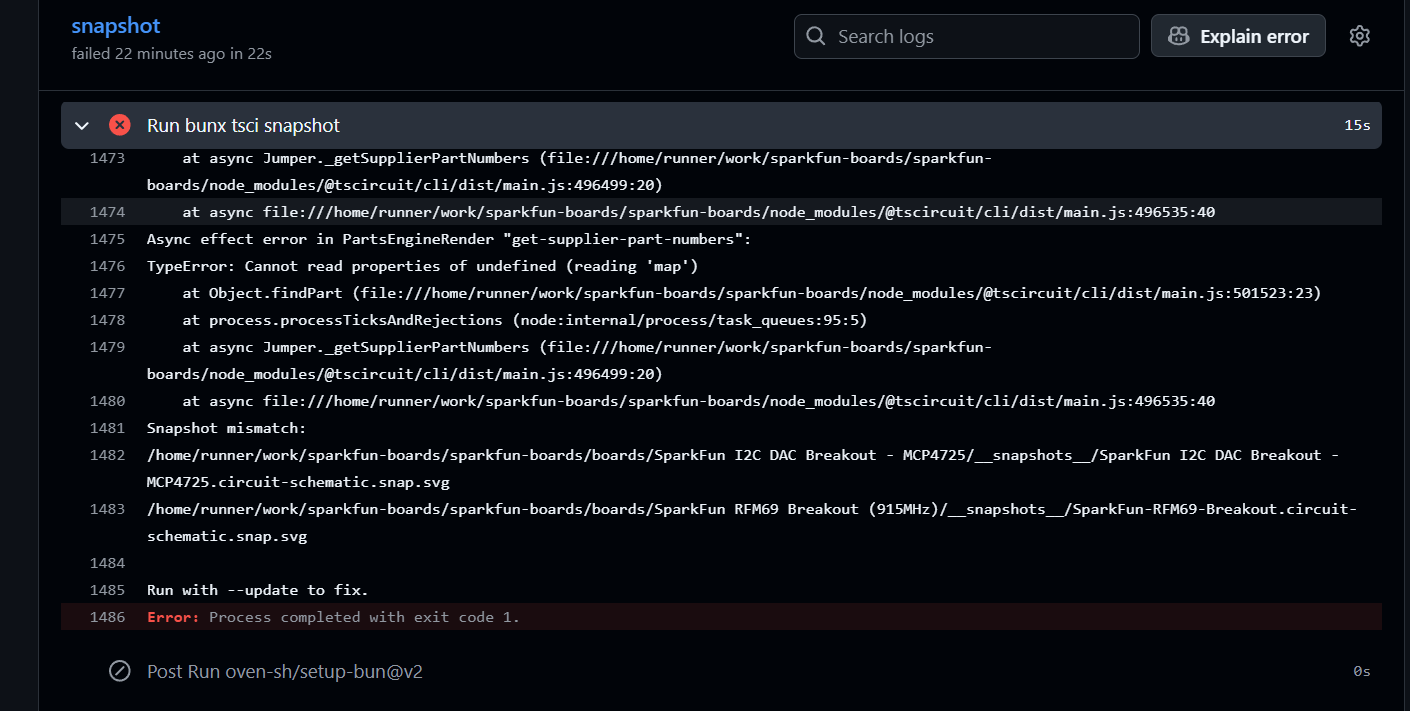

@shibo why the bun snapshot is failing, i mean i have retried many times like tried to do bun snapshot -u but nothing changed in my snapshots also, they are also like ok from my side, why it is saying bun snapshot is not matching. can u check my prs please?
I think there is a core error, can you try to fix it?
i mean, i will try to see it but what's the error?
the async error
maybe it's not catching the error when it should
hmm, i will check wait first i am doing two things first changing the connection to traces and then reporting autrouting fixture, just wait for 15 minutes i will check and let you know after that?
we can merge with the workflow error, you can solve it later
just change the connections and the disconnected sch traces
@shibo https://github.com/tscircuit/sparkfun-boards/pull/18 can we merge now, all done, or anything left.
i mean wanted this to include in sponsorship as well @shibo if u can help, and free pls.
@shibo we can close this thread now.
