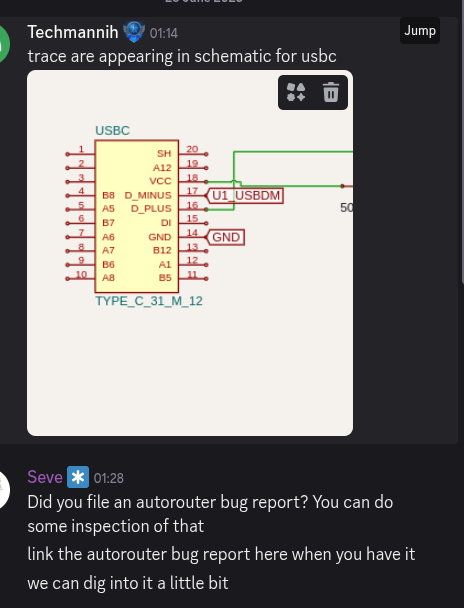

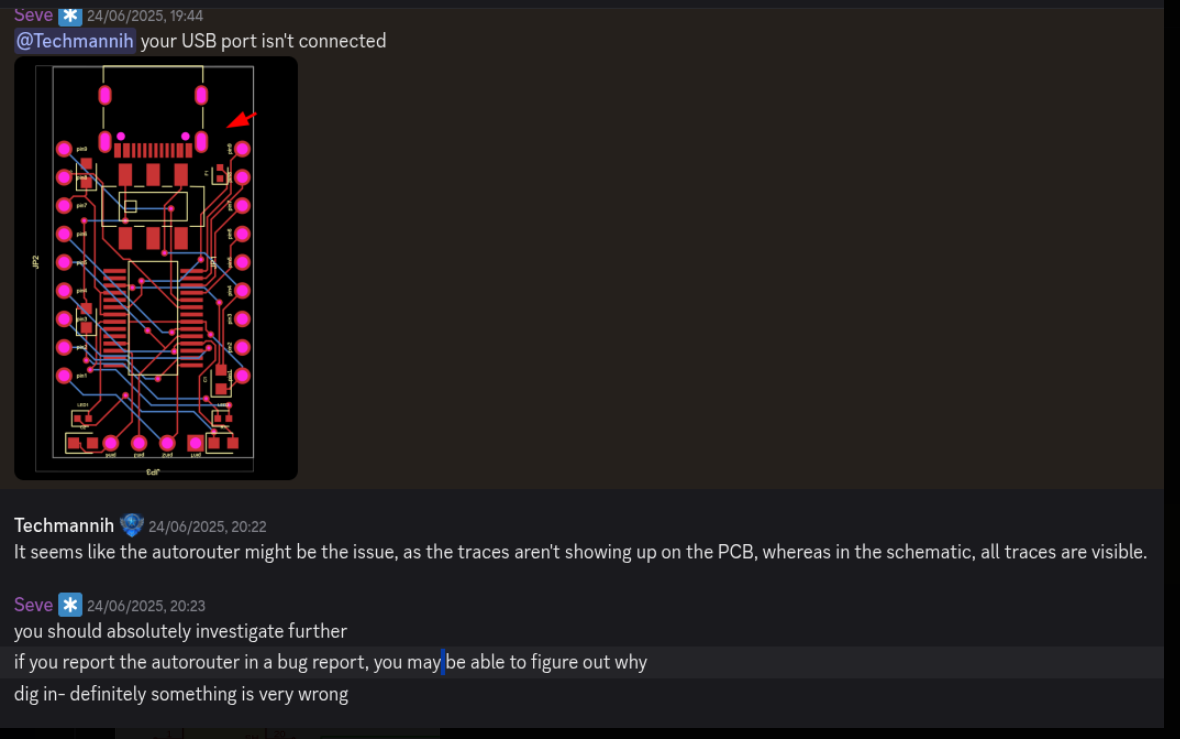

It seems like the autorouter might be the issue, as the traces aren't showing up on the PCB, whereas in the schematic, all traces are visible.
you should absolutely investigate further
if you report the autorouter in a bug report, you may be able to figure out why
dig in- definitely something is very wrong
Absolutely! I’ll report it and dive in — something’s definitely off here.
But can we merge it if this gets fixed? If so, we'll update the snapshot.
@Seve https://github.com/tscircuit/sparkfun-boards/pull/12
coordinate w/ @shibo for that repo, you have merge conflicts on that PR
resolved the merge conflicts

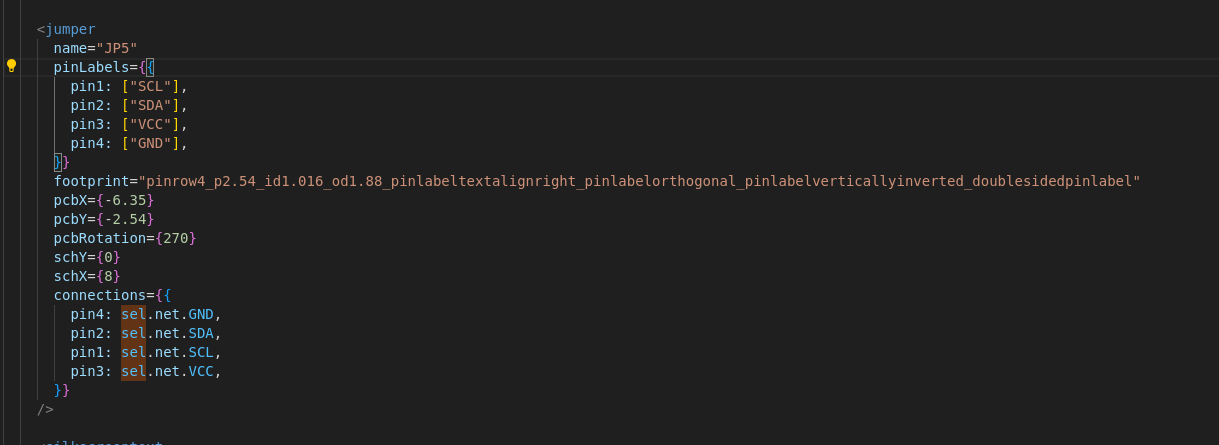

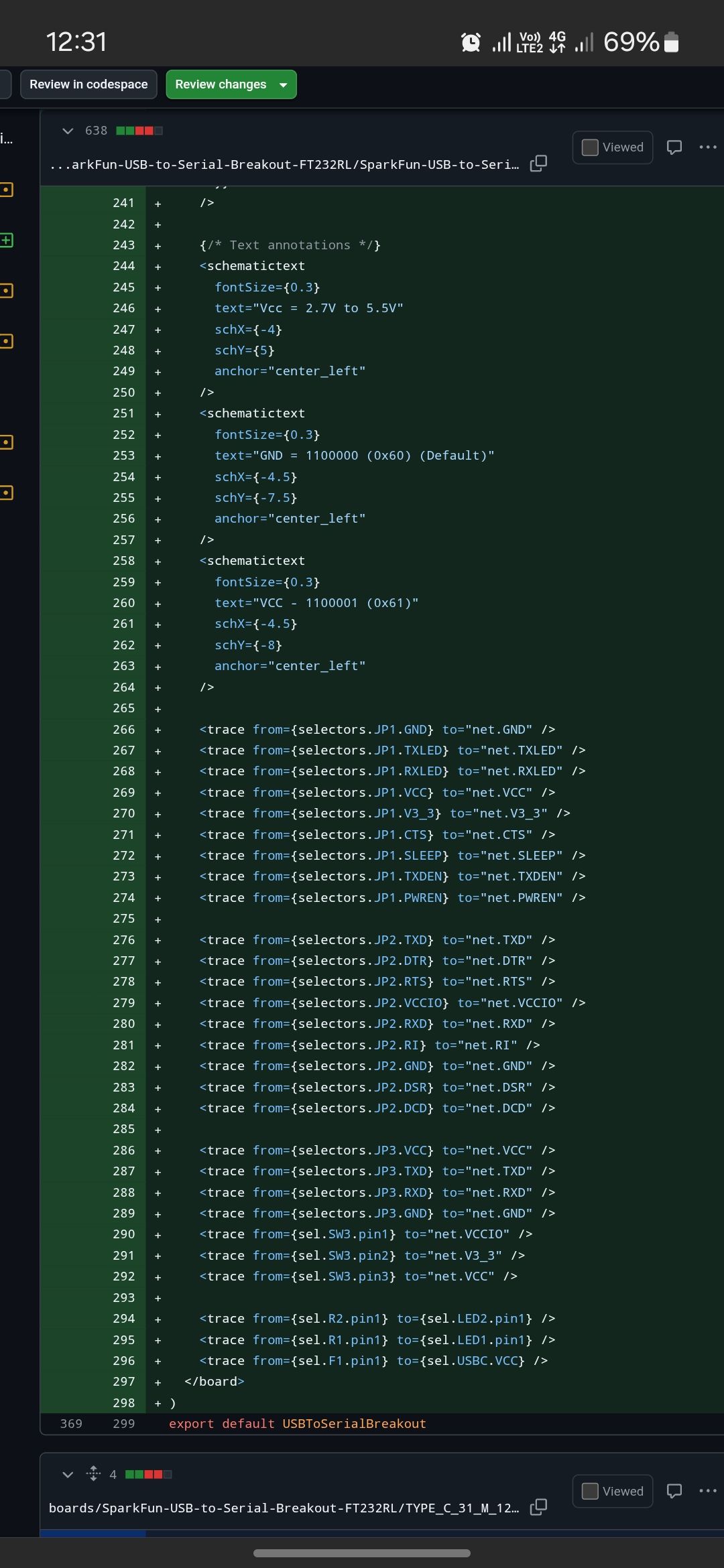

@Techmannih let's use the connections prop instead of traces

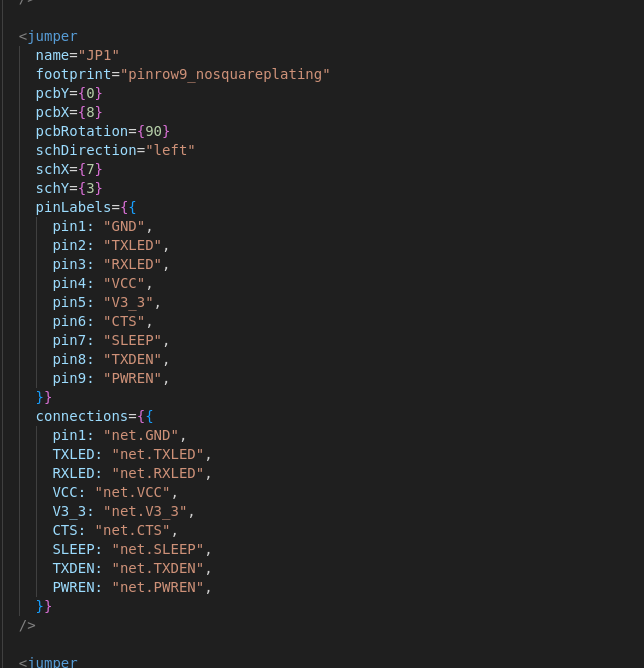

you can reference my board for usage
also there shouldn't be a trace going out of pin 15
can you make it a vcc symbol?
you are also using trace. I'm using your board as a reference too.
I guess you have an old version of my board, pull the changes

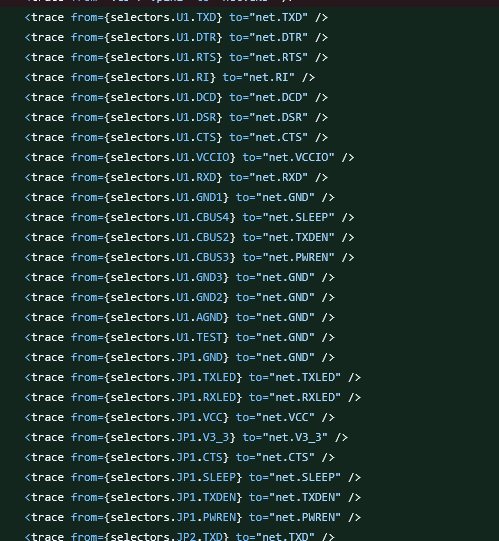

@shibo yeah, trace is present from pin15 to usbc.D_minus, and from pin17 to c1
yeah, it was old version.
updated
@shibo
can you check please
I think changes as you suggested

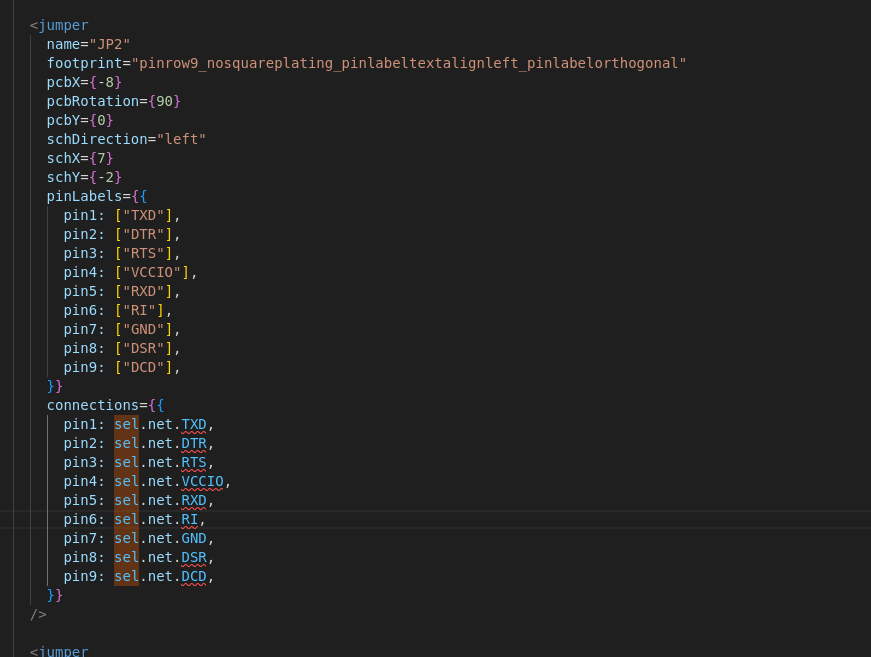

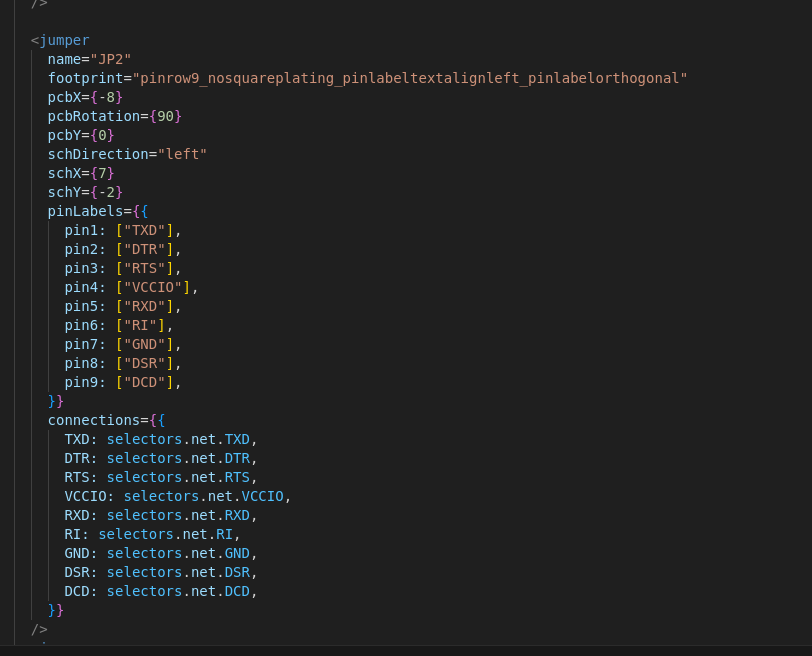

For jumper, switch, fuse, and resistor we can't use connection props?
@shibo
We can

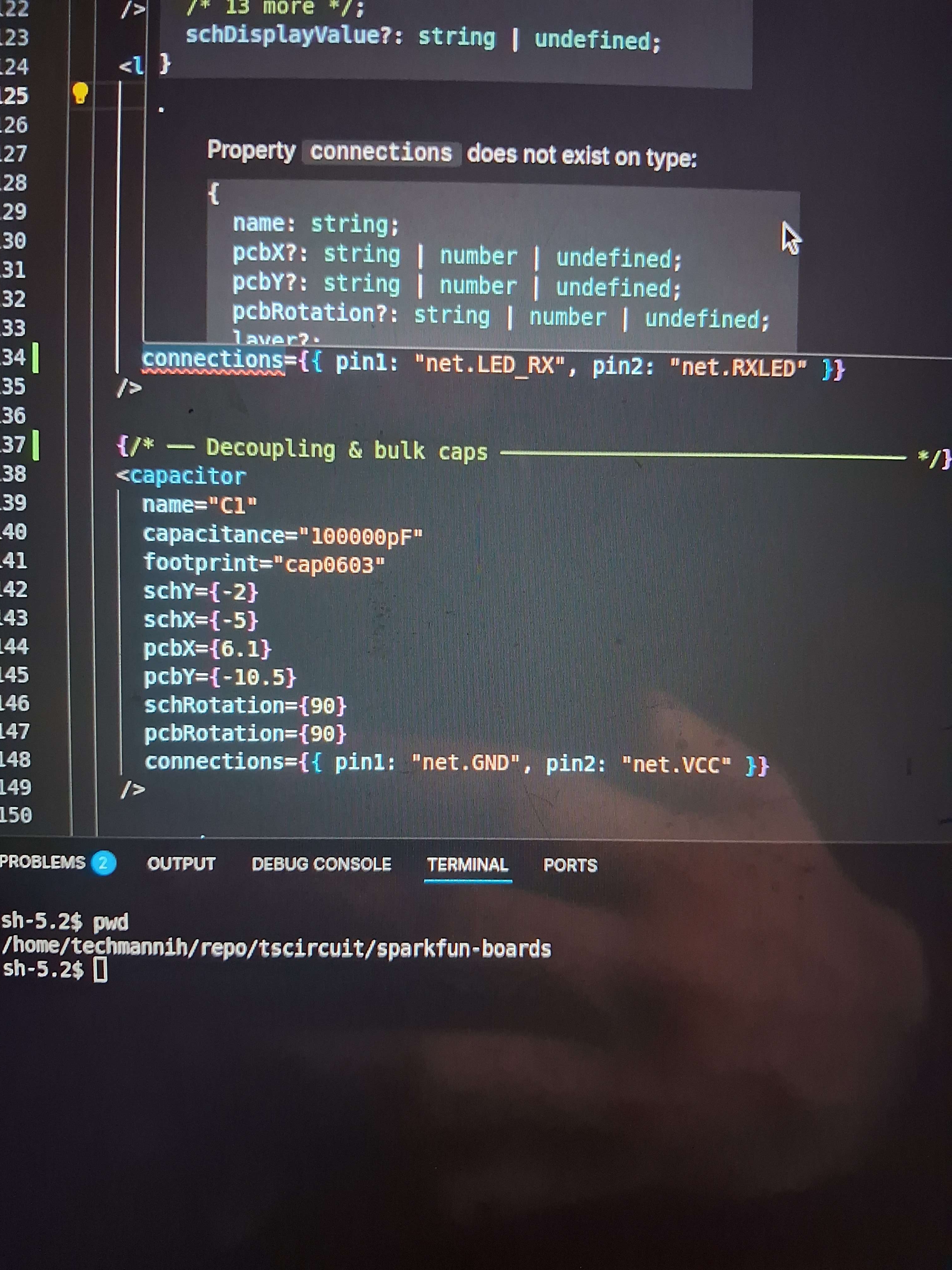

When I try getting this error
Getting only in case of led
@shibo in your board its work
giving error in my board?
whats the hack in your board
this erro
Bun i or something, outdated dep
I used this https://github.com/tscircuit/core/pull/959
GitHub
Add dynamic refdes to sel, sel<"CUSTOM1" | "CUSTOM2">("U1").CUSTOM1...
Summary
allow sel to be invoked as a function
support generic pins for any reference designator
test dynamic reference designator usage
Testing
bun test tests/sel/sel2.test.tsx
https://chatgpt...
yeah using exact same,
only GND is works due to which is added in CommonNetNames in core. @shibo those net label you are using all preset in CommonNetNames, then should i need to add these missing netname in it, or any other to use?
@shibo bro
extend the type to include the missing properties
on your circuit ofcourse
its working well but not update in the snapshot
in both case
@shibo net label is also not working in your board
you have given in board but not giving in output in snapahot as same issue with me
@shibo @Seve may be connection props issue in jumper
Yes absolutely
May need a core repro
I m trying with codex
if i can do it.
working in core repo,
yea codex is great at core, it should help you get started
oh you couldn't reproduce it?
are you sure this isn't an old dependency issue
Ive seen this before, outdated deps I guess
this is working in tssciruit.com and core also but not working in sparkfun repo, i m on latest dep, but still this is not working

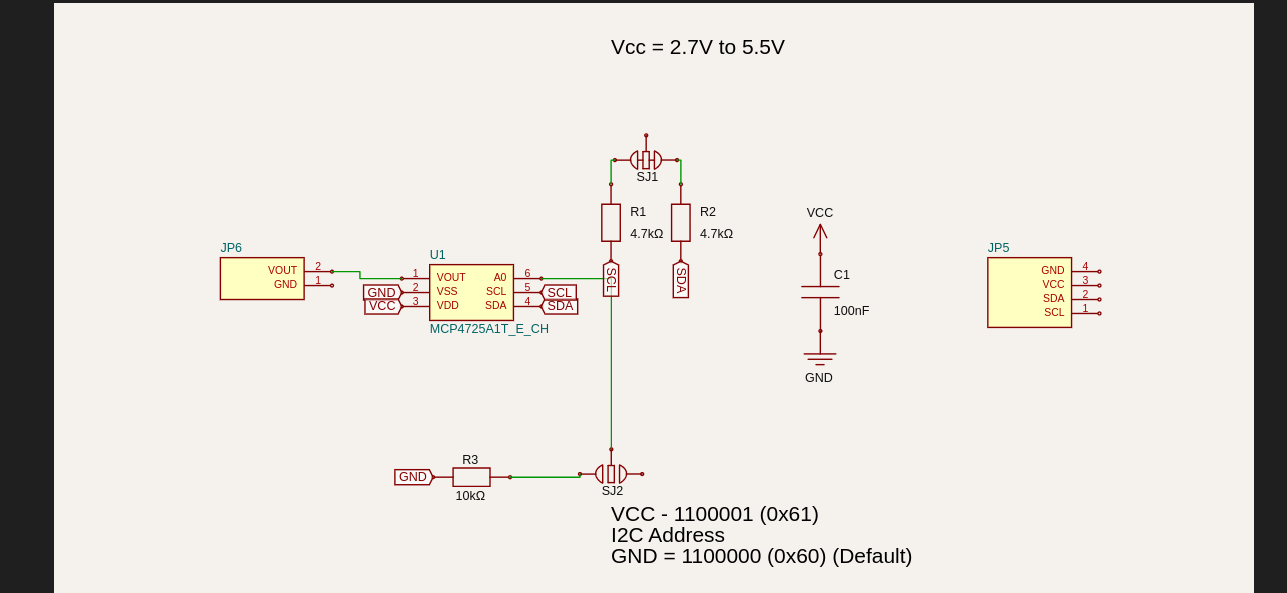

@shibo I have updated board can you review

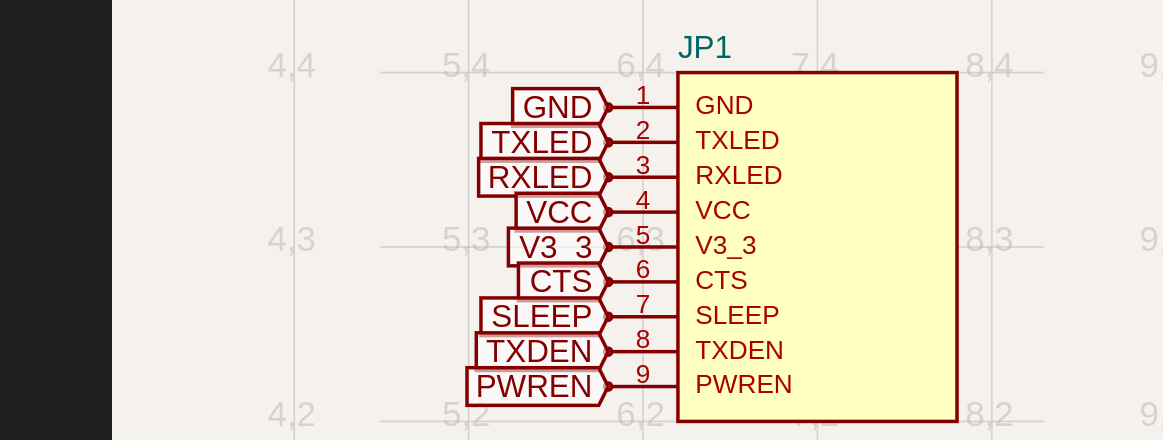

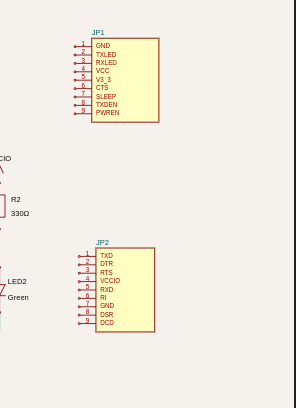

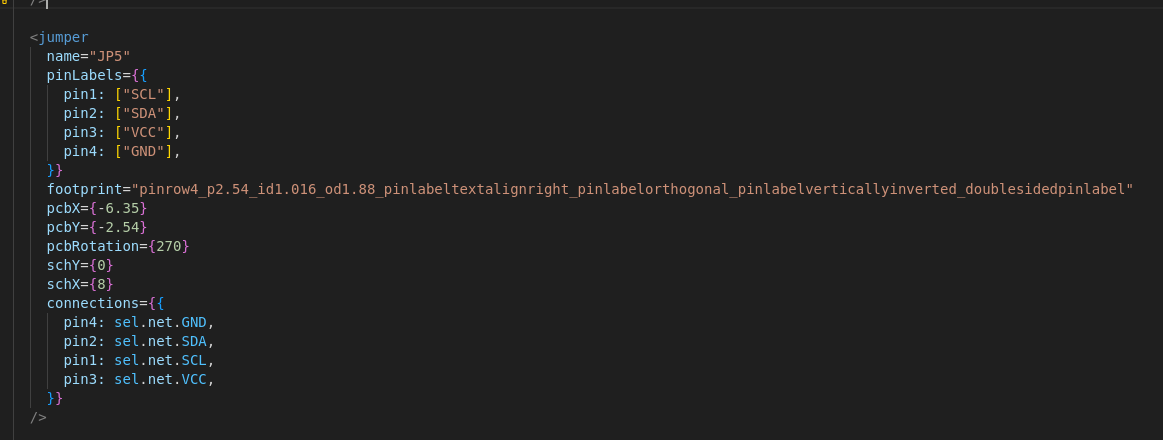

only missing jumper label, when the dependency issue solved it will automatically update snapshot, i have add all net with jumper
@shibo bro
@Techmannih you are not passing the snapshot workflow*
😂 highly ping
@shibo done
this is solved by @shibo
now net label working in jumper
@shibo
seve will take a look in it, if it solved snapshot will update
may be autorouter bug
he said you should take a look into it
yeah, if it solved i will update the snapshot
this is core issue may be or may be a autorouter bug, idk about this
this is working in schematic view
it's not an autorouter bug imo, can you try to reproduce and fix it in core? I can merge the board for now, but you gotta fix it
yeah, I am trying to fix this
also seve trying to find the main reason behind it
he is not XD
he said you dig in and if it's an autorouter bug file report it so "we" can dig in further
now it's not guaranteed to be an autorouter bug, so please reproduce in core
yeah yeah exactly
