Fully proxy an internal IP via a Netbird client? (Similar to Tailscale `TS_DEST_IP`)

Hey 👋 Does anyone know if Netbird supports a similar function to TS_DEST_IP in Tailscale (docs)? I'm looking to maybe switch, but that's a feature I'm using and I find it useful as I can expose an internal resource with a Netbird IP address without installing Netbird directly on it.

Tailscale

Using Tailscale with Docker · Tailscale Docs

Connect your container to Tailscale using Tailscale's official Docker image.

Solution:

This seems to work, but I'm a bit scared it might break down, either because Netbird will do some things to the iptables periodically, or because a future update of Netbird might break it. ```yaml - image: netbirdio/netbird:latest name: netbird...

Jump to solution

22 Replies

jeevis•3mo ago

So just to confirm

jeevis•3mo ago

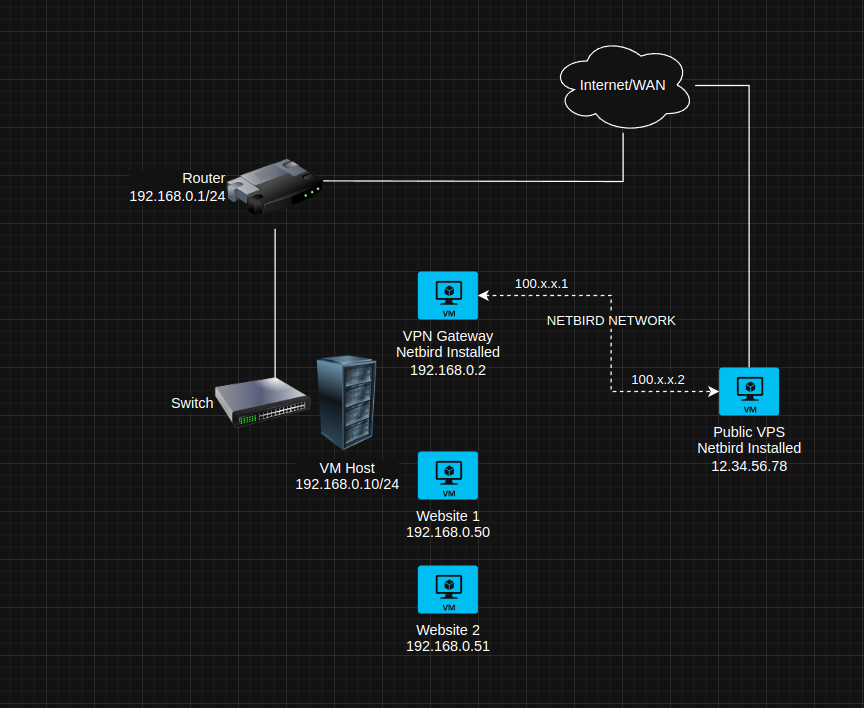

Simplifying the IP schemes a bit just as an example, but you mean a setup like this? Where someone goes to the website at 12.34.56.78, and that VPS redirects it to the 192.168.0.5x server that is there? What type of traffic is it?

FadingOP•3mo ago

If I understand this right diagram right, the "VPN Gateway" machine would be working as a router to forward traffic for e.g. the 192.168.0.0/24 CIDR? I.e. if I'm in the Netbird VPN, and I want to access Website 1, I need to dial 192.168.0.50

jeevis•3mo ago

A Router is just a "Computer that routes traffic between interfaces". Windows/Linux/BSD can all do it, so it would just need to be a VM, not an entire router.

FadingOP•3mo ago

If I got that right, it's not quite what I'm looking for

jeevis•3mo ago

but it could be a router

FadingOP•3mo ago

Ok I meant a "routing peer" as per the Netbird docs

jeevis•3mo ago

Yes, you would tell the public VPS that the traffic at 192.168.0.0/24 is accessible through the VM at netbird address 100.x.x.1 So anything going to that VPS(or wherever you want that machine, could be your computer) can access the 192.168.x.x network

FadingOP•3mo ago

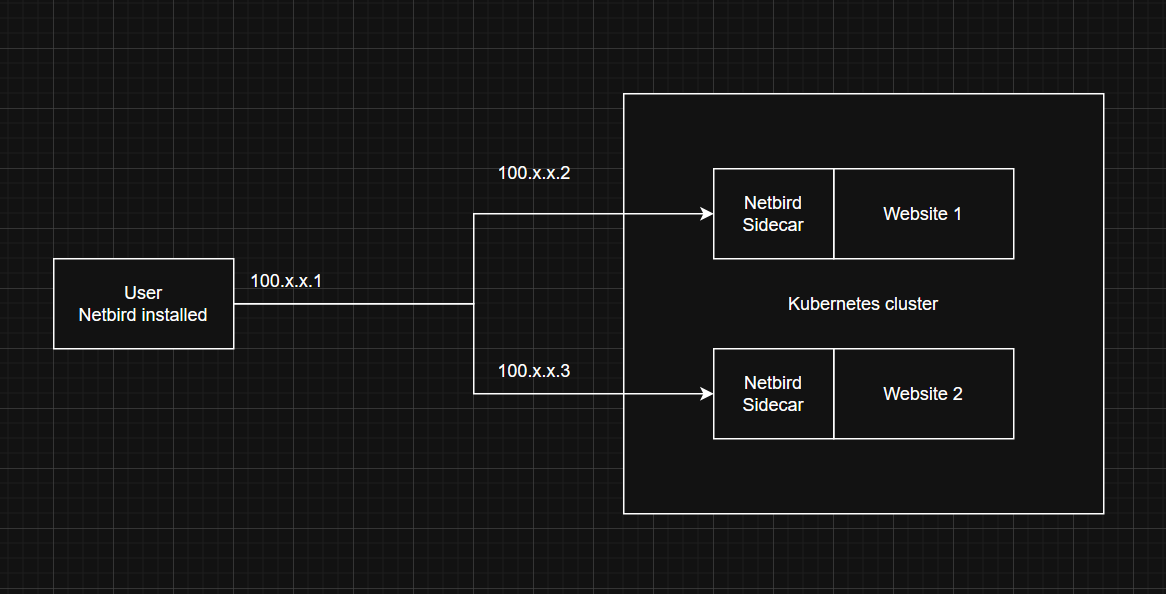

What I have with Tailscale at the moment is that there is a Tailscale client running for each thing that I want to expose, and it forwards traffic for exactly one IP. The benefit of that that I want to replicate in Netbird is that you mask the internal IP with a Tailscale IP

FadingOP•3mo ago

Maybe this clarifies that ^ (The current setup is sed /Netbird/Tailscale/g)

jeevis•3mo ago

So NAT When something hits 100.x.x.2, NAT to internal Address (hostname of the k8s container)

FadingOP•3mo ago

Yes!

jeevis•3mo ago

Im hoping someone with k8s experience will have a look, but I would just run a single sidecar that goes to a reverse proxy, and have the reverse proxy be what directs the traffic to the correct site(unless you need them segregated because they are different clients or whatever) Then you can point all your DNS at a single IP(the proxy), and it should redirect to the correct site. if not that, then i think you would have to do NAT on the sidecar itself, which im not sure about how to go doing.

jeevis•3mo ago

I could be wrong, im going by here for the k8s references https://docs.netbird.io/how-to/kubernetes-operator#expose-kubernetes-services-to-net-bird-network

Access Private Kubernetes Clusters with NetBird Kubernetes Operator...

jeevis•3mo ago

And i think(but am not sure) it would add the route/network?

FadingOP•3mo ago

Yes, that's how I understand the Netbird operator works. I'd very much like to keep the cluster CIDR "hidden", we have a couple of clusters and it's not entirely impossible two services on two different clusters end up having the same IP. Assigning distinct CIDRs for each cluster is possible, but an in my mind a solution that comes with way too much headache (esp. since changing the CIDR after the fact is not possible and you need to recreate the cluster). Thanks for your help so far 🙂 I think I just found the feature I was looking for. It's called "setup keys" and it's supported by the Netbird operator

FadingOP•3mo ago

https://docs.netbird.io/how-to/kubernetes-operator#accessing-remote-services-using-sidecars

Access Private Kubernetes Clusters with NetBird Kubernetes Operator...

FadingOP•3mo ago

But can also be manually configured without the operator:

apiVersion: v1
kind: Secret
metadata:
  name: test
  namespace: default
stringData:
  SETUP_KEY: REDACTED
---
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: test
  name: test
  namespace: default
spec:
  replicas: 1
  selector:
    matchLabels:
      app: test
  template:
    metadata:
      labels:
        app: test
    spec:
      containers:
        - image: netbirdio/netbird:latest
          name: netbird
          env:
            - name: NB_SETUP_KEY
              valueFrom:
                secretKeyRef:
                  name: test
                  key: SETUP_KEY
            - name: NB_MANAGEMENT_URL
              value: https://netbird.example.com
          securityContext:
            capabilities:
              add:
                - NET_ADMIN
        - image: nginx
          imagePullPolicy: Always
          name: nginx
          ports:
            - containerPort: 80
              protocol: TCP

apiVersion: v1
kind: Secret
metadata:
  name: test
  namespace: default
stringData:
  SETUP_KEY: REDACTED
---
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: test
  name: test
  namespace: default
spec:
  replicas: 1
  selector:
    matchLabels:
      app: test
  template:
    metadata:
      labels:
        app: test
    spec:
      containers:
        - image: netbirdio/netbird:latest
          name: netbird
          env:
            - name: NB_SETUP_KEY
              valueFrom:
                secretKeyRef:
                  name: test
                  key: SETUP_KEY
            - name: NB_MANAGEMENT_URL
              value: https://netbird.example.com
          securityContext:
            capabilities:
              add:
                - NET_ADMIN
        - image: nginx
          imagePullPolicy: Always
          name: nginx
          ports:
            - containerPort: 80
              protocol: TCP

As far as I can tell it doesn't allow specifying a destination other than the localhost, so it's not quite equivalent to TS_DEST_IP, and I suppose it is more akin to having a normal Netbird client installed in the Pod. That gets me almost there, unfortunately I do have a similar use case where I can't simply inject a sidecar container Oh and I realized, I'd much rather be exposing a Kubernetes service than an individual Pod this way 🤔

Solution

Fading•3mo ago

This seems to work, but I'm a bit scared it might break down, either because Netbird will do some things to the iptables periodically, or because a future update of Netbird might break it.

        - image: netbirdio/netbird:latest
          name: netbird
          command:
            - /bin/sh
            - -c
            - |
              set -e

              iptables -t nat -I PREROUTING 1 -i wt0 -p tcp -j DNAT --to-destination ${NB_DEST_IP}
              iptables -A FORWARD -i wt0 -o eth0 -p tcp -d ${NB_DEST_IP} -m state --state NEW,ESTABLISHED,RELATED -j ACCEPT
              iptables -t nat -A POSTROUTING -o eth0 -j MASQUERADE

              /usr/local/bin/netbird up
          env:
            - name: NB_DEST_IP
              value: 10.43.124.158
            - name: NB_SETUP_KEY
              valueFrom:
                secretKeyRef:
                  name: test
                  key: SETUP_KEY
            - name: NB_MANAGEMENT_URL
              value: https://netbird.example.com

        - image: netbirdio/netbird:latest
          name: netbird
          command:
            - /bin/sh
            - -c
            - |
              set -e

              iptables -t nat -I PREROUTING 1 -i wt0 -p tcp -j DNAT --to-destination ${NB_DEST_IP}
              iptables -A FORWARD -i wt0 -o eth0 -p tcp -d ${NB_DEST_IP} -m state --state NEW,ESTABLISHED,RELATED -j ACCEPT
              iptables -t nat -A POSTROUTING -o eth0 -j MASQUERADE

              /usr/local/bin/netbird up
          env:
            - name: NB_DEST_IP
              value: 10.43.124.158
            - name: NB_SETUP_KEY
              valueFrom:
                secretKeyRef:
                  name: test
                  key: SETUP_KEY
            - name: NB_MANAGEMENT_URL
              value: https://netbird.example.com

jeevis•3mo ago

does netbird touch the firewall? i think it just does routes and DNS if systemd-resolved

FadingOP•3mo ago

There are Netbird-specific chains in iptables, in the container at least
