Lost Communication with MCU
Hi everyone,
my Octopus v1.1 F46 board keeps losing connection to my Raspberry Pi 4B.
I've already replaced the cable twice and tried different USB ports,
but unfortunately, it hasn't helped so far.
Everything is a little over a year old now.
I also tryed with an new sd card and flash the new ratos, but nothing is going better

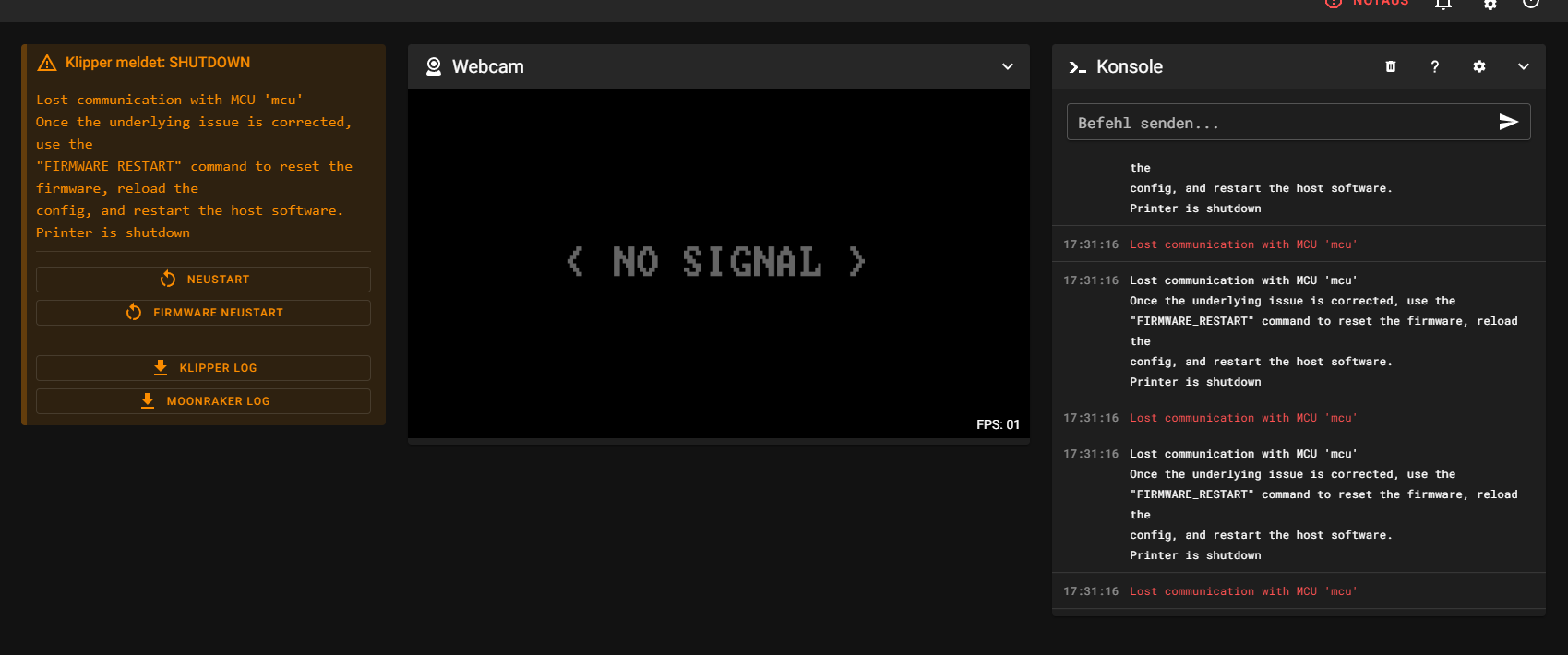

I also los often the Communication to my usb nozzlecam. Mainsail shows me "no signal" but the LED's on the cam are on.
I'm not sure whether I should (or need to) replace the board or the Raspberry Pi.
Has anyone experienced similar issues? If so, how did you fix them?
1 Reply
Strange. Maybe check where the USB is soldered into the octopus with magnification, see if there are cracks in the traces or solder joints?
Actually, could try aggressively fiddling with the cable to see if that causes the issue
