9 Replies
@Gyro Gearloose
Note for OP

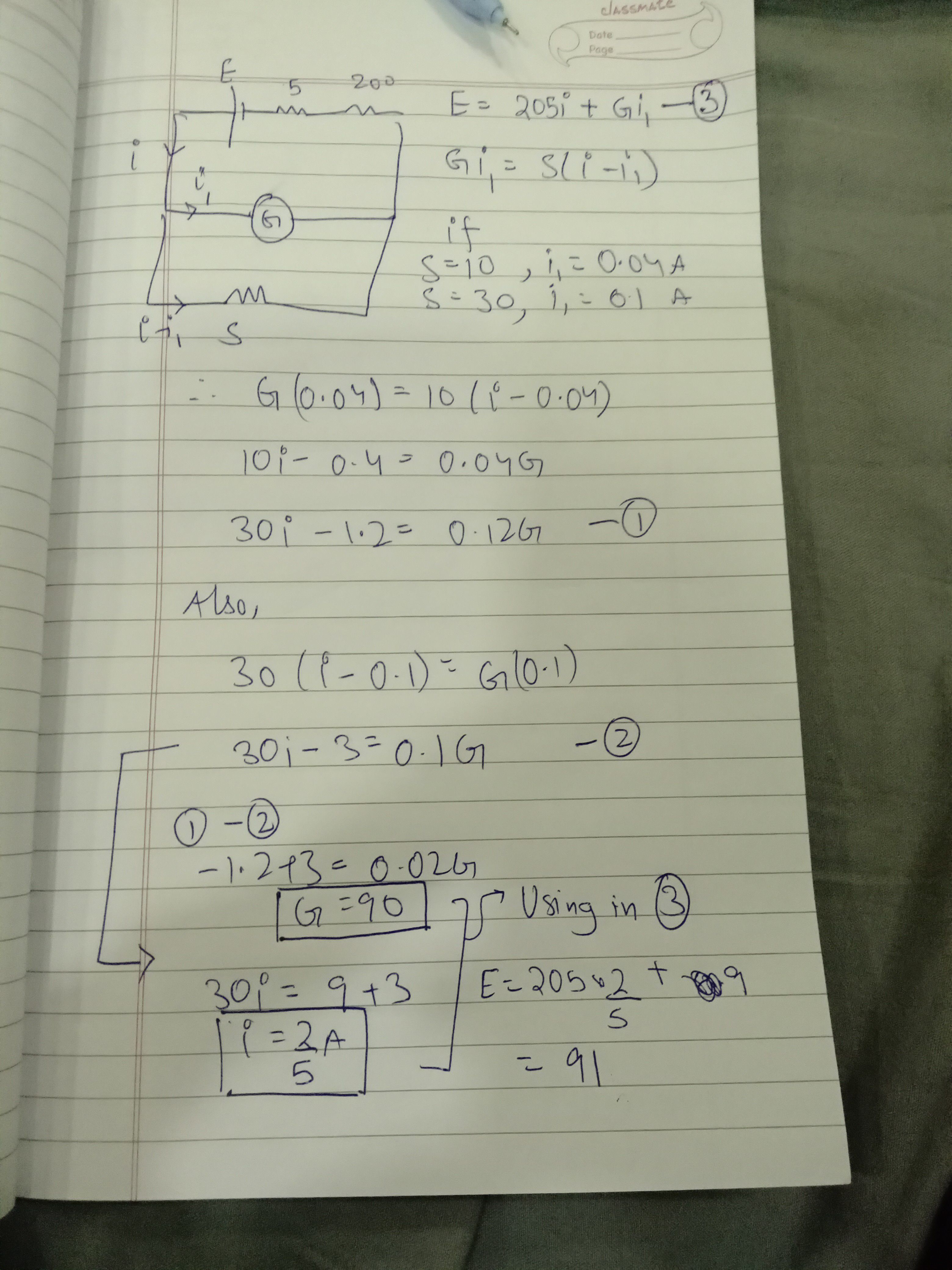

+solved @user1 @user2... to close the thread when your doubt is solved. Mention the users who helped you solve the doubt. This will be added to their stats.What is wrong with my process
Anyone ....?
Equivalent resistance nikal ke kar lo na bhai
woh acha nahi lagta
why is kvl wrong
When u write those simult eqns the main current which u called i will change in both cases when S is 10 and 30 so u cant take i u have to take them differently in both cases ig
wrong ni hai bro
check karta ruko
@hardcoreisdead the problem in your solution is that you took i to be the same in both cases. when shunt changes the total current will also change, so you'll need an extra variable
so it's better to express i in terms of E and the resistors
and then solve for them
exactly this
