CrowdSec•4mo ago

Parser failure

Hello ! I am currently trying to use crowdsec on my Apache Guacamole server. I used the corvese/apache-guacamole-logs collection, and edited the pattern of the parser. Sadly, i always get a parser failure, but my pattern is supposed to work according to https://grokdebugger.com/ I join my parser as image (/etc/crowdsec/parsers/s01-parse/apache-guacamole-logs.yaml) Here is the command i use to test :

cscli explain --log "2025-07-03T12:58:55,174Z [http-nio-8080-exec-4] WARN  o.a.g.r.auth.AuthenticationService - Authentication attempt from 1.2.3.4:6833 for user "dqfhnqtn" failed." --type corvese/apache-guacamole-logs --debug

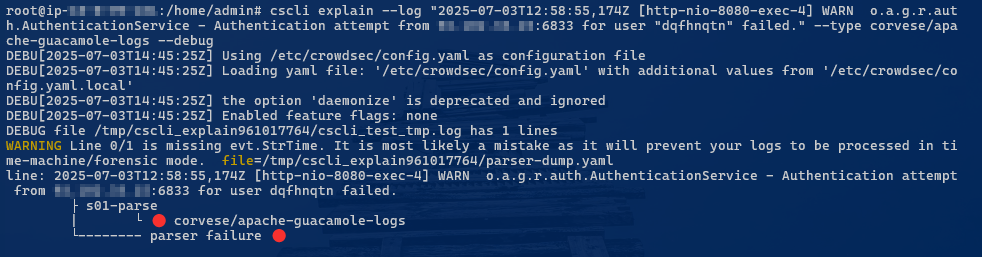

And this is the output :

DEBU[2025-07-03T13:25:52Z] Using /etc/crowdsec/config.yaml as configuration file
DEBU[2025-07-03T13:25:52Z] Loading yaml file: '/etc/crowdsec/config.yaml' with additional values from '/etc/crowdsec/config.yaml.local'
DEBU[2025-07-03T13:25:52Z] the option 'daemonize' is deprecated and ignored
DEBU[2025-07-03T13:25:52Z] Enabled feature flags: none
DEBUG file /tmp/cscli_explain2419963357/cscli_test_tmp.log has 1 lines
WARNING Line 0/1 is missing evt.StrTime. It is most likely a mistake as it will prevent your logs to be processed in time-machine/forensic mode.  file=/tmp/cscli_explain2419963357/parser-dump.yaml
line: 2025-07-03T12:58:55,174Z [http-nio-8080-exec-4] WARN  o.a.g.r.auth.AuthenticationService - Authentication attempt from 1.2.3.4:6833 for user dqfhnqtn failed.
        ├ s01-parse
        |       └ 🔴 corvese/apache-guacamole-logs
        └-------- parser failure 🔴

DEBU[2025-07-03T13:25:52Z] Using /etc/crowdsec/config.yaml as configuration file
DEBU[2025-07-03T13:25:52Z] Loading yaml file: '/etc/crowdsec/config.yaml' with additional values from '/etc/crowdsec/config.yaml.local'
DEBU[2025-07-03T13:25:52Z] the option 'daemonize' is deprecated and ignored
DEBU[2025-07-03T13:25:52Z] Enabled feature flags: none
DEBUG file /tmp/cscli_explain2419963357/cscli_test_tmp.log has 1 lines
WARNING Line 0/1 is missing evt.StrTime. It is most likely a mistake as it will prevent your logs to be processed in time-machine/forensic mode.  file=/tmp/cscli_explain2419963357/parser-dump.yaml
line: 2025-07-03T12:58:55,174Z [http-nio-8080-exec-4] WARN  o.a.g.r.auth.AuthenticationService - Authentication attempt from 1.2.3.4:6833 for user dqfhnqtn failed.
        ├ s01-parse
        |       └ 🔴 corvese/apache-guacamole-logs
        └-------- parser failure 🔴

What am I doing wrong here ? How can i have more details on the error ? My server OS is Debian. Crowdsec version: v1.6.9-debian-pragmatic-amd64-40b8cfe6 Thanks a lot for taking some time to help me !

Grok Debugger | Autocomplete and Live Match Highlghting

Easily debug Logstash Grok patterns online with helpful features such as syntax highlghting and autocomplete. Standard Grok patterns as well as patterns for Cisco firewall, HAProxy, Java, Linux Syslog, MongoDB, Redis, PostgreSQL, and more. Useful when creating Grok patterns for your ELK (ElasticSearch, Logstash, Kibana) or ELastic Stack.

20 Replies

CrowdSec•4mo ago

Important Information

This post has been marked as resolved. If this is a mistake please press the red button below or type /unresolve

iiamloz•4mo ago

Your missing the s00 parsers so you must install cscli collections install crowdsecurity/linux the extra information is your missing the syslog-logs parser which has the parser to know how to convert file based log lines into appropiate s01 stage items.

YohanOP•4mo ago

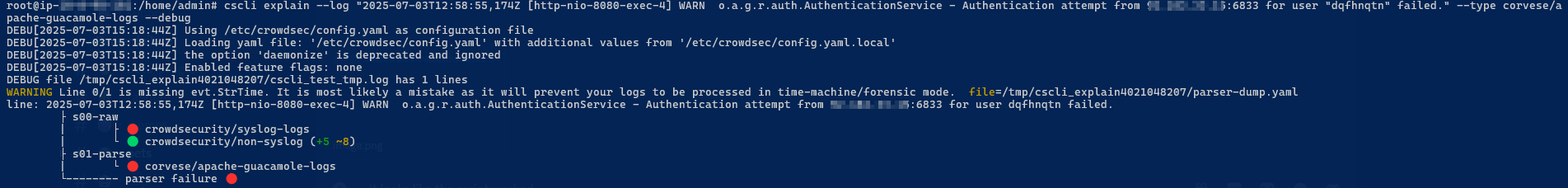

Thanks a lot for your help. I installed crowdsecurity/linux, even rebooted but still the same error. Maybe my command is wrong ?

cscli explain --log "2025-07-03T12:58:55,174Z [http-nio-8080-exec-4] WARN  o.a.g.r.auth.AuthenticationService - Authentication attempt from 1.2.3.4:6833 for user "dqfhnqtn" failed." --type corvese/apache-guacamole-logs --debug

iiamloz•4mo ago

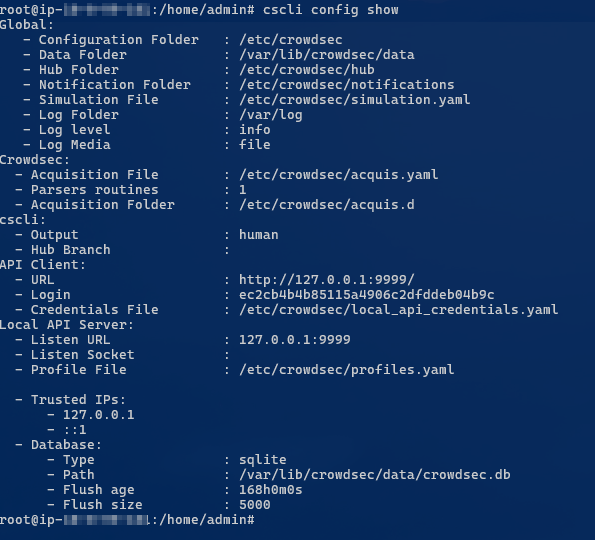

hmmm, can you show the output of cscli config show

YohanOP•4mo ago

iiamloz•4mo ago

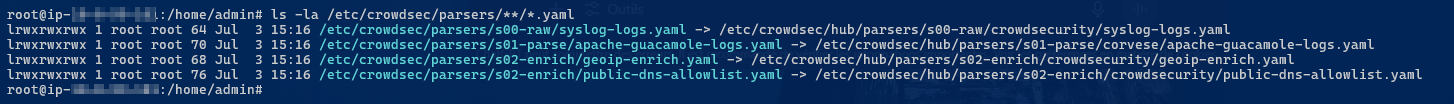

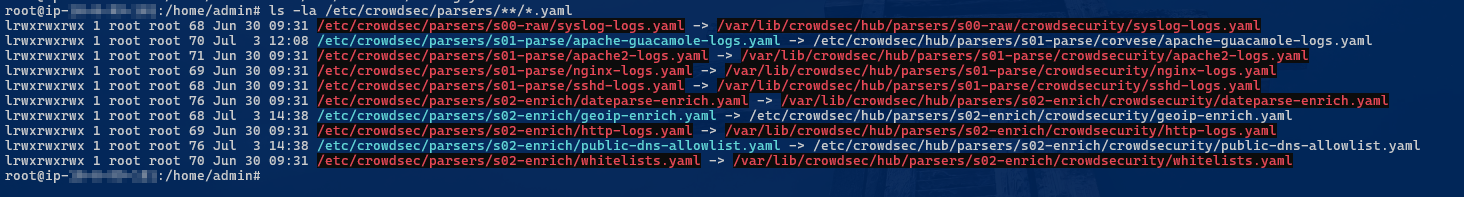

okay also ls -la /etc/crowdsec/parsers/**/*.yaml

YohanOP•4mo ago

iiamloz•4mo ago

ahh okay so did you acidentally install the debian version then ours on top? like version 1.4.6 then 1.6.9

YohanOP•4mo ago

i had an update after adding the repos, so maybe !

iiamloz•4mo ago

can you try this script https://gist.github.com/LaurenceJJones/6960107296145e8e365009973b9d7f6d it will basically update the symlinks as basically the debian version hosts them in a different folder hence the red text as they are dead links then if you run ls -la /etc/crowdsec/parsers/**/*.yaml again none of them should be red, hopefully note this will override your changes but I guess your the one that created the PR?

YohanOP•4mo ago

Thank you @Loz It looks like the script worked. I edited the parser again with my pattern, but still fails.

YohanOP•4mo ago

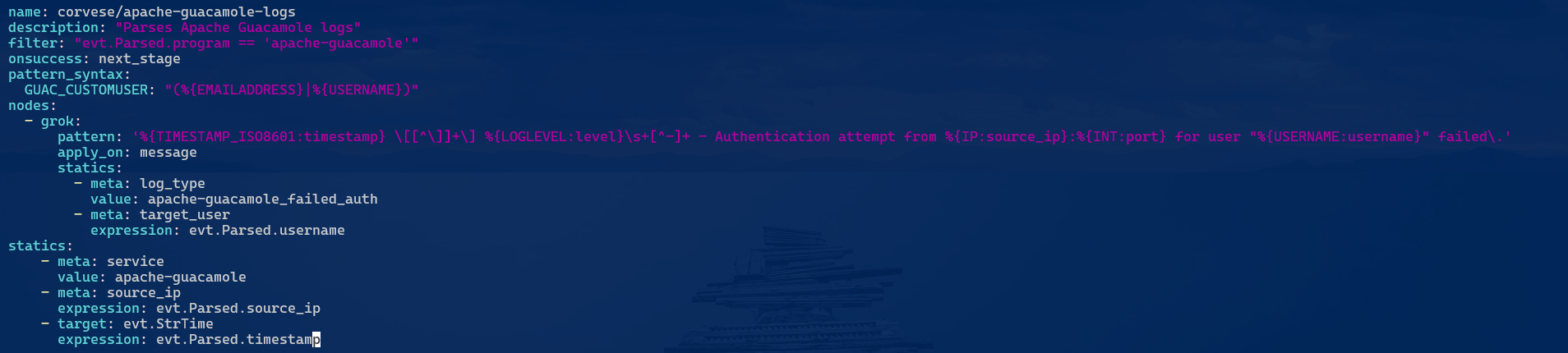

Edited parser :

name: corvese/apache-guacamole-logs
description: "Parses Apache Guacamole logs"
filter: "evt.Parsed.program == 'apache-guacamole'"
onsuccess: next_stage
pattern_syntax:
  GUAC_CUSTOMUSER: "(%{EMAILADDRESS}|%{USERNAME})"
nodes:
  - grok:
      pattern: '%{TIMESTAMP_ISO8601:timestamp} \[[^\]]+\] %{LOGLEVEL:level}\s+[^-]+ - Authentication attempt from %{IP:source_ip}:%{INT:port} for user "%{USERNAME:username}" failed\.'
      apply_on: message
      statics:
        - meta: log_type
          value: apache-guacamole_failed_auth
        - meta: target_user
          expression: evt.Parsed.username
statics:
    - meta: service
      value: apache-guacamole
    - meta: source_ip
      expression: evt.Parsed.source_ip
    - target: evt.StrTime
      expression: evt.Parsed.timestamp

name: corvese/apache-guacamole-logs
description: "Parses Apache Guacamole logs"
filter: "evt.Parsed.program == 'apache-guacamole'"
onsuccess: next_stage
pattern_syntax:
  GUAC_CUSTOMUSER: "(%{EMAILADDRESS}|%{USERNAME})"
nodes:
  - grok:
      pattern: '%{TIMESTAMP_ISO8601:timestamp} \[[^\]]+\] %{LOGLEVEL:level}\s+[^-]+ - Authentication attempt from %{IP:source_ip}:%{INT:port} for user "%{USERNAME:username}" failed\.'
      apply_on: message
      statics:
        - meta: log_type
          value: apache-guacamole_failed_auth
        - meta: target_user
          expression: evt.Parsed.username
statics:
    - meta: service
      value: apache-guacamole
    - meta: source_ip
      expression: evt.Parsed.source_ip
    - target: evt.StrTime
      expression: evt.Parsed.timestamp

I don't get why it fails, with Grok Debbuger it looks fine

iiamloz•4mo ago

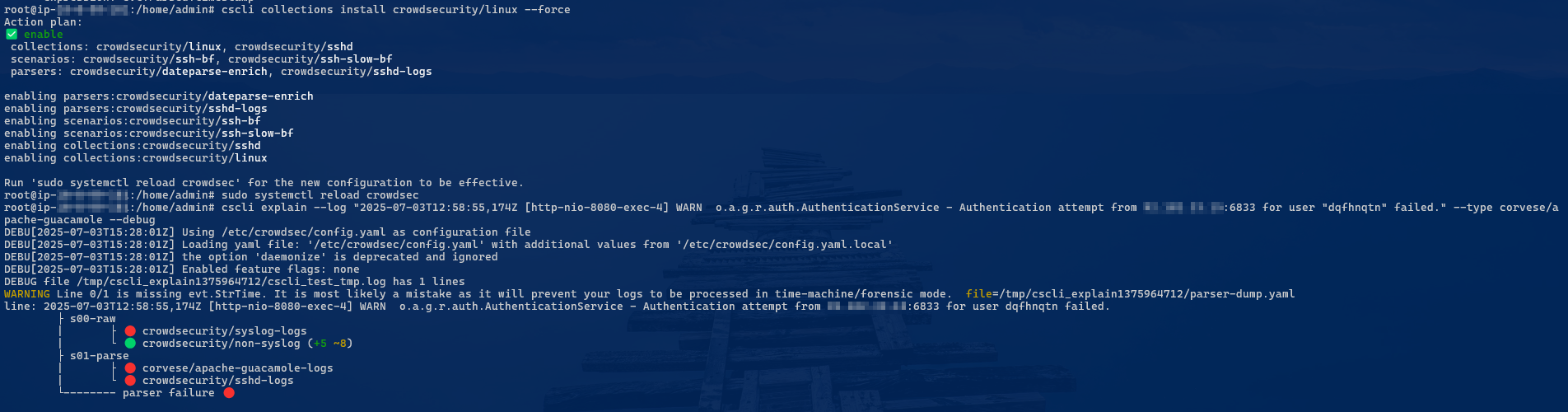

Can you run cscli collections install crowdsecurity/linux --force and once then I noticed the type in your explain command is not correct it should be apache-guacamole

YohanOP•4mo ago

iiamloz•4mo ago

the type is just apache-guacamole nothing else

YohanOP•4mo ago

same result, just noticed i kept corvese/

YohanOP•4mo ago

iiamloz•4mo ago

works fine my side

line: 2025-07-03T12:58:55,174Z [http-nio-8080-exec-4] WARN  o.a.g.r.auth.AuthenticationService - Authentication attempt from 1.2.3.4:6833 for user "dqfhnqtn" failed.
    ├ s00-raw
    |    └ 🟢 crowdsecurity/non-syslog (+5 ~8)
    |        └ update evt.ExpectMode : %!s(int=0) -> 1
    |        └ update evt.Stage :  -> s01-parse
    |        └ update evt.Line.Raw :  -> 2025-07-03T12:58:55,174Z [http-nio-8080-exec-4] WARN  o.a.g.r.auth.AuthenticationService - Authentication attempt from 1.2.3.4:6833 for user "dqfhnqtn" failed.
    |        └ update evt.Line.Src :  -> /tmp/cscli_explain1287061176/cscli_test_tmp.log
    |        └ update evt.Line.Time : 0001-01-01 00:00:00 +0000 UTC -> 2025-07-03 15:35:22.392009006 +0000 UTC
    |        └ create evt.Line.Labels.type : apache-guacamole
    |        └ update evt.Line.Process : %!s(bool=false) -> true
    |        └ update evt.Line.Module :  -> file
    |        └ create evt.Parsed.program : apache-guacamole
    |        └ create evt.Parsed.message : 2025-07-03T12:58:55,174Z [http-nio-8080-exec-4] WARN  o.a.g.r.auth.AuthenticationService - Authentication attempt from 1.2.3.4:6833 for user "dqfhnqtn" failed.
    |        └ update evt.Time : 0001-01-01 00:00:00 +0000 UTC -> 2025-07-03 15:35:22.392036764 +0000 UTC
    |        └ create evt.Meta.datasource_path : /tmp/cscli_explain1287061176/cscli_test_tmp.log
    |        └ create evt.Meta.datasource_type : file
    ├ s01-parse
    |    └ 🟢 corvese/apache-guacamole-logs (+9 ~2)
    |        └ update evt.Stage : s01-parse -> s02-enrich
    |        └ create evt.Parsed.port : 6833
    |        └ create evt.Parsed.source_ip : 1.2.3.4
    |        └ create evt.Parsed.timestamp : 2025-07-03T12:58:55,174Z
    |        └ create evt.Parsed.username : dqfhnqtn
    |        └ create evt.Parsed.level : WARN
    |        └ update evt.StrTime :  -> 2025-07-03T12:58:55,174Z
    |        └ create evt.Meta.log_type : apache-guacamole_failed_auth
    |        └ create evt.Meta.service : apache-guacamole
    |        └ create evt.Meta.source_ip : 1.2.3.4
    |        └ create evt.Meta.target_user : dqfhnqtn
    ├ s02-enrich
    |    ├ 🟢 crowdsecurity/dateparse-enrich (+2 ~2)
    |        ├ create evt.Enriched.MarshaledTime : 2025-07-03T12:58:55.174Z
    |        ├ update evt.Time : 2025-07-03 15:35:22.392036764 +0000 UTC -> 2025-07-03 12:58:55.174 +0000 UTC
    |        ├ update evt.MarshaledTime :  -> 2025-07-03T12:58:55.174Z
    |        ├ create evt.Meta.timestamp : 2025-07-03T12:58:55.174Z
    |    ├ 🟢 crowdsecurity/geoip-enrich (+10)
    |        ├ create evt.Enriched.ASNumber : 0
    |        ├ create evt.Enriched.IsInEU : false
    |        ├ create evt.Enriched.IsoCode : AU
    |        ├ create evt.Enriched.Latitude : -33.494000
    |        ├ create evt.Enriched.Longitude : 143.210400
    |        ├ create evt.Enriched.ASNNumber : 0
    |        ├ create evt.Enriched.ASNOrg :
    |        ├ create evt.Meta.IsoCode : AU
    |        ├ create evt.Meta.ASNNumber : 0
    |        ├ create evt.Meta.IsInEU : false
    ├-------- parser success 🟢
    ├ Scenarios
        ├ 🟢 corvese/apache-guacamole_bf
        └ 🟢 corvese/apache-guacamole_user_enum

line: 2025-07-03T12:58:55,174Z [http-nio-8080-exec-4] WARN  o.a.g.r.auth.AuthenticationService - Authentication attempt from 1.2.3.4:6833 for user "dqfhnqtn" failed.
    ├ s00-raw
    |    └ 🟢 crowdsecurity/non-syslog (+5 ~8)
    |        └ update evt.ExpectMode : %!s(int=0) -> 1
    |        └ update evt.Stage :  -> s01-parse
    |        └ update evt.Line.Raw :  -> 2025-07-03T12:58:55,174Z [http-nio-8080-exec-4] WARN  o.a.g.r.auth.AuthenticationService - Authentication attempt from 1.2.3.4:6833 for user "dqfhnqtn" failed.
    |        └ update evt.Line.Src :  -> /tmp/cscli_explain1287061176/cscli_test_tmp.log
    |        └ update evt.Line.Time : 0001-01-01 00:00:00 +0000 UTC -> 2025-07-03 15:35:22.392009006 +0000 UTC
    |        └ create evt.Line.Labels.type : apache-guacamole
    |        └ update evt.Line.Process : %!s(bool=false) -> true
    |        └ update evt.Line.Module :  -> file
    |        └ create evt.Parsed.program : apache-guacamole
    |        └ create evt.Parsed.message : 2025-07-03T12:58:55,174Z [http-nio-8080-exec-4] WARN  o.a.g.r.auth.AuthenticationService - Authentication attempt from 1.2.3.4:6833 for user "dqfhnqtn" failed.
    |        └ update evt.Time : 0001-01-01 00:00:00 +0000 UTC -> 2025-07-03 15:35:22.392036764 +0000 UTC
    |        └ create evt.Meta.datasource_path : /tmp/cscli_explain1287061176/cscli_test_tmp.log
    |        └ create evt.Meta.datasource_type : file
    ├ s01-parse
    |    └ 🟢 corvese/apache-guacamole-logs (+9 ~2)
    |        └ update evt.Stage : s01-parse -> s02-enrich
    |        └ create evt.Parsed.port : 6833
    |        └ create evt.Parsed.source_ip : 1.2.3.4
    |        └ create evt.Parsed.timestamp : 2025-07-03T12:58:55,174Z
    |        └ create evt.Parsed.username : dqfhnqtn
    |        └ create evt.Parsed.level : WARN
    |        └ update evt.StrTime :  -> 2025-07-03T12:58:55,174Z
    |        └ create evt.Meta.log_type : apache-guacamole_failed_auth
    |        └ create evt.Meta.service : apache-guacamole
    |        └ create evt.Meta.source_ip : 1.2.3.4
    |        └ create evt.Meta.target_user : dqfhnqtn
    ├ s02-enrich
    |    ├ 🟢 crowdsecurity/dateparse-enrich (+2 ~2)
    |        ├ create evt.Enriched.MarshaledTime : 2025-07-03T12:58:55.174Z
    |        ├ update evt.Time : 2025-07-03 15:35:22.392036764 +0000 UTC -> 2025-07-03 12:58:55.174 +0000 UTC
    |        ├ update evt.MarshaledTime :  -> 2025-07-03T12:58:55.174Z
    |        ├ create evt.Meta.timestamp : 2025-07-03T12:58:55.174Z
    |    ├ 🟢 crowdsecurity/geoip-enrich (+10)
    |        ├ create evt.Enriched.ASNumber : 0
    |        ├ create evt.Enriched.IsInEU : false
    |        ├ create evt.Enriched.IsoCode : AU
    |        ├ create evt.Enriched.Latitude : -33.494000
    |        ├ create evt.Enriched.Longitude : 143.210400
    |        ├ create evt.Enriched.ASNNumber : 0
    |        ├ create evt.Enriched.ASNOrg :
    |        ├ create evt.Meta.IsoCode : AU
    |        ├ create evt.Meta.ASNNumber : 0
    |        ├ create evt.Meta.IsInEU : false
    ├-------- parser success 🟢
    ├ Scenarios
        ├ 🟢 corvese/apache-guacamole_bf
        └ 🟢 corvese/apache-guacamole_user_enum

YohanOP•4mo ago

@Loz It's a bit weird, but now if I test my logfile instead of the log line it actually works Thank you so much for your time, i was loosing my hair with this 🤣 Have a great day !

CrowdSec•4mo ago

Resolving Parser failure This has now been resolved. If you think this is a mistake please run /unresolve
