Help with idex vcore4
Hello, Finished my idex build yesterday. All the ratos setup seemed to have worked. Flashed all boards successfully.
The problem I have is, I get no camera feed from the vaoc on the printer or pc. My pc can see the camera but no video. I can also control the vaoc led.
The only endstop that's working correctly is the Y estop. The others say they are engaged all the time. Cant control the hotend fans. Also only have a red ring on one of the runout sensors.
3 Replies
I can't do much for camera, outside my expertise. But we can look at the endstops. If you manually trigger them and query do they still say
triggered?Yes. X, DUAL_CARRIAGE and Z(Beacon) both say triggered, when trying to calibrate beacon, I get "Endstop X still triggered after retract".
The only things I changed in the configuration setup was the T0 probe from superpinda to Beacon and T1 Probe from SuperPinda to nothing because support said to.
The only things I changed in the configuration setup was the T0 probe from superpinda to Beacon and T1 Probe from SuperPinda to nothing because support said to.

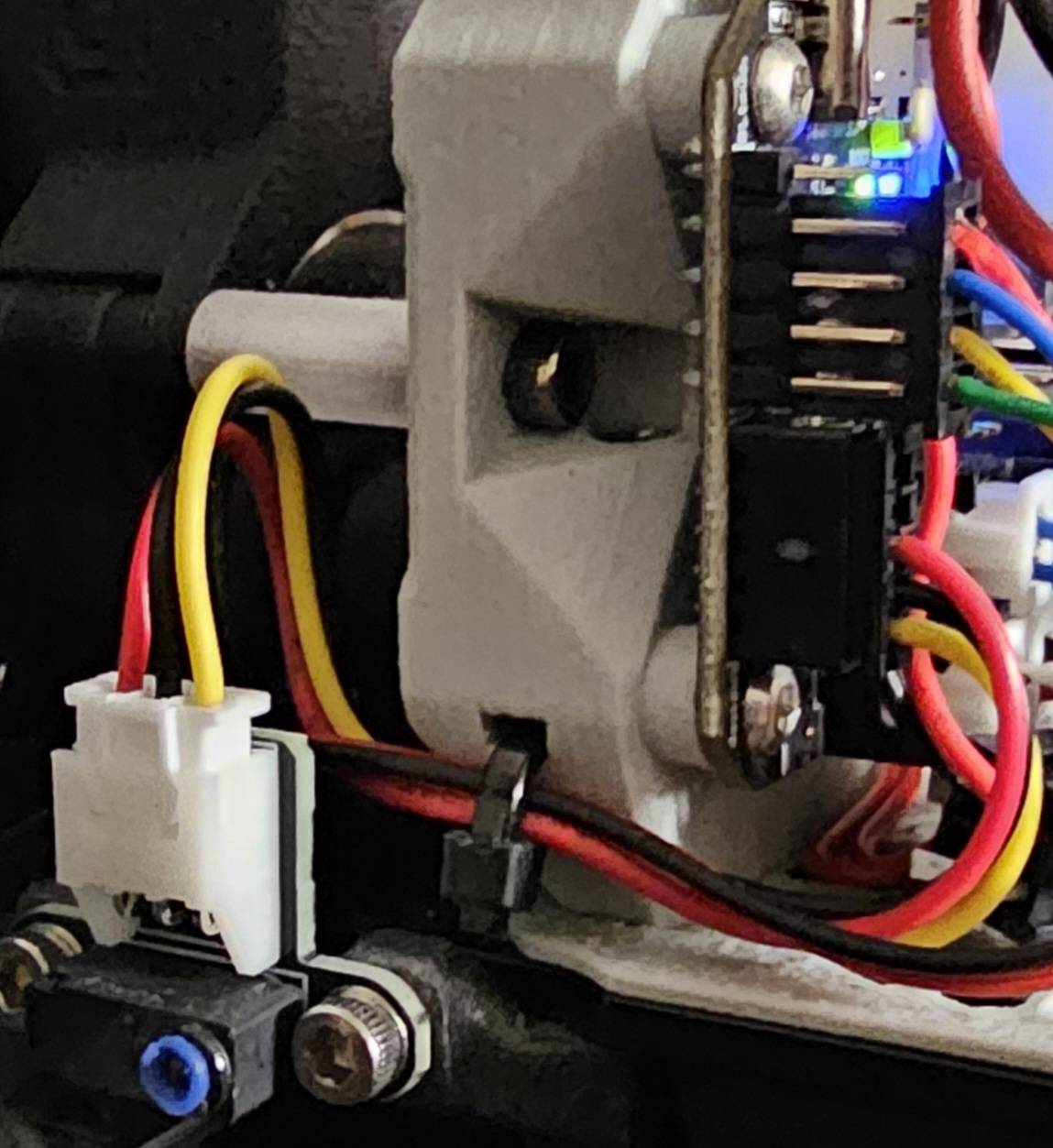

Does it look like the endstop button is stuck in? Or is this how they all look?
They were stuck in! Problem solved. Now I just need to solve the camera issue
