Arduino portable soldering station

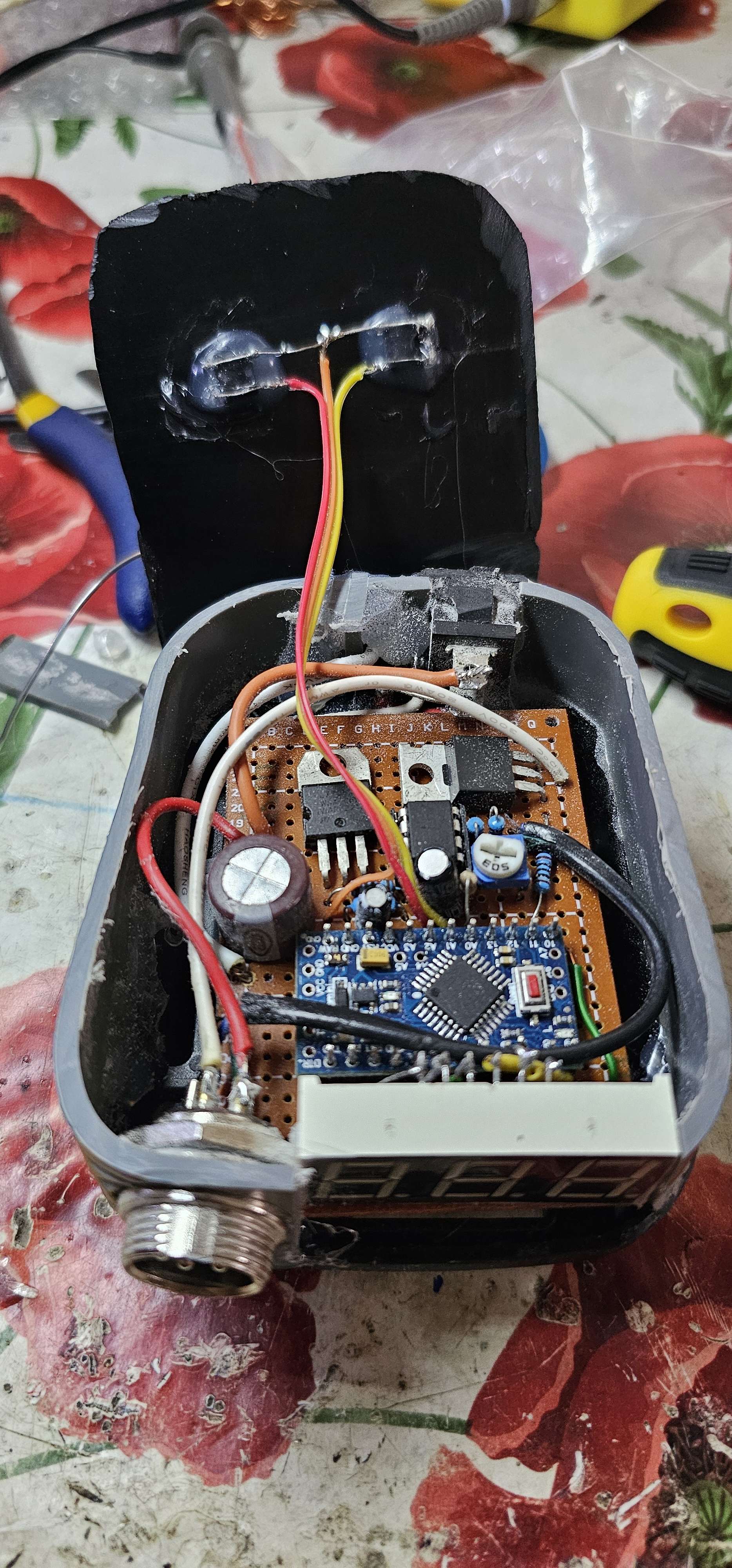

Heyyy, i made this soldering station to be compatible either with drill batteries or laptop psu (everything 15-24v). The temperature can be set with the 2 buttons and by pressing them simultaneously it displays the percentage of the baterry and when the battery is low it starts blinking. There's also a protection from broken cable or heater problem so it won't overheat. The temperature can be precisely calibrated via the potentiometer. I used lm358 but there're better options out there with lower offset. For improvements the linear regulator can be changed with a buck converter and a buzzer can be added to indicate better the low battery and the mosfet should be a logic level one like irflz44. Forgot to mention that the temp is PID controlled and the PID values for stability can be set in the code
No description
No description
No description
1 Reply
vertyy
vertyyOP2mo ago

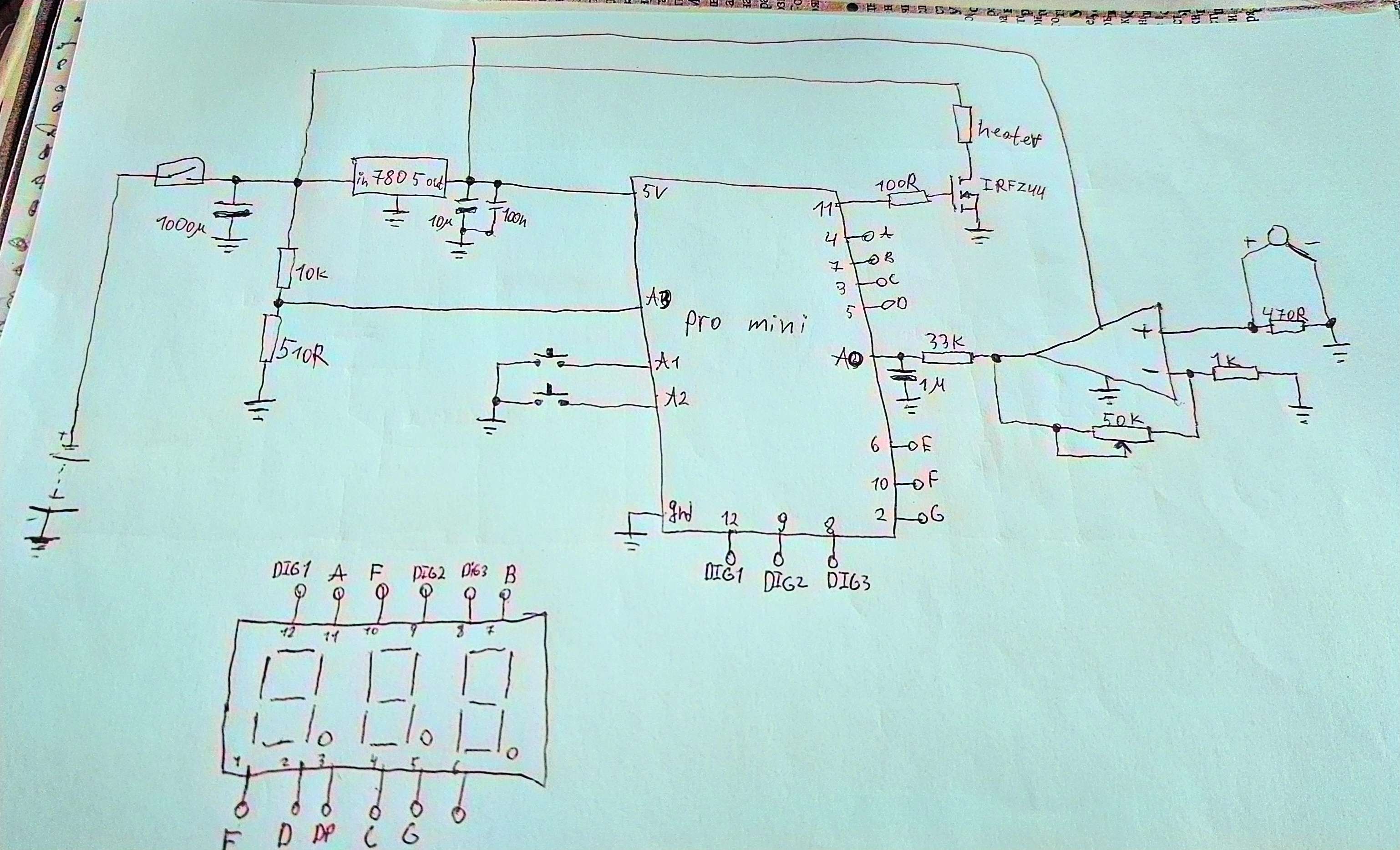

Forgot to add in the schematic 220ohm resistors on the digit pins
