LED Display (Custom PCB)

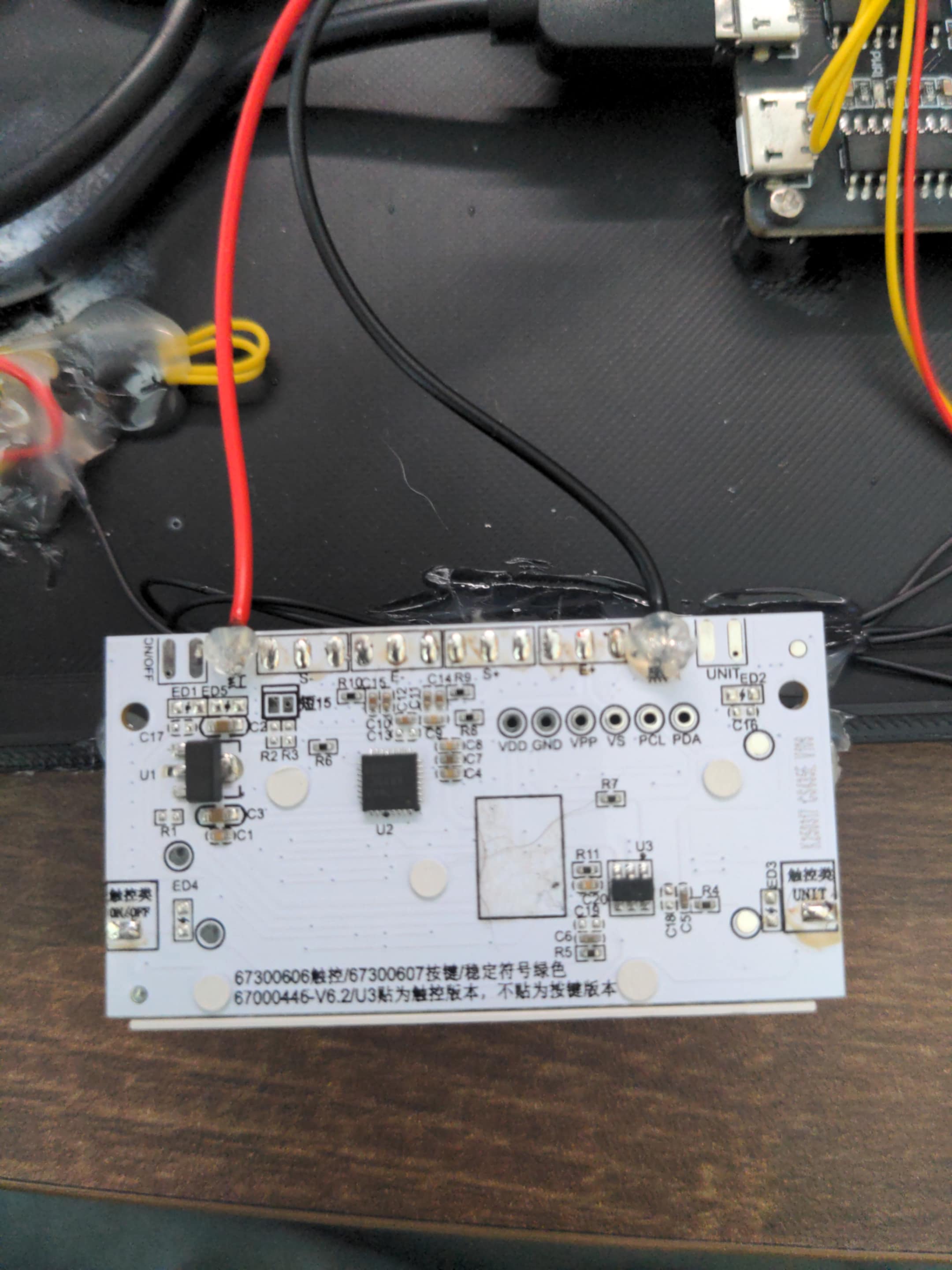

Hi guys, I found this custom PCB in a food scale and want to add it to my project, normaly 4 weight sensors (with 3 wires each) would connect to these (upper connections). But I want to see if using the other pins there so way I can send numbers there. If you guys have any experience in that let me know please 🙂
1 Reply
That appears to be a weight sensor reader - with the output driving the display
Does the main chip have numbers ?
@Hacking Notes having trouble reading the chip?
