21 replies

Option 'max_accel_to_decel' is not valid in section 'printer'

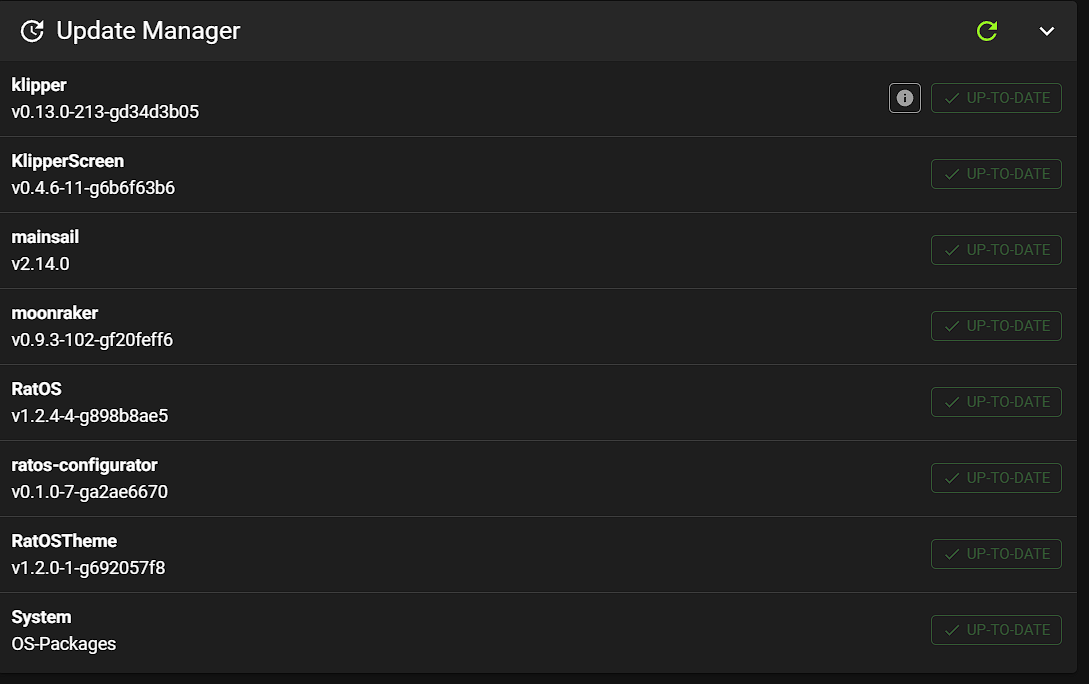

I did a software update and getting the 'max_accel_to_decel' error in Klipper. See the other posts about this option depreciated and to be changed to minimum cruise ratio.

Found 3 reference to the max_accel entry in the printer.cfg in the /config root folder. 2 under Base Setup and one under the Stepper motor, drivers, speed limit section. Changed them to the minimum cruise ratio, save restart, reboot, power down/up. Still getting the error.

Example of the section in the printer.cfg file entry below. Not sure if the setting is not replicating to other config files or maybe missing another location to update. Could use some help hear please?? ideas??

#############################################################################################################

BASE SETUP

#############################################################################################################
[include config/printers/v-minion/v-minion.cfg]

#[printer]
#max_velocity: 400
#max_accel: 5000
#minimum_cruise_ratio: 0.75
#square_corner_velocity: 5
#max_z_velocity: 15
#max_z_accel: 200

#[printer]
#max_velocity: 400
#max_accel: 10000
#minimum_cruise_ratio: 0.75
#max_z_velocity: 15
#max_z_accel: 300
#square_corner_velocity: 5

STEALTH MODE

NOTE: You still need to include one of the above stepper motor definitions.

NOTE: This will make your printer quiter but less accurate, it's an inherent side effect of stealthchop.

#[include config/printers/v-minion/tmc2209-stealth.cfg]

#[printer]
#max_velocity: 400
#max_accel: 10000
#minimum_cruise_ratio: 0.75
#square_corner_velocity: 10
#max_z_velocity: 15
#max_z_accel: 200

Option 'max_accel_to_decel' is not valid in section 'printer'

BASE SETUP

STEALTH MODE

NOTE: You still need to include one of the above stepper motor definitions.

NOTE: This will make your printer quiter but less accurate, it's an inherent side effect of stealthchop.

#[include config/printers/v-minion/tmc2209-stealth.cfg]

#[printer]
#max_velocity: 400
#max_accel: 10000
#minimum_cruise_ratio: 0.75
#square_corner_velocity: 10
#max_z_velocity: 15
#max_z_accel: 200

Option 'max_accel_to_decel' is not valid in section 'printer'

BASE SETUP

STEALTH MODE

NOTE: You still need to include one of the above stepper motor definitions.

NOTE: This will make your printer quiter but less accurate, it's an inherent side effect of stealthchop.
