WPF horizontal scrollbar is slow and doesn't move to click

I'm making a custom control which has a scrollviewer that can display "long" data horizontally. Think something like a video editor, or a timeline type control. I noticed two issues: 1. If the scroll area is large, I can't click/hold/drag the thumb very far. I have to keep doing it over and over and move it a little bit each time. 2. I can't click on the space between the thumb and and another part of the scrollbar to move the thumb to where the cursor is.

<UserControl>
    <Grid>
        <ScrollViewer
            x:Name="PART_Scroll"
            HorizontalScrollBarVisibility="Auto"
            PreviewMouseDown="OnPreviewMouseDown"
            PreviewMouseMove="OnPreviewMouseMove"
            PreviewMouseUp="OnPreviewMouseUp"
            PreviewMouseWheel="OnPreviewMouseWheel"
            VerticalScrollBarVisibility="Disabled">
            <StackPanel Orientation="Vertical">
                <Canvas
                    x:Name="TicksCanvas"
                    Height="28"
                    Background="White" />
                <Canvas
                    x:Name="BlocksSurface"
                    Height="120">
                    <!--  ItemsControl uses Canvas for positioning  -->
                    <ItemsControl
                        x:Name="PART_Items"
                        <ItemsControl.ItemsPanel>
                            <ItemsPanelTemplate>
                                <Canvas />
                            </ItemsPanelTemplate>
                        </ItemsControl.ItemsPanel>
                    </ItemsControl>
                </Canvas>
            </StackPanel>
        </ScrollViewer>
    </Grid>
</UserControl>

<UserControl>
    <Grid>
        <ScrollViewer
            x:Name="PART_Scroll"
            HorizontalScrollBarVisibility="Auto"
            PreviewMouseDown="OnPreviewMouseDown"
            PreviewMouseMove="OnPreviewMouseMove"
            PreviewMouseUp="OnPreviewMouseUp"
            PreviewMouseWheel="OnPreviewMouseWheel"
            VerticalScrollBarVisibility="Disabled">
            <StackPanel Orientation="Vertical">
                <Canvas
                    x:Name="TicksCanvas"
                    Height="28"
                    Background="White" />
                <Canvas
                    x:Name="BlocksSurface"
                    Height="120">
                    <!--  ItemsControl uses Canvas for positioning  -->
                    <ItemsControl
                        x:Name="PART_Items"
                        <ItemsControl.ItemsPanel>
                            <ItemsPanelTemplate>
                                <Canvas />
                            </ItemsPanelTemplate>
                        </ItemsControl.ItemsPanel>
                    </ItemsControl>
                </Canvas>
            </StackPanel>
        </ScrollViewer>
    </Grid>
</UserControl>

3 Replies

Nacho Man Randy CabbageOP•4d ago

here's relevant code behind: Relevant code-behind of the control for zooming/panning/scrolling. Some of it might not be necessary but wanted

public ZoomableTimeline()
{
    InitializeComponent();
    Loaded += (_, __) => RebuildAll();
    SizeChanged += (_, __) => Redraw();
}

private void RebuildAll()
{
    // Set the total content width so we can scroll
    var width = Math.Max(0, TotalTicks * PixelsPerTick);
    TicksCanvas.Width = width;
    BlocksSurface.Width = width;
    RedrawTicks();
}

private void Redraw() => RebuildAll();

private double ViewportWidth() => PART_Scroll?.ViewportWidth > 0 ? PART_Scroll.ViewportWidth : ActualWidth;

private Point? _dragStart;
private double _dragOriginOffset;

private void OnPreviewMouseDown(object sender, MouseButtonEventArgs e)
{
    if (e.ChangedButton == MouseButton.Left)
    {
        _dragStart = e.GetPosition(PART_Scroll);
        _dragOriginOffset = PART_Scroll.HorizontalOffset;
        Mouse.Capture((IInputElement)sender);
    }
}

private void OnPreviewMouseMove(object sender, MouseEventArgs e)
{
    if (_dragStart is Point start && e.LeftButton == MouseButtonState.Pressed)
    {
        var cur = e.GetPosition(PART_Scroll);
        var dx = cur.X - start.X;
        PART_Scroll.ScrollToHorizontalOffset(Math.Max(0, _dragOriginOffset + dx));
        RedrawTicks(); // redraws the ticks/labels as panning/scrolling
    }
}

private void OnPreviewMouseUp(object sender, MouseButtonEventArgs e)
{
    if (e.ChangedButton == MouseButton.Left)
    {
        _dragStart = null;
        Mouse.Capture(null);
    }
}

// zooms into/out of the canvas
private void OnPreviewMouseWheel(object sender, MouseWheelEventArgs e)
{
  // calls RebuildAll()
}

public ZoomableTimeline()
{
    InitializeComponent();
    Loaded += (_, __) => RebuildAll();
    SizeChanged += (_, __) => Redraw();
}

private void RebuildAll()
{
    // Set the total content width so we can scroll
    var width = Math.Max(0, TotalTicks * PixelsPerTick);
    TicksCanvas.Width = width;
    BlocksSurface.Width = width;
    RedrawTicks();
}

private void Redraw() => RebuildAll();

private double ViewportWidth() => PART_Scroll?.ViewportWidth > 0 ? PART_Scroll.ViewportWidth : ActualWidth;

private Point? _dragStart;
private double _dragOriginOffset;

private void OnPreviewMouseDown(object sender, MouseButtonEventArgs e)
{
    if (e.ChangedButton == MouseButton.Left)
    {
        _dragStart = e.GetPosition(PART_Scroll);
        _dragOriginOffset = PART_Scroll.HorizontalOffset;
        Mouse.Capture((IInputElement)sender);
    }
}

private void OnPreviewMouseMove(object sender, MouseEventArgs e)
{
    if (_dragStart is Point start && e.LeftButton == MouseButtonState.Pressed)
    {
        var cur = e.GetPosition(PART_Scroll);
        var dx = cur.X - start.X;
        PART_Scroll.ScrollToHorizontalOffset(Math.Max(0, _dragOriginOffset + dx));
        RedrawTicks(); // redraws the ticks/labels as panning/scrolling
    }
}

private void OnPreviewMouseUp(object sender, MouseButtonEventArgs e)
{
    if (e.ChangedButton == MouseButton.Left)
    {
        _dragStart = null;
        Mouse.Capture(null);
    }
}

// zooms into/out of the canvas
private void OnPreviewMouseWheel(object sender, MouseWheelEventArgs e)
{
  // calls RebuildAll()
}

Nacho Man Randy CabbageOP•4d ago

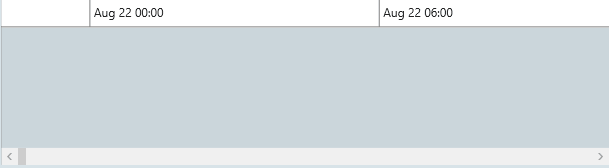

here's a gif showing the problem

Nacho Man Randy CabbageOP•4d ago

hmm, commenting out the mouse events fixes the first issue. i'm guessing its' in the PreviewMouseMove event. I allow them to pan by holding/dragging directly on the canvas, but that affects the scrollbar. oh, I need to move those preview mouse events to the stackpanel, not the scrollviewer
