File storage not connected to NAS

I'm trying to set up immich so that the docker container is running on one device (proxmox ubuntu server docker environment) with the uploaded user files stored on my NAS (truenas SMB share). Despite my best efforts, immich's storage space readout is behaving as if the upload files are going to the limited storage space of the docker environment, not the NAS. From a search of common issues, this sounds like it's a simple misconfiguration of the network share, however I'm confused by this because I can't find what's wrong with it. I even have other docker containers like jellyfin utilizing the network share without any issue. I have the SMB share mounted with /etc/fstab like this:

//10.0.0.94/Docker-Files /media/TRUENAS/Docker-Files cifs credentials=/home/.smb,vers=3.0,noperm 0 0

//10.0.0.94/Docker-Files /media/TRUENAS/Docker-Files cifs credentials=/home/.smb,vers=3.0,noperm 0 0

and I have set the immich .env file like so, ensuring that I'm only changing the upload location not database location as recommended:

# The location where your uploaded files are stored
UPLOAD_LOCATION=/media/TRUENAS/Docker-Files/immich/library

# The location where your database files are stored. Network shares are not supported for the database
DB_DATA_LOCATION=./postgres

# The location where your uploaded files are stored
UPLOAD_LOCATION=/media/TRUENAS/Docker-Files/immich/library

# The location where your database files are stored. Network shares are not supported for the database
DB_DATA_LOCATION=./postgres

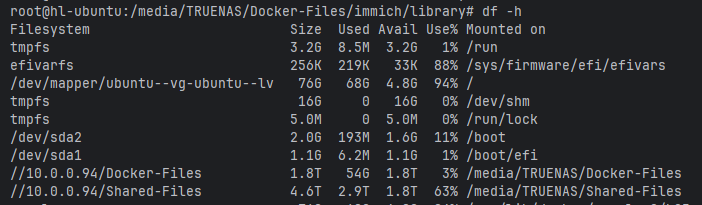

results of running df -h appears to confirm that /media/TRUENAS/Docker-Files is correctly mounted:

root@hl-ubuntu:/media/TRUENAS/Docker-Files/immich/library# df -h
Filesystem                         Size  Used Avail Use% Mounted on
tmpfs                              3.2G  8.5M  3.2G   1% /run
efivarfs                           256K  219K   33K  88% /sys/firmware/efi/efivars
/dev/mapper/ubuntu--vg-ubuntu--lv   76G   68G  4.8G  94% /
tmpfs                               16G     0   16G   0% /dev/shm
tmpfs                              5.0M     0  5.0M   0% /run/lock
/dev/sda2                          2.0G  193M  1.6G  11% /boot
/dev/sda1                          1.1G  6.2M  1.1G   1% /boot/efi
//10.0.0.94/Docker-Files           1.8T   54G  1.8T   3% /media/TRUENAS/Docker-Files
//10.0.0.94/Shared-Files           4.6T  2.9T  1.8T  63% /media/TRUENAS/Shared-Files

root@hl-ubuntu:/media/TRUENAS/Docker-Files/immich/library# df -h
Filesystem                         Size  Used Avail Use% Mounted on
tmpfs                              3.2G  8.5M  3.2G   1% /run
efivarfs                           256K  219K   33K  88% /sys/firmware/efi/efivars
/dev/mapper/ubuntu--vg-ubuntu--lv   76G   68G  4.8G  94% /
tmpfs                               16G     0   16G   0% /dev/shm
tmpfs                              5.0M     0  5.0M   0% /run/lock
/dev/sda2                          2.0G  193M  1.6G  11% /boot
/dev/sda1                          1.1G  6.2M  1.1G   1% /boot/efi
//10.0.0.94/Docker-Files           1.8T   54G  1.8T   3% /media/TRUENAS/Docker-Files
//10.0.0.94/Shared-Files           4.6T  2.9T  1.8T  63% /media/TRUENAS/Shared-Files

56 Replies

Immich•2mo ago

:wave: Hey @Phasedragon, Thanks for reaching out to us. Please carefully read this message and follow the recommended actions. This will help us be more effective in our support effort and leave more time for building Immich :immich:. References - Container Logs: docker compose logs docs - Container Status: docker ps -a docs - Reverse Proxy: https://immich.app/docs/administration/reverse-proxy - Code Formatting https://support.discord.com/hc/en-us/articles/210298617-Markdown-Text-101-Chat-Formatting-Bold-Italic-Underline#h_01GY0DAKGXDEHE263BCAYEGFJA Checklist I have... 1. :ballot_box_with_check: verified I'm on the latest release(note that mobile app releases may take some time). 2. :ballot_box_with_check: read applicable release notes. 3. :ballot_box_with_check: reviewed the FAQs for known issues. 4. :ballot_box_with_check: reviewed Github for known issues. 5. :ballot_box_with_check: tried accessing Immich via local ip (without a custom reverse proxy). 6. :ballot_box_with_check: uploaded the relevant information (see below). 7. :ballot_box_with_check: tried an incognito window, disabled extensions, cleared mobile app cache, logged out and back in, different browsers, etc. as applicable (an item can be marked as "complete" by reacting with the appropriate number) Information In order to be able to effectively help you, we need you to provide clear information to show what the problem is. The exact details needed vary per case, but here is a list of things to consider: - Your docker-compose.yml and .env files. - Logs from all the containers and their status (see above). - All the troubleshooting steps you've tried so far. - Any recent changes you've made to Immich or your system. - Details about your system (both software/OS and hardware). - Details about your storage (filesystems, type of disks, output of commands like fdisk -l and df -h). - The version of the Immich server, mobile app, and other relevant pieces. - Any other information that you think might be relevant. Please paste files and logs with proper code formatting, and especially avoid blurry screenshots. Without the right information we can't work out what the problem is. Help us help you ;) If this ticket can be closed you can use the /close command, and re-open it later if needed.

PhasedragonOP•2mo ago

compose (unmodified from latest release)

#
# WARNING: To install Immich, follow our guide: https://immich.app/docs/install/docker-compose
#
# Make sure to use the docker-compose.yml of the current release:
#
# https://github.com/immich-app/immich/releases/latest/download/docker-compose.yml
#
# The compose file on main may not be compatible with the latest release.

name: immich
services:
  immich-server:
    container_name: immich_server
    image: ghcr.io/immich-app/immich-server:${IMMICH_VERSION:-release}
    # extends:
    #   file: hwaccel.transcoding.yml
    #   service: cpu # set to one of [nvenc, quicksync, rkmpp, vaapi, vaapi-wsl] for accelerated transcoding
    volumes:
      # Do not edit the next line. If you want to change the media storage location on your system, edit the value of UPLOAD_LOCATION in the .env file
      - ${UPLOAD_LOCATION}:/data
      - /etc/localtime:/etc/localtime:ro
    env_file:
      - .env
    ports:
      - 2283:2283
    depends_on:
      - redis
      - database
    restart: always
    healthcheck:
      disable: false
  immich-machine-learning:
    container_name: immich_machine_learning
    # For hardware acceleration, add one of -[armnn, cuda, rocm, openvino, rknn] to the image tag.
    # Example tag: ${IMMICH_VERSION:-release}-cuda
    image: ghcr.io/immich-app/immich-machine-learning:${IMMICH_VERSION:-release}
    # extends: # uncomment this section for hardware acceleration - see https://immich.app/docs/features/ml-hardware-acceleration
    #   file: hwaccel.ml.yml
    #   service: cpu # set to one of [armnn, cuda, rocm, openvino, openvino-wsl, rknn] for accelerated inference - use the `-wsl` version for WSL2 where applicable
    volumes:
      - model-cache:/cache
    env_file:
      - .env
    restart: always
    healthcheck:
      disable: false
  redis:
    container_name: immich_redis
    image: docker.io/valkey/valkey:8-bookworm@sha256:a137a2b60aca1a75130022d6bb96af423fefae4eb55faf395732db3544803280
    healthcheck:
      test: redis-cli ping || exit 1
    restart: always
  database:
    container_name: immich_postgres
    image: ghcr.io/immich-app/postgres:14-vectorchord0.4.3-pgvectors0.2.0@sha256:32324a2f41df5de9efe1af166b7008c3f55646f8d0e00d9550c16c9822366b4a
    environment:
      POSTGRES_PASSWORD: ${DB_PASSWORD}
      POSTGRES_USER: ${DB_USERNAME}
      POSTGRES_DB: ${DB_DATABASE_NAME}
      POSTGRES_INITDB_ARGS: --data-checksums
      # Uncomment the DB_STORAGE_TYPE: 'HDD' var if your database isn't stored on SSDs
      # DB_STORAGE_TYPE: 'HDD'
    volumes:
      # Do not edit the next line. If you want to change the database storage location on your system, edit the value of DB_DATA_LOCATION in the .env file
      - ${DB_DATA_LOCATION}:/var/lib/postgresql/data
    shm_size: 128mb
    restart: always
volumes:
  model-cache: null

#
# WARNING: To install Immich, follow our guide: https://immich.app/docs/install/docker-compose
#
# Make sure to use the docker-compose.yml of the current release:
#
# https://github.com/immich-app/immich/releases/latest/download/docker-compose.yml
#
# The compose file on main may not be compatible with the latest release.

name: immich
services:
  immich-server:
    container_name: immich_server
    image: ghcr.io/immich-app/immich-server:${IMMICH_VERSION:-release}
    # extends:
    #   file: hwaccel.transcoding.yml
    #   service: cpu # set to one of [nvenc, quicksync, rkmpp, vaapi, vaapi-wsl] for accelerated transcoding
    volumes:
      # Do not edit the next line. If you want to change the media storage location on your system, edit the value of UPLOAD_LOCATION in the .env file
      - ${UPLOAD_LOCATION}:/data
      - /etc/localtime:/etc/localtime:ro
    env_file:
      - .env
    ports:
      - 2283:2283
    depends_on:
      - redis
      - database
    restart: always
    healthcheck:
      disable: false
  immich-machine-learning:
    container_name: immich_machine_learning
    # For hardware acceleration, add one of -[armnn, cuda, rocm, openvino, rknn] to the image tag.
    # Example tag: ${IMMICH_VERSION:-release}-cuda
    image: ghcr.io/immich-app/immich-machine-learning:${IMMICH_VERSION:-release}
    # extends: # uncomment this section for hardware acceleration - see https://immich.app/docs/features/ml-hardware-acceleration
    #   file: hwaccel.ml.yml
    #   service: cpu # set to one of [armnn, cuda, rocm, openvino, openvino-wsl, rknn] for accelerated inference - use the `-wsl` version for WSL2 where applicable
    volumes:
      - model-cache:/cache
    env_file:
      - .env
    restart: always
    healthcheck:
      disable: false
  redis:
    container_name: immich_redis
    image: docker.io/valkey/valkey:8-bookworm@sha256:a137a2b60aca1a75130022d6bb96af423fefae4eb55faf395732db3544803280
    healthcheck:
      test: redis-cli ping || exit 1
    restart: always
  database:
    container_name: immich_postgres
    image: ghcr.io/immich-app/postgres:14-vectorchord0.4.3-pgvectors0.2.0@sha256:32324a2f41df5de9efe1af166b7008c3f55646f8d0e00d9550c16c9822366b4a
    environment:
      POSTGRES_PASSWORD: ${DB_PASSWORD}
      POSTGRES_USER: ${DB_USERNAME}
      POSTGRES_DB: ${DB_DATABASE_NAME}
      POSTGRES_INITDB_ARGS: --data-checksums
      # Uncomment the DB_STORAGE_TYPE: 'HDD' var if your database isn't stored on SSDs
      # DB_STORAGE_TYPE: 'HDD'
    volumes:
      # Do not edit the next line. If you want to change the database storage location on your system, edit the value of DB_DATA_LOCATION in the .env file
      - ${DB_DATA_LOCATION}:/var/lib/postgresql/data
    shm_size: 128mb
    restart: always
volumes:
  model-cache: null

.env (only changed UPLOAD_LOCATION and DB_PASSWORD)

# You can find documentation for all the supported env variables at https://immich.app/docs/install/environment-variables

# The location where your uploaded files are stored
UPLOAD_LOCATION=/media/TRUENAS/Docker-Files/immich/library

# The location where your database files are stored. Network shares are not supported for the database
DB_DATA_LOCATION=./postgres

# To set a timezone, uncomment the next line and change Etc/UTC to a TZ identifier from this list: https://en.wikipedia.org/wiki/List_of_tz_database_time_zones#List
# TZ=Etc/UTC

# The Immich version to use. You can pin this to a specific version like "v1.71.0"
IMMICH_VERSION=release

# Connection secret for postgres. You should change it to a random password
# Please use only the characters `A-Za-z0-9`, without special characters or spaces
DB_PASSWORD=redacted

# The values below this line do not need to be changed
###################################################################################
DB_USERNAME=postgres
DB_DATABASE_NAME=immich

# You can find documentation for all the supported env variables at https://immich.app/docs/install/environment-variables

# The location where your uploaded files are stored
UPLOAD_LOCATION=/media/TRUENAS/Docker-Files/immich/library

# The location where your database files are stored. Network shares are not supported for the database
DB_DATA_LOCATION=./postgres

# To set a timezone, uncomment the next line and change Etc/UTC to a TZ identifier from this list: https://en.wikipedia.org/wiki/List_of_tz_database_time_zones#List
# TZ=Etc/UTC

# The Immich version to use. You can pin this to a specific version like "v1.71.0"
IMMICH_VERSION=release

# Connection secret for postgres. You should change it to a random password
# Please use only the characters `A-Za-z0-9`, without special characters or spaces
DB_PASSWORD=redacted

# The values below this line do not need to be changed
###################################################################################
DB_USERNAME=postgres
DB_DATABASE_NAME=immich

Zeus•2mo ago

The mount needs to be active before immich starts up. That probably isn’t happening

PhasedragonOP•2mo ago

I can cd into the share and see that the files I expect to see are there, unless you mean something else by 'active'?

Zeus•2mo ago

That needs to be the case before immich is started though Not just right now

PhasedragonOP•2mo ago

I've tried recreating the immich container multiple times from scratch since then (plus deleting the Docker-Files/immich/library folder)

Immich•2mo ago

Successfully submitted, a tag has been added to inform contributors. :white_check_mark:

Mraedis•2mo ago

How did you do this

PhasedragonOP•2mo ago

I'm deploying docker containers from dockge, so deleting the dockge entry which contains the compose and env. Then using ssh to delete the associated folders

Mraedis•2mo ago

You need to prune the images as well if the mount was broken before

PhasedragonOP•2mo ago

huh, why would the image hold onto anything relevant?

Mraedis•2mo ago

Because you were writing inside the image

PhasedragonOP•2mo ago

trying anyway, just curious :confused2: That's not how I thought docker worked, huh

Mraedis•2mo ago

It's not how you're supposed to use it, no any update will wipe the changes of course

PhasedragonOP•2mo ago

is there something I did wrong to make it write inside the image?

Mraedis•2mo ago

wrong would be like Zeus said, the mount was not ready before docker started We can check this with just an image prune and restart 🙂

PhasedragonOP•2mo ago

no change

Mraedis•2mo ago

could you post the output of docker inspect immich_server ? feel free to anonymize the password

PhasedragonOP•2mo ago

message.txt

Mraedis•2mo ago

Alright and if you ls -la /media/TRUENAS/Docker-Files/immich/library is that empty or what does it show?

PhasedragonOP•2mo ago

total 0 drwxr-xr-x 2 root root 0 Aug 25 07:30 . drwxr-xr-x 2 root root 0 Aug 25 07:30 ..

Mraedis•2mo ago

So docker thinks it's mounted but it's not Which would point at a permissions issue

PhasedragonOP•2mo ago

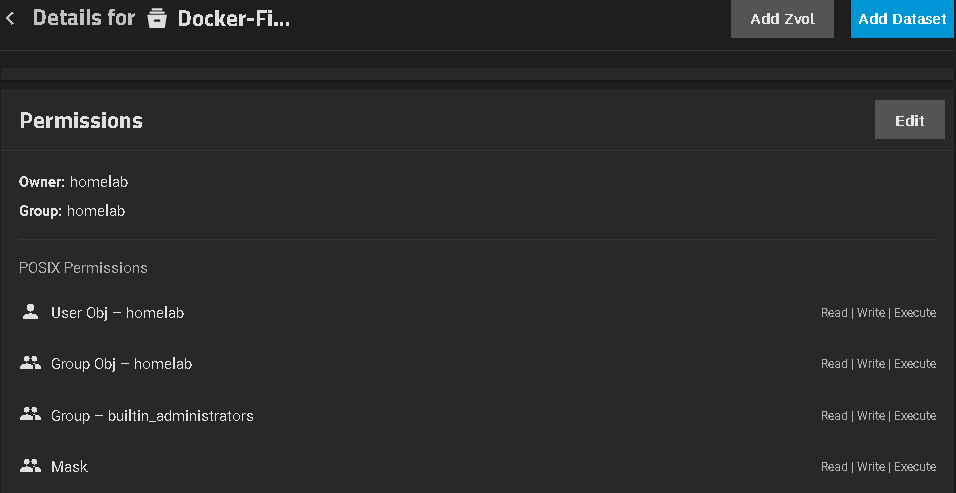

ok, I'm pretty sure this user has all the permissions on the network share, so it would be a local permission issue?

Mraedis•2mo ago

I really can't say, network mounts and docker are always funky 👀

PhasedragonOP•2mo ago

would you have a better suggestion for doing the compute on one device and storage on the other? Or would you find a different arrangement?

Mraedis•2mo ago

One thing you could try is mounting the share directly through the compose in CIFS

PhasedragonOP•2mo ago

oh, I'm not familiar with that sounds nice though

Mraedis•2mo ago

You would add a volume at the bottom:

volumes:
  model-cache:
  immich_data:
    driver_opts:
      type: cifs
      o: "credentials=/home/.smb,vers=3.0,noperm 0 0"
      device: "//10.0.0.94/Docker-Files/immich/library"

volumes:
  model-cache:
  immich_data:
    driver_opts:
      type: cifs
      o: "credentials=/home/.smb,vers=3.0,noperm 0 0"
      device: "//10.0.0.94/Docker-Files/immich/library"

And for the immich_server container instead of

    volumes:
      - ${UPLOAD_LOCATION}:/data
      - /etc/localtime:/etc/localtime:ro

    volumes:
      - ${UPLOAD_LOCATION}:/data
      - /etc/localtime:/etc/localtime:ro

You'd do

    volumes:
      - immich_data:/data
      - /etc/localtime:/etc/localtime:ro

    volumes:
      - immich_data:/data
      - /etc/localtime:/etc/localtime:ro

the o section of the volume might need tweaking, I'm not 100% sure on that

PhasedragonOP•2mo ago

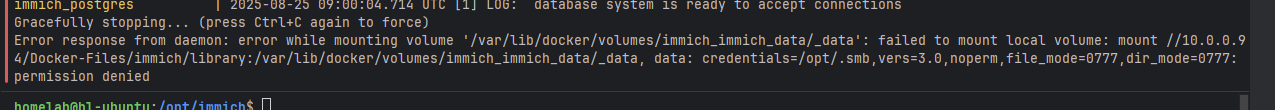

yeah, something about it that it doesn't like. Having trouble finding any documentation or example of this though

`Error response from daemon: error while mounting volume '/var/lib/docker/volumes/immich_immich_data/_data': failed to mount local volume: mount //10.0.0.94/Docker-Files/immich/library:/var/lib/docker/volumes/immich_immich_data/_data, data: credentials=/home/.smb,vers=3.0,noperm 0 0: invalid argument

`Error response from daemon: error while mounting volume '/var/lib/docker/volumes/immich_immich_data/_data': failed to mount local volume: mount //10.0.0.94/Docker-Files/immich/library:/var/lib/docker/volumes/immich_immich_data/_data, data: credentials=/home/.smb,vers=3.0,noperm 0 0: invalid argument

Mraedis•2mo ago

it's probably the 0 0 😅 remove those

PhasedragonOP•2mo ago

ah that's exactly what I was just trying but I'm having trouble getting it to listen to the change after changing this compose, what should I do besides docker down and docker compose up? Something about this is more stubborn to hold onto the old compose than usual

Mraedis•2mo ago

you should only need to do compose up, is it still complaining about invalid argument?

PhasedragonOP•2mo ago

it's still trying to use the old compose, so same error with same 0 0 despite the new compose not having that

Mraedis•2mo ago

Are you sure you saved the file? 🙃 and are you doing docker down or docker compose down

PhasedragonOP•2mo ago

yes certain, confirmed across different editors docker down at first, also tried docker compose down now

PhasedragonOP•2mo ago

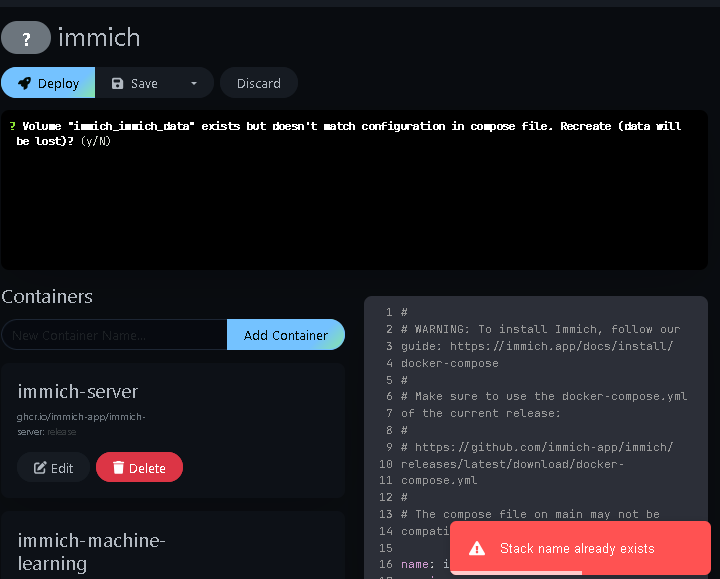

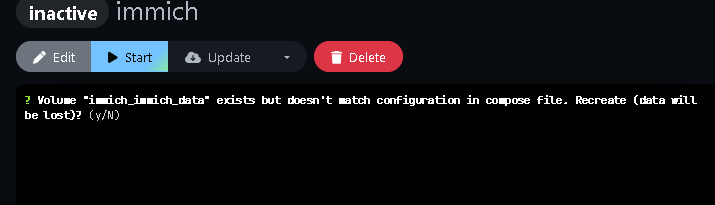

and dockge is stuck like this, without the ability to confirm because it's a read-only terminal :noooo:

Mraedis•2mo ago

ah... :p you could try deleting the volume?

PhasedragonOP•2mo ago

trying is it not docker rm? removing the stack folder and docker rm doesn't seem to clean it up all the way, something is left over

Mraedis•2mo ago

it's a persistent volume you need to explicitely delete it from the volumes I don't know how that works in dockge

PhasedragonOP•2mo ago

dockge is just a light gui on top of compose, doesn't get in the way of doing terminal work. How would you do it by terminal?

Mraedis•2mo ago

docker volume rm

PhasedragonOP•2mo ago

ahh that's what I was missing - stopped all immich containers - removed all immich containers - removed all immich volumes - pruned images - removed folder with compose and env I think that's a clean slate now?

Mraedis•2mo ago

as clean as can be

PhasedragonOP•2mo ago

howw

PhasedragonOP•2mo ago

ok, trying this without dockge

PhasedragonOP•2mo ago

ok different error, that's progress

PhasedragonOP•2mo ago

ohh I don't think the user running docker has access to /home/.smb I'll copy the .smb over into /opt

PhasedragonOP•2mo ago

hm that wasn't it

Mraedis•2mo ago

I guess it kind of was but this would be a new permissions error? 😛 Try adding file_mode=0777,dir_mode=0777 to the o list @Phasedragon

PhasedragonOP•2mo ago

same response

PhasedragonOP•2mo ago

so hard to tell where the permission denied is coming from

Mraedis•2mo ago

not sure you can mix noprem and dir/file mode 🙃

PhasedragonOP•2mo ago

I suppose that would make sense

PhasedragonOP•2mo ago

:Shrug:

Mraedis•2mo ago

Well I'm somewhat out of ideas here

PhasedragonOP•2mo ago

thanks for trying! At least I learned a few new things

Gaming

Programming

File storage not connected to NAS

Did you find this page helpful?
