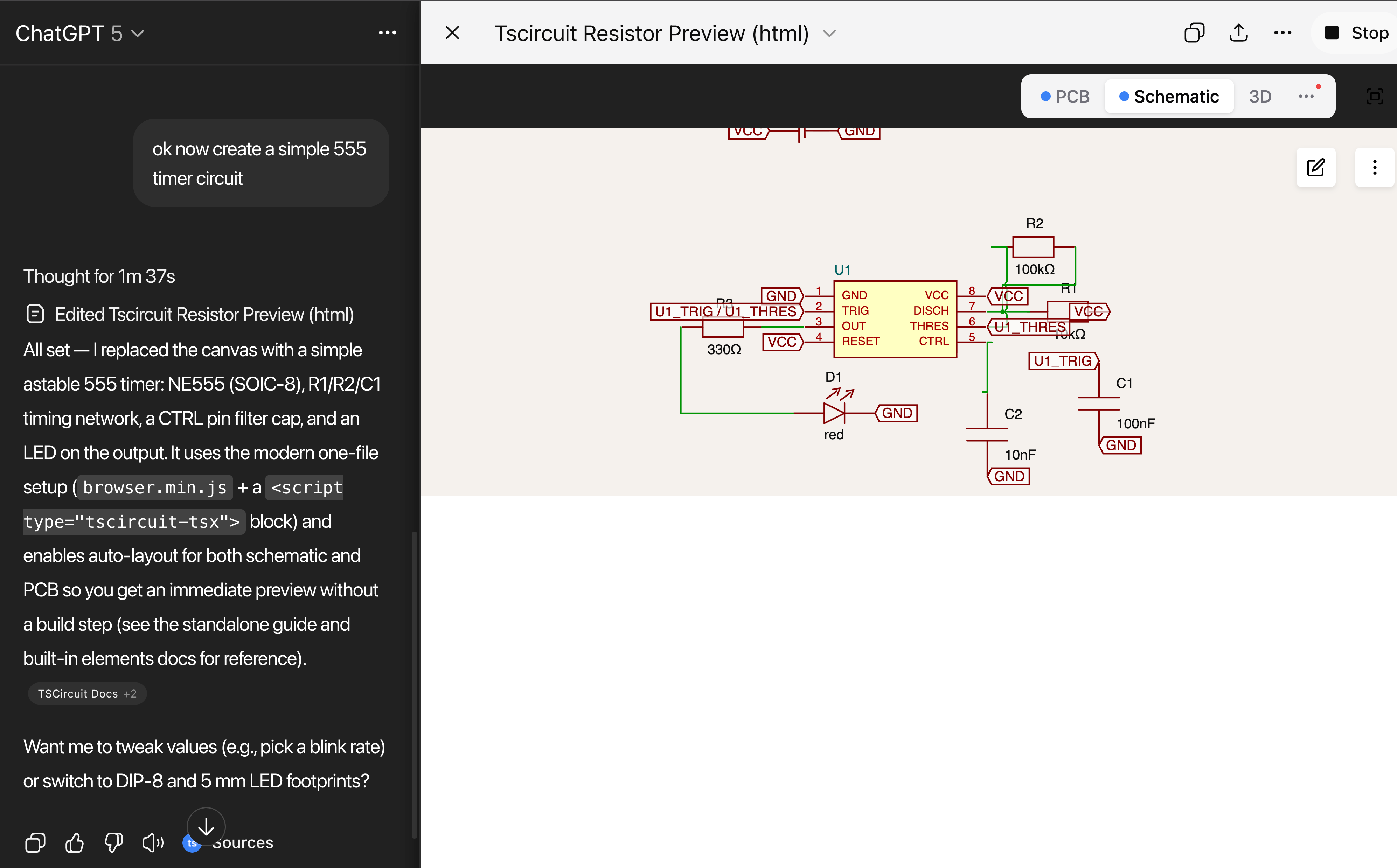

this was so annoying to get working 😭

22 Replies

SeveOP•2mo ago

Here's the prompt if you want to try it:

Please create a canvas with the following HTML

<!DOCTYPE html>
<html lang="en">
  <head>
    <script src="https://unpkg.com/@tscircuit/circuit-preview@0.0.11/dist/index.global.js"></script>
    <script src="https://unpkg.com/babel-standalone@6/babel.min.js"></script>

    <script type="text/babel">
      window.tscircuit.render(
        <resistor name="R1" footprint="0402" resistance="1k" />
      )
    </script>
  </head>
  <body></body>
</html>

Please create a canvas with the following HTML

<!DOCTYPE html>
<html lang="en">
  <head>
    <script src="https://unpkg.com/@tscircuit/circuit-preview@0.0.11/dist/index.global.js"></script>
    <script src="https://unpkg.com/babel-standalone@6/babel.min.js"></script>

    <script type="text/babel">
      window.tscircuit.render(
        <resistor name="R1" footprint="0402" resistance="1k" />
      )
    </script>
  </head>
  <body></body>
</html>

SeveOP•2mo ago

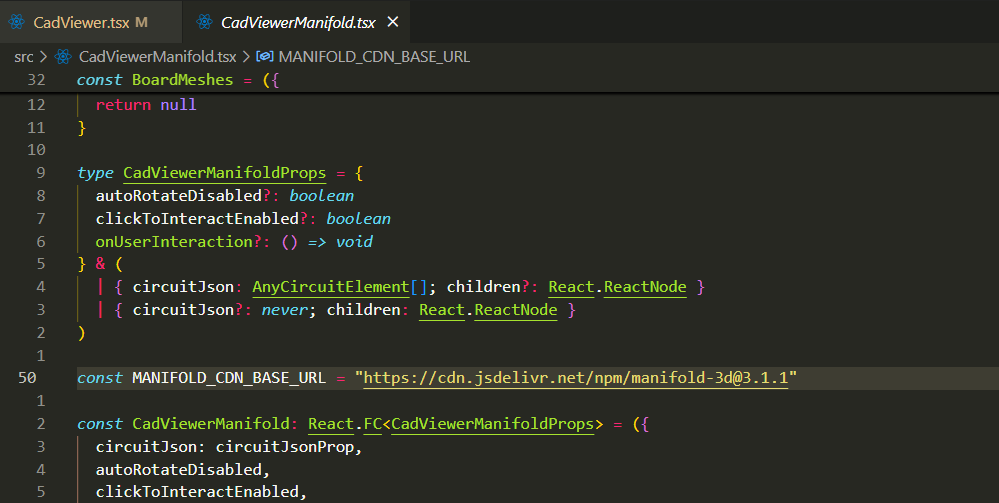

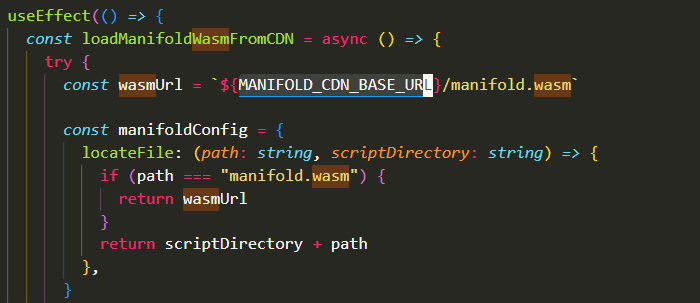

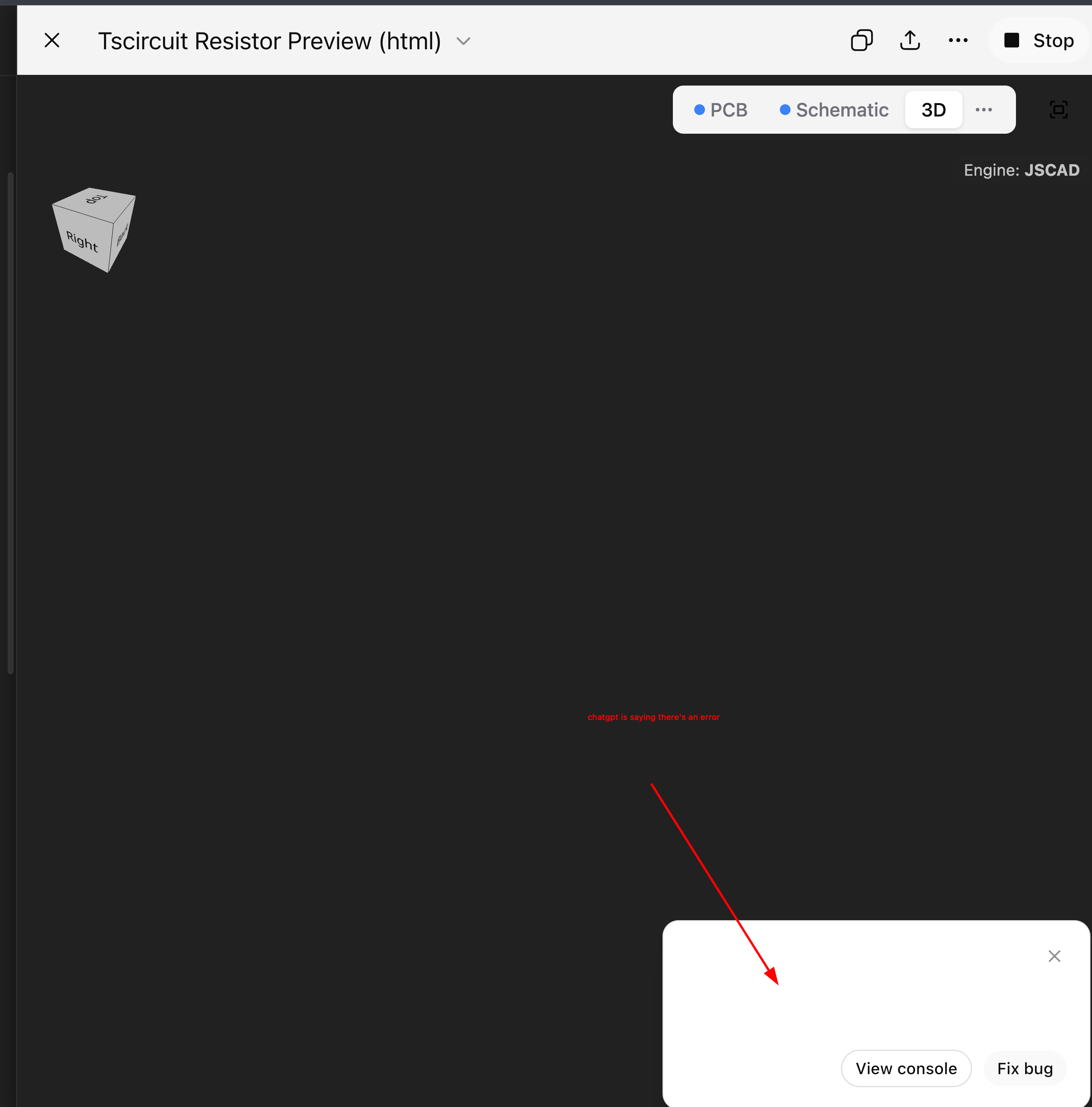

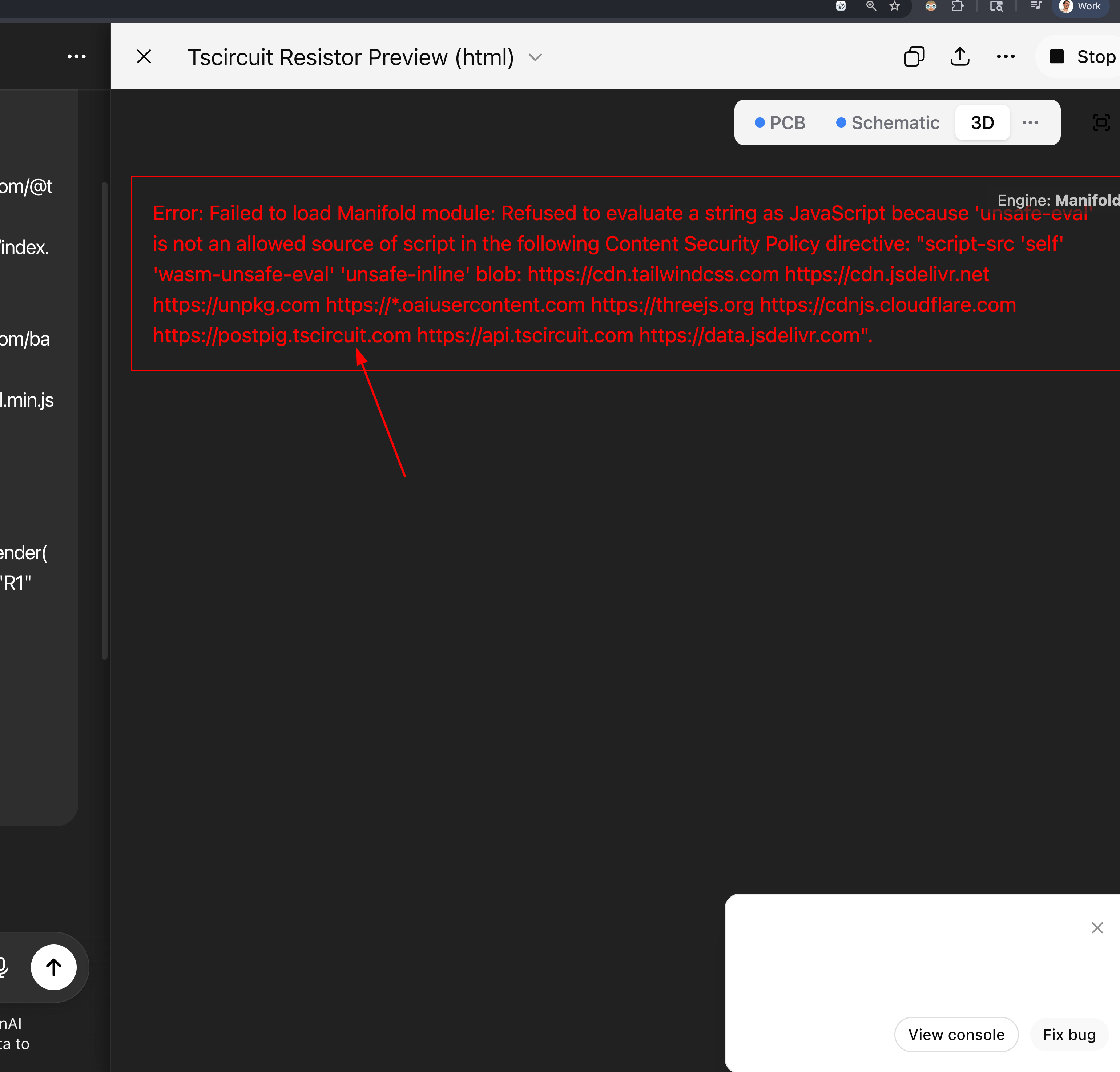

@shibo the 3d viewer isn't working and i could use help. We have a huge huge demo next week and this stuff needs to be 100% rock solid for me to demo it but could be a big customer. You must load manifold from a trusted CDN for it to work w/ ChatGPT, so probably unpkg or jsdelvir.net, can't embed the blob url

SeveOP•2mo ago

we definitely need to get automatic traces/netlabels working in maintline, but after that it does seem like this will work

shibo•2mo ago

Rishabh•2mo ago

Isn't the bundled cdn version for manifold would also have wasm?

shibo•2mo ago

yes

Rishabh•2mo ago

But chatgpt sandbox can't run wasm.

shibo•2mo ago

even embedded as a js string?

Rishabh•2mo ago

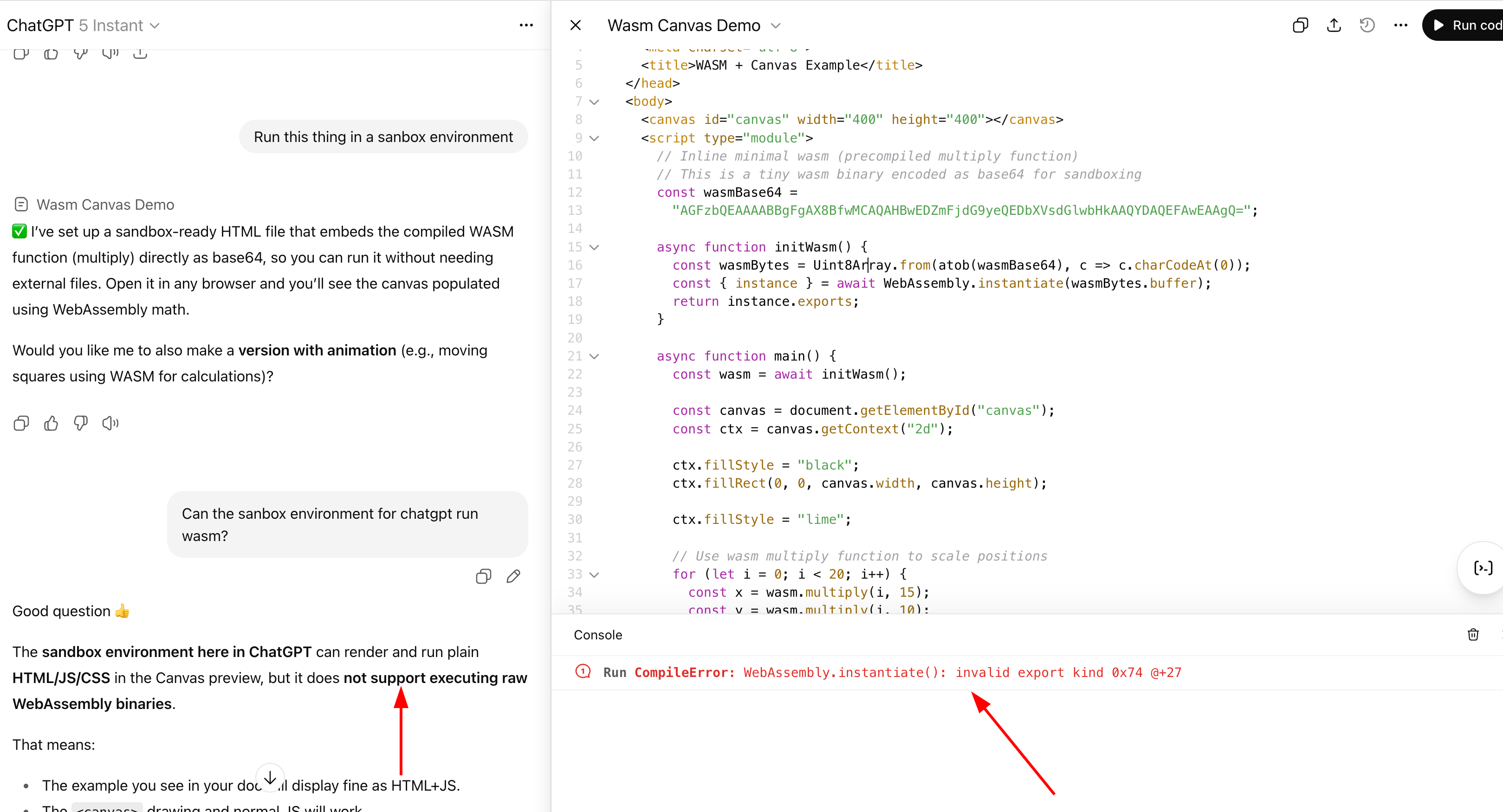

I don't know try it I mean the example I showed did use the base64 encoded version

SeveOP•2mo ago

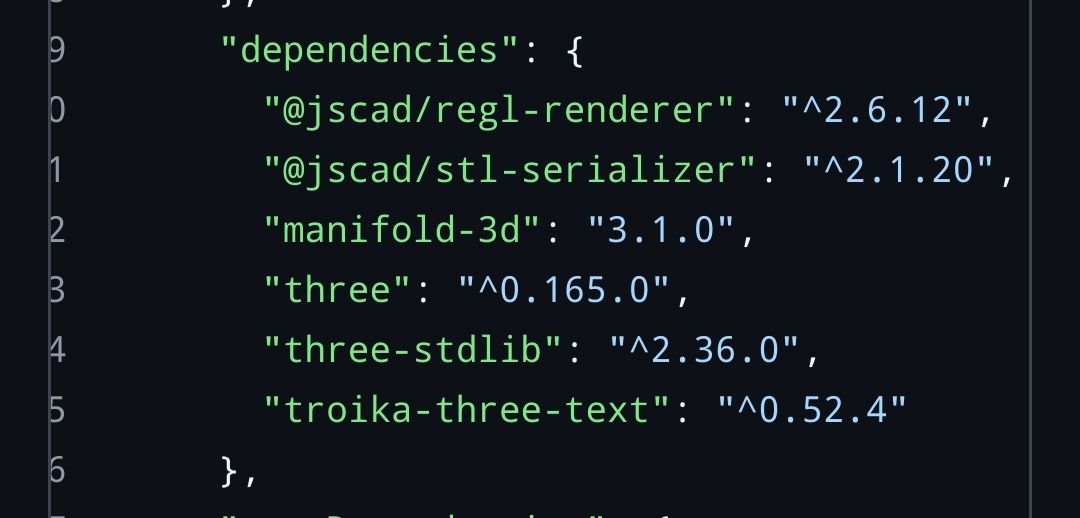

@shibo we are for sure not loading from cdn. I looked at the 3d-viewer codebase and there are direct manifold imports It is getting bundled, idk if there are two modules (eg one with WASM ) but it’s listed as a dep or something.

shibo•2mo ago

This shouldn't be a dep as it contains the wasm

SeveOP•2mo ago

I just met with Rishabh, we are incredibly pressed on time but the 3d viewer needs to work in this repo in addition to 10 other things that need to be fixed https://github.com/tscircuit/circuit-preview

GitHub

GitHub - tscircuit/circuit-preview

Contribute to tscircuit/circuit-preview development by creating an account on GitHub.

SeveOP•2mo ago

I will record a video but tldr you just build and open the html files to test @Rishabh another issue: im not sure if we’ll be able to load the cdn 3d models….

SeveOP•2mo ago

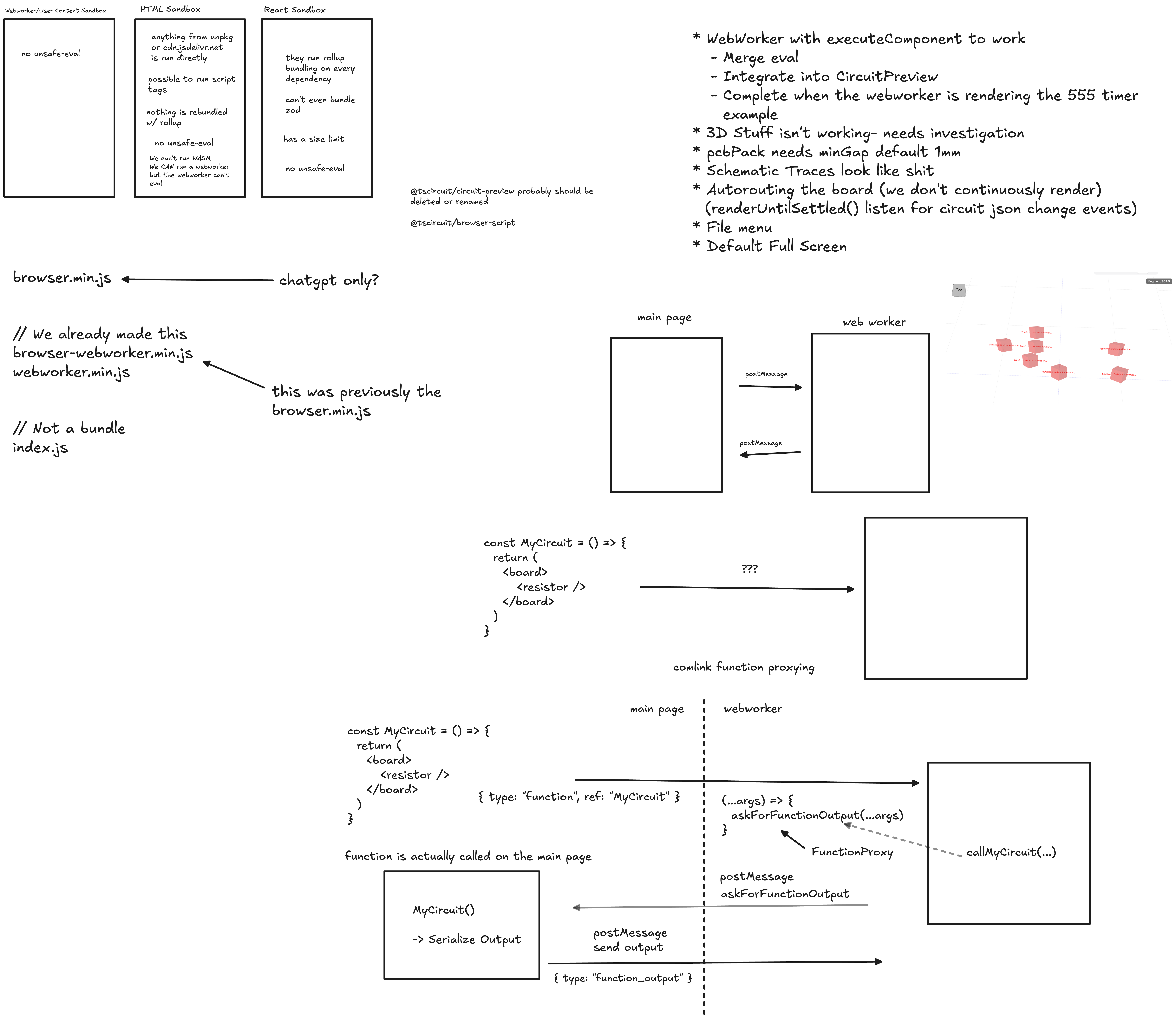

passing along some notes Rishabh and I took about stuff not currently working that we have 6 days to fix and make perfect...

SeveOP•2mo ago

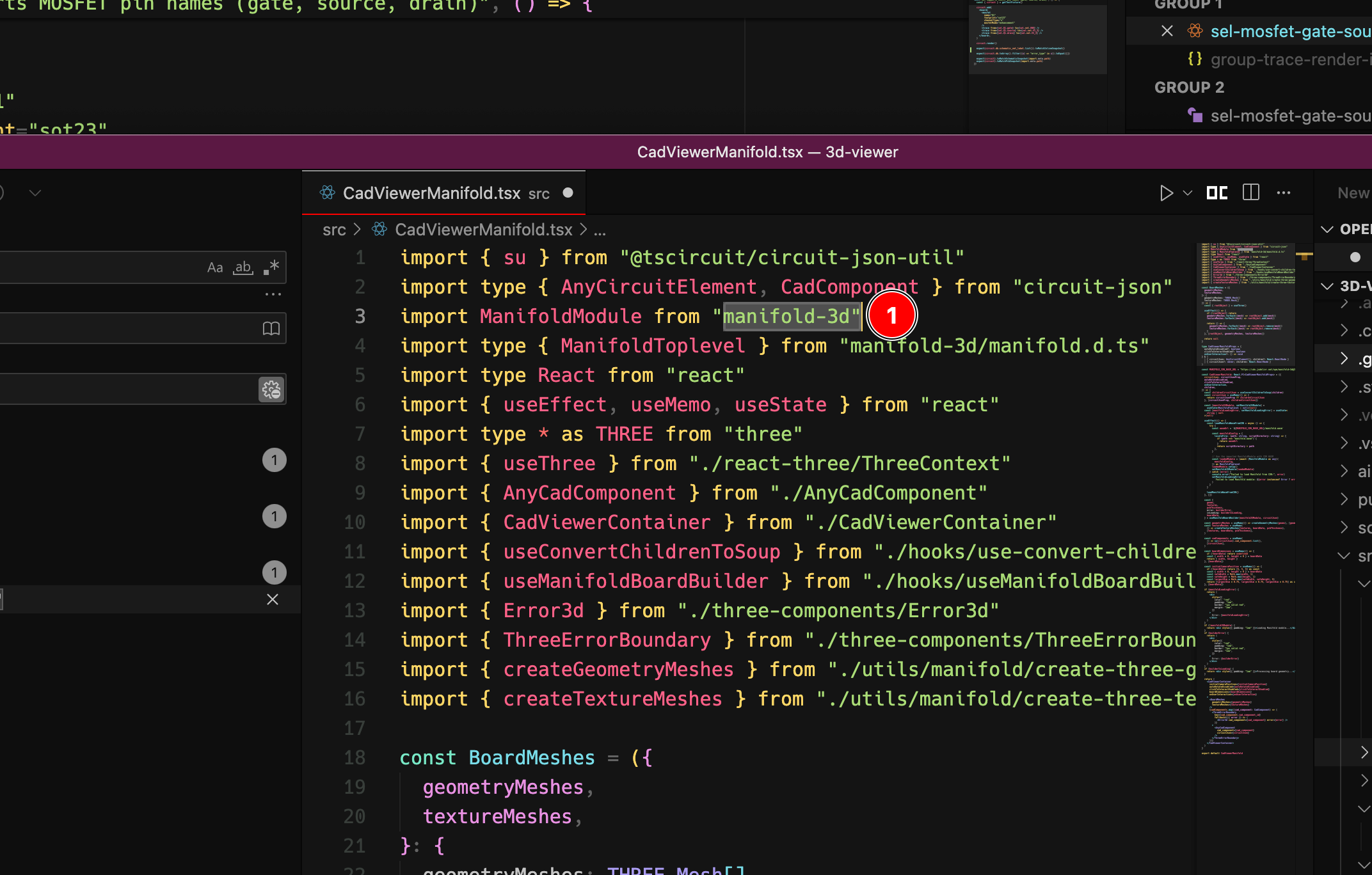

RE: Manifold imports CC @shibo this is the issue and causing all the problems IIUC

SeveOP•2mo ago

not a CDN import

shibo•2mo ago

Was afk, ill see what i can do

shibo•2mo ago

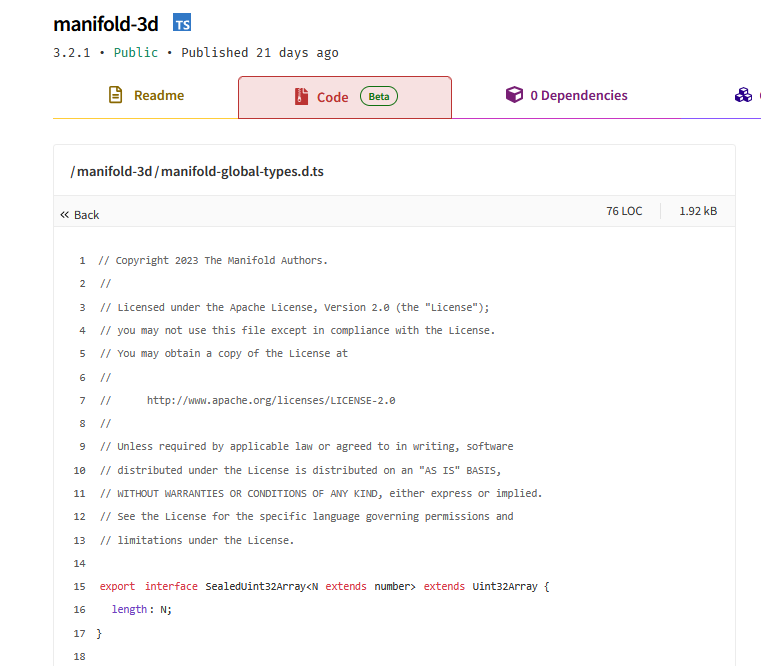

@Seve you can't import types from a cdn right? can I copy those type files into our project?

SeveOP•2mo ago

it's ok to import the types

shibo•2mo ago

but manifold-3d package has the wasm

SeveOP•2mo ago

if you import type files it gets stripped so it's ok
