Arduino nano esp32 error code avr/ pgmspace no such file or directory

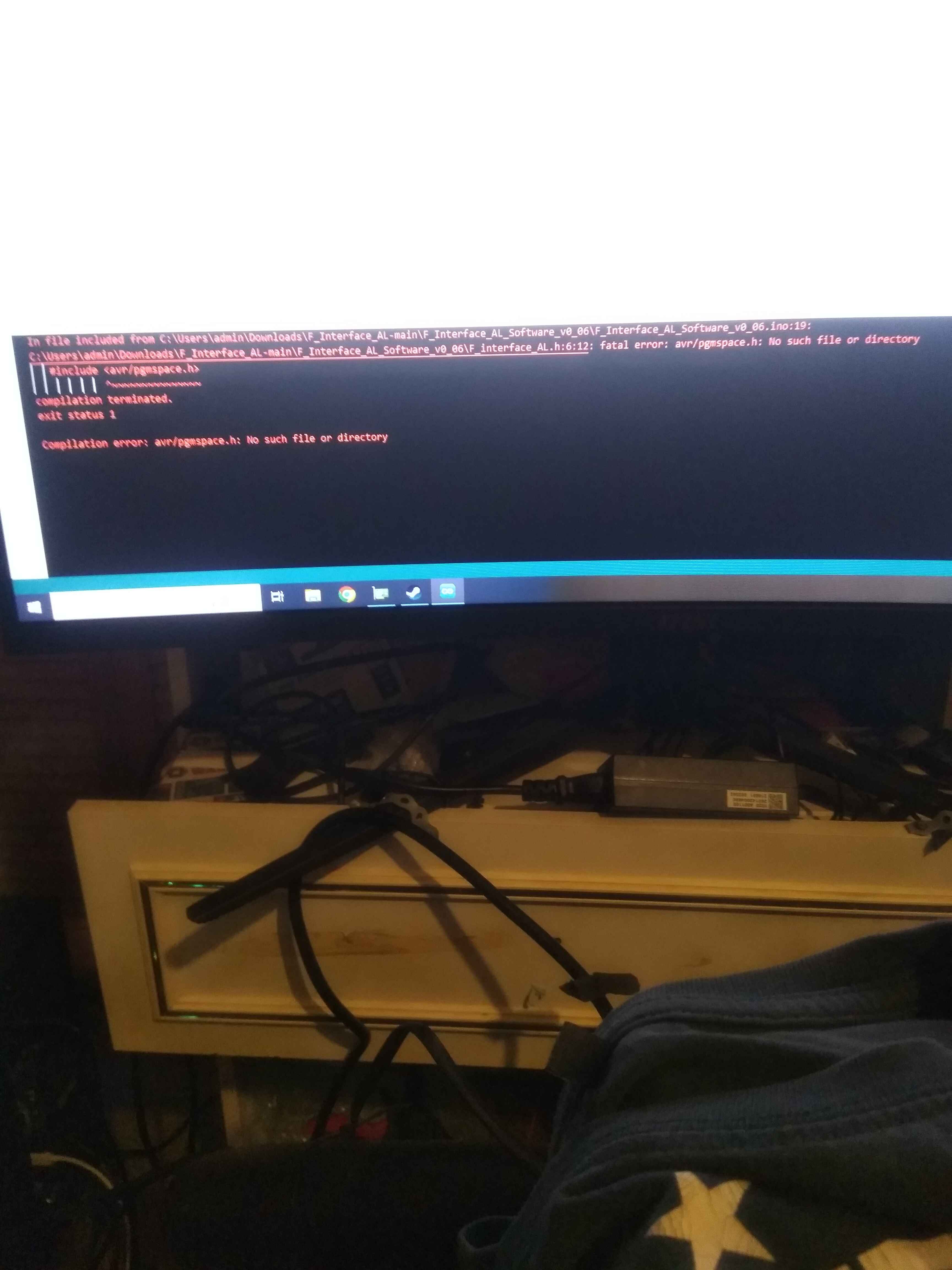

Hi I'm trying to upload a sketch code from Arduino ide to my Arduino nano esp32 but I get the error code

22 Replies

Maverick•2w ago

Sounds like the code is not compatible with the ESP32.

j3163290OP•2w ago

Hi maverick yes it is supported by the code

j3163290OP•2w ago

Maverick•2w ago

You will have to remove the definition of AVR_BOARD. https://github.com/Alexbox364/F_Interface_AL/blob/master/F_Interface_AL_Software_v0_06/F_interface_AL.h#L5

j3163290OP•2w ago

Ok will try now boss If you are UK based I can send you a PCB for free if you are interested

j3163290OP•2w ago

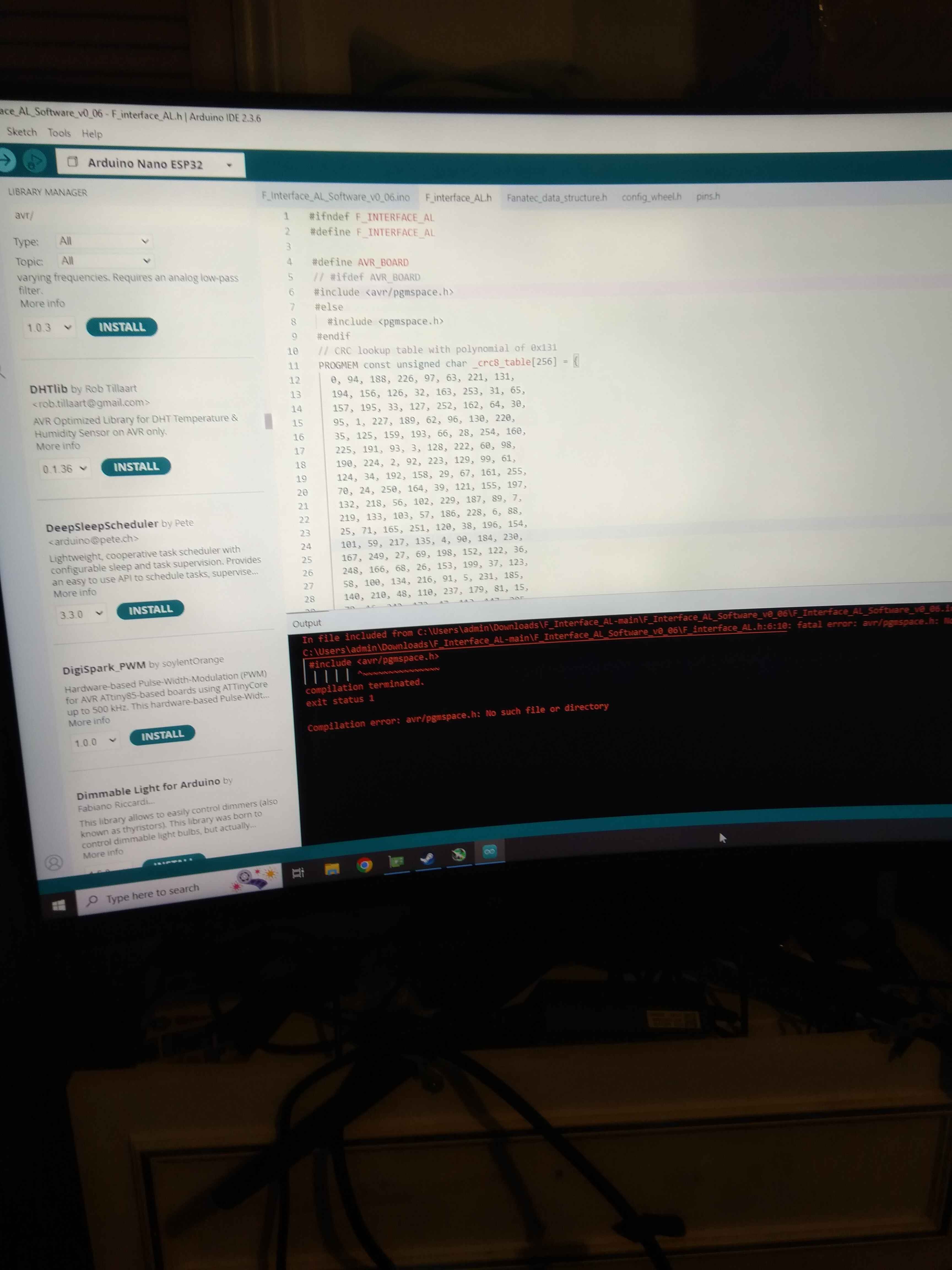

Still getting error

j3163290OP•2w ago

Maverick•2w ago

You need to get rid of #define AVR_BOARD, or #include "avr/pgmspace". You only want the #include "pgmspace.h".

j3163290OP•2w ago

I uncoment avr board and avr pgmspace still get the same error

Maverick•2w ago

If #include "avr/pgmspace" no longer exists on the line mentioned by the error message, that will be impossible.

j3163290OP•2w ago

So do I uncomment the define or delete Can you right what I need to uncoment in a step by step guide plz

Maverick•2w ago

In the file I linked earlier you will see this:

c++
#ifndef F_INTERFACE_AL
#define F_INTERFACE_AL

#define AVR_BOARD
#ifdef AVR_BOARD
  #include <avr/pgmspace.h>
#else
  #include <pgmspace.h>
#endif
// CRC lookup table with polynomial of 0x131
PROGMEM const unsigned char _crc8_table[256] = {

c++
#ifndef F_INTERFACE_AL
#define F_INTERFACE_AL

#define AVR_BOARD
#ifdef AVR_BOARD
  #include <avr/pgmspace.h>
#else
  #include <pgmspace.h>
#endif
// CRC lookup table with polynomial of 0x131
PROGMEM const unsigned char _crc8_table[256] = {

You can change it to this:

c++
#ifndef F_INTERFACE_AL
#define F_INTERFACE_AL

#include <pgmspace.h>

// CRC lookup table with polynomial of 0x131
PROGMEM const unsigned char _crc8_table[256] = {

c++
#ifndef F_INTERFACE_AL
#define F_INTERFACE_AL

#include <pgmspace.h>

// CRC lookup table with polynomial of 0x131
PROGMEM const unsigned char _crc8_table[256] = {

The .ino file has the same problem. Why the author does this twice I cannot say. https://github.com/Alexbox364/F_Interface_AL/blob/master/F_Interface_AL_Software_v0_06/F_Interface_AL_Software_v0_06.ino#L23

j3163290OP•2w ago

Hi boss I fell asleep I will try now thanks

j3163290OP•2w ago

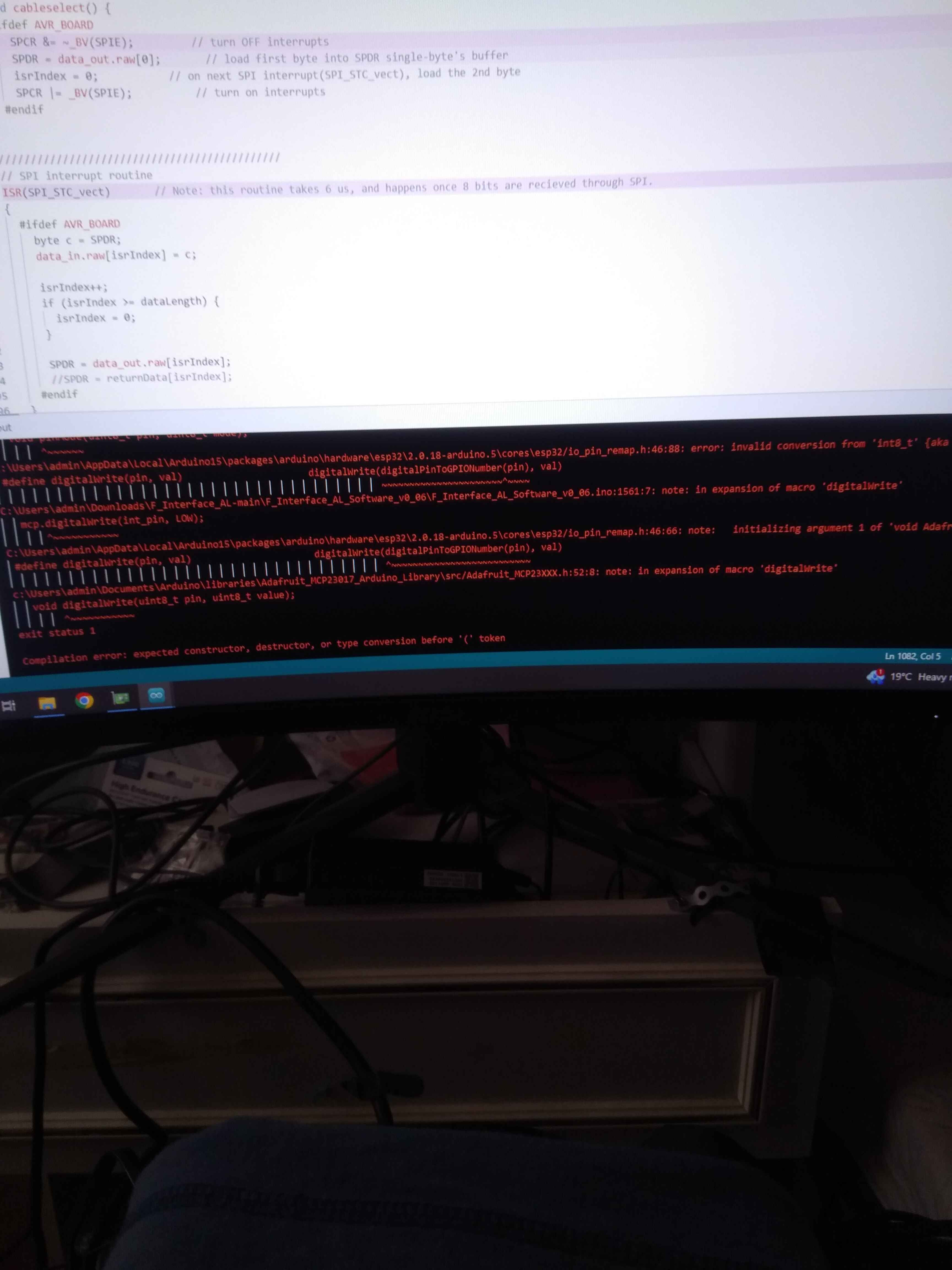

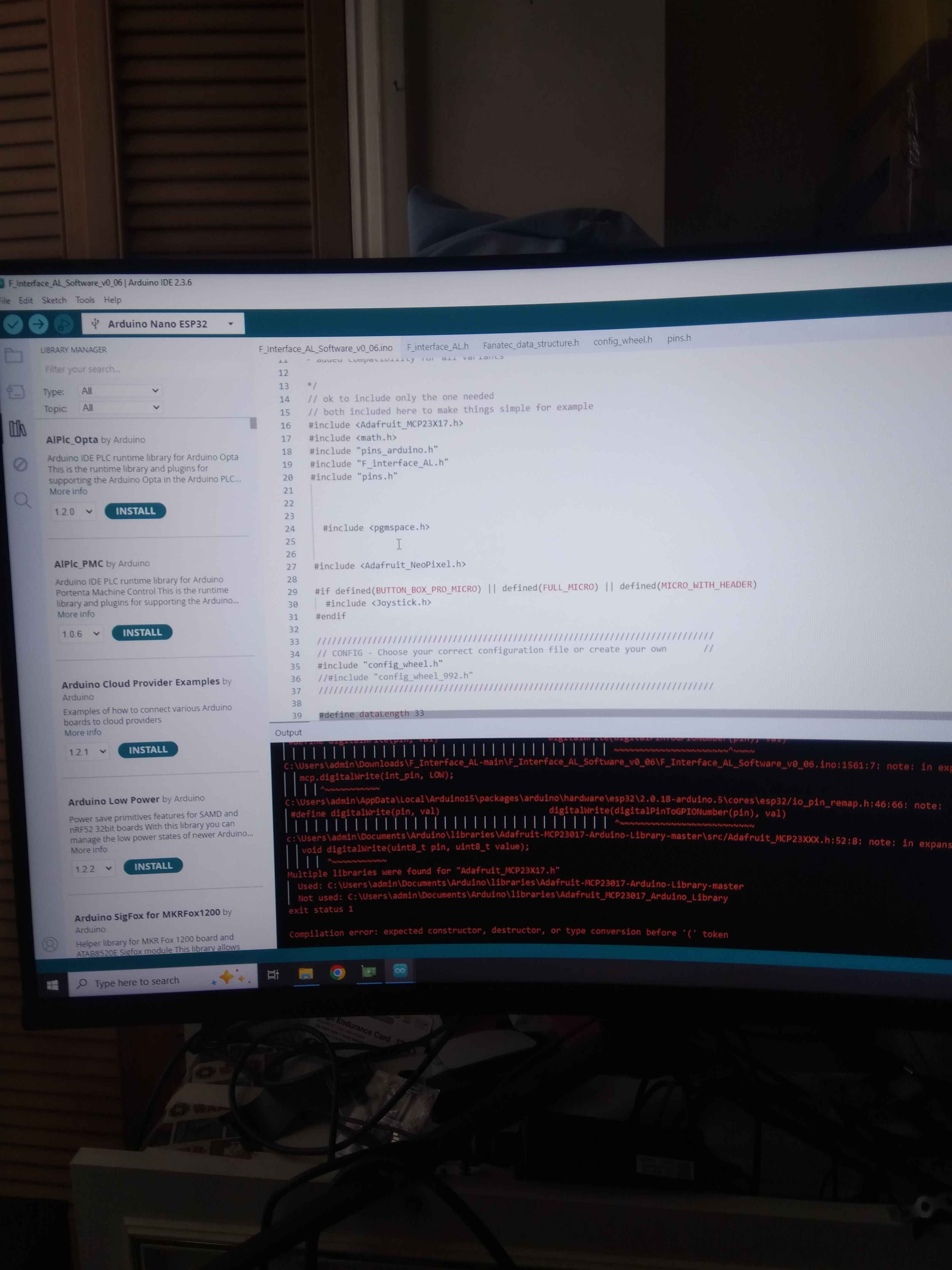

I done what you said but I get this error now

j3163290OP•2w ago

Maverick•2w ago

I can't read the text in these photos. You can install discord on your computer and copy / paste text. I was able to view them in a browser. Here is the solution :https://github.com/adafruit/Adafruit-MCP23017-Arduino-Library/issues/100#issuecomment-1982028761

j3163290OP•3d ago

Hi buddy I haven't tried your solution yet but I burned bootloader from Arduino mega 2560 to Arduino nano and uploaded sketch and it worked. But I'm trying to burn bootloader on Arduino pro micro and I keep getting error code

DarwinWasWrong•3d ago

@j3163290 how about posting the TEXT of the error instead of blurry pictures

j3163290OP•3d ago

Will do tomorrow what is the steps to burn bootloader to Arduino pro micro do i need a 10uf resistor

DarwinWasWrong•3d ago

There are so many guides on this. https://www.eevblog.com/forum/microcontrollers/reinstall-bootloader-for-an-arduino-pro-micro/ Just double tap it
