tscircuit•2mo ago

URGENT: 3d-viewer needs update

@shibo URGENT: We are setting up for the demo and need the latest 3d viewer working, what is the status of it? I thought you had an open PR that maybe Rishabh and I can take a look at

42 Replies

SeveOP•2mo ago

CC @Rishabh

SeveOP•2mo ago

shibo•2mo ago

This issue is caused by react version conflict, I think I solved it here in runframe in this pr https://github.com/tscircuit/runframe/pull/1032/files after that you need to resolve the conflict in tscircuit.com

GitHub

update to react 19 by ShiboSoftwareDev · Pull Request #1032 · tsc...

shibo•2mo ago

Im working on a long term solution by getting rid of react-fiber but you can get a faster solution by resolving the conflicts for now

SeveOP•2mo ago

CC @Rishabh want to give it a go? we don't need to immediately update tscircuit.com in this case because we just need chat.tscircuit.com working

shibo•2mo ago

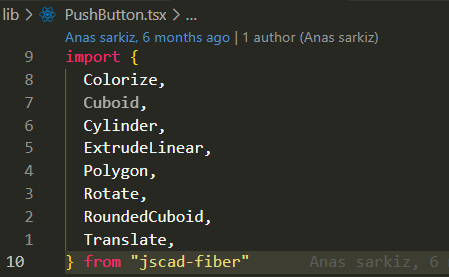

@Seve 3d-viewer imports Footprinter3d from jscad-electronics, Footprinter3d has components that require jscad-fiber, how do we support Footprinter3d in the vanilla version?

SeveOP•2mo ago

i don't think you use Footprinter3d, there is an alternative @Abse introduced iiuc

shibo•2mo ago

kk I think I get it now

SeveOP•2mo ago

getJscadModelForFootprint then you somehow convert that to ThreeJS

shibo•2mo ago

now my local 3d-viewer only imports from jscad-electronics/vanilla but since jscad-fiber is a peerdependency of jscad-electronics it gets installed because it's found in circuit-to-svg:

npm ls jscad-fiber
@tscircuit/3d-viewer@0.0.342 /home/shibo/tscircuit/3d-viewer
├─┬ circuit-to-svg@0.0.176
│ └─┬ tscircuit@0.0.593
│   ├─┬ @tscircuit/eval@0.0.284
│   │ └── jscad-fiber@0.0.84 deduped invalid: "^0.0.85" from node_modules/jscad-electronics
│   └── jscad-fiber@0.0.83
└─┬ jscad-electronics@0.0.37
  └── jscad-fiber@0.0.84 invalid: "^0.0.85" from node_modules/jscad-electronics

npm ls jscad-fiber
@tscircuit/3d-viewer@0.0.342 /home/shibo/tscircuit/3d-viewer
├─┬ circuit-to-svg@0.0.176
│ └─┬ tscircuit@0.0.593
│   ├─┬ @tscircuit/eval@0.0.284
│   │ └── jscad-fiber@0.0.84 deduped invalid: "^0.0.85" from node_modules/jscad-electronics
│   └── jscad-fiber@0.0.83
└─┬ jscad-electronics@0.0.37
  └── jscad-fiber@0.0.84 invalid: "^0.0.85" from node_modules/jscad-electronics

SeveOP•2mo ago

yea we need to make it an optional peer dep we're very close now if it's listed as an optional peer dep it won't be auto-installed

shibo•2mo ago

then I need to remove it from deps of eval and tscircuit then update circuit-to-svg?

SeveOP•2mo ago

🤔 yes i think so i have no idea why eval would have it

shibo•2mo ago

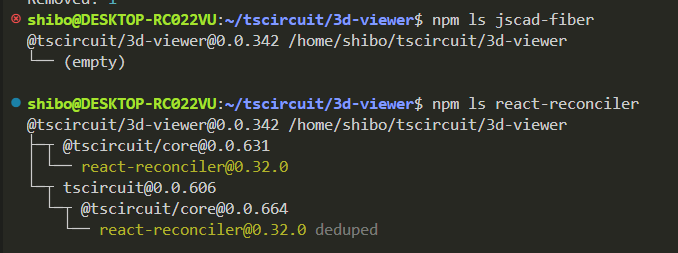

@Seve

SeveOP•2mo ago

!!!! woot! @Rishabh the deed is done rejoice!

shibo•2mo ago

https://github.com/tscircuit/3d-viewer/pull/428 @Seve graphite had some hot reviews, can you validate?

GitHub

migrate to vanilla jscad-electronics to not require react reconcile...

rely on vanilla jscad-electronics instead of jscad-fiber

SeveOP•2mo ago

thanks for calling that out yea the effect dependencies is a legit concern, i commentted with the mitigation

shibo•2mo ago

@Seve this commit seperates the useeffect logic: https://github.com/tscircuit/3d-viewer/pull/428/commits/67c715193151bcd04f2dffe9ced192c88a5f0837

GitHub

migrate to vanilla jscad-electronics to not require react reconcile...

rely on vanilla jscad-electronics instead of jscad-fiber

shibo•2mo ago

@Seve can you please review this?

SeveOP•2mo ago

👍

shibo•2mo ago

@Seve can I add "tscircuit" as a dev dep in runframe? I get this

shibo@DESKTOP-RC022VU:~/tscircuit/runframe$ npm ls jscad-fiber
@tscircuit/runframe@0.0.845 /home/shibo/tscircuit/runframe
└─┬ @tscircuit/pcb-viewer@1.11.207
  └─┬ tscircuit@0.0.601 invalid: "^0.0.571" from node_modules/easyeda
    ├─┬ @tscircuit/eval@0.0.289
    │ └── jscad-fiber@0.0.83 deduped
    └── jscad-fiber@0.0.83

shibo@DESKTOP-RC022VU:~/tscircuit/runframe$ npm ls tscircuit
@tscircuit/runframe@0.0.845 /home/shibo/tscircuit/runframe
├─┬ @tscircuit/pcb-viewer@1.11.207
│ └─┬ tscircuit@0.0.601 invalid: "^0.0.571" from node_modules/easyeda
│   ├─┬ @tscircuit/circuit-json-flex@0.0.3
│   │ └── tscircuit@0.0.601 deduped invalid: "^0.0.571" from node_modules/easyeda
│   └─┬ @tscircuit/cli@0.1.200
│     └── tscircuit@0.0.601 deduped invalid: "^0.0.571" from node_modules/easyeda
├─┬ @tscircuit/schematic-viewer@2.0.28
│ └── tscircuit@0.0.601 deduped
├─┬ circuit-to-svg@0.0.179
│ └── tscircuit@0.0.601 deduped
└─┬ easyeda@0.0.217
  └── tscircuit@0.0.601 deduped invalid: "^0.0.571" from node_modules/easyeda

shibo@DESKTOP-RC022VU:~/tscircuit/runframe$ npm ls jscad-fiber
@tscircuit/runframe@0.0.845 /home/shibo/tscircuit/runframe
└─┬ @tscircuit/pcb-viewer@1.11.207
  └─┬ tscircuit@0.0.601 invalid: "^0.0.571" from node_modules/easyeda
    ├─┬ @tscircuit/eval@0.0.289
    │ └── jscad-fiber@0.0.83 deduped
    └── jscad-fiber@0.0.83

shibo@DESKTOP-RC022VU:~/tscircuit/runframe$ npm ls tscircuit
@tscircuit/runframe@0.0.845 /home/shibo/tscircuit/runframe
├─┬ @tscircuit/pcb-viewer@1.11.207
│ └─┬ tscircuit@0.0.601 invalid: "^0.0.571" from node_modules/easyeda
│   ├─┬ @tscircuit/circuit-json-flex@0.0.3
│   │ └── tscircuit@0.0.601 deduped invalid: "^0.0.571" from node_modules/easyeda
│   └─┬ @tscircuit/cli@0.1.200
│     └── tscircuit@0.0.601 deduped invalid: "^0.0.571" from node_modules/easyeda
├─┬ @tscircuit/schematic-viewer@2.0.28
│ └── tscircuit@0.0.601 deduped
├─┬ circuit-to-svg@0.0.179
│ └── tscircuit@0.0.601 deduped
└─┬ easyeda@0.0.217
  └── tscircuit@0.0.601 deduped invalid: "^0.0.571" from node_modules/easyeda

SeveOP•2mo ago

i think so it's strange that "tscircuit" is being requires by any dependency, it should ~always be a dev dependency for internal packages

SeveOP•2mo ago

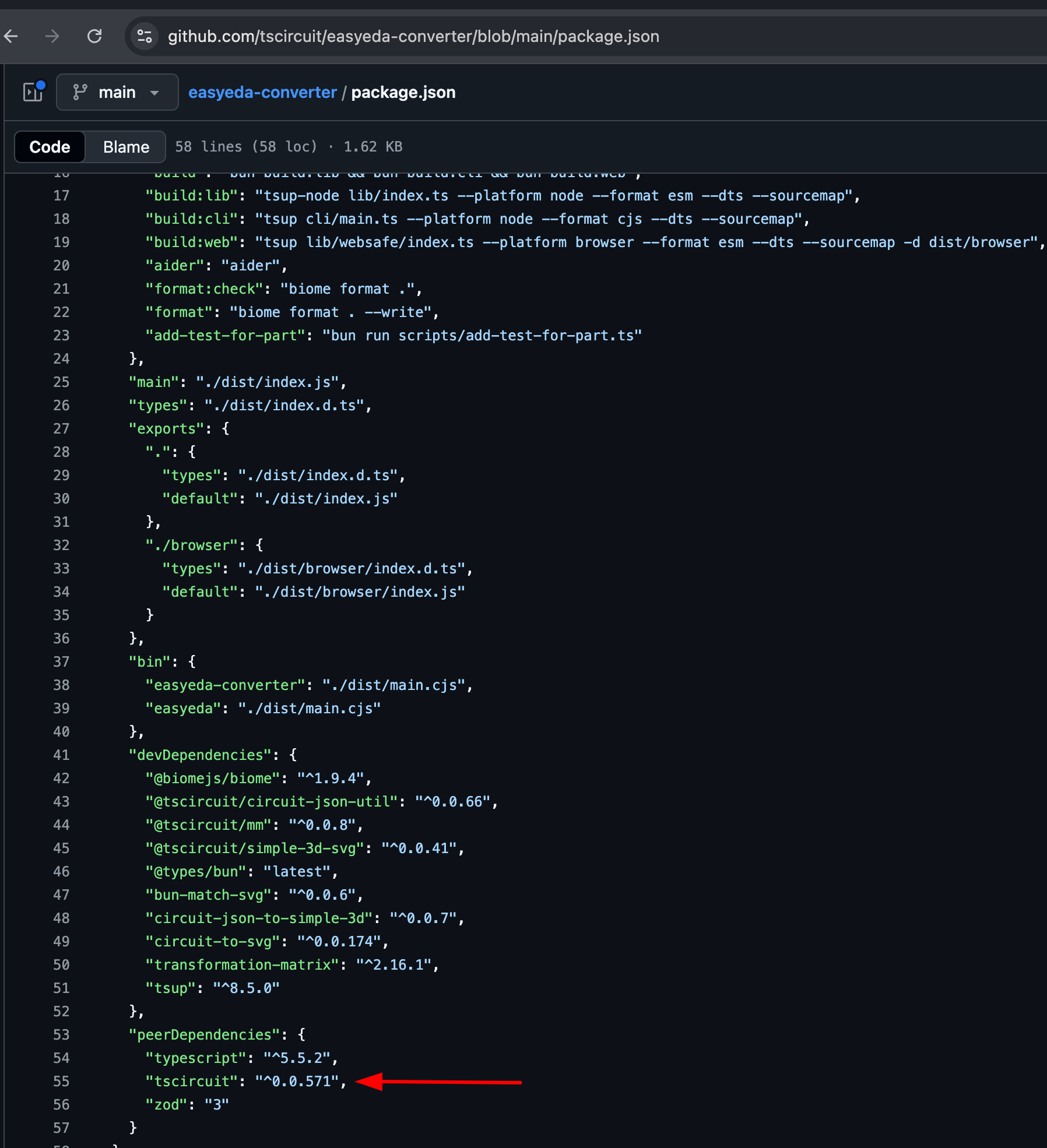

it's being accidentally added as a required peer :/

SeveOP•2mo ago

it's ok tho, yea just add as a dev dep

shibo•2mo ago

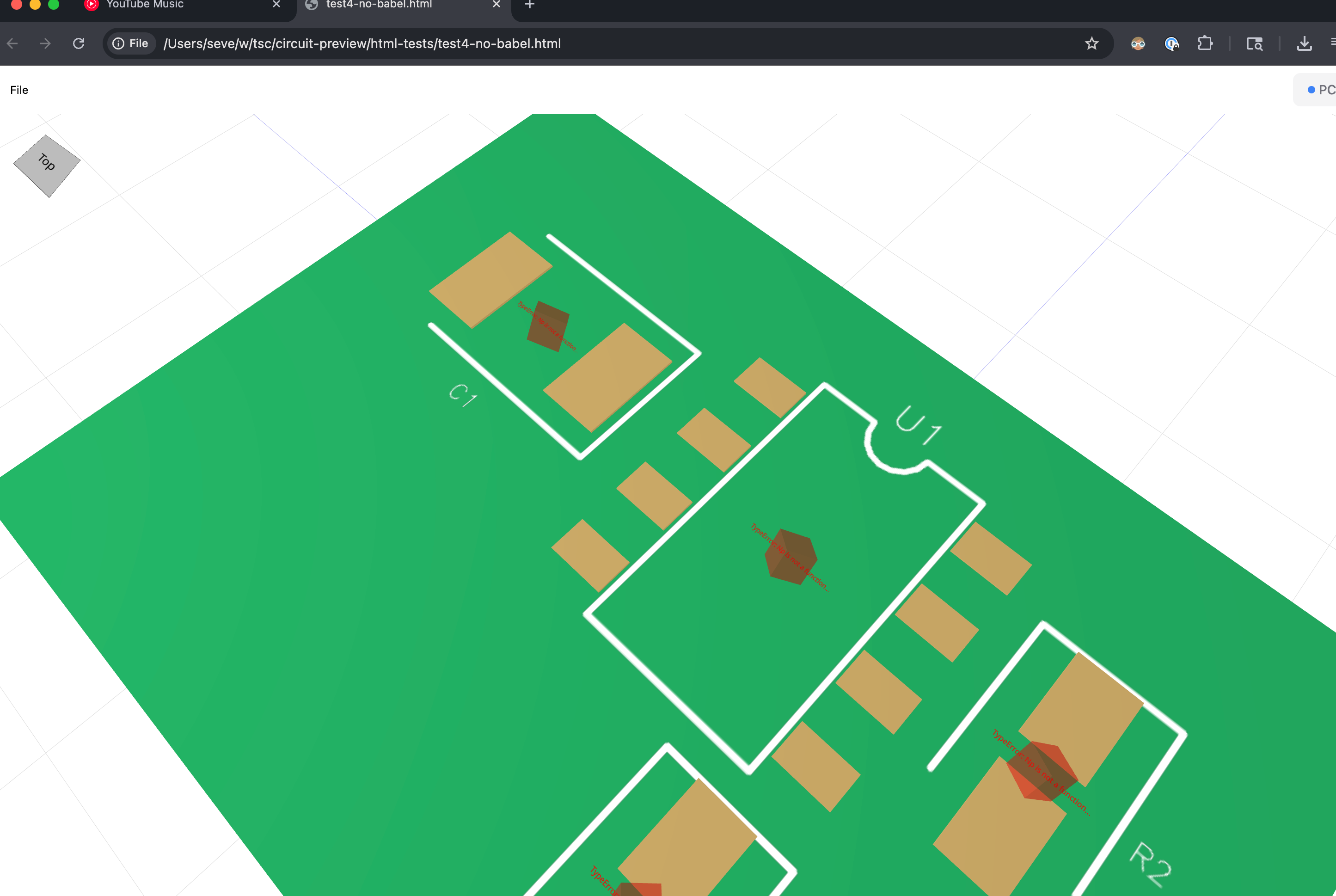

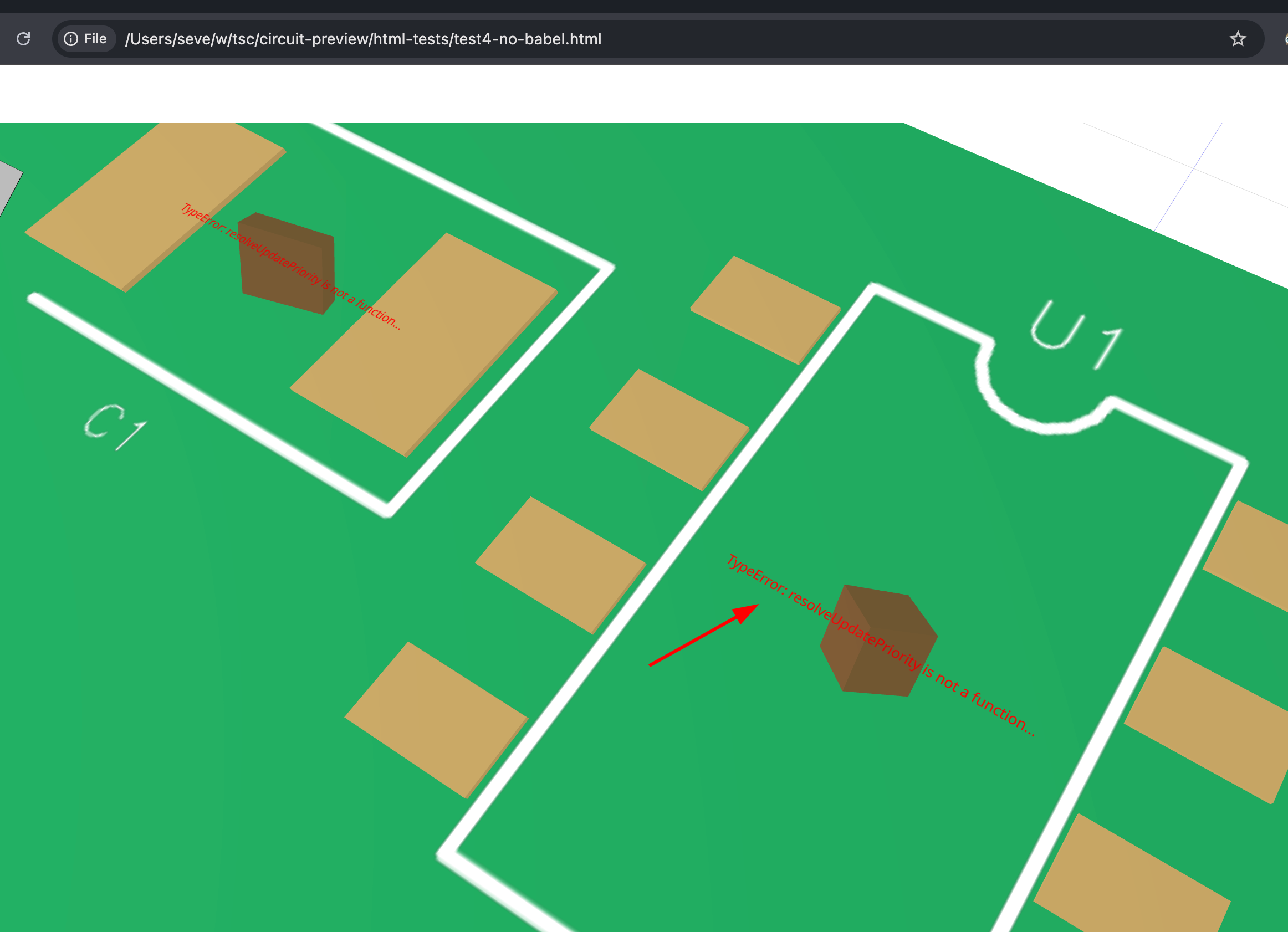

@Seve 3d-viewer jscad models are broken, I fixed them and I'll merge before updating runframe @Rishabh are you testing runframe with chatgpt? Just want to know if the 3d-viewer would work

SeveOP•2mo ago

I can do this now i think

SeveOP•2mo ago

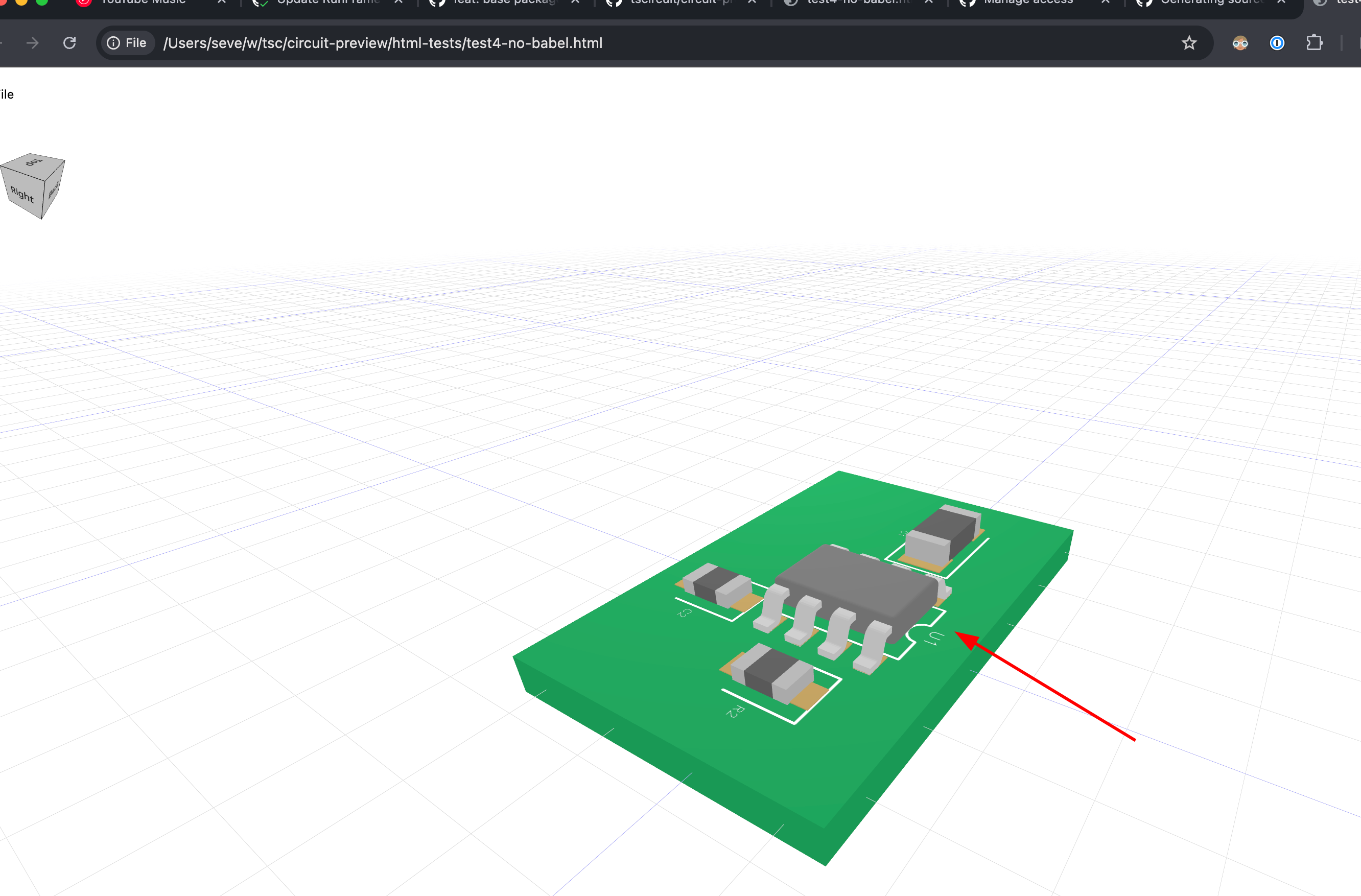

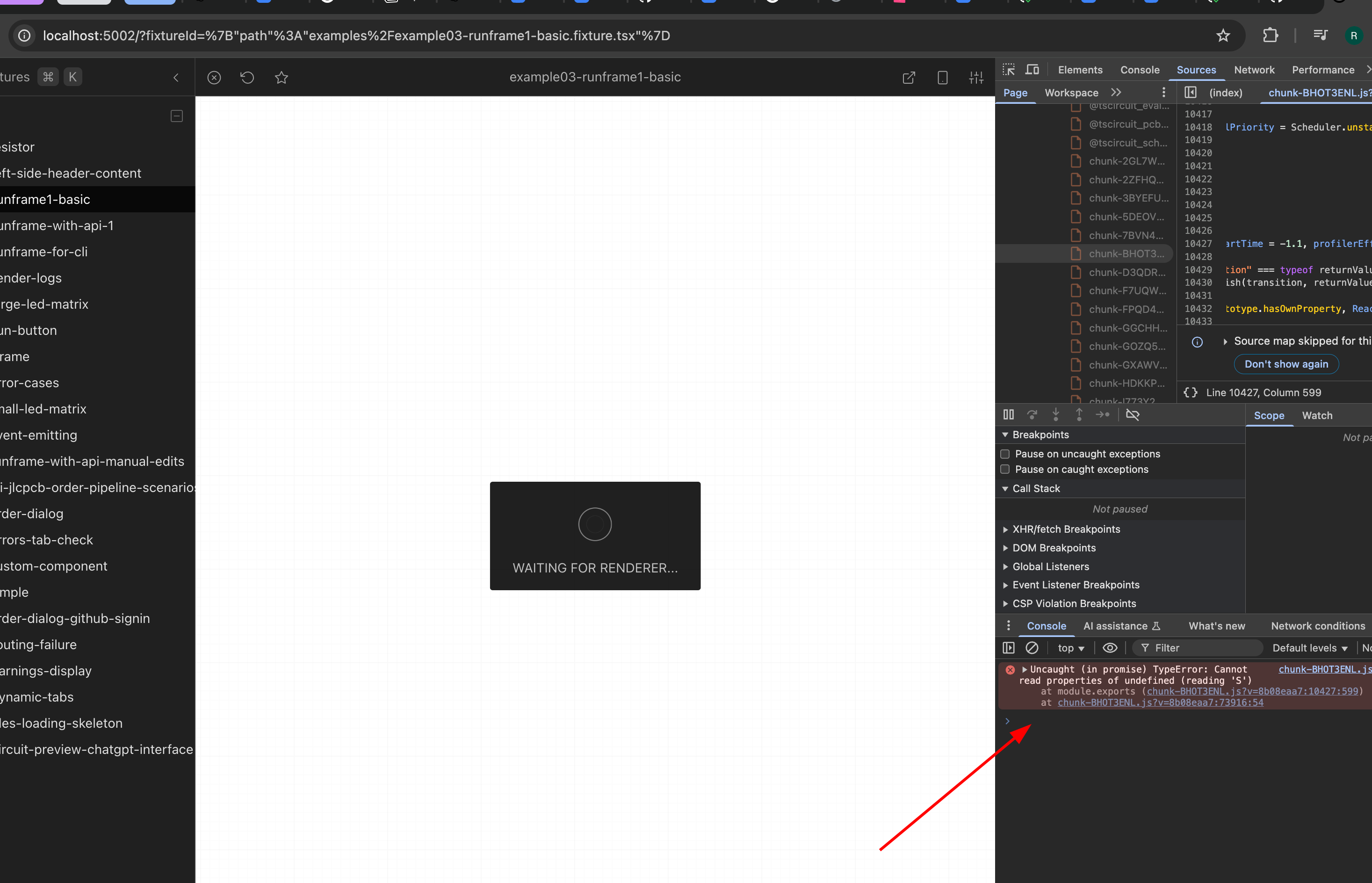

@shibo possible issue, not even on chatgpt yet

SeveOP•2mo ago

i will show you how to repro

SeveOP•2mo ago

repro instructions

SeveOP•2mo ago

@shibo i was able to get it to build with sourcemap with NODE_OPTIONS env, looks like a react issue

SeveOP•2mo ago

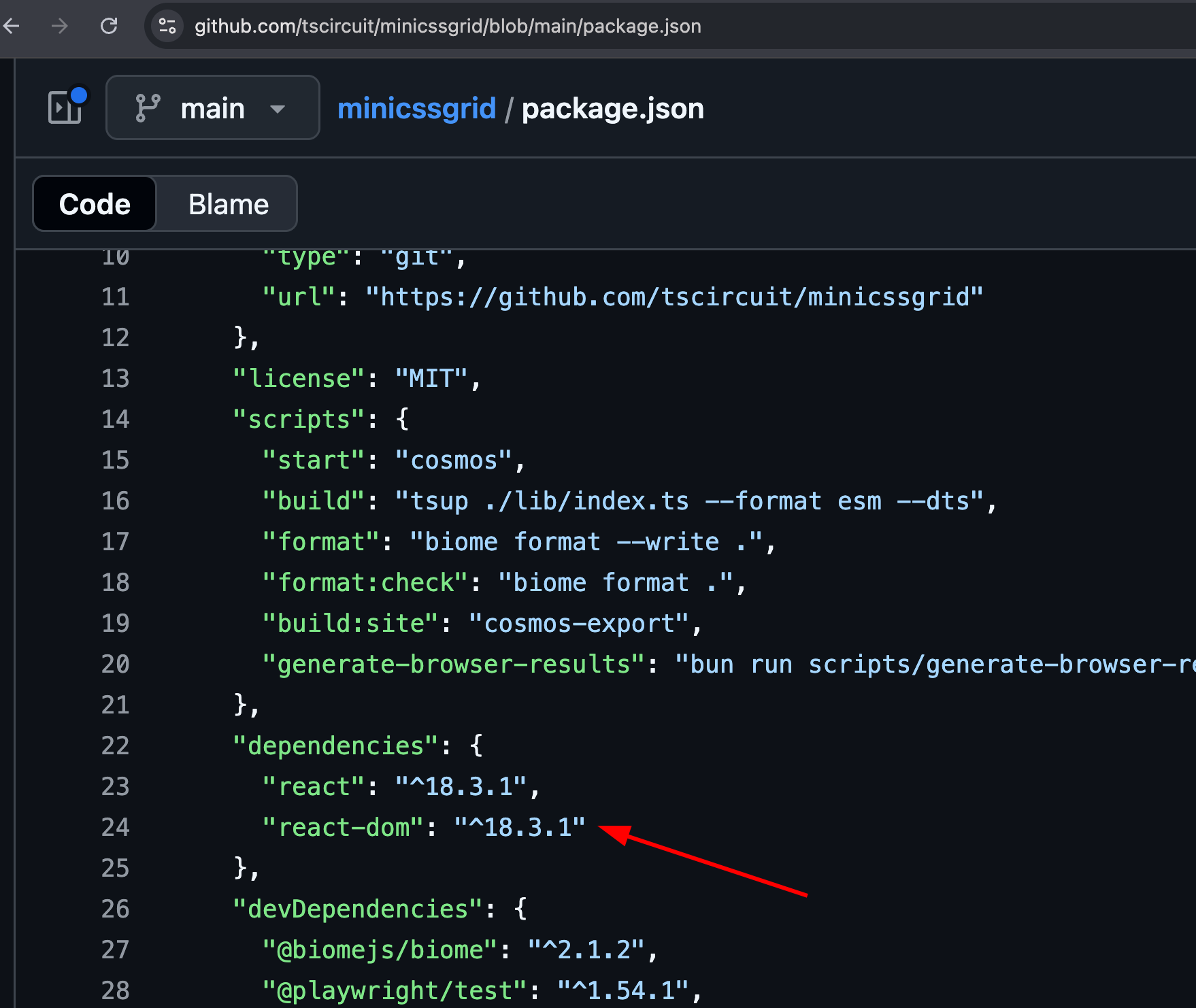

might be minicssgrid 😠

SeveOP•2mo ago

going to patch it now, but unclear if this is the root cause (probably not) wait i don't think i updated the 3d viewer properly...

SeveOP•2mo ago

@shibo WORKING! Going to publish to ChatGPT to see if we get 3d models! @Rishabh we now have the latest 3d-viewer

Rishabh•2mo ago

Damn!! 🚀

SeveOP•2mo ago

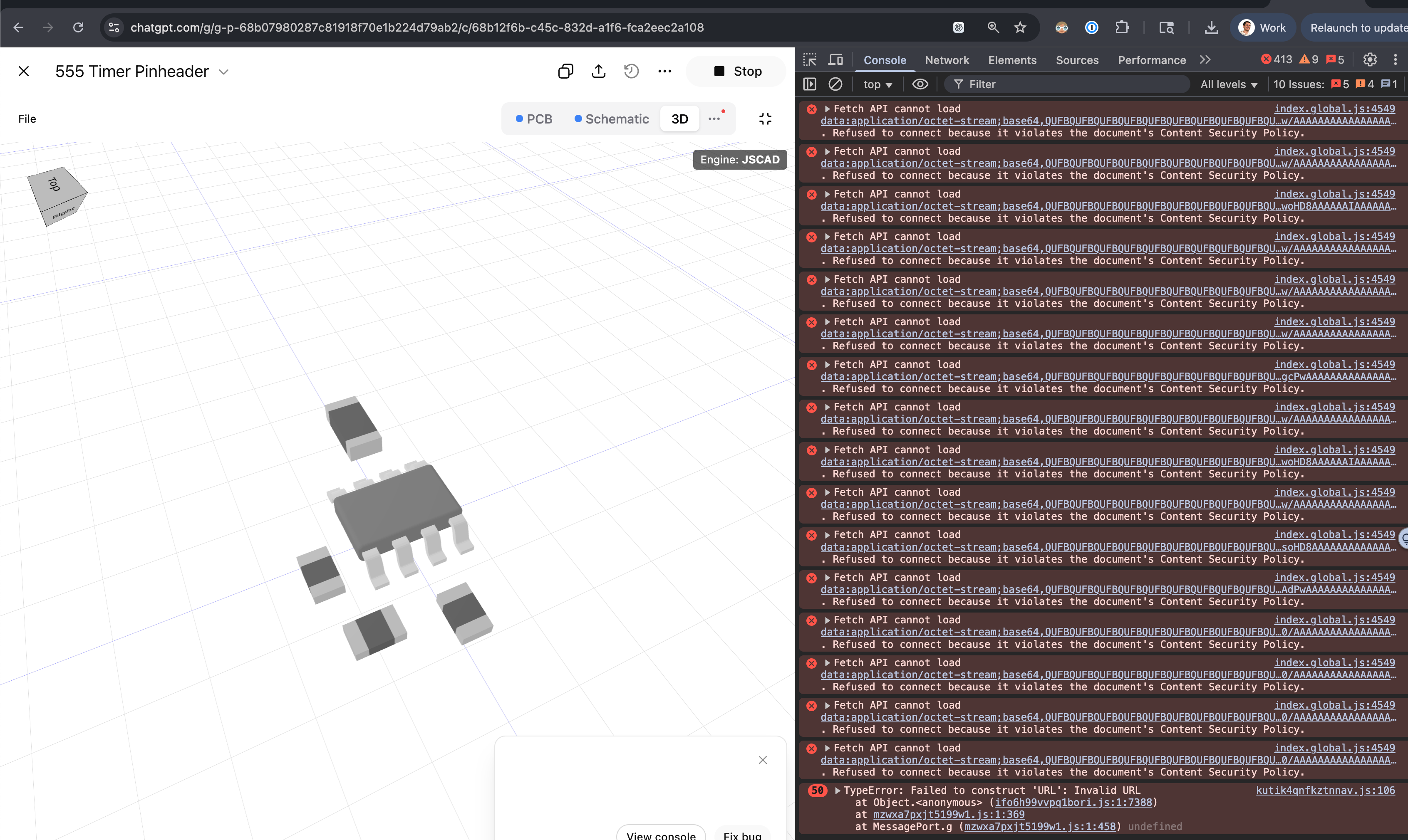

@shibo inside chatgpt the board doesn't render

shibo•2mo ago

Manifold too?

SeveOP•2mo ago

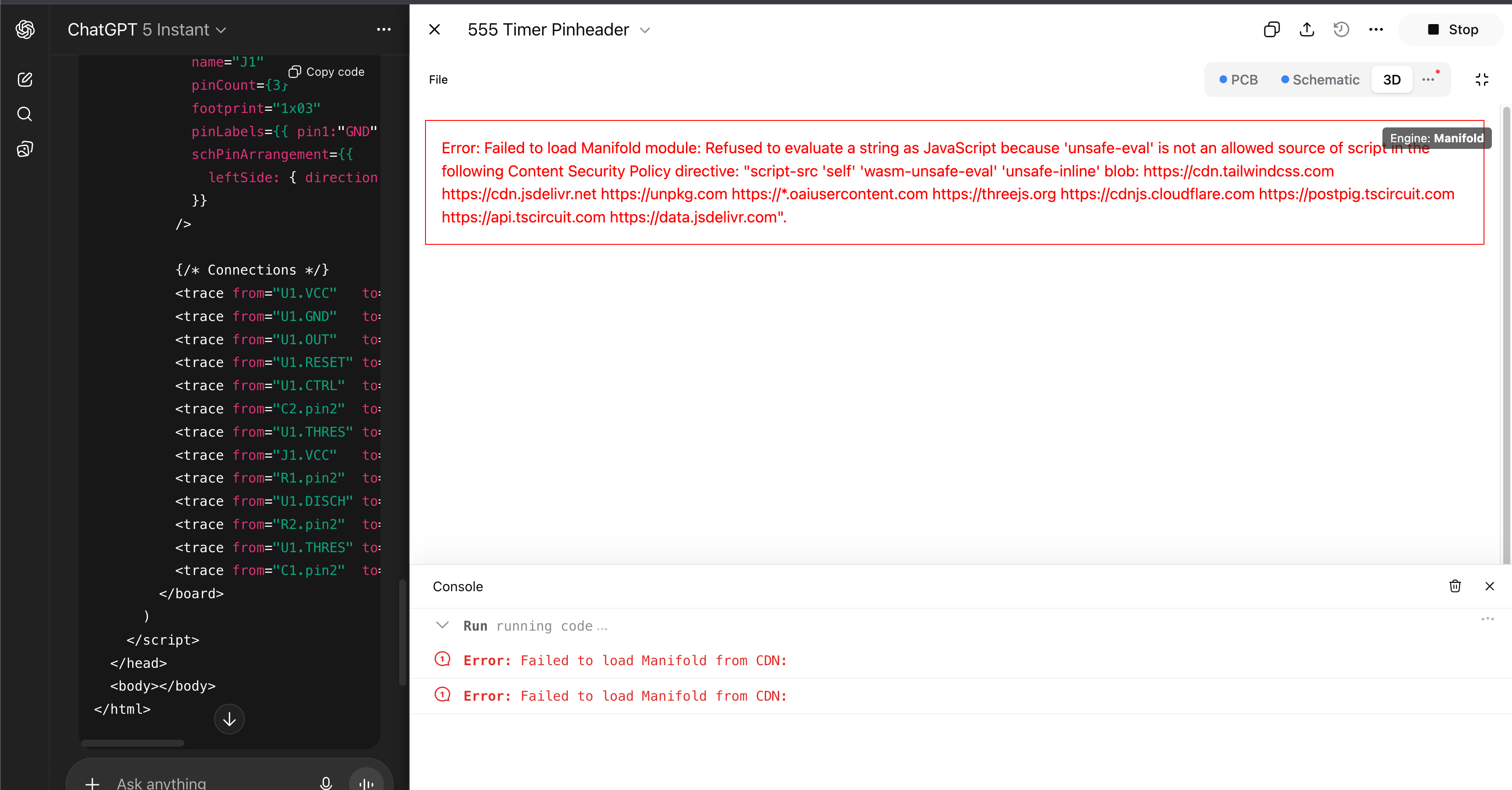

manifold seems to have the embedded blob url still

SeveOP•2mo ago

it has to load from a CDN and it is not allowed to be fetched, so it needs to be imported like a script tag or something. Instead of fetching, try checking for window.MANIFOLD_3D and using that if it's available. We can hack that in to work

shibo•2mo ago

How can I test any changes I make?

SeveOP•2mo ago

the video above is how you can test locally, to know if it'll work in ChatGPT we would need to have a server that emulates their Content Security Policy

shibo•2mo ago

And how can I reproduce the board issue, any idea?

SeveOP•2mo ago

we could create such a server inside the circuit-preview repo, otherwise you'll have to follow this guide to test (which is what we do) https://docs.tscircuit.com/intro/quickstart-ChatGPT

Quickstart ChatGPT | tscircuit docs

Preview and iterate on tscircuit designs directly inside ChatGPT using a small CDN bundle and a simple repo convention.
