@Seve Seems like something is majorly
@Seve Seems like something is wrong with the core?
5 Replies

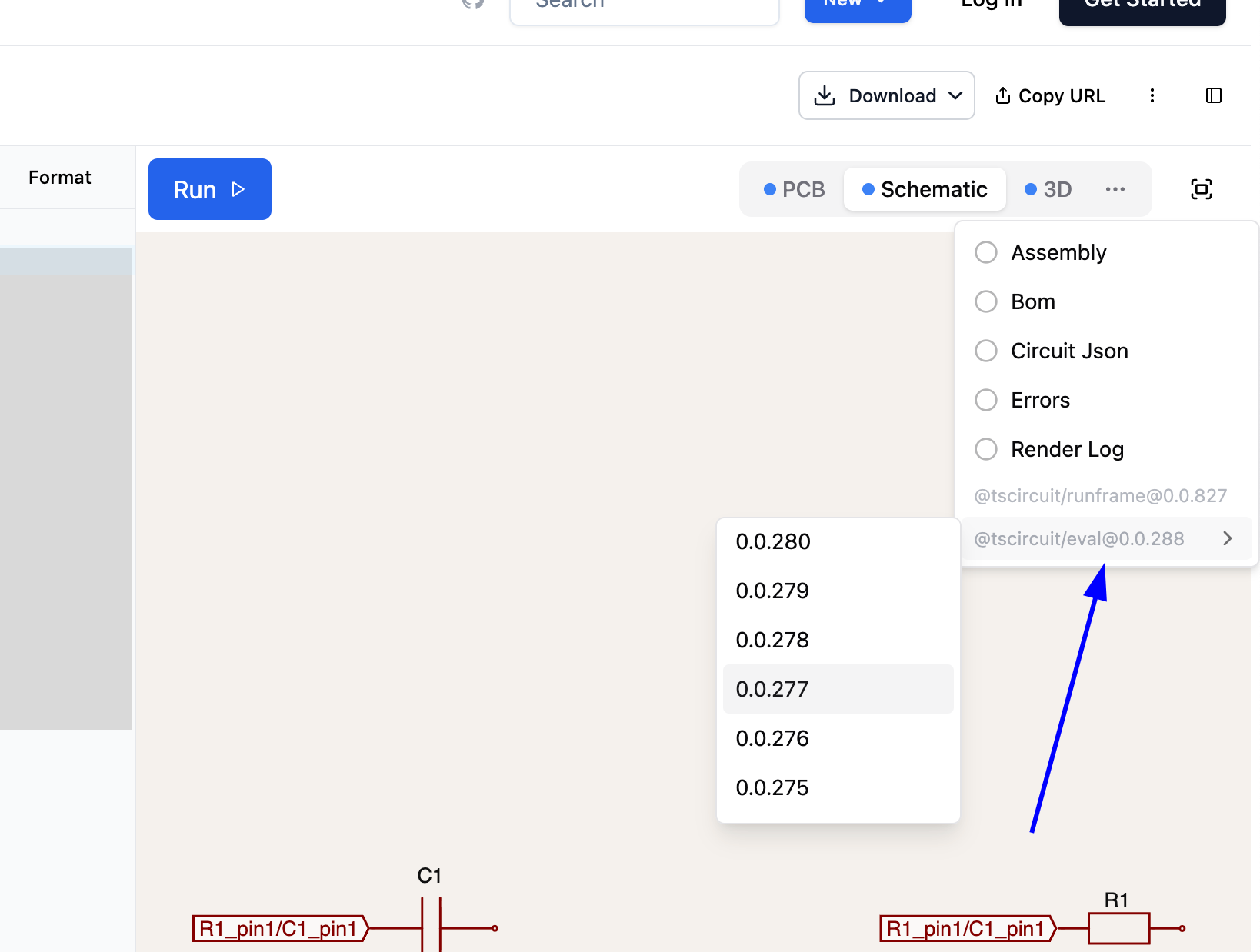

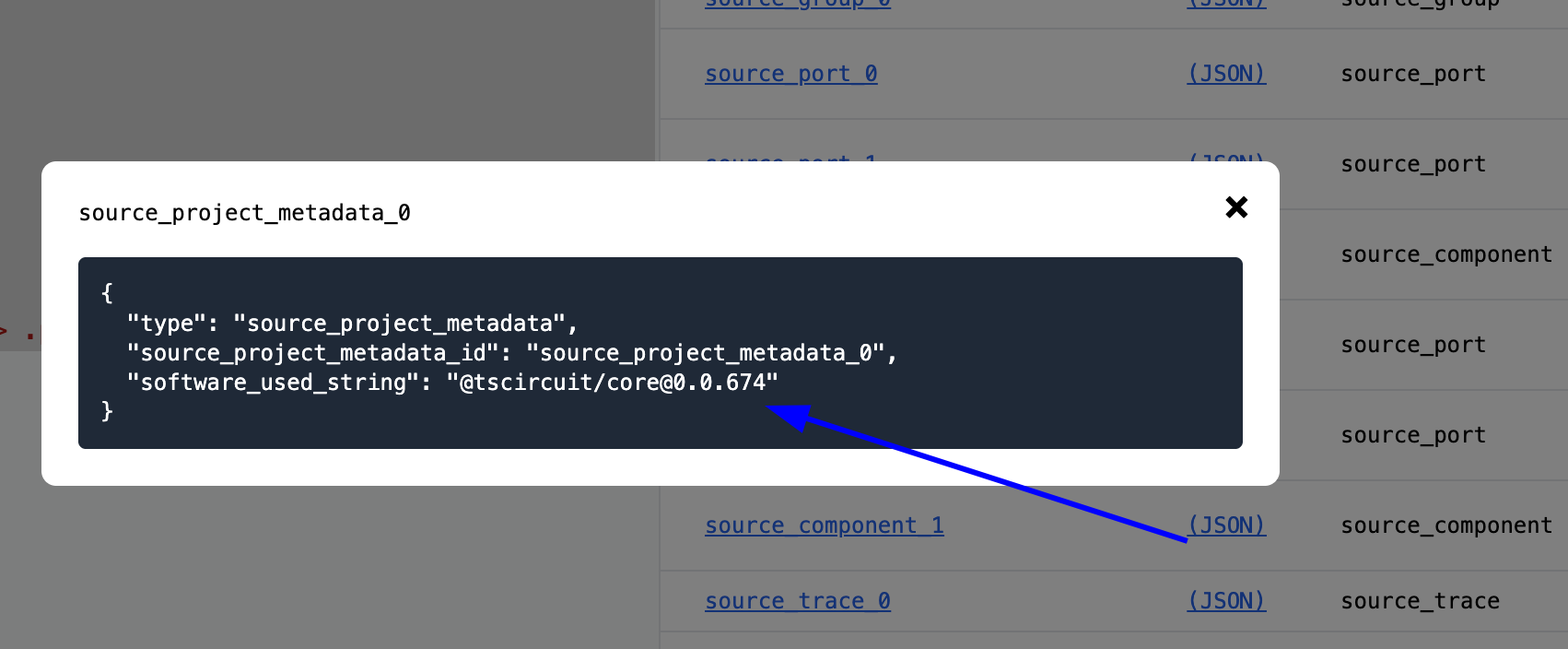

The eval selector doesn't work, I tried to use the old version of eval but still the metadata shows the
core being used is the latest one.
cc @DOPΣ

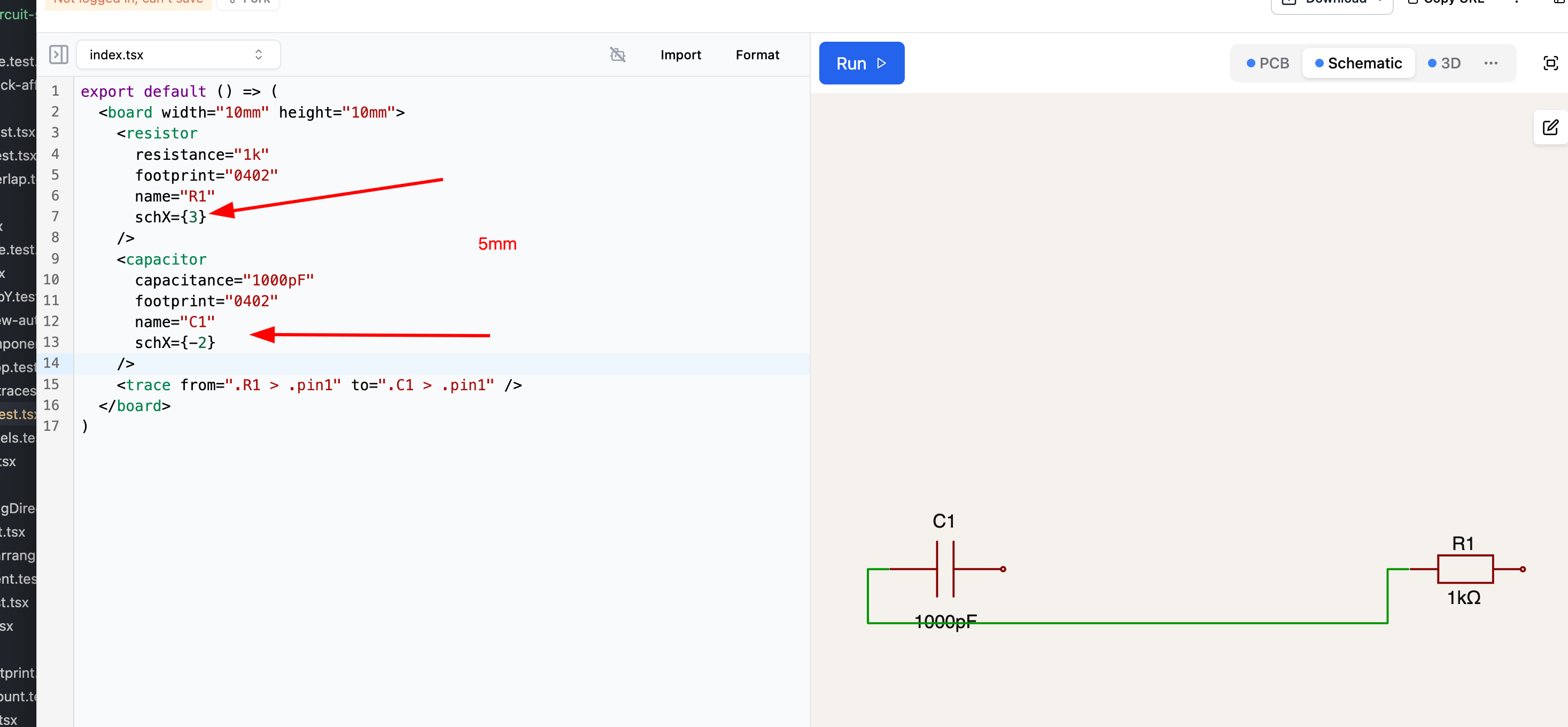

The reason for the trace not being drawn is because of the distance between the ports.

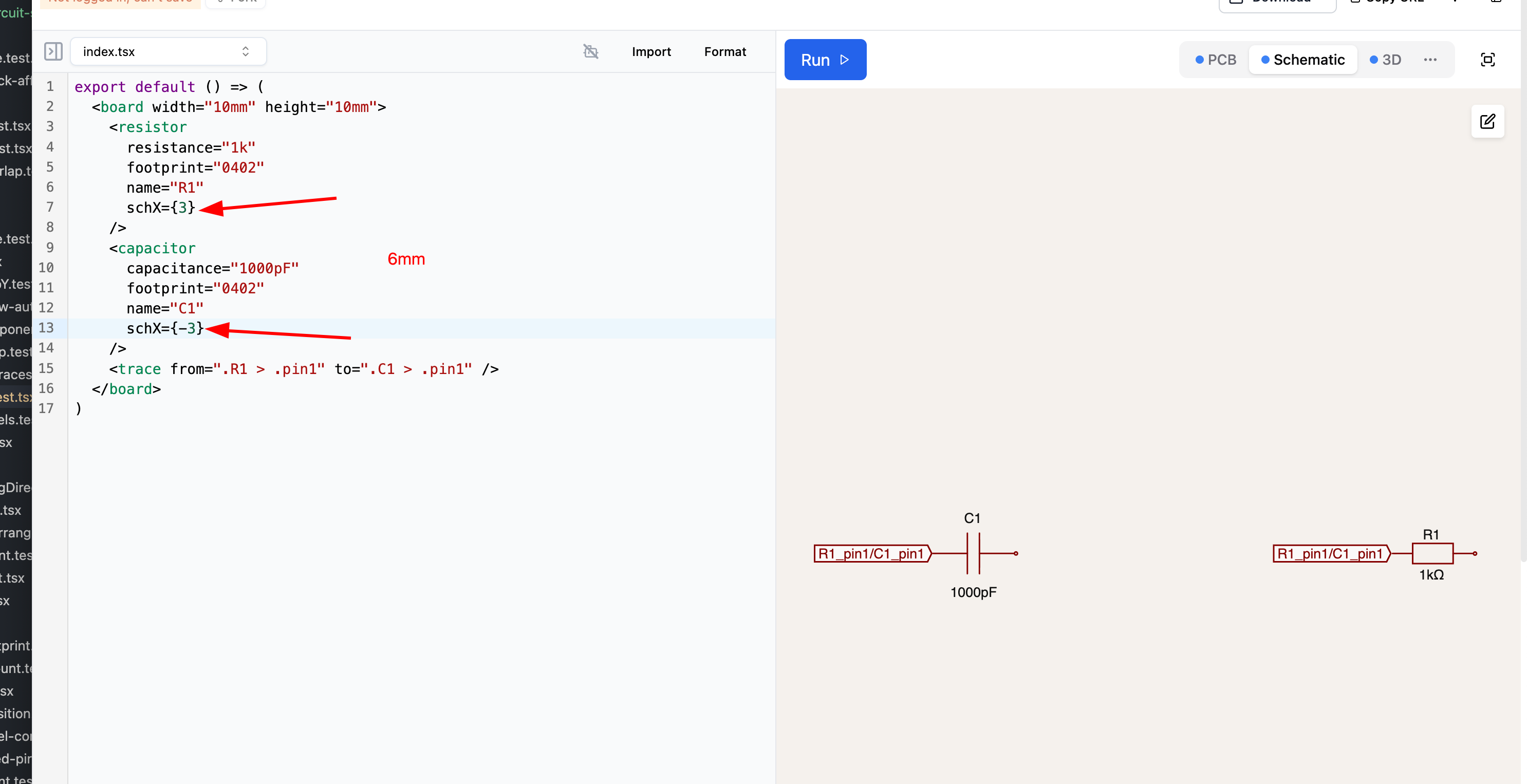

When the distance between them is less than 6mm, the full trace is being drawn rather than the netLabel being placed

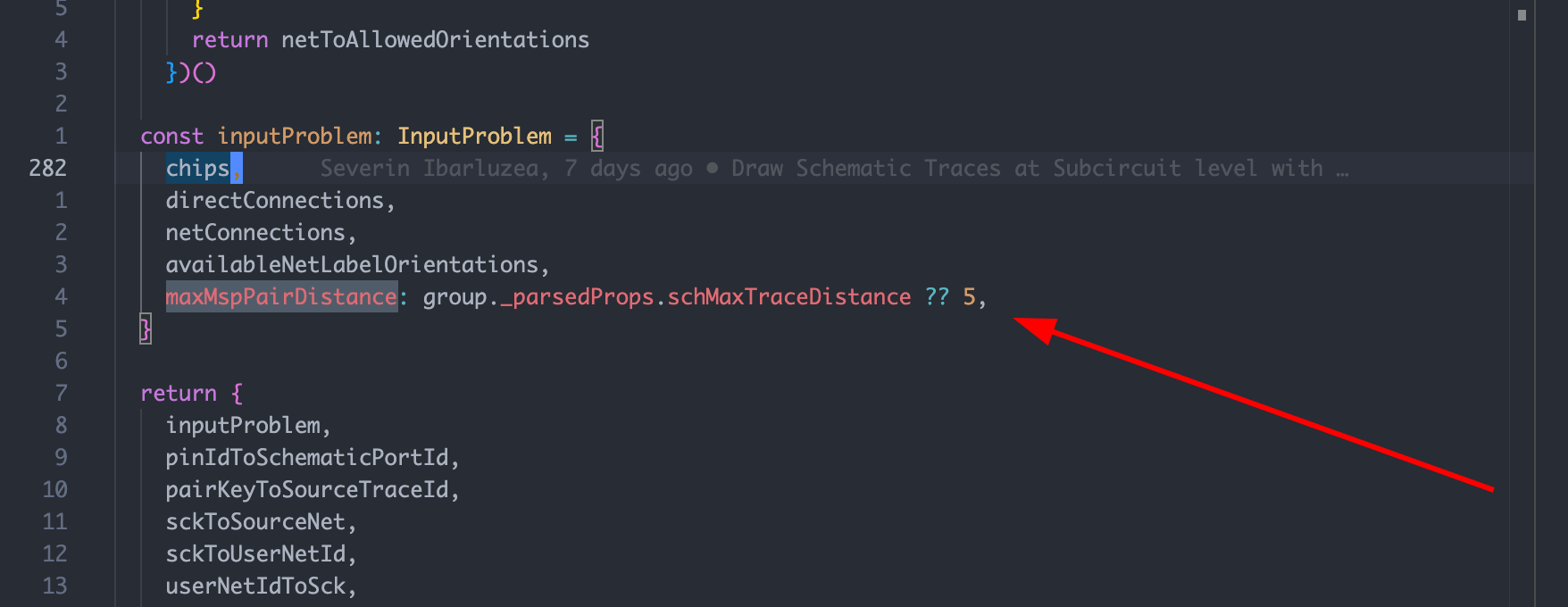

@Seve Do we increase the default maxManhattanDistance value? Or Change the blank template circuit to have a smaller distance between them?
Idk why I didn't build this
But I'll patch asap
Yea the default circuit should not have XY, the max dist is probably ok at 5
