Serial communication between ESP8266 and Nano not in sync or corrupted

I'm driving a 16x8 led matrix using the arduino nano and implemented it so that it receives display data through serial (16 bytes per frame). when sending the data through web serial everything works perfectly, but when I hook up an ESP8266 everything goes south. here's my code:

5 Replies

wtfOP•3d ago

arduino nano

#include <Arduino.h>
#include <SPI.h>

#define NUM_ROWS 8
uint16_t matrix[NUM_ROWS] = {0};
uint8_t curRow = 0;

const int LATCH_PIN = 10;
const int OE_PIN = 9;

void setupTimer()
{
    // https://www.8bit-era.cz/arduino-timer-interrupts-calculator.html
    // TIMER 1 for interrupt frequency 8000 Hz:
    cli();        // stop interrupts
    TCCR1A = 0; // set entire TCCR1A register to 0
    TCCR1B = 0; // same for TCCR1B
    TCNT1 = 0;    // initialize counter value to 0
    // set compare match register for 8000 Hz increments
    OCR1A = 1999; // = 16000000 / (1 * 8000) - 1 (must be <65536)
    // turn on CTC mode
    TCCR1B |= (1 << WGM12);
    // Set CS12, CS11 and CS10 bits for 1 prescaler
    TCCR1B |= (0 << CS12) | (0 << CS11) | (1 << CS10);
    // enable timer compare interrupt
    TIMSK1 |= (1 << OCIE1A);
    sei(); // allow interrupts
}

void setup()
{
    pinMode(OE_PIN, OUTPUT);
    digitalWrite(OE_PIN, HIGH);

    pinMode(LATCH_PIN, OUTPUT);
    digitalWrite(LATCH_PIN, HIGH);

    SPI.begin();
    SPI.beginTransaction(SPISettings(1000000, MSBFIRST, SPI_MODE0));
    setupTimer();

    Serial.begin(9600);
}

void loop()
{
    if (Serial.available())
    {
        Serial.readBytes((uint8_t *)matrix, NUM_ROWS * sizeof(uint16_t));
    }
}

static inline uint8_t reverse8(uint8_t b)
{
    b = (b & 0xF0) >> 4 | (b & 0x0F) << 4;
    b = (b & 0xCC) >> 2 | (b & 0x33) << 2;
    b = (b & 0xAA) >> 1 | (b & 0x55) << 1;
    return b;
}

ISR(TIMER1_COMPA_vect)
{
    uint8_t rowByte = (1 << curRow);
    uint8_t colA = (matrix[curRow] >> 8) & 0xFF;
    uint8_t colB = matrix[curRow] & 0xFF;

    PORTB |= (1 << PB1); // Disable output
    PORTB &= ~(1 << PB2);
    SPI.transfer(reverse8(colB)); // Region B SR
    SPI.transfer(reverse8(colA)); // Region A SR
    SPI.transfer(rowByte);          // Row multiplexing SR
    PORTB |= (1 << PB2);
    PORTB &= ~(1 << PB1); // Re-enable output`

    curRow++;
    if (curRow >= NUM_ROWS)
        curRow = 0;
}

#include <Arduino.h>
#include <SPI.h>

#define NUM_ROWS 8
uint16_t matrix[NUM_ROWS] = {0};
uint8_t curRow = 0;

const int LATCH_PIN = 10;
const int OE_PIN = 9;

void setupTimer()
{
    // https://www.8bit-era.cz/arduino-timer-interrupts-calculator.html
    // TIMER 1 for interrupt frequency 8000 Hz:
    cli();        // stop interrupts
    TCCR1A = 0; // set entire TCCR1A register to 0
    TCCR1B = 0; // same for TCCR1B
    TCNT1 = 0;    // initialize counter value to 0
    // set compare match register for 8000 Hz increments
    OCR1A = 1999; // = 16000000 / (1 * 8000) - 1 (must be <65536)
    // turn on CTC mode
    TCCR1B |= (1 << WGM12);
    // Set CS12, CS11 and CS10 bits for 1 prescaler
    TCCR1B |= (0 << CS12) | (0 << CS11) | (1 << CS10);
    // enable timer compare interrupt
    TIMSK1 |= (1 << OCIE1A);
    sei(); // allow interrupts
}

void setup()
{
    pinMode(OE_PIN, OUTPUT);
    digitalWrite(OE_PIN, HIGH);

    pinMode(LATCH_PIN, OUTPUT);
    digitalWrite(LATCH_PIN, HIGH);

    SPI.begin();
    SPI.beginTransaction(SPISettings(1000000, MSBFIRST, SPI_MODE0));
    setupTimer();

    Serial.begin(9600);
}

void loop()
{
    if (Serial.available())
    {
        Serial.readBytes((uint8_t *)matrix, NUM_ROWS * sizeof(uint16_t));
    }
}

static inline uint8_t reverse8(uint8_t b)
{
    b = (b & 0xF0) >> 4 | (b & 0x0F) << 4;
    b = (b & 0xCC) >> 2 | (b & 0x33) << 2;
    b = (b & 0xAA) >> 1 | (b & 0x55) << 1;
    return b;
}

ISR(TIMER1_COMPA_vect)
{
    uint8_t rowByte = (1 << curRow);
    uint8_t colA = (matrix[curRow] >> 8) & 0xFF;
    uint8_t colB = matrix[curRow] & 0xFF;

    PORTB |= (1 << PB1); // Disable output
    PORTB &= ~(1 << PB2);
    SPI.transfer(reverse8(colB)); // Region B SR
    SPI.transfer(reverse8(colA)); // Region A SR
    SPI.transfer(rowByte);          // Row multiplexing SR
    PORTB |= (1 << PB2);
    PORTB &= ~(1 << PB1); // Re-enable output`

    curRow++;
    if (curRow >= NUM_ROWS)
        curRow = 0;
}

ESP8266:

#include <Arduino.h>

uint16 buffer[] = {
    0b1000000000000001,
    0b0100000000000010,
    0b0010000000000100,
    0b0001000000001000,
    0b0000100000010000,
    0b0000010000100000,
    0b0000001001000000,
    0b0000000110000000,
};

void setup()
{
    Serial1.begin(9600);
}

void loop()
{
    delay(2000);
    for (int i = 0; i < 8; i++)
    {
        Serial1.print((uint8_t)buffer[i] & 0xFF);
        Serial1.print((uint8_t)((buffer[i] >> 8) & 0xFF));
    }
}

#include <Arduino.h>

uint16 buffer[] = {
    0b1000000000000001,
    0b0100000000000010,
    0b0010000000000100,
    0b0001000000001000,
    0b0000100000010000,
    0b0000010000100000,
    0b0000001001000000,
    0b0000000110000000,
};

void setup()
{
    Serial1.begin(9600);
}

void loop()
{
    delay(2000);
    for (int i = 0; i < 8; i++)
    {
        Serial1.print((uint8_t)buffer[i] & 0xFF);
        Serial1.print((uint8_t)((buffer[i] >> 8) & 0xFF));
    }
}

wtfOP•3d ago

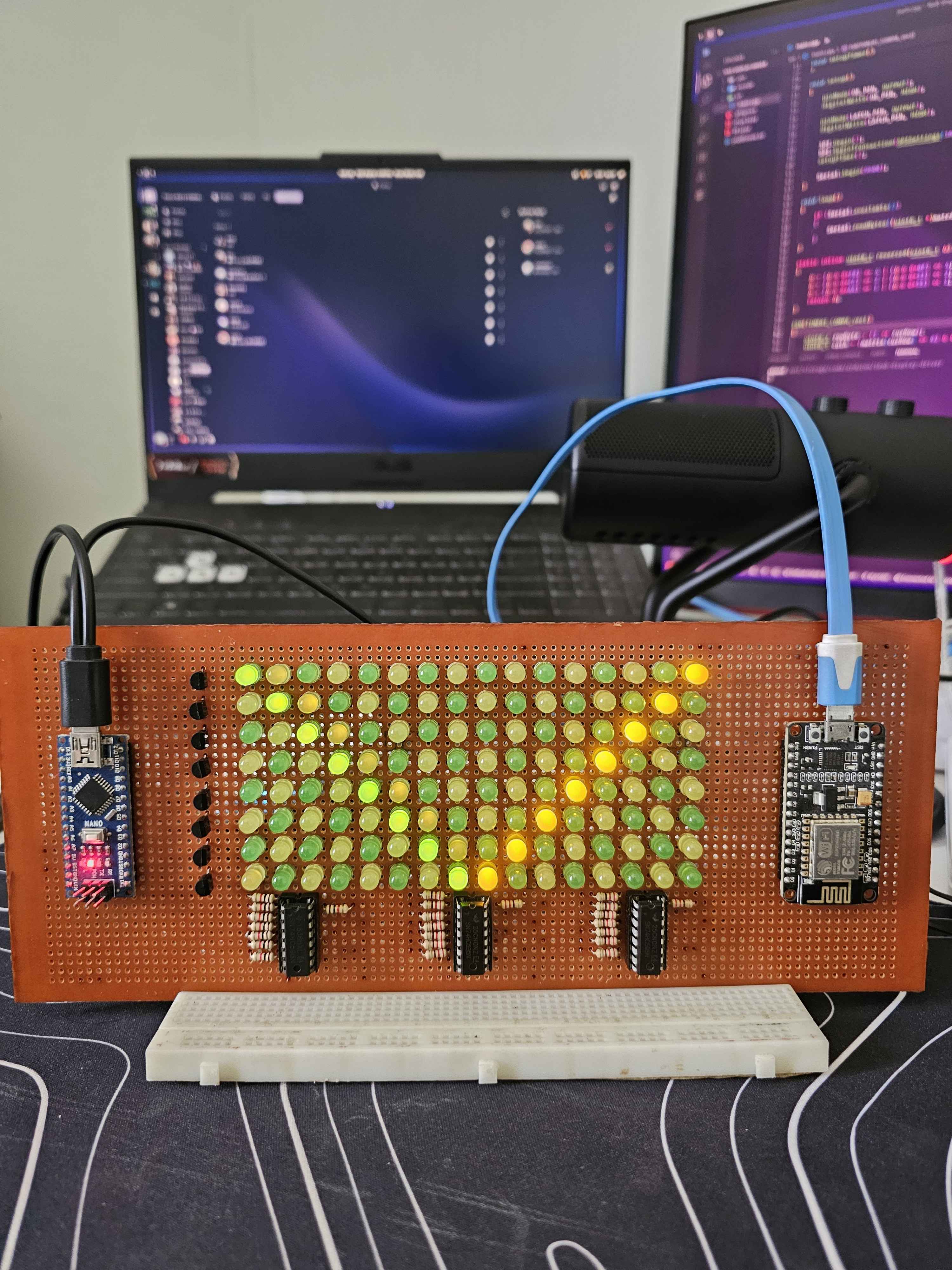

supposed to be a V shape but I get garbage instead

wtfOP•3d ago

I'm certain it's not a hardware issue since I have tested serial communication from the esp to nano beforehand with one wire going from the esp's TX1 -> nano's RX and a common ground and everything worked fine

wtfOP•2d ago

turns out I had to use Serial.write instead of print 🤦🏻‍♂️

wtfOP•2d ago

there goes a whole day of debugging
