Do we have a doc for pinout diagrams? @shibo we should get a good example

43 Replies

SeveOP•2w ago

The bounty for pinout is pretty big as well so i think it makes sense to have a doc as completion criteria for a big feature, should be quick? Maybe we need svg.tscircuit.com support for the new svg type

SeveOP•2w ago

@shibo this could be a good one for the docs

SeveOP•2w ago

https://tscircuit.com/seveibar/pico so this component is a receiver, so maybe we’d need to clone it

seveibar/PICO - tscircuit

Generated from JLCPCB part number C7203002 To import and use the PICO component in a project: 1. Import the component:

import { PICO } from "@tsci/seveibar.PICO"

import { PICO } from "@tsci/seveibar.PICO"

2. Use the component in a circuit:

<PICO name="U1" />

<PICO name="U1" />

The component has 49 pins with various functions like GPIO (GP0-GP28), power (3V3_EN, VSYS), and debug (SW...

SeveOP•2w ago

I think we could also extend it with pin attributes?

shibo•2w ago

can we do something simpler for now?

SeveOP•2w ago

it should be pretty simple though no? we just have to put on pinAttributes

SeveOP•2w ago

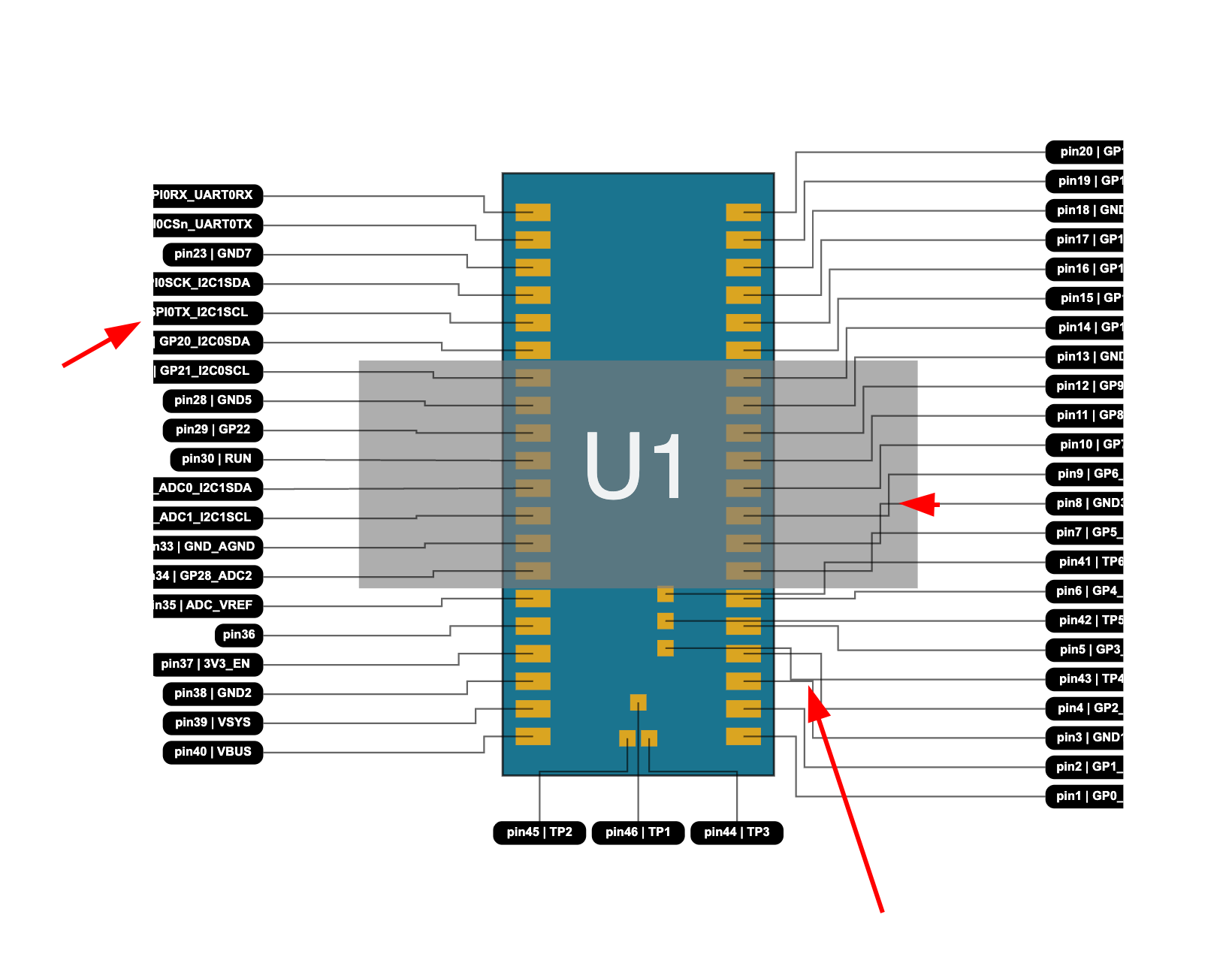

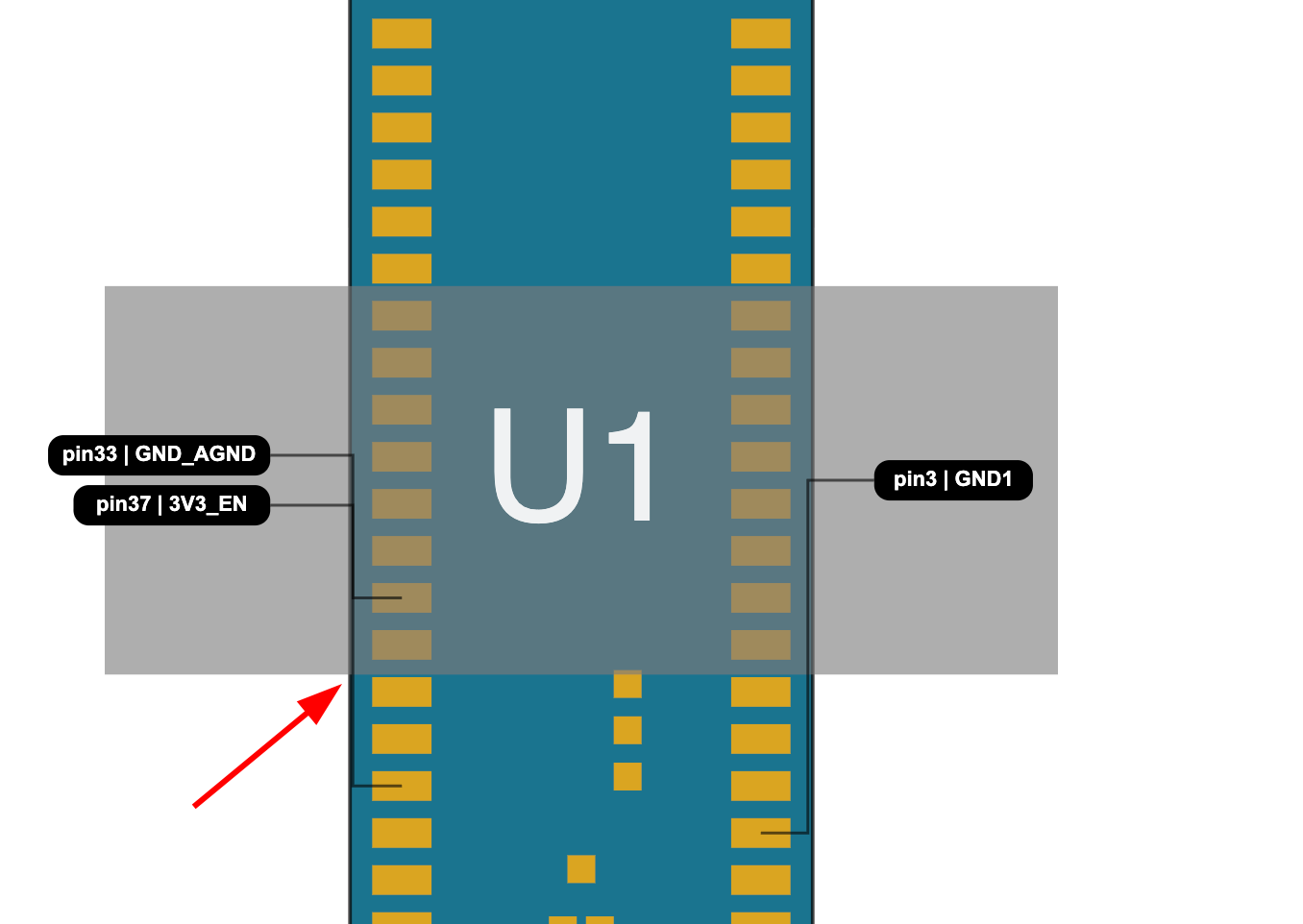

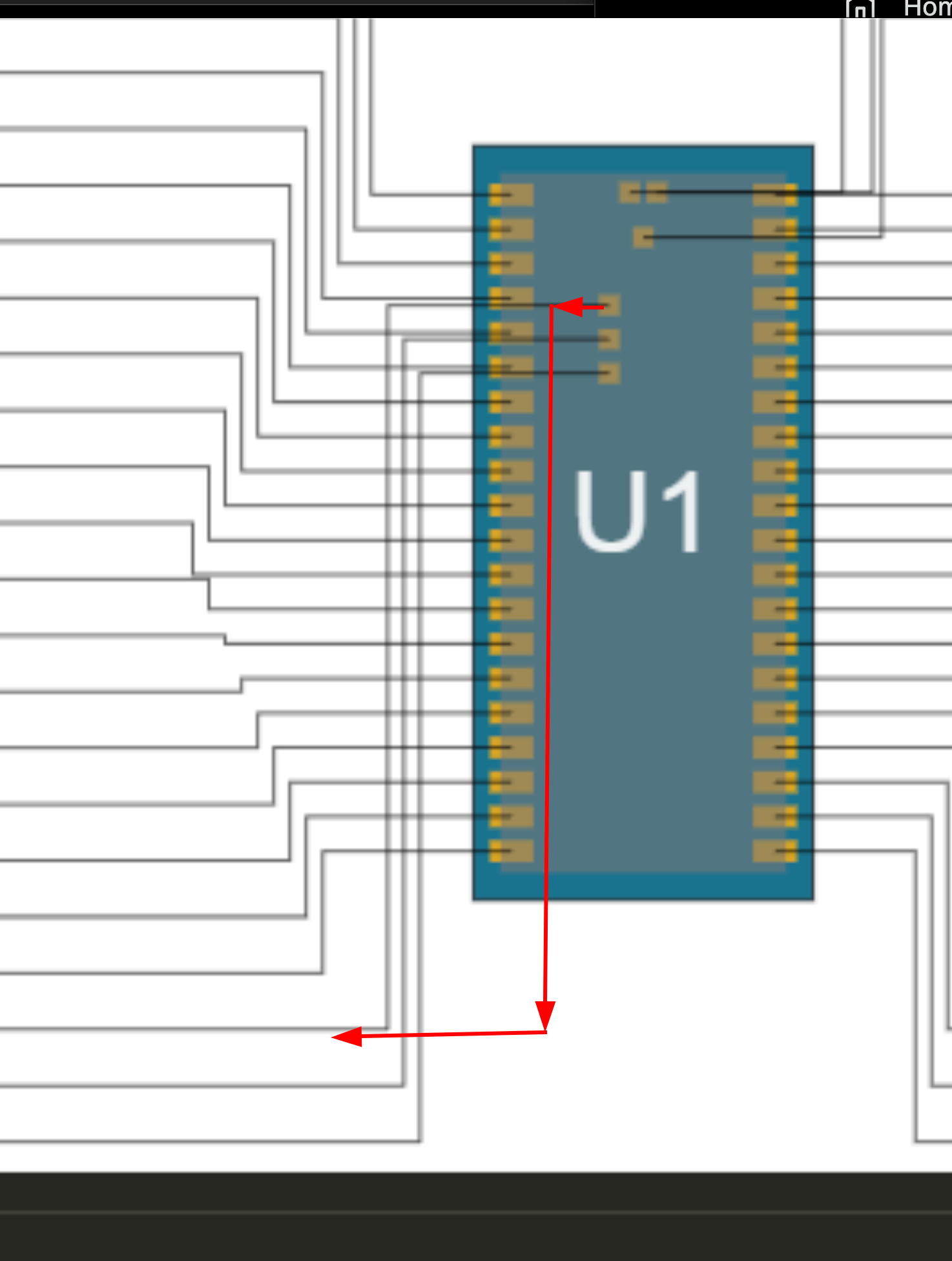

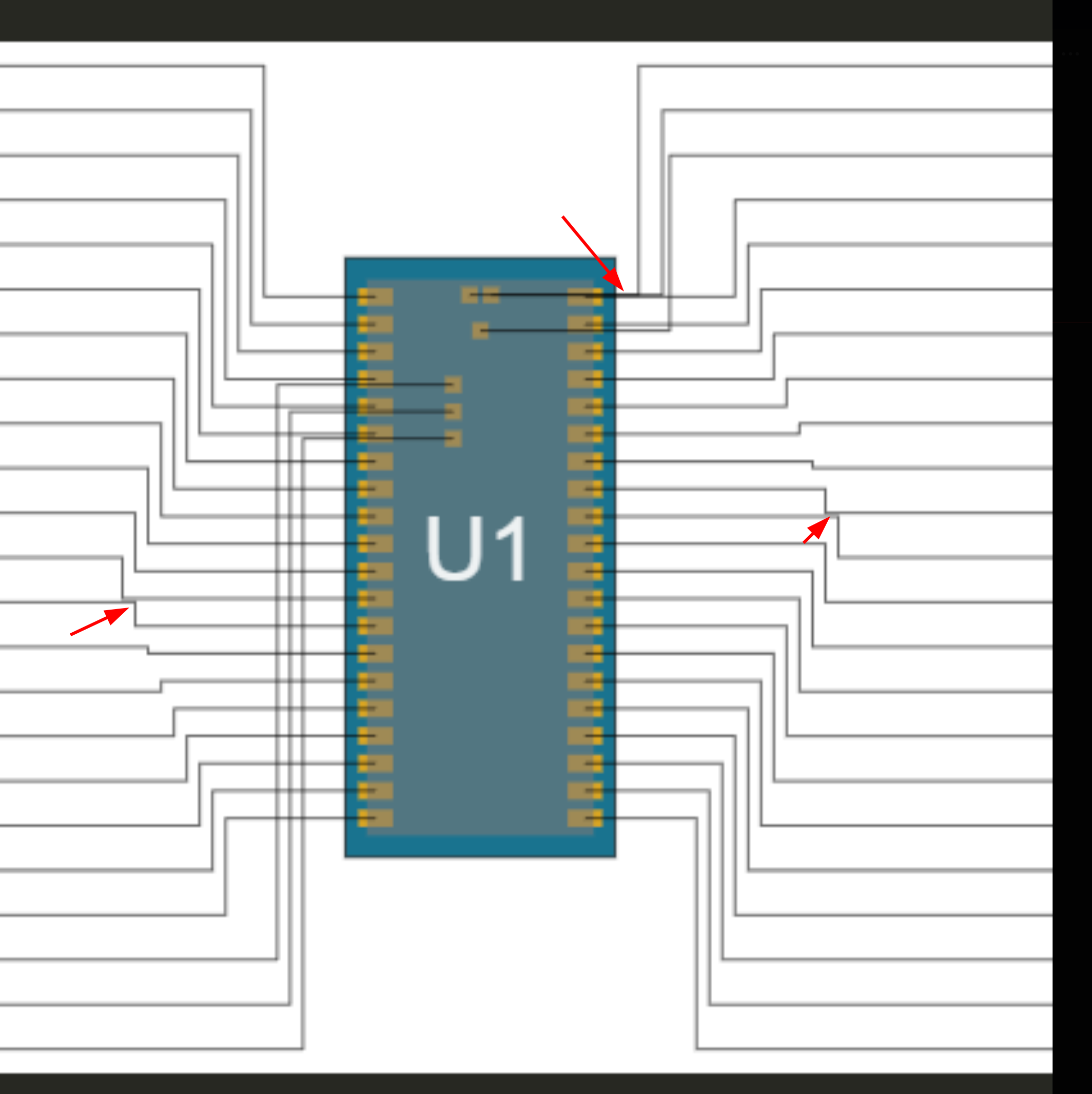

i think there are a couple bugs in the pinout, i don't think that bounty is ready to be claimed, there's overlapping traces, the rotation bug, and the multi-label support doesn't seem to work right

SeveOP•2w ago

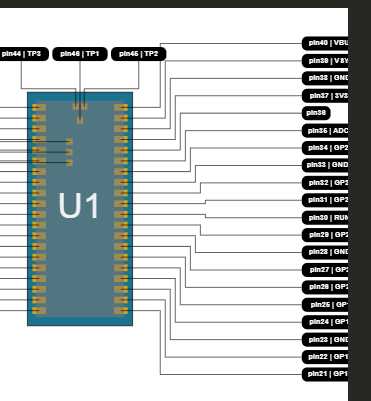

it's separating multi-labels with a "|" symbol

import { PICO_W } from "@tsci/seveibar.PICO_W"

export default () => (
  <board>
    <PICO_W
      name="U1"
      pcbRotation="90deg"
      pinAttributes={{
        GND_AGND: { includeInBoardPinout: true },
        "3V3_EN": { includeInBoardPinout: true },
        "GND1": { includeInBoardPinout: true },
      }}
    />
  </board>
)

import { PICO_W } from "@tsci/seveibar.PICO_W"

export default () => (
  <board>
    <PICO_W
      name="U1"
      pcbRotation="90deg"
      pinAttributes={{
        GND_AGND: { includeInBoardPinout: true },
        "3V3_EN": { includeInBoardPinout: true },
        "GND1": { includeInBoardPinout: true },
      }}
    />
  </board>
)

like it doesn't need to be perfect to claim the bounty but i think it's missing some important things the main thing for a bounty is "would the end-user accept it" even begrudgingly- I also mentioned this to @Anas , but ultimately if an end-user wouldn't accept the result there shouldn't be a claim on the bounty

shibo•2w ago

I'll use this as a test case

SeveOP•2w ago

I can fill out the rest of the pin labels if it's helpful?

shibo•2w ago

ofcourse thanks

SeveOP•2w ago

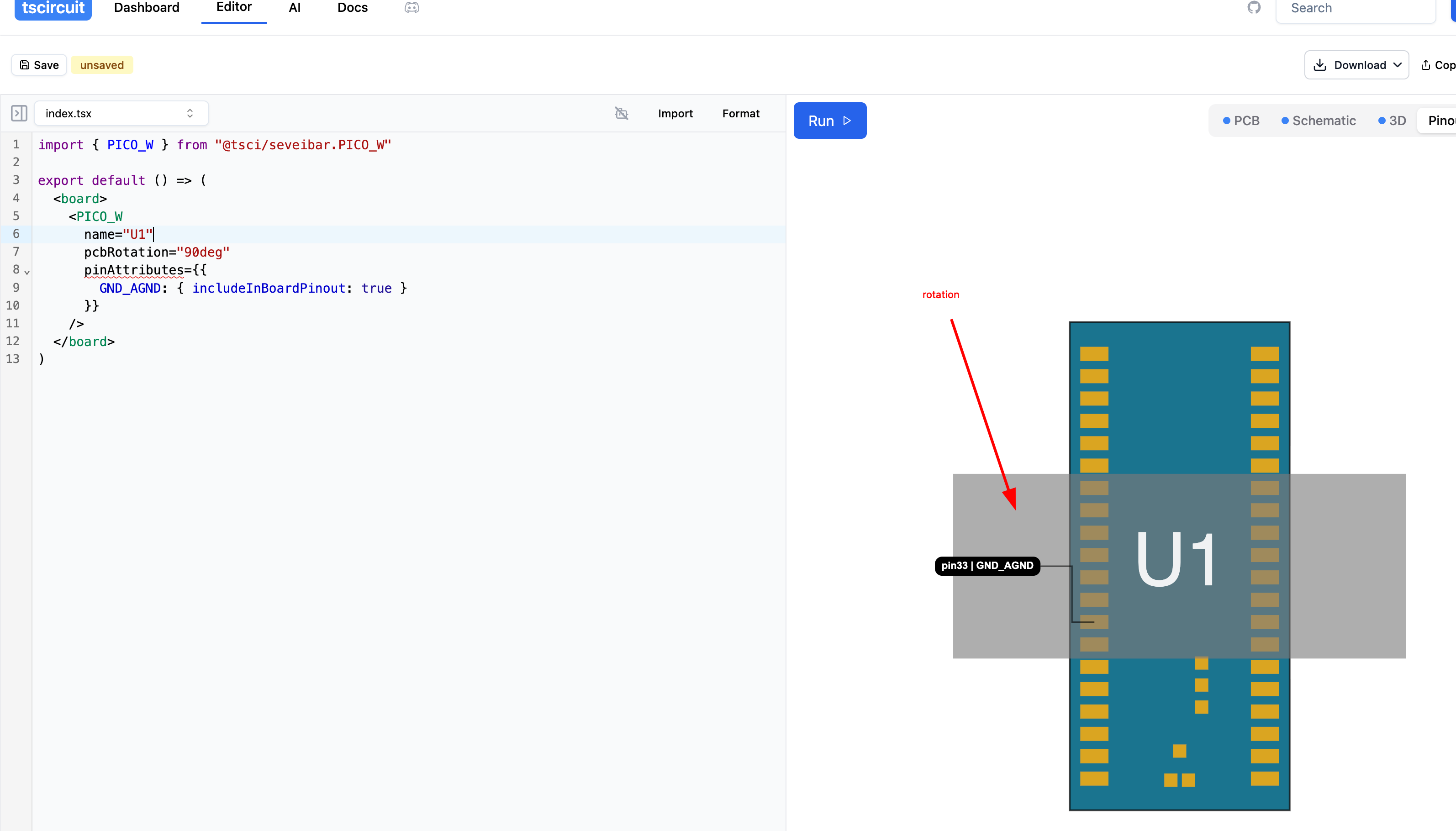

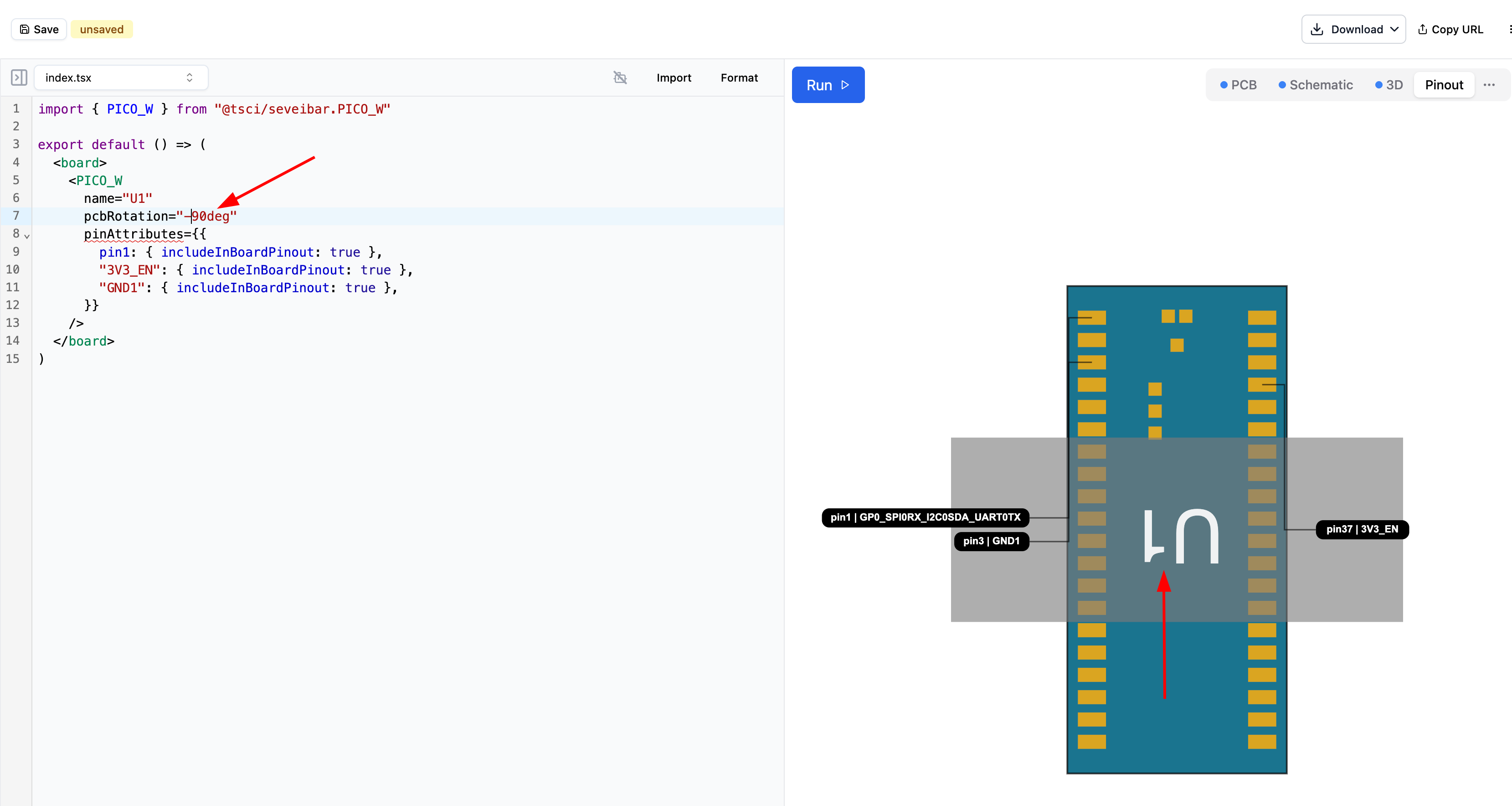

i also flipped to -90deg and noticed it flipped the U1 designator

shibo•2w ago

it should never flip

SeveOP•2w ago

this might be something we do in assembly incorrectly too(?)

shibo•2w ago

how do you want the seperation to be? separate boxes?

SeveOP•2w ago

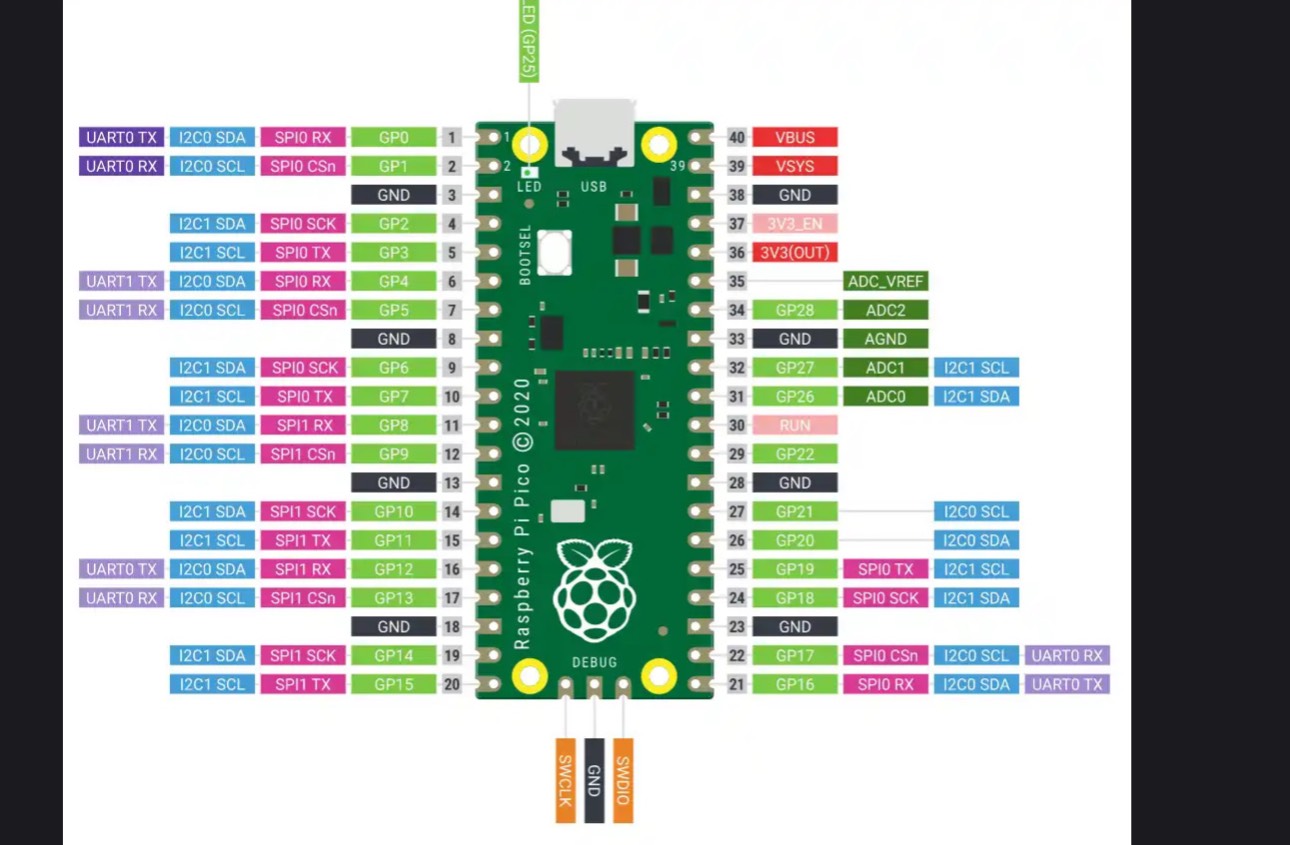

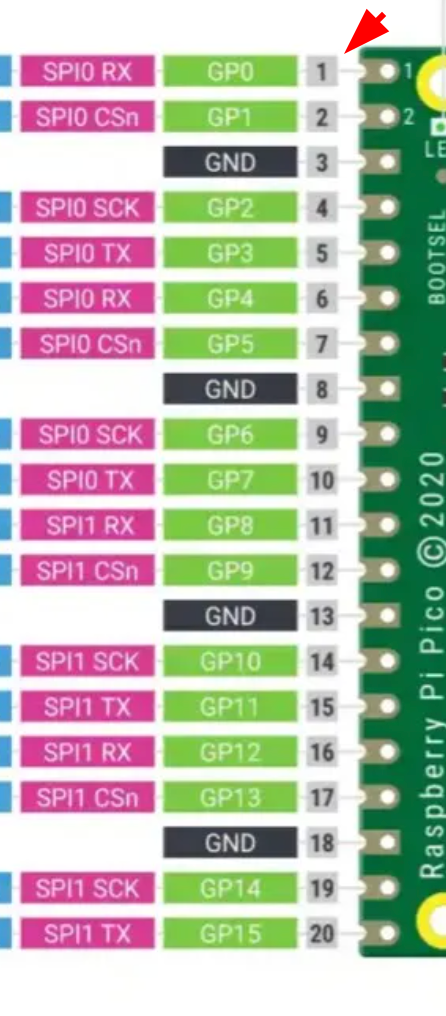

yea, you can see that they do this kind of organized separation as well

SeveOP•2w ago

and see the pin number on the right side? Looks great

SeveOP•2w ago

RE: how to determine the label order- you probably need to consider the "side" it's on, to reverse the sort, but otherwise you can just do a sort we'll let the user specify something like pinoutPrefixColors={{ "GP": "green", "SPI": "pink" }} in future work

SeveOP•2w ago

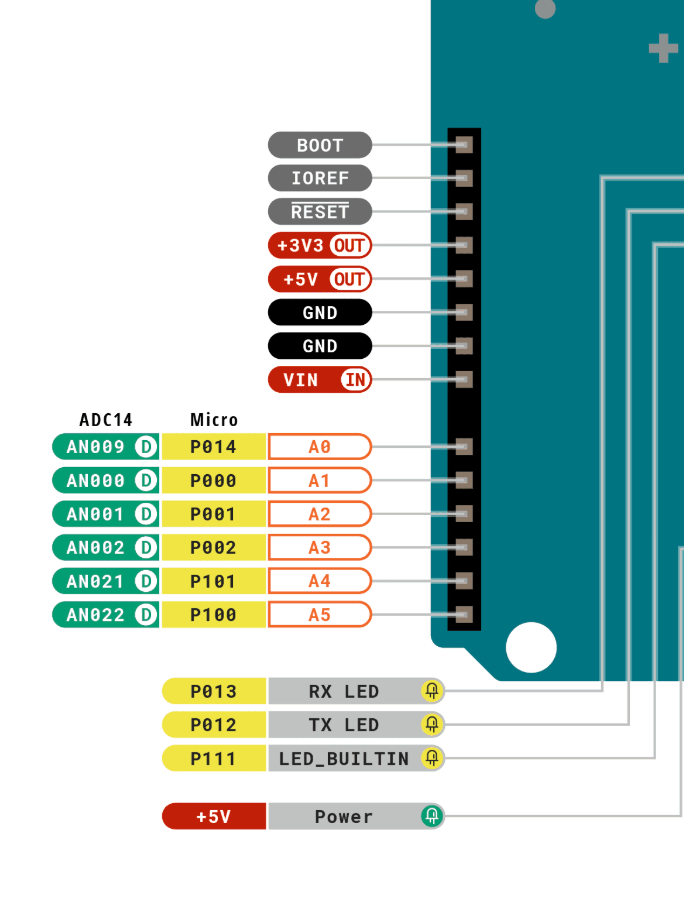

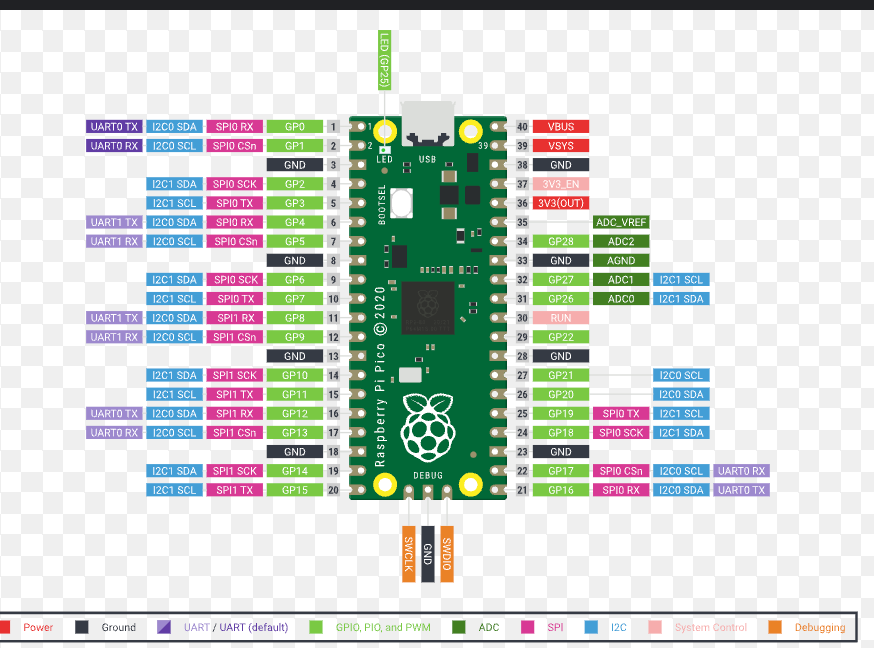

just posting more design references

shibo•2w ago

what ordering, the labels should just align with their pads right?

SeveOP•2w ago

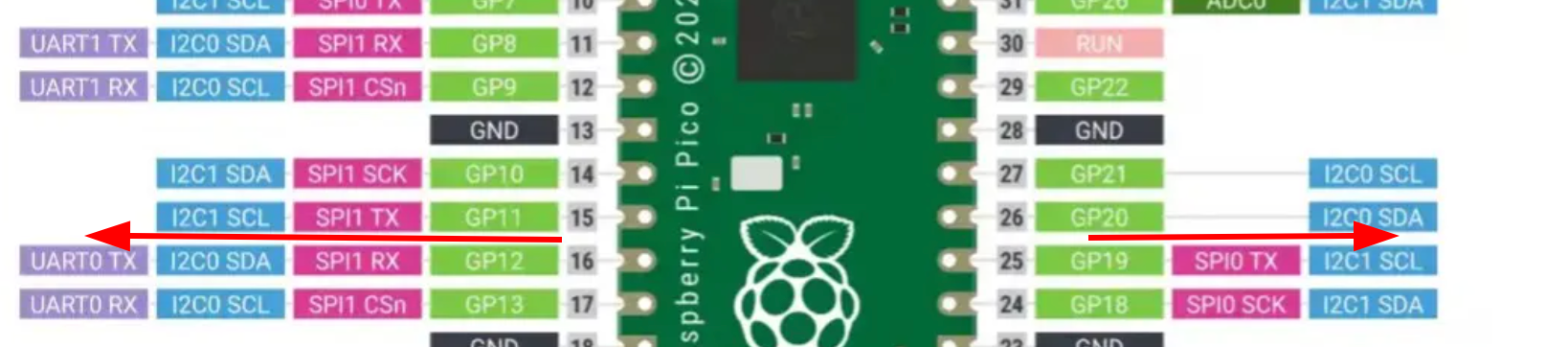

I mean the ordering of label pills, i.e. ["SPI1_RX", "GP8", "pin11"] basically you flip the alphabetical sort order based on what it's facing direction is

SeveOP•2w ago

i.e. GP is always closest to center

SeveOP•2w ago

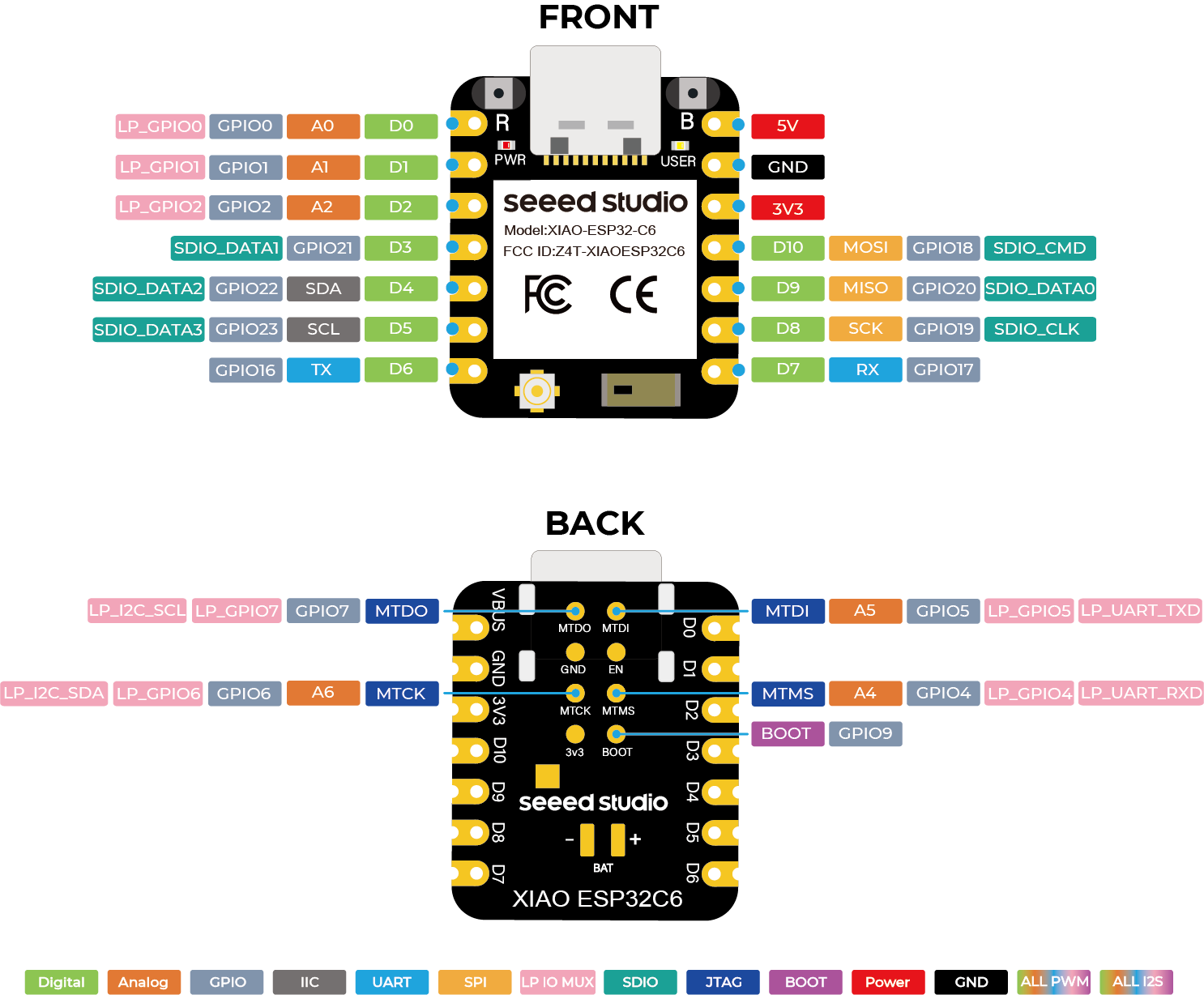

another design reference, i think this has the best "pills"

shibo•2w ago

👀

SeveOP•2w ago

ah yea sorry got distracted

SeveOP•2w ago

https://tscircuit.com/editor?&snippet_type=board#data:application/gzip;base64,H4sIABEx0GgAA1VPTWvDMAz9K8LskFBoVhiDpUnZx6mnlcHYYR6rkzhDkMjBkUeGyX+fnW7QIh309PSkJy+QGj2teZxELrAfjGXwcNg/PX++wQytNT1Icc9jjdmovzVWyq5PtBSSJNWGRoYB6YHZYuVYj7miHyjBz5JaYyHpNAOGxmaLUJRwc7vF1SoFLwkuhe/HAK88zsePqAekunON3tOjUbY5IBnHObB1GsLukDH0tJhudKtcx5CkUO4gibuLKsp2sQzgz/QCAEj1upTidRO/OLWGunoxrBgNBebuutFfZ+S5z9JfwGAkjmTLpSL7v5qK+RdkQIB9XwEAAA==

Editor - tscircuit

Design and edit electronic circuits online with tscircuit's powerful web-based editor. Create schematics, PCB layouts, and 3D models with code.

SeveOP•2w ago

technically it should be -90deg tho https://tscircuit.com/editor?&snippet_type=board#data:application/gzip;base64,H4sIADgx0GgAA1VPTWvDMAz9K8LskFDWrDAGS5Oyj1NPK4OxwzxWJ3GGIJGDo4wMk/9eO22hRTro6elJT04gVXpccj+KVGDbGcvgYLd9ffv5hAlqa1qQ4on7EpNe/2kslF0eaSkkSSoN9Qwd0jOzxWJg3aeK/iEHN0mqjYWo0QzoG6s1QpbD/cMaF4sYnCS4Fn7tPbxxOO2/gx6Qymao9JZejLLVDskMnALbQYPf7TOEHmfTla7V0DBEMeQbiMLurAiyTSg9OJmeAQCpVudSfKzCF8dWVxbvhhWjIc/cPt5V+veCvTSauyvonYSRZD6VJeezsZgOE+Yq5WABAAA=

Editor - tscircuit

Design and edit electronic circuits online with tscircuit's powerful web-based editor. Create schematics, PCB layouts, and 3D models with code.

shibo•2w ago

Its so buggy Good test

shibo•2w ago

@Seve there shouldn't be pinouts in the top right? they should just aligned left or right

SeveOP•2w ago

we could allow for customization of it later, i think it depends on the label sizes tbh short term maybe just have it be a non-user-configurable flag and go with left/right?

shibo•2w ago

I cant find examples of up down positionsb Looks like its unconventional

SeveOP•2w ago

yea ok

shibo•2w ago

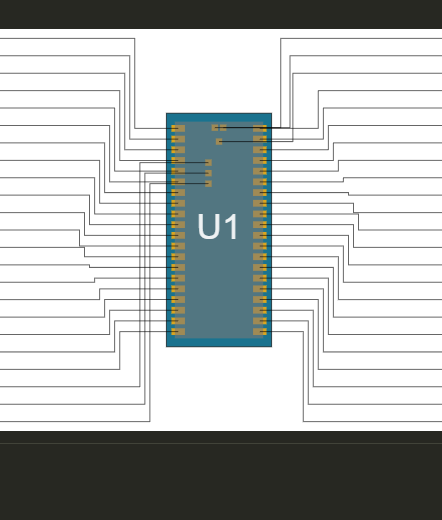

@Seve how are these looking?

SeveOP•2w ago

definitely better but there's still a lot of issues right, why do we need to space these out at all btw?

SeveOP•2w ago

there really shouldn't even be many lines in this particular pinout

SeveOP•2w ago

like how are you determining that pin label pill size? it seems like if the pills were scaled appropriately there wouldn't be a need for the lines that could be a board property or something too, like <board pinoutLabelHeight="0.075in"> but I also think we should have a default that matches the 0.1in jumper convention by default

shibo•2w ago

I didn't think of scaling the pills with the pad width

SeveOP•2w ago

i don't think they should be, i think all pills should be the same size, it's just that almost all of these types of boards have conventional 0.1in jumper spacing, so our default should just set the pill height where boards with this type of common jumper work perfectlyu

shibo•2w ago

@Seve those pills that read sideways, do they look good?

SeveOP•2w ago

i would avoid them sorry for the delay
