Seve - wow check out the graph codex generated ...
wow check out the graph codex generated for for the spice stuff, this is pretty hardcore
3 Replies
we probably want to have them on the same plot though, or maybe allow the user to specify...

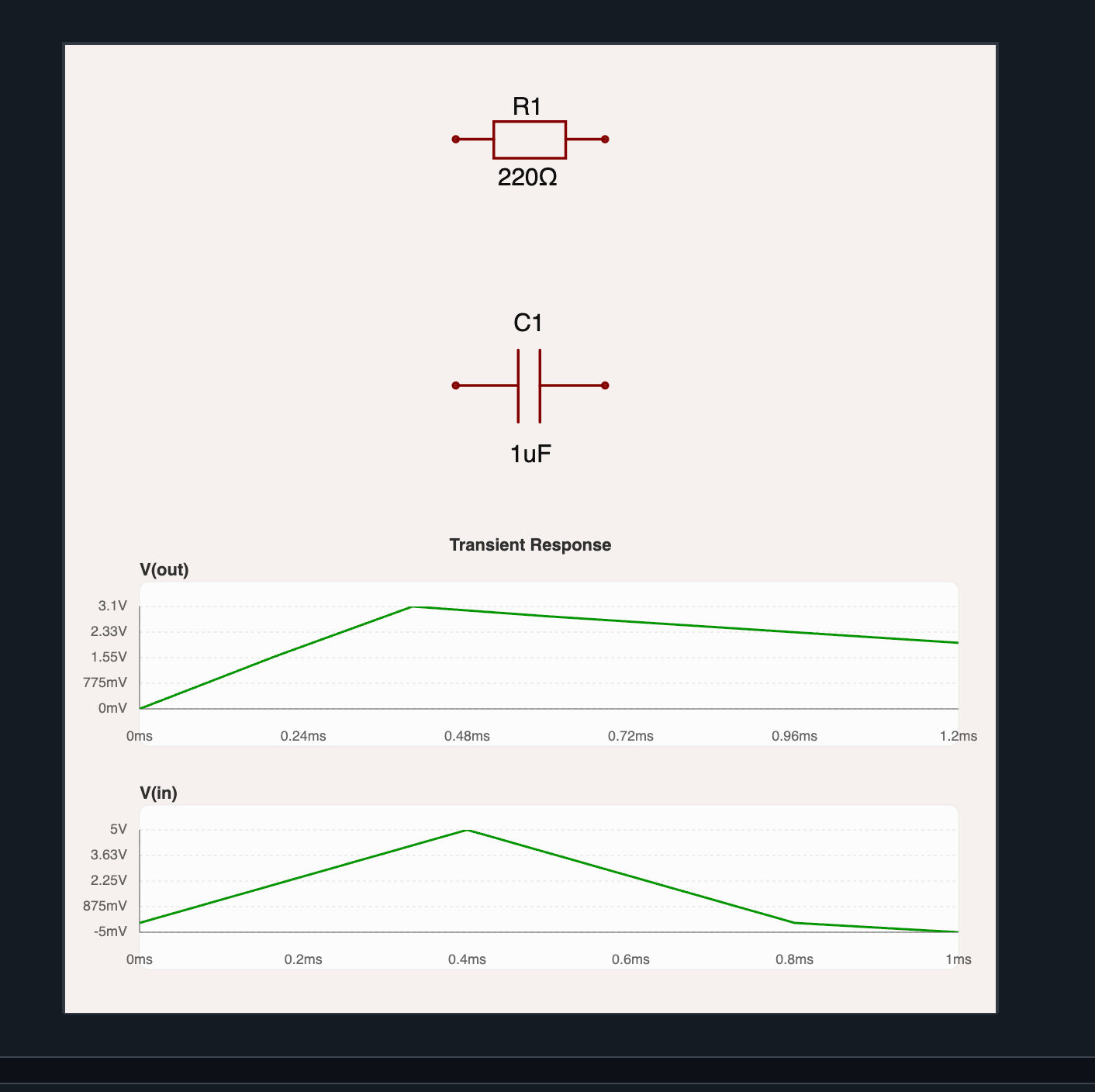

codex also generated a version of the schematic-with-graphs svg
CC @shibo wish i had finished this today but good chance we can do it tomorrow
I'm thinking we just have ONE graph, and that graph has all the probes that the user selects/specifies
so circuit-to-svg will take the experiment as well as the probe ids as parameters. If no probe ids specified we show them all
going to be so sick to have SPICE snapshots on our docs that also show the schematic
