V-Core 4 400mm from CoreXY to Hybrid
Hello,
I am trying to getting from CoreXY to Hybrid. I tightened the Hybrid Y belts well looser than the A/B belts. I took special care in cutting AND installing Y belts in the same way.

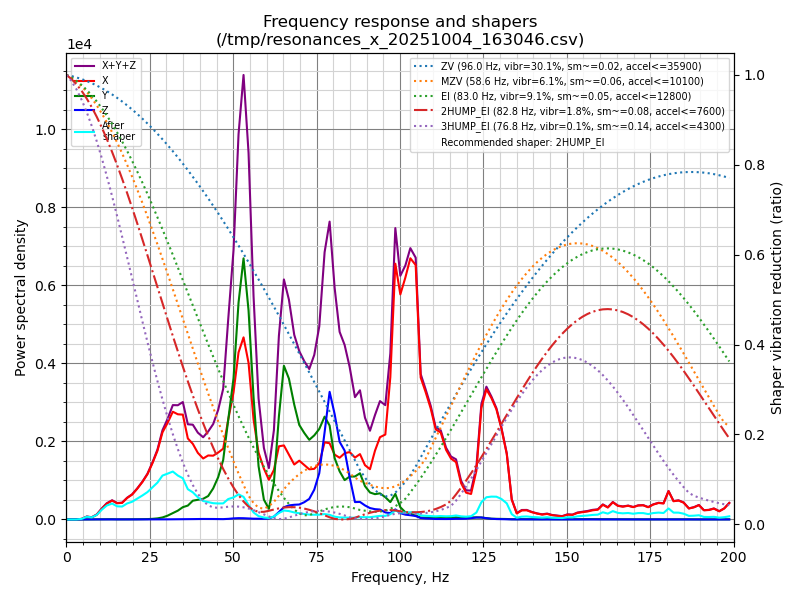

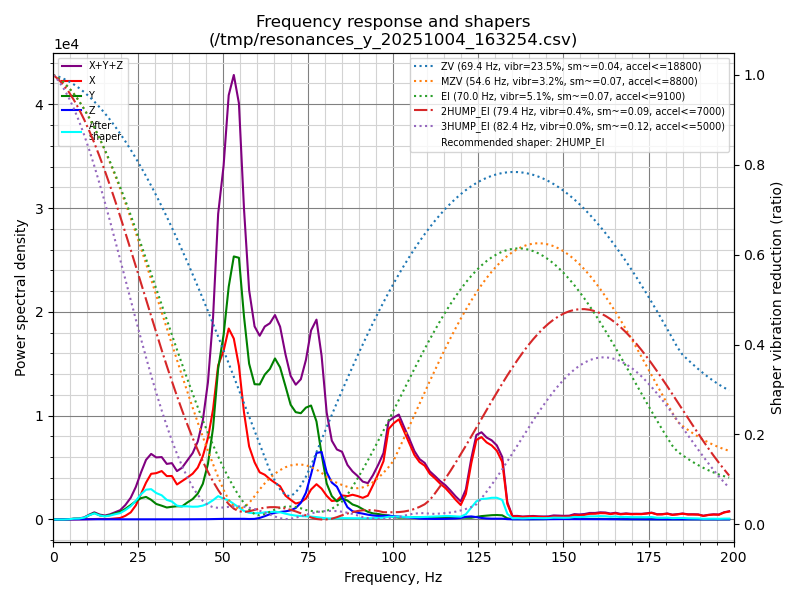

I just cannot make sense of the results.
Is someone skilled enough to guide me in fixing this?
Thank you very much.
2 Replies

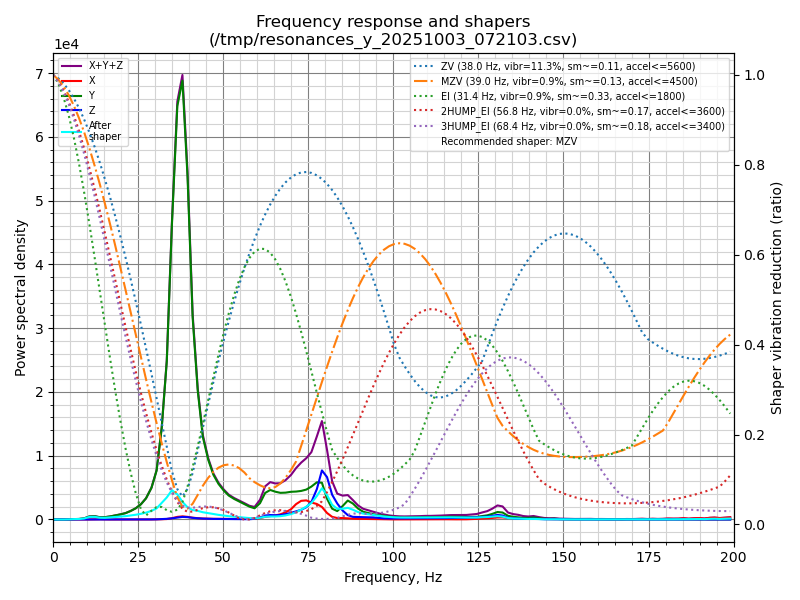

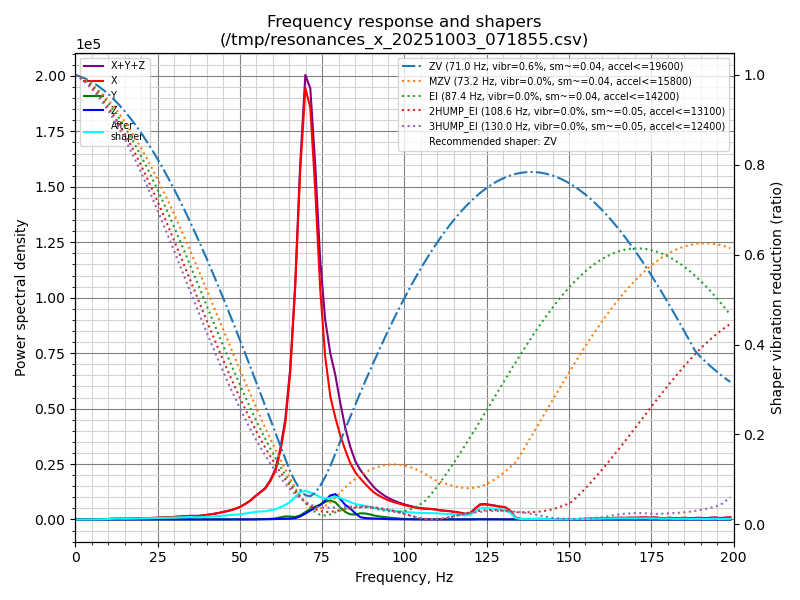

When in CoreXY I was using mzv for X and 2hump_ei for Y axis which print quality was great. Thank you.

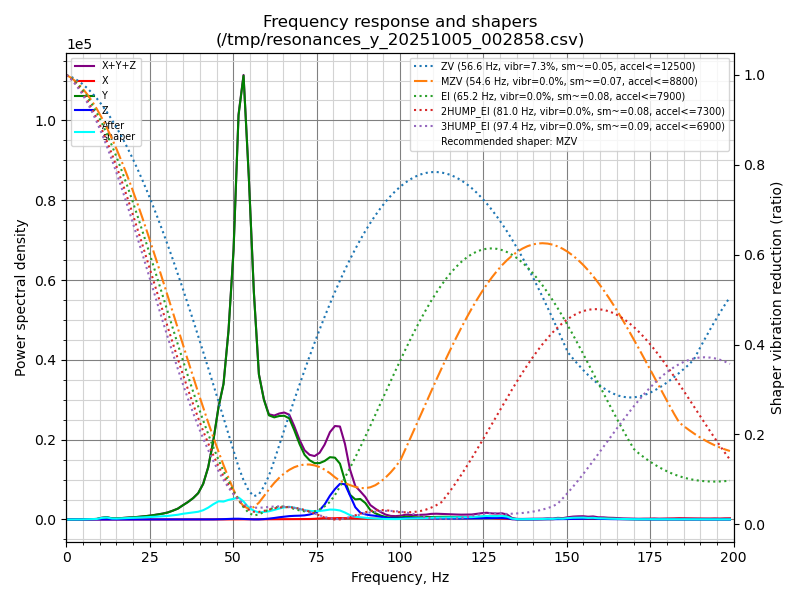

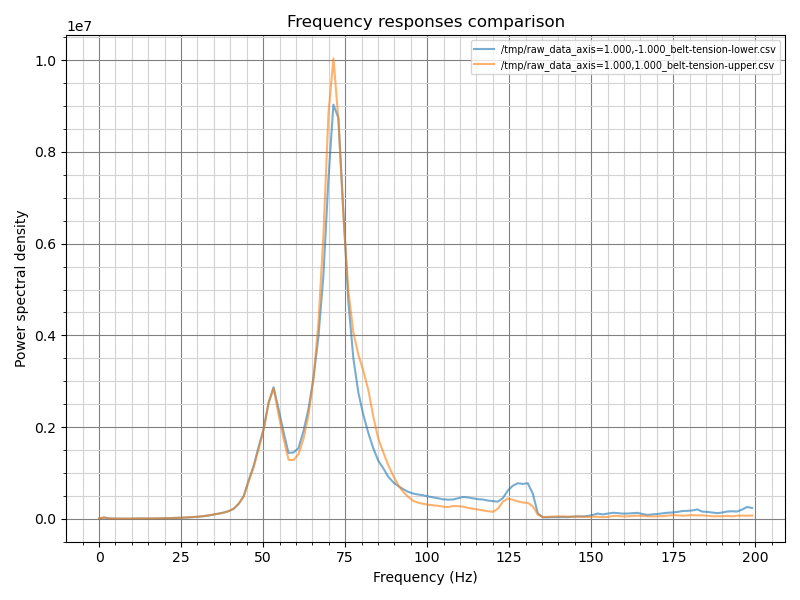

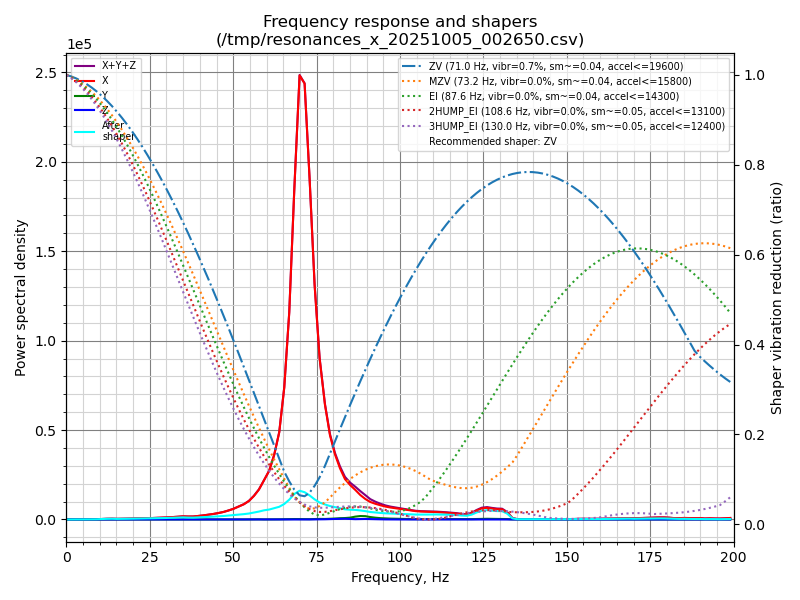

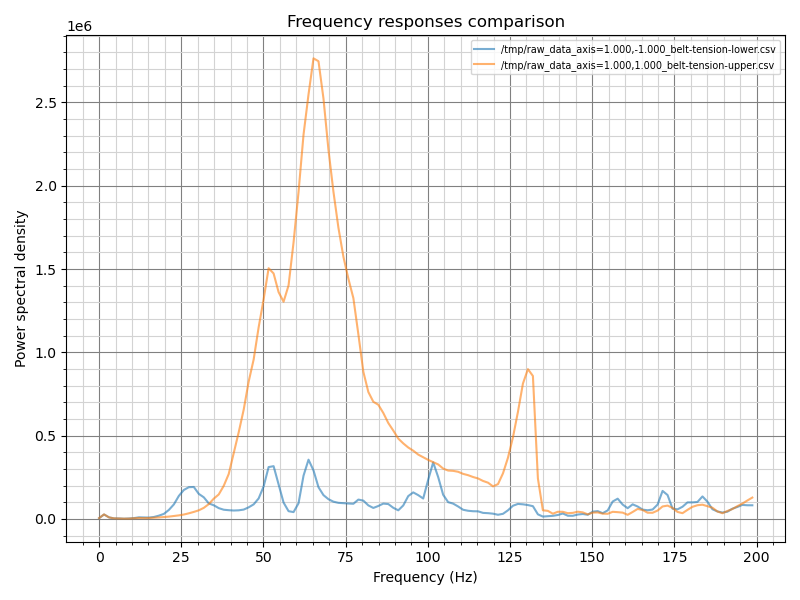

I am increasing hybrid Y belts tensions as described in the guide, graph looks similar.
Spotting a CORE issue, B motor (right) wasn't plugged into the right connector. OMG!
Basically B motor wasn't moving at all. So other's made their best to make it move ...
That's a victory!
