Y-Axis issues

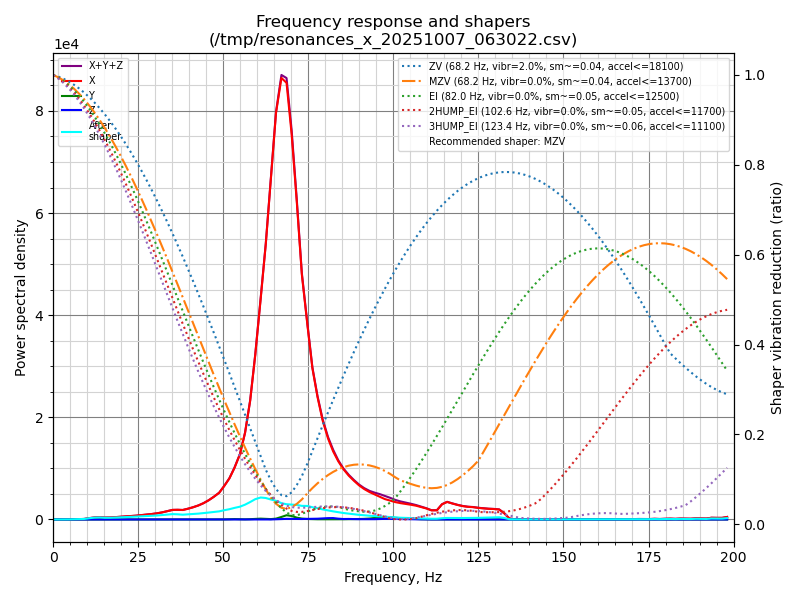

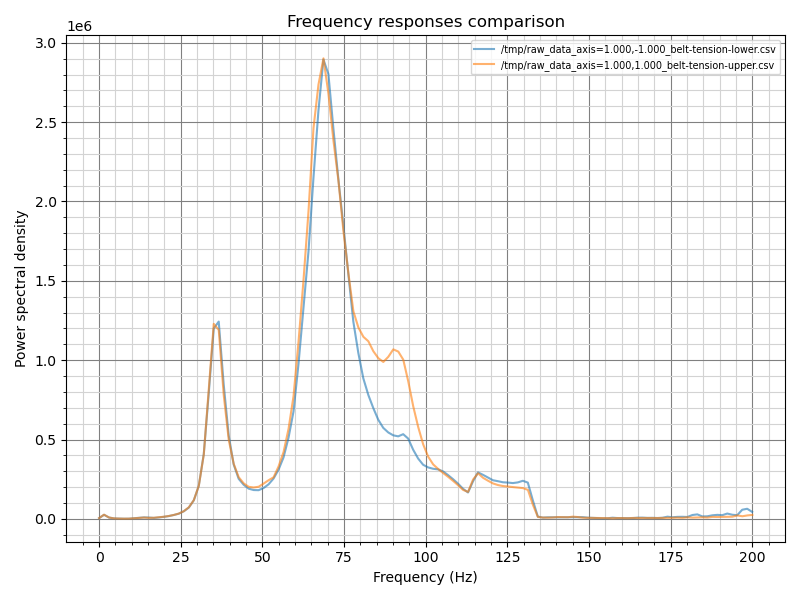

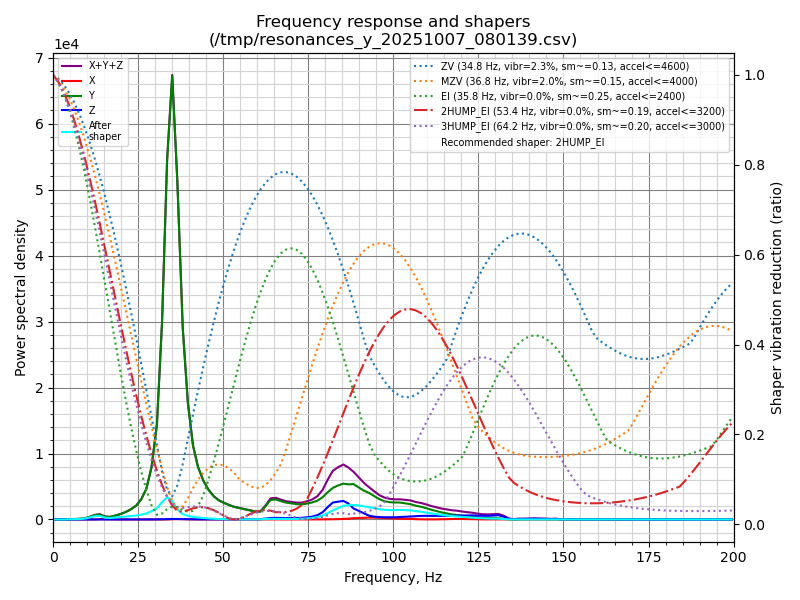

Been fighting with this one ever since commissioning, X axis looks pretty decent but Y is just garbage and not too sure where to start looking. I've tried messing with the belt tensions, X/Y joiners and retightened every bolt on the toolhead yet but nothing has made any difference what so ever. Curious if anyone has seen similar?
VCore 4 400mm
4 Replies

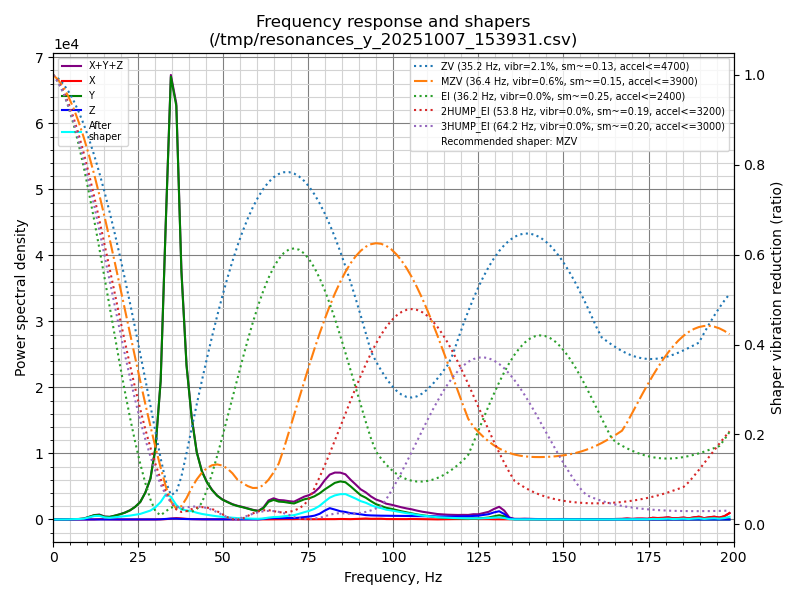

well, I finally got some sort of improvement by cutting off every ziptie from the umbilical and only having it attached to the tool head. still not where it needs to be though
Took my entire toolhead apart, found the parts fan was loose and was certain that was it. Got everything back together and sure as shit it made zero difference lol.

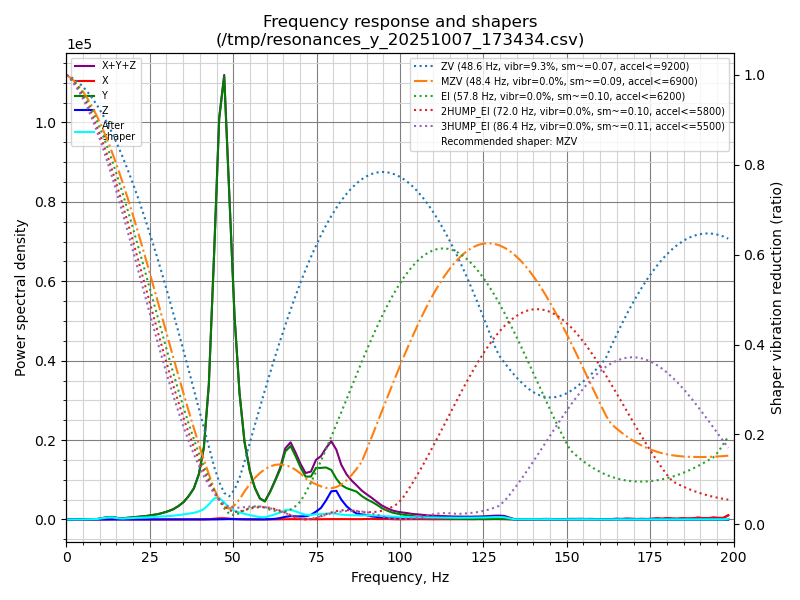

After spending an entire day on it and making close to no progress, said fuck it and threw the hybrid belts on and ran shaper again and got this. 6900 accel good enough for me, I'm sure there's more left on the table but it's already over the default slicer profile settings anyways. I'm only just getting my feet wet in the 3d printing world so there isn't really a concern trying to max out accelerations.
I'd be curious to know what a proper Y shaper graph looks like (with or without hybrid belts) to compare.

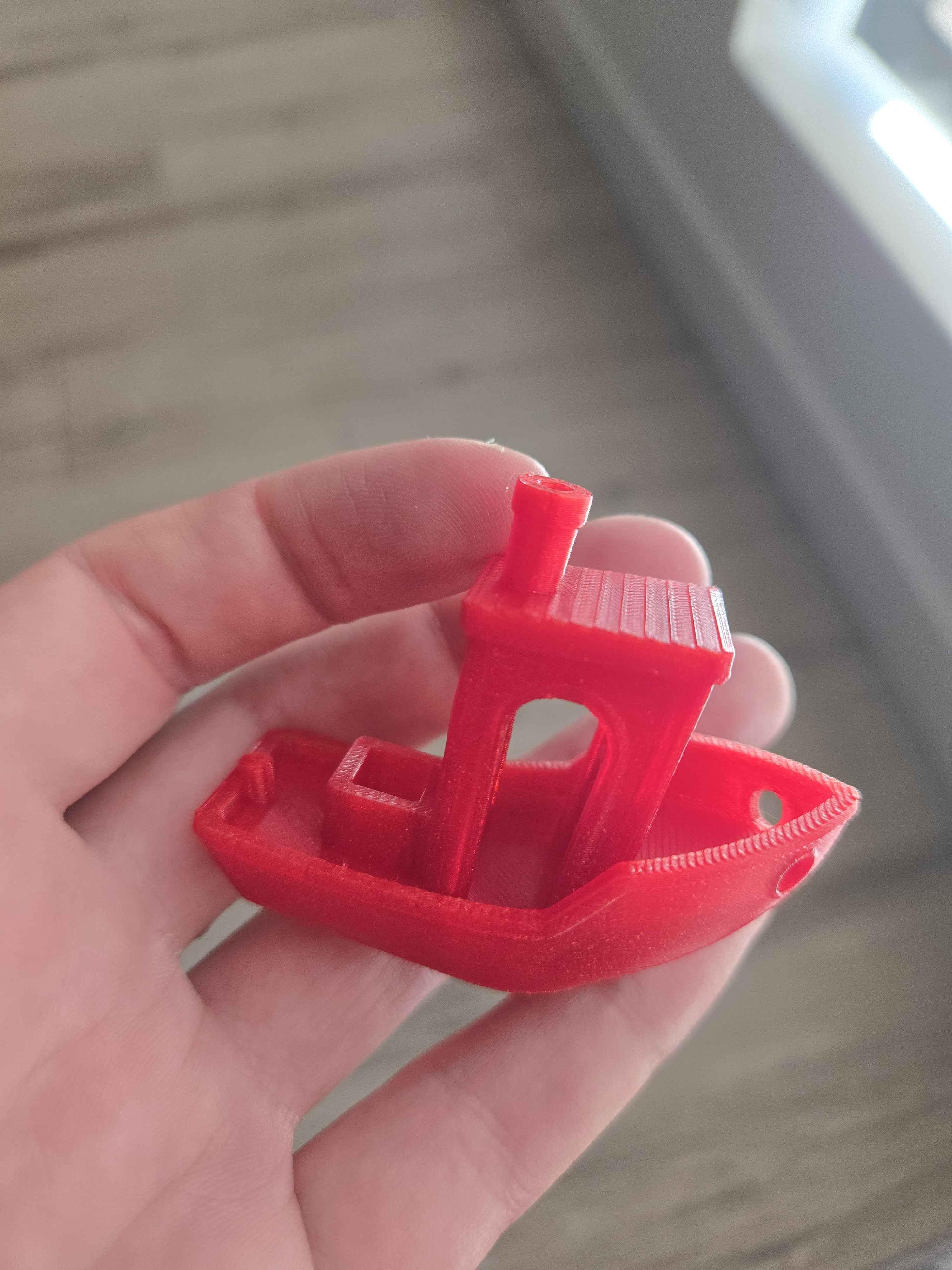

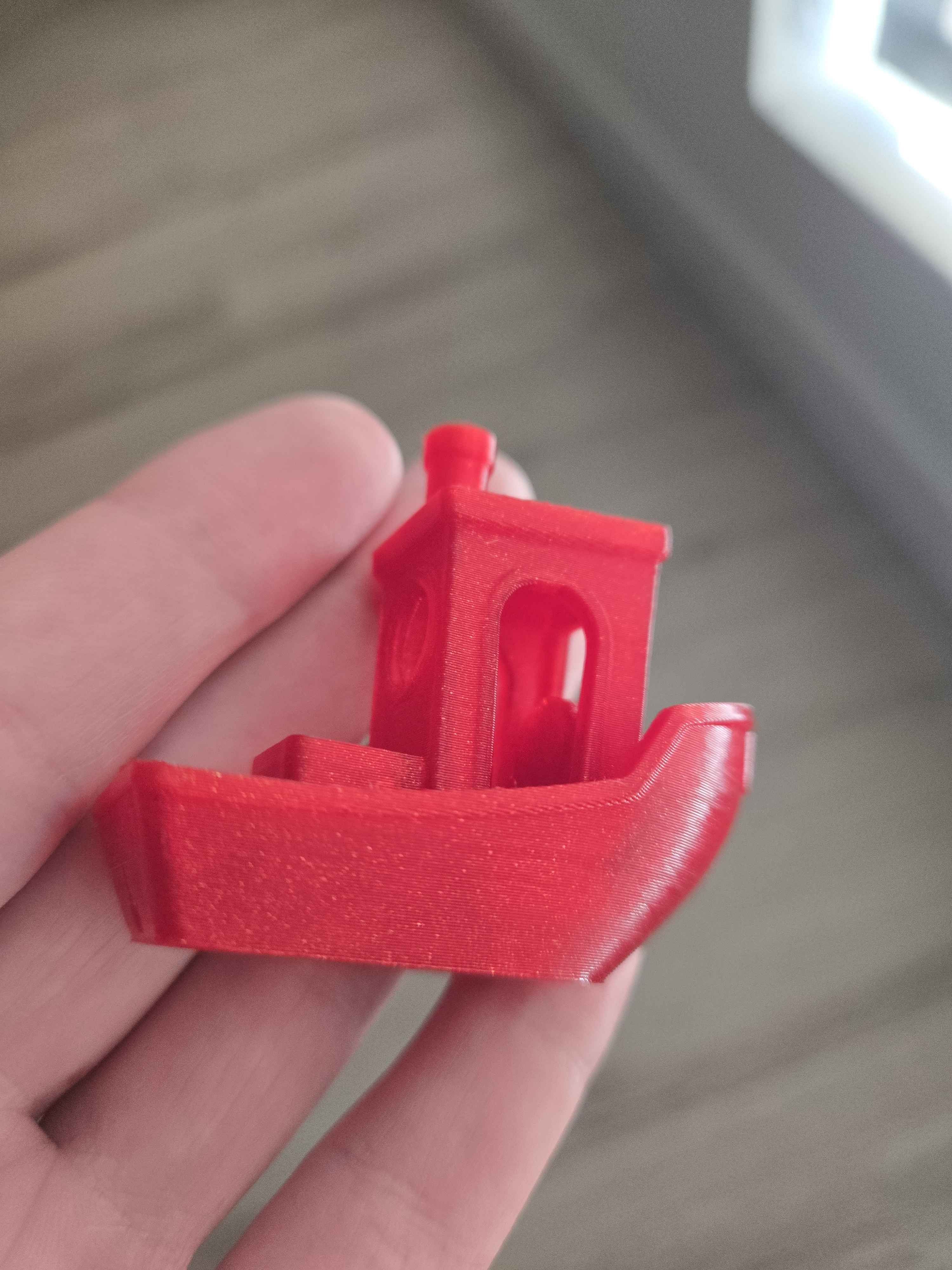

To my untrained eye the benchy looks pretty decent as well.
